Complete Guide to 4-Wire Trailer Lighting Wiring for Left and Right Signals
Connect the brown conductor to the tail lamps on both sides–this ensures uniform illumination without polarity concerns. Attach the yellow lead exclusively to the driver-side marker light and gray to the passenger-side counterpart. This separation prevents cross-circuit interference, a common failure point in shared ground setups.

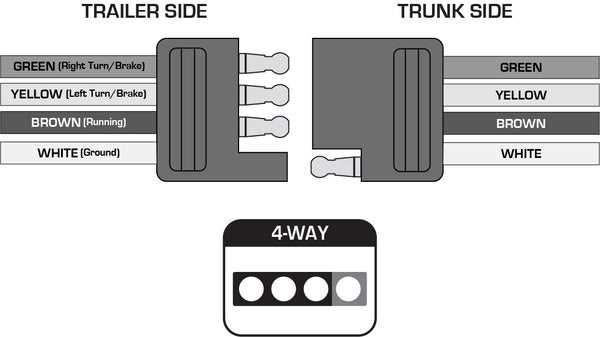

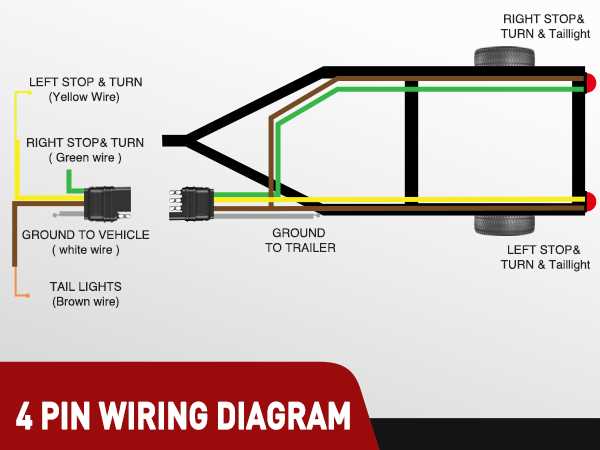

Use a 4-way flat plug for standardized compliance: brown (tail/running), yellow (left turn/stop), gray (right turn/stop), white (ground). Verify each junction with a 12V test probe–open-circuit indications mandate immediate resoldering or crimp replacement. Avoid twist-and-tape joints; corrosion-resistance terminals (heat-shrink or butt connectors) are non-negotiable for longevity.
Ground the white conductor directly to the frame at a bare-metal point within 18 inches of the lighting assembly. Paint or rust coating at the attachment site disrupts conductivity–scrape to bare metal before securing with a star washer and 10/32 stainless fastener. For trailers exceeding 3,500 lbs, integrate a separate ground bus bar to handle increased amperage and prevent voltage drop.
Route all conductors in a continuous run without splices beneath the chassis to minimize vibration-induced fatigue. Secure every 12 inches using UV-resistant zip ties or padded clamps. Exposed lengths should have a minimum of 14 AWG capacity even if the manufacturer lists 16 AWG–this safeguards against heat buildup during sustained brake activation.
Validate functionality in sequence: tail lamps (brown), driver-side signal (yellow), passenger-side signal (gray), then simultaneous brake engagement. If the gray conductor triggers the yellow circuit (or vice versa), trace for misrouted strands–incorrect assignments can fry LED modules rated below 200mA in under three seconds.
Understanding Dual-Channel Connector Configurations for Towing Vehicles
Connect the lighting circuits using the standardized 4-pin flat plug system, ensuring correct lateral side alignment: the brown conductor carries running lamp voltage to both rear clusters, while yellow (port) and green (starboard) lines activate corresponding turn and brake signals. Verify polarity with a multimeter–reversed connections on these two channels will cause simultaneous illumination, compromising visibility during maneuvers. For vehicles equipped with separate braking circuits, use a 4-pole harness adapter that maintains individual control paths before merging into the tow vehicle’s existing plug.
| Pin Position | Color Code | Function | Vehicle Load Capacity |
|---|---|---|---|
| First (Top) | White | Ground | 20A max |
| Second (Left) | Yellow | Port Signal/Brake | 10A continuous |
| Third (Right) | Green | Starboard Signal/Brake | 10A continuous |
| Fourth (Bottom) | Brown | Running Lamps | 15A peak |
Route cables through protective loom tubing along the chassis underside, securing every 45cm with nylon clamps–avoid sharp metal edges that could chafe insulation within 12 months. Test lateral brake responsiveness by activating each direction individually: both rear lights should flash in sequence without cross-talk; if synchronization issues occur, inspect the grounding point (typically a 1/4″ ring terminal secured directly to unpainted metal) for oxidation or insufficient torque. Replace any damaged connectors showing heat discoloration–typically caused by exceeding 1.5 ohms resistance in the circuit path.
Understanding the Basic 4-Conductor Vehicle Lighting Setup
Always match the connector’s pin arrangement to the towing vehicle’s output before installation–misalignment causes signal failure. Standard color-coding for a four-strand harness follows this sequence: brown (running lights, outer layer), yellow (driver-side illumination), green (passenger-side illumination), and white (ground, central base). Verify each strand’s continuity with a multimeter before securing connections to prevent intermittent lighting issues.
Key Installation Precautions
Avoid routing strands alongside high-current cables such as brake lines or battery feeds–electromagnetic interference distorts signals. Secure strands every 18 inches using non-metallic clips to prevent abrasion against sharp chassis edges. Apply dielectric grease to terminals before crimping to block moisture ingress, which corrodes contacts within weeks. If the towing platform uses a different color scheme (e.g., red for stop lights), cross-reference the manual to confirm function assignments–never assume uniformity across manufacturers.
Test functionality in this order: activate marker lamps, then turn indicators, followed by brake engagement. If a strand fails, check for loose crimps or corroded terminals first–replacement harnesses often introduce faults during installation. For LED assemblies, confirm voltage drop across strands does not exceed 0.5V; exceeding this threshold causes dimming or flickering that mimics a faulty bulb but stems from insufficient current delivery.
Ground the white strand directly to a bare metal surface on the frame–paint or powder coating acts as an insulator, creating resistance that weakens signal strength. Use a 10-gauge strand for the ground to handle peak current surges from simultaneous brake and indicator activation. If retrofitting an older coupling with modern lighting, add a resistor in parallel to each LED circuit to mimic incandescent load characteristics–failure to do so triggers hyper-flashing in the tow vehicle’s dash warnings.
Color Standards for Port and Starboard Turn Indicators
Connect the amber or yellow conductor to the signal lamp on the front-rear side corresponding to the steering wheel stalk for lane-change warnings. North American and European fleets mandate solid yellow for the forward beam on the driver side and either yellow/amber-striped or plain amber for the passenger-side beam; verify the local Department of Transportation bulletin before splicing. Match the voltage drop across both filaments–a tolerance of ±0.2 V prevents hyper-flashing–using a calibrated multimeter set to DC 20 V.
Alternate codes emerge on imports: Japanese equipment marks the nearside lamp with a green-hashed stripe against a white ground, while Australian units pair a solid brown lead for the offside lamp. Always isolate the circuit with a 10 A fuse rated 20 % above peak draw (typically 2.2 A per bulb at 12.6 V). Position the fusible link within 15 mm of the battery post to limit corrosion-induced resistance.
Ground Loop Prevention
- Attach the bare or green slotted terminal directly to the chassis; avoid paint or zinc coating–clean with 120-grit sandpaper.
- Use star washers on the mounting bolt to maintain ≤ 0.5 Ω contact resistance across temperature swings (-40 °C to +85 °C).
- Install a diode array (1N4002) upstream of each filament to block reverse current spikes exceeding 1.1 V.
Test sequence: activate hazard switch for 30 seconds to stabilize filament heat; switch to directional mode while monitoring with an oscilloscope measuring pulse width ≥ 180 ms. Replace bulbs exhibiting ≤ 40 % duty cycle or off-time exceeding 600 ms, indicating filament pitting. For LED clusters, add a 6.8 Ω ¼ W load resistor in parallel, ensuring compliance with SAE J560, ISO 1185, and UNECE R48.
Step-by-Step Guide to Connecting Side-Specific Conductors Correctly
Identify the port-side (driver’s view) terminal first by locating the yellow-coated conductor–this carries the turn or brake signal for that side. Secure it to the matching post on the vehicle’s harness using a crimp connector; avoid solder alone, as vibrations loosen joints over time. Verify polarity with a multimeter set to 12V DC; a steady reading confirms proper coupling. Repeat for the green-coated starboard-side conductor, ensuring both are isolated from ground to prevent shorts. Label connectors with heat-shrink tubing marked “P” and “S” to simplify future diagnostics.
Test functionality by activating each signal: observe flashes or brake illumination–irregular patterns indicate reversed leads or faulty bulbs. Trim excess conductor length within 10cm of the joint to reduce interference, then seal connections with dielectric grease before securing with electrical tape. For towing vehicles with separate brake and turn outputs, split signals at the plug using a 4-pin adapter; mismatched systems require a converter box. Document voltage drop across each circuit–values exceeding 0.5V suggest corroded terminals or undersized gauge.
Common Mistakes When Connecting Side-Marker Vehicle Lamps
Reversing the polarity on auxiliary lighting circuits causes immediate failure. Verify connector pins match manufacturer specifications before securing terminals–most European models mark the negative lead with a minus symbol, while North American standards often use a white insulation. Cross-referencing with a multimeter prevents voltage spikes that burn out LEDs prematurely.
Overlooking ground integrity during installation creates intermittent flickering. Corrosion on metal frames or loose bolts disrupts the return path, forcing current through unintended pathways. Use dielectric grease on connections and attach grounds directly to unpainted chassis surfaces for consistent conductivity.
Bypassing the fuse holder when extending circuits risks permanent damage. Each auxiliary lamp requires a dedicated 5-amp fuse within six inches of the battery terminal. Ignoring this guideline leaves insulation vulnerable to melting under sustained load, particularly in halogen assemblies rated above 50 watts.
