Step-by-Step Hunter Ceiling Fan Wiring Guide with Color Codes
For safe and reliable operation of your ceiling-mounted cooling system, begin by identifying the labeled terminals on the device’s motor housing. Most models feature a black (L) wire for live current, white (N) for neutral, green or bare copper for ground, and an optional blue or red wire if speed control is included. Verify these designations against the unit’s identification plate–incorrect pairing risks overheating or motor failure.
Before connecting, ensure the circuit breaker supplying power matches the system’s voltage requirements–typically 120V for residential units or 240V for high-capacity installations. Use a multimeter to confirm no residual current remains in the wires, then strip 1/4 inch of insulation from each conductor. Secure connections with wire nuts, twisting clockwise until tight, and wrap each joint with electrical tape to prevent loosening from vibration.

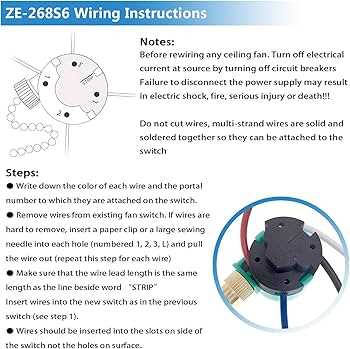

For pull-chain models, the internal switch interrupts the black lead; cap any unused wires with a nut and tape them inside the electrical box. Remote-controlled units often require a separate common wire (usually white with a colored stripe)–locate this in the controller’s manual and connect it to the matching terminal. If integrating with a wall-mounted regulator, ensure compatibility by checking the manufacturer’s voltage and amperage tolerances; mismatched components can void warranties or cause electrical fires.
After securing all connections, restore power and test each speed setting, listening for irregular humming or excessive noise. If the unit fails to start, recheck the ground wire–improper grounding often causes erratic operation or shutdowns. For installations in damp locations, use moisture-resistant connectors and consider a Ground Fault Circuit Interrupter (GFCI) breaker to meet local building codes.

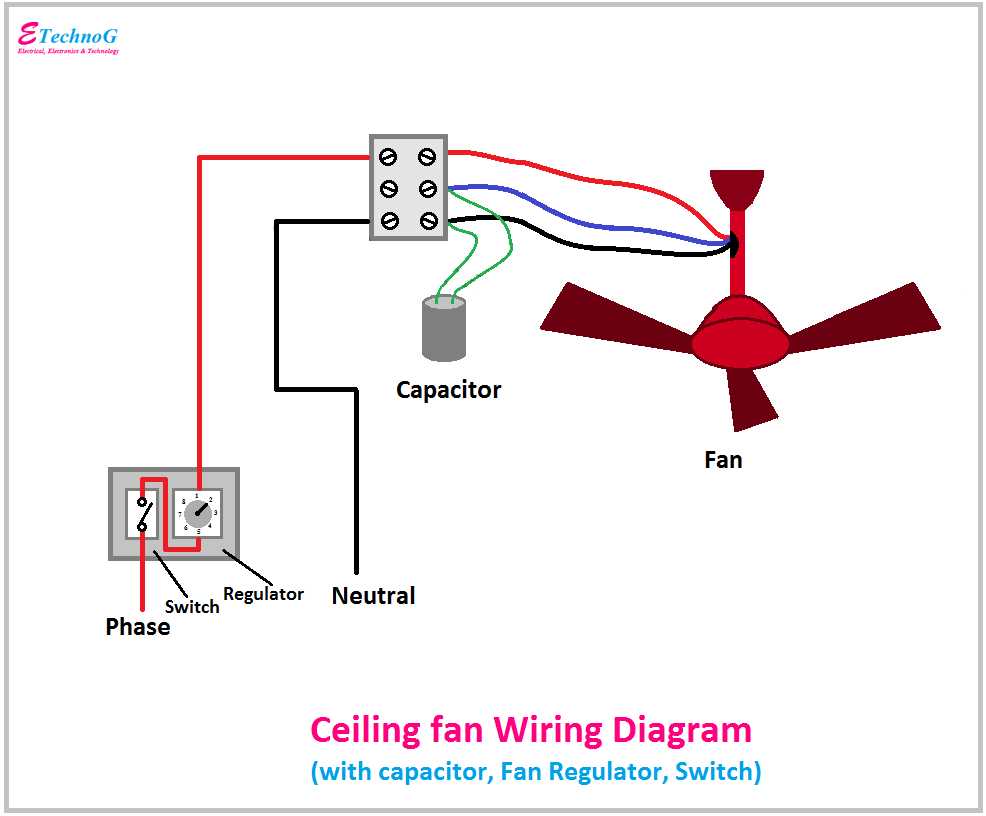

Retain the original schematic provided with the unit for future reference. If modification is needed, such as adding a light kit or remote module, disconnect power first and follow the supplementary wiring instructions step-by-step. Store the diagram in a labeled folder alongside receipts and warranty information.
Electrical Connection Guide for Ceiling Cooling Devices
Begin by identifying the three primary components in the junction box: the power supply wires (typically black and white), the ground (bare copper or green), and the optional light kit connections (if applicable). Match each terminal on the motor assembly to its corresponding wire:
- Black wire – connects to the live power source (hot lead).
- White wire – links to the neutral return path.
- Blue wire (if present) – designed for light kit activation, controlled separately via a wall switch.
- Green/bare copper – attaches to the grounding screw or wire.
Use wire nuts rated for a minimum of 14-gauge connections, securing them with a firm clockwise twist until no exposed copper remains. Verify tightness by gently tugging each wire. For models with a remote or wall control, ensure:
- The receiver module’s red lead aligns with the black (hot) supply wire.
- The receiver’s white lead pairs with the neutral (white) wire.
- The blue wire (if included) connects to the light kit’s input terminal, if used.
After securing all connections, fold the wires neatly into the junction box and attach the motor housing, ensuring no wires are pinched. Test operation by flipping the circuit breaker and activating the primary switch. If the unit fails to start, recheck:
- Voltage between the black and white wires (should read ~120V AC).
- Continuity on the ground connection (0Ω resistance to the junction box).
- Proper pairing of the blue wire if a light kit is installed.
For dual-switch installations (separate controls for rotation and lighting), extend a three-conductor cable from the wall switches to the device. Connect the red conductor to the blue wire (lighting), the black to the motor’s speed control, and retain the white as neutral. Label all wires during dismantling to avoid misalignment during reassembly.
Standard Color Codes for Ceiling Air Circulator Electrical Connections
Start by locating the black wire–this is the primary hot lead for the motor and must connect to the corresponding supply line from the power source. In most installations, it pairs with the black or red wire from the household circuit. Confirm this match with a voltage tester before securing the connection with a wire nut to prevent shorts.
Identify the blue wire next–this controls the integrated light kit, if present. It requires pairing with the same black or red supply line as the motor but should include a separate wall switch for independent operation. Absence of a light fixture means this lead can remain capped or omitted entirely without compromising airflow function.
White wires serve as the neutral return path for all components. Twist these together with the neutral bundle from the household wiring, ensuring all connections sit snugly within the junction box. Loose neutrals can cause flickering lights or intermittent motor operation.
The green or bare copper wire grounds the assembly. Attach it to the green grounding screw in the mounting bracket or to the metal conduit box if no dedicated grounding terminal exists. Neglecting this step risks equipment damage and electrical shock during fault conditions.
For dual-switch setups, the red wire–if included–separates motor and lighting controls. Connect it to a second dedicated switch alongside the black motor lead. Verify switch functionality before finalizing the canopy assembly to avoid disassembly later.
Alternate Configurations and Manufacturer Variations
Some models include yellow or orange leads for advanced functions like dimming modules or reverse-direction controls. Consult the instruction sheet specific to your unit; these wires may require additional modules or bypassing if unused. Ignoring them incorrectly can prevent proper operation.
Troubleshooting Mismatched Color Schemes
Unusual colors (e.g., brown, purple) signal non-standard coding–common in imported or specialized units. Cross-reference with the included schematic if colors deviate from typical black/blue/white/green standards. Label wires with tape if disconnecting for testing to ensure reattachment matches original positions.
Step-by-Step Guide to Connecting a Ceiling Unit to a Wall Control
Turn off power at the circuit breaker before handling any electrical connections. Verify the black (hot), white (neutral), and green or bare copper (ground) wires on both the unit and the switch. If your setup includes a light kit, identify the blue wire (typically for the light) and ensure the switch has a dimmer or separate control if required.
Match the wires by color: connect the black wire from the unit to the black or red wire from the switch, twist them securely, and cap with a wire nut. Repeat for the white wires (neutral) and the ground wires. For units with a light kit, attach the blue wire to the switch’s corresponding terminal–some dimmers require a specific connection order, so consult the control’s manual if uncertain.
Testing for Proper Functionality
Restore power at the circuit breaker and test the operation. If the unit fails to respond, recheck the connections for loose wires or incorrect pairing. Non-illuminating bulbs may indicate a reversed neutral connection–swap the white wires if needed. For reversible rotation, locate the toggle switch on the motor housing and flip it before finalizing the installation.
Secure all wires into the electrical box using the provided mounting bracket, ensuring no exposed copper is visible. Tuck excess wiring neatly to avoid interference with moving parts. Replace the canopy or cover plate, tightening screws evenly to prevent wobbling.
Final Safety Checks
Confirm the control operates the unit’s speed settings smoothly. If a remote or pull-chain is included, test its compatibility with the switch–some wall dimmers conflict with wireless receivers, requiring a dedicated non-dimming switch. For advanced setups, like dual-switch configurations (separate controls for the unit and light), label the wires during disassembly to avoid miswiring.
Resolving Flickering Illumination or Reduced Airflow Velocity in Ceiling Units
Check the voltage at the motor terminals with a multimeter; readings below 110V (for 120V systems) or 210V (for 240V systems) indicate a supply issue. Examine the circuit breaker for tripping or excessive heat–reset if necessary and replace if defective. Inspect all wire connections from the switch to the motor housing for corrosion, looseness, or oxidation; clean with fine-grit sandpaper and retighten to 12-15 inch-pounds torque. For speed control units, bypass the regulator temporarily to isolate whether the dimming stems from the device or upstream power fluctuations.
| Symptom | Root Cause | Verification Method | Corrective Action |
|---|---|---|---|
| Intermittent flicker | Loose terminal screw | Wiggle test (visual + tactile) | Re-secure connection, apply dielectric grease |
| Persistent dimming | Undersized conductor | Measure voltage drop (>3% loss across run) | Upgrade to 12 AWG minimum for runs >50 ft |
| Variable airflow reduction | Faulty capacitor | Capacitor test (µF reading ±10% of rated value) | Replace with identical microfarad/voltage rating |
| Slow startup | Worn motor bearings | Manual spin test (audible grinding) | Disassemble unit, lubricate or replace bearings |
If symptoms persist after addressing these points, measure current draw using a clamp meter; values exceeding the motor’s nameplate amperage by >15% suggest internal windings damage or partial short–require full motor replacement.
