Understanding the 2006 Chevy Uplander Radio Wiring Diagram Step by Step Guide
For immediate results, locate the C1 and C2 harness connectors behind the dashboard’s lower trim panel, near the driver’s footwell. These 24-pin (C1) and 12-pin (C2) plugs carry all power, speaker, and antenna signals. Use a multimeter to test pins A7 (orange, 12V constant), B5 (yellow, ignition-switched 12V), and C1–C6 (speaker outputs) before splicing or replacing components.
Factory color codes follow GM’s standard: dark green/white (front left speaker +), gray/black (front left –), light green/white (rear left +), dark blue/white (rear left –), and mirrored colors for right channels. Verify continuity between the head unit and chassis ground (black, pin A1)–resistance above 0.2 ohms indicates corrosion or a fractured wire.
Aftermarket integration requires a GM-specific wiring adapter (Metra 70-2003) to bridge the OEM harness with modern stereos. Bypass amplifier circuits by connecting pin A5 (pink, amp turn-on) directly to the ignition-switched line; failure to do so mutes audio on factory-installed systems. For CD changers or satellite tuners, route data signals through pin A10 (brown, serial data)–use shielded 22 AWG cables to prevent interference.
If faced with no sound, inspect fuses F2 (10A) and F20 (15A) in the under-hood panel first. Next, probe the BCM (Body Control Module) for digital audio bus signals on pins X3-8 (tan/black) and X3-9 (tan/white). A faulty bus link often triggers the “NO AUDIO” warning–replace the BCM connector housing if pin tension is loose.
For reversed speaker phases (diluted bass), swap + and – wires at the head unit’s output stage, not at the door speakers. Persistent static suggests a defective amplifier module (located behind the rear seat riser)–reflash the module using GM’s Tech2 tool (TIS2000) before pursuing costly replacements. Always disconnect the negative battery terminal before probing live circuits to avoid shorting airbag systems.
Electrical Connection Guide for 2005–2007 GM Minivan Audio System
Identify the C1 connector pins before modifying factory harnesses. Pinouts follow this sequence: A (yellow, 12V constant), B (red, accessory), C (black, ground), D (orange, illumination), E (gray, front left speaker +), F (gray/black, front left speaker −), G (white, front right speaker +), H (white/black, front right speaker −). Rear outputs sit on the C2 block–A1 (green, rear left +), A2 (green/black, rear left −), B1 (purple, rear right +), B2 (purple/black, rear right −). Verify voltages with a multimeter–constant power should register 12V, accessory drops to zero when ignition is off.
For aftermarket units requiring a data bus interface, splice the teal/white wire (serial data) from the factory harness directly into the adapter’s corresponding input–cutting or grounding this line without proper buffering risks disabling dashboard instrumentation and climate controls.
Finding the Original Audio System Connector in Your Vehicle
Start by removing the center console trim panel. Use a flat-head screwdriver wrapped in electrical tape to pry the clips securing the panel–these are located at the bottom edges. Work methodically from left to right to avoid damaging the plastic retainers. Once detached, set the panel aside to expose the rear of the infotainment module.
The factory connector is typically positioned directly behind the unit, anchored to the chassis by a single 10mm bolt or two smaller 7mm screws. Disconnect the negative battery terminal before proceeding to prevent short circuits. Trace the bundle of colored cables from the back of the module–they converge into a single rectangular plug measuring approximately 2.5 x 1.5 inches.
If visual identification is difficult, refer to these pinout details to confirm the correct harness:
| Wire Color | Function | Voltage (Key On) |
|---|---|---|
| Yellow | Battery Constant | 12V |
| Red | Ignition Switched | 12V |
| Black | Ground | 0V |
| White/Brown | Left Front Speaker (+) | Variable |
| Dark Blue/White | Right Front Speaker (+) | Variable |
| Light Green/Black | Left Rear Speaker (+) | Variable |
| Purple/White | Right Rear Speaker (+) | Variable |

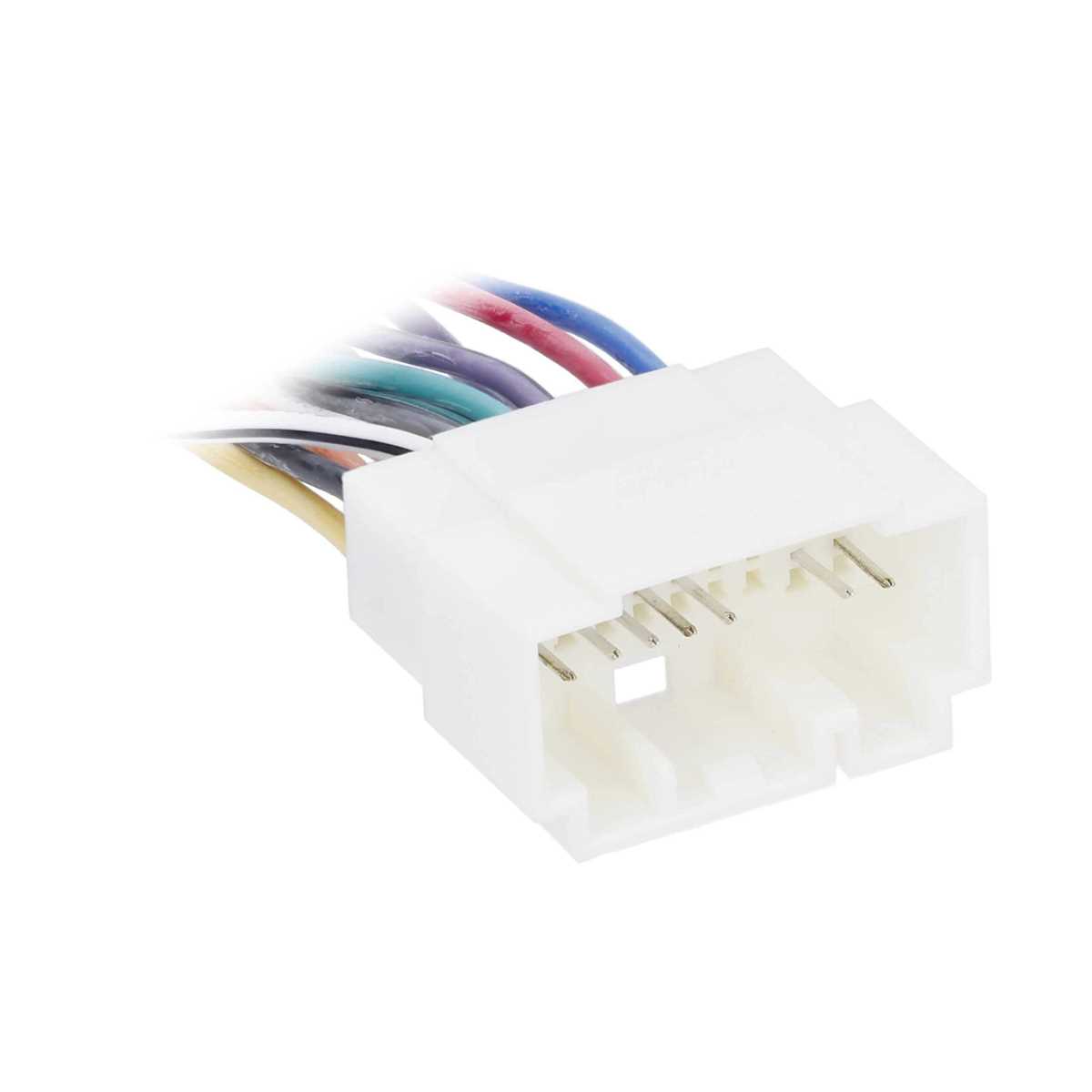

Press the release tab on the connector’s side–it’s a small plastic lever–and pull the plug straight out without twisting. Avoid yanking individual wires, as the terminals may bend or disconnect internally. If resistance is felt, check for hidden screws or retaining clips before applying force.
For models with steering wheel controls, an additional smaller harness (usually 6-pin) will be adjacent. This secondary plug handles data communication and retains factory button functionality. Label both connectors with masking tape before removal to simplify reinstallation.
If the connector appears damaged or corroded, clean terminals with a contact cleaner spray and a brass brush. Severely degraded plugs may require complete harness replacement–part numbers vary by trim but typically match GM’s #12118979 or #12118980. Verify compatibility before purchasing.
Understanding Connector Pinouts by Color Coding in Vehicle Audio Systems
Locate the orange wire in the 12-pin harness–this is the constant 12V power feed, essential for retaining presets and clock settings during ignition-off periods. Verify continuity with a multimeter; if voltage drops below 10V, inspect the fuse (typically a 10A) or check for corrosion at the junction point near the instrument cluster. Pair this with the yellow lead, which delivers switched 12V power, activated only when the key is turned to “ACC” or “ON.” Swapping these two will cause memory loss or unexpected battery drain.
The gray and gray/black twisted pair handles the front right and front left speaker outputs, respectively. Resistance should measure 2-4 ohms at the speaker terminals; readings outside this range indicate either a short or damaged coil. For aftermarket installations, ensure polarity matches–connect gray to the positive terminal and gray/black to negative. Reversing these will invert phase, creating a hollow or distant sound. Check for intermittent cuts in the wiring loom, especially near door hinges.
A single purple wire carries the parking brake signal, used for video override in navigation or DVD units. If this lead isn’t grounded during installation, advanced features will lock out while driving. Use a 1k-ohm resistor to simulate the brake signal temporarily, but never bypass safety protocols–permanent grounding violates federal regulations and risks fines. The dark blue wire (often striped white) is the MUTE signal; grounding it silences the system during phone calls or reverse gear engagement.
For the rear channels, the green (right) and green/black (left) wires follow the same polarity rules as front speakers but route through the vehicle’s C-pillar or under the rear seat. Test these leads with an audio signal generator; if only one side plays, trace the harness for pinched sections, particularly where it passes through the tailgate hinge. The brown wire is a rare but critical data bus line–interference here can disrupt chimes, theft-deterrent alerts, or OnStar functionality. Isolate it with 18-gauge shielded cable if retrofitting.
Ground connections cluster into two categories: chassis (black) and dedicated audio (black/white). Never daisy-chain chassis grounds–each component should terminate at a single clean, bare-metal point near the firewall or seatbelt mounts. Corrosion at these junctions causes whining or alternator whine; clean with a wire brush and apply dielectric grease. The dedicated ground ensures signal integrity; without it, volume levels may fluctuate or display flicker. Confirm all splices with heat-shrink tubing–electrical tape degrades within 18 months under heat cycles.
Step-by-Step Guide to Integrating a New Audio System
Begin by disconnecting the vehicle’s battery terminal to prevent electrical shorts. Use a multimeter set to continuity mode to identify the harness adapter pins for constant power (yellow wire, typically 12V), ignition-switched power (red wire), ground (black wire), and speaker outputs. Match these to the aftermarket unit’s color-coded wires–refer to the manufacturer’s pinout sheet if colors differ. Strip ¼ inch of insulation from each wire, twist the corresponding strands together, and secure with solder or a crimp connector. Heat-shrink tubing provides superior insulation over electrical tape.
Locate the factory speaker harness behind the dash panel–use a trim removal tool to avoid scratching surfaces. The rear speaker wires are often bundled near the passenger-side kick panel. Test each original speaker wire with an audio probe or tone generator to confirm polarity before connecting to the new system’s amplifier harness. For amplified setups, splice the new unit’s RCA preamp outputs (front, rear, and subwoofer) to the vehicle’s existing factory amplifier using a line-level converter if voltage levels mismatch. Adjust the converter’s gain settings to prevent distortion.
- Verify all connections with a voltmeter before reassembling panels–check for 12V at the constant power lead and 0V at the ground.
- Reconnect the battery and test the new system’s functions: source selection, volume, balance, and fade. If static persists, recheck ground quality or isolate the antenna lead.
- Secure excess wiring with zip ties, routing them away from moving parts and heat sources like the exhaust manifold.
Solving Electrical Faults in the Minivan’s Audio System
Begin by inspecting the fuse linked to the head unit. Locate panel B in the under-dash fuse block–positions 12 (10A) and 28 (15A) typically control accessory circuits. Use a multimeter to verify continuity; if blown, replace with the same amperage rating. A faulty fuse often indicates a short in the harness, particularly at the yellow (constant 12V) or red (switched 12V) wires near the C2 connector. Probe these lines with the key on–no voltage suggests a break between the ignition switch and the plug.
Pinpointing Intermittent Signal Loss
Remove the center console trim to access the harness bundle behind the climate controls. Wiggle the orange (illumination) and brown (dimmer) leads while monitoring the display–erratic backlighting or sudden shutdown points to a frayed conductor or corroded pin at the 24-pin connector. Apply dielectric grease to the terminals and secure the bundle with spiral wrap to prevent abrasion against the HVAC duct. If symptoms persist, trace the purple (antenna remote) wire: a missing 12V trigger here disables the amplifier, cutting FM reception entirely.
Test the speaker outputs by connecting a 1-ohm resistor across each pair at the harness side–positive wires (gray, dark green, purple, light blue) should yield ~6V with the volume at mid-range. Zero voltage on any channel confirms an open in the door jamb loom or a failed output stage in the receiver. For ground issues, scrape paint from the chassis mount behind the glove box; a dull finish here causes hum and weak bass. Reattach the black wire eyelet with a star washer to ensure a solid return path.
