BMW E46 Complete Stereo Wiring Guide and Color Code Diagram

For factory head unit replacement in this model range, disconnect the battery negative terminal first–this prevents short circuits while handling power cables. The aftermarket radio harness adapter (commonly Metra 70-1661 or equivalent) connects directly to the vehicle’s 20-pin ISO connector behind the dash. Pinout mapping: +12V constant (pin 4, red), switched +12V (pin 15, yellow), ground (pin 3, black), illumination (pin 12, orange), antena trigger (pin 8, blue/white), front left + (pin 1, grey), front left – (pin 2, grey/black), front right + (pin 5, violet), front right – (pin 6, violet/black), rear left + (pin 17, green), rear left – (pin 18, green/black), rear right + (pin 20, brown), rear right – (pin 19, brown/black).

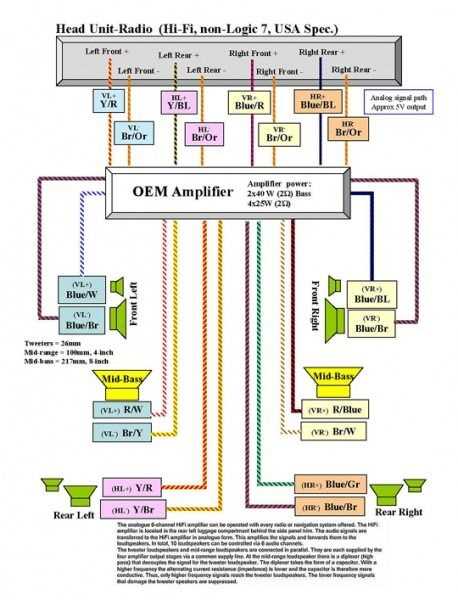

Amplifier integration requires tapping into speaker wires before they reach the OEM amp–located behind the rear seat or trunk side panel, depending on the variant. For non-factory amp setups, bridge the head unit speaker outputs directly to door speakers, bypassing the 8-pin amp connector entirely. Use 16-gauge oxygen-free copper wire for all speaker runs; thinner gauges introduce signal loss. If retaining the stock amp, match the aftermarket head unit’s preamp outputs (typically 2V) to the amp’s input sensitivity–most OEM amps expect 0.1–4V.

Navigation and multimedia units often need an additional CAN bus interface. Connect the interface’s CAN-H (green) and CAN-L (green/white) wires to the corresponding pins (usually 7 and 16) on the vehicle’s wiring loom. Verify polarity with a multimeter: CAN-H should rest at ~2.5V and spike to ~3.5V when active; CAN-L should rest at ~2.5V and drop to ~1.5V. Incorrect connections trigger no-communication errors, disabling climate control or instrument cluster functions.

For security bypass, locate the immobilizer data wire (pin 11, typically pink) and splice it into the aftermarket radio’s parking brake or handbrake wire (varies by brand–consult the radio’s pinout). Some harness adapters include a built-in bypass module; if not, use a resistor-based bypass (390–560 ohm, 1/4W) between pin 11 and ground. Test the setup before finalizing connections–interrupted boot sequences or flashing display indicate incorrect wiring.

Guide to Audio System Connections in the 3-Series 1998-2005 Model

Locate the factory harness behind the head unit in the center console. The 16-pin ISO connector splits into two main sections: power/speaker outputs (pins 1–8) and antenna/steering controls (pins 9–16). Pin 4 supplies constant 12V, while pin 7 delivers switched power via ignition. Avoid tapping these directly–use a fuse-protected relay for aftermarket amplifiers to prevent voltage drops.

• Pin 1 (front left +) → white/violet wire → 4Ω speaker
• Pin 2 (front left –) → white/brown wire → ground
• Pin 3 (front right +) → gray/violet wire → 4Ω speaker
• Pin 5 (rear left +) → green/white → 2Ω woofer or 4Ω mid-range
• Pin 6 (rear right +) → purple/white → 2Ω woofer or 4Ω mid-range
• Pin 8 (ground) → black → chassis or harness ground

Factory amplifiers (if equipped) use a separate 12-pin plug. Pin 1 carries 12V+, pin 4 is ground, and pins 6–12 feed RCA-level signals to subwoofers. Bypass this by connecting aftermarket RCA cables directly to the ISO harness pins 3 and 5 (front) and 7 and 9 (rear). Ensure the new head unit’s output matches the maximum 5V preamp voltage to prevent distortion.

Steering wheel controls utilize a 3.5mm jack near the fusebox. Pin A (red/yellow) sends resistance values (0–7.2kΩ) to the radio. Adapter modules (e.g., Metra ASWC-1) map these signals to aftermarket interfaces–program the module via a 4-position switch sequence: hold SET for 3 seconds, then toggle VOL+ to cycle modes. Avoid splices; use a 4-pin connector to preserve OEM functionality.

1. Disconnect the battery negative terminal before handling wires.
2. Label each wire with masking tape–factory colors fade near connectors.
3. Test continuity with a multimeter (Ω setting) before soldering.
4. Use heat-shrink tubing on joints–electrical tape degrades in 2–3 years.
5. Recheck fuses (10A RADIO, 15A IGN) if the system powers off unexpectedly.

Locating Key Audio System Plugs in Your Third-Gen 3-Series

Start by removing the lower dashboard panel on the driver’s side–it’s held by two Torx screws (T20) and two clips near the center console. Behind it, you’ll find the main harness bundle, specifically the 12-pin rectangular connector (white or gray, labeled “C”) and the 18-pin quad-lock plug (black, marked “A”). The 12-pin unit carries power, ground, and illumination signals, while the quad-lock handles speaker outputs, antenna control, and steering wheel audio controls if equipped.

Pinpointing Specific Plug Functions

Trace the wires from the quad-lock to verify channels: the rear left speaker uses pins 1 (positive) and 2 (negative), rear right pins 3 and 4, front left pins 5 and 6, and front right pins 7 and 8. The antenna trigger is pin 15 (blue/white stripe), and the dimmer wire (for radio illumination) is pin 18 (gray/violet). If your vehicle has active audio controls, the CAN bus communication lines (pins 9 and 10, yellow and green) require a load resistor (680Ω) when replacing the head unit to prevent error codes.

Check the smaller 4-pin round plug (brown, labeled “B”) near the climate control–it supplies constant 12V (red), switched power (yellow), and ground (black/brown). For vehicles with DSP or Navigation, an additional 20-pin rectangular connector (green or purple) sits behind the glovebox, providing amplified signal inputs. Use a multimeter to confirm pinouts before splicing: 5.6V on illumination wires, no voltage drop on ground, and undistorted sine waves on speaker outputs.

Color Code Breakdown for Aftermarket Audio System Integration

Connect the constant 12V power lead to the yellow cable on most third-party receivers–this wire ensures memory retention for presets and settings even when the ignition is off. Locate the vehicle’s red ignition wire (often labeled “switched power” or “accessory”) and pair it with the red input on the harness; mismatching these can drain the battery within hours. Confirm the ground wire (typically black) matches the chasis point specified in the donor wiring loom–use a multimeter to verify less than 0.5 ohms resistance before finalizing the connection.

Speaker Wire Identification

Front left positive typically uses a brown/violet stripe; front left negative follows as brown. Right front positive mirrors this with brown/white, while its negative uses brown/red. Rear speaker pairs swap patterns: left positive is gray/purple, left negative gray; right positive gray/green, right negative gray/yellow. Deviating from this sequence risks phase cancellation, muddying midrange frequencies. Test each channel individually with a 1kHz sine wave before securing connections.

Dimmer-controlled illumination wires (orange or orange/white) require splicing into the factory climate control harness–cutting corners here disables dashboard brightness sync. The mute function (purple or purple/gray) connects to the vehicle’s telephone interface if equipped; omit this step for standalone setups to avoid intermittent audio drops. Parking brake safety circuits (light green) demand a bypass resistor (300-500 ohms) for video playback–consult local regulations before implementation.

Amplifier remote turn-on (blue/white) must split from the head unit’s corresponding output to aftermarket amplifiers, not the factory amp trigger–this prevents signal clipping at higher volumes. Use crimp connectors with heat shrink tubing for all splices; soldering introduces corrosion risks in high-vibration environments. Verify harness integrity by checking for voltage stability (12.6V-14.4V) across all power inputs before reassembling trim panels.

Harness Adapter Compatibility

OEM connectors on 2001-2005 sedans use a 20-pin rectangular plug; 1998-2000 models employ a 16-pin variant. Metra 70-9003 or Scosche BWM-06B adapters eliminate wire splicing for basic installations, but ignore bundled RCA cables–use shielded coaxial for preamp outputs to reduce engine noise interference. For vehicles with navigation or DSP, retain the gray 12-pin quadlock connector; bypassing it disables steering wheel controls and on-board diagnostics.

Locating and Bypassing the Antenna Amplifier on Third-Gen 3 Series Sedans

Disconnect the negative battery terminal before accessing the antenna lead behind the rear deck trim panel, near the right taillight. The amplifier module–a small black or silver box–is integrated into the coaxial cable, typically secured with a single screw or clip. Cut the cable 2–3 cm above and below the module, then strip the outer insulation to expose the inner wire and shielding. Solder the inner conductor of the upper segment directly to the lower segment’s inner wire, and twist the shielding strands together before insulating with heat-shrink tubing or electrical tape. Reconnect the battery and test FM reception; signal loss should be minimal if the head unit’s internal tuner compensates for the missing amplification.

Key Precautions

Verify the head unit’s antenna input impedance (usually 50 ohms) before bypassing–aftermarket receivers may require a separate inline amplifier if weak reception persists. Avoid routing spliced cables near power wires or ignition coils to prevent interference, and use crimp connectors if soldering isn’t an option; poor connections will degrade signal clarity. If static remains, check grounding at the chassis near the rear parcel shelf, as corrosion on the factory bolt (often 8 mm) can disrupt the circuit.
