2006 Nissan Maxima Complete Electrical System Wiring Schematic Guide
Troubleshooting wiring faults in this model begins with locating fuse box schematics under the driver’s side dashboard. Three distinct relays–labeled A/C clutch, powertrain control, and cooling fan–require verification before proceeding. Disconnect the battery’s negative terminal first to prevent accidental shorts during testing. Use a multimeter set to continuity mode to confirm harness integrity between pin 32 on the main ECM connector and ground; resistance above 2 ohms indicates corrosion or a broken conductor.
Front fog light circuits share a common 15A fuse with the rear defogger; inspect the relay socket for melted plastic if both systems fail simultaneously. The TNS relay, positioned adjacent to the fuse panel, supplies power to parking lights–remove it and probe terminals 85 and 86 for 12V while the ignition is in the ON position. Headlight wiring splits at the combination switch: trace the yellow-striped wire from the switch to the bulb connector, ensuring the 10A fuse upstream isn’t blown.
For the power window system, focus on the master switch wiring: orange-striped wires carry voltage to the passenger side, while solid blue wires control rear passenger windows. If windows operate intermittently, examine the ground splice near the left B-pillar–this junction frequently develops oxidation. Cruise control wiring merges with the speed sensor at connector C105; verify signal pulses with an oscilloscope if cruise cuts out unpredictably.
Airbag diagnostics demand strict adherence to service manual warnings–never probe live circuits. The clockspring connector behind the steering wheel hub contains fragile conductors; inspect for fraying before replacing the entire assembly. Alternator output is monitored via the battery current sensor; if voltage readings fluctuate during idle, check the black-striped wire from the sensor to the PCM for intermittence.
Understanding Electrical Schematics for Your Sedan: A Hands-On Approach
Locate the under-dash fuse box on the driver’s side–remove the cover by pulling the release tab near the bottom. Reference pinouts E30 (gray connector) and M63 (black connector) for ignition and accessory circuits. Use a multimeter set to 20V DC to verify voltage at terminal 17 (yellow/red stripe) during key-on operations–readings should stabilize between 11.8V and 12.4V. If voltage drops below 10.5V, inspect the 10A IGN fuse (position 14) and relay R4 (upside-down mounting, adjacent to the climate control module).
Trace the BCM (Body Control Module) wiring harness by following the white/blue wire from the instrument cluster to connector C24. Disconnect the battery negative terminal before probing to prevent shorts–label each wire with masking tape as you go. The CAN bus lines (green/white and green/orange) require a 120-ohm terminating resistor between pins 10 and 11 of connector C24; measure resistance with the ignition off–deviation beyond 5% indicates a corroded splice near the glove box hinge.

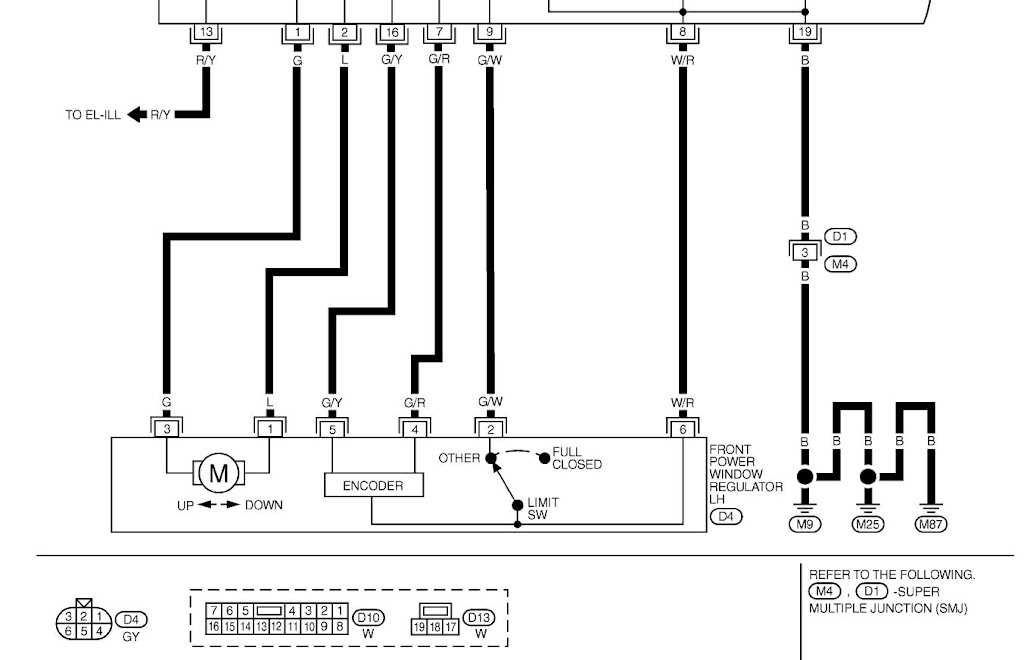

Power Window Circuit Troubleshooting
For intermittent window failures, focus on the driver’s door module connector I8. Probe pin 3 (yellow/black) for battery voltage while holding the switch in the “up” position–no voltage suggests a faulty switch or broken pink wire inside the corrugated door harness. The passenger-side circuit relies on ground splice G302 behind the kick panel; scrape corrosion off the bare metal threads and re-secure the 10mm bolt with star washers to prevent future oxidation.
Test the auto-down relay by bridging terminals 30 and 87 with a jumper wire at relay socket R11 (located in the IPDM). If the window completes the cycle, replace the relay; if not, trace the light blue/red wire to the motor and check for continuity–resistance over 1.5 ohms means internal brush wear. Replace the motor assembly if grinding noises coincide with high current draw (>12A).
HVAC Blower Motor Control Analysis
Remove the glove box by squeezing the side tabs inward. Behind the HVAC housing, connector M51 feeds the blower resistor with a black/white ground wire–verify zero resistance to chassis. For speeds 1-3, measure voltage drop across resistor section R5 (lowest speed) at 8.2V ±0.3V; higher speeds should jump to 12V momentarily before PWM control engages. If the blower only works on high, bypass the resistor with a 10A fused jumper to confirm failure–replace with OEM part 27125-31U00 to avoid aftermarket overheating issues.
Inspect the thermal fuse embedded in the resistor pack–trigger temperature is 185°C. Use an infrared thermometer to check housing temperature after 10 minutes of continuous operation on setting 3; readings above 160°C indicate improper airflow (clogged cabin filter) or a failing A/C amplifier failing to regulate blower demand. For compressor clutch engagement, follow the dark green/white wire from the IPDM to splice S102 near the condenser–voltage should pulse between 9V and 13.5V during normal operation.
Finding Key Electrical Bundle Junctions Below the Instrument Panel
Begin by removing the driver-side kick panel–two 10mm bolts secure the plastic cover. Behind it, the main electrical bundle splits into three distinct trunks: the thickest (grey, 24-pin) feeds the fuse box, a smaller (black, 16-pin) runs toward the center console for climate controls, and the third (blue, 12-pin) dives under the steering column for the ignition and lighting cluster. Label each trunk with masking tape before unplugging–marking the uppermost pin position eliminates guesswork during reassembly. Use a trim removal tool to pry the lower dash panel away from the firewall; force applied near the blower motor housing risks snapping clips.
Critical Junction Points
The blue trunk’s first connector (round, 6-pin) sits 12 cm above the pedal bracket–pin 3 carries fused 12V for the daytime running lights, verified with a test probe before detachment. The climate control trunk branches at the firewall grommet; trace the leftmost harness (white stripe) to locate the ambient temperature sensor connector, often misdiagnosed as an HVAC failure. For models with traction control, follow the grey trunk to its Y-split beneath the steering shaft–left branch (green, 8-pin) interfaces with the ABS module, right (brown, 5-pin) connects to the ECM via CAN bus.
Decoding Power Window Circuit Wire Colors for Precise Troubleshooting
Locate the main switch harness under the driver-side door panel–pinpoint the solid blue wire (18-gauge) for window motor power. This lead carries fused 12V from the interior fuse box; verify continuity using a multimeter set to 200 ohms. A reading above 5 ohms indicates corrosion or a break requiring splice repair with heat-shrink tubing.
Trace the gray/black stripe wire (20-gauge) back to the passenger door junction–this ground path must maintain less than 0.5 ohms resistance to prevent voltage drop. Clean connection points with a wire brush if oxidation is visible, then secure with a star washer to prevent intermittent failure during operation.
Critical Color Variations Across Trim Levels
Base models use light blue/red stripe for rear passenger control signals, while premium trims substitute this with a yellow/black stripe carrying CAN bus data. Mixed signals (erratic window behavior) often stem from misidentifying these variants–cross-reference with an OEM repair manual before probing.
For driver-door switch illumination, the violet/white stripe (16-gauge) delivers 5V reference–interference here causes dimming or flickering lights. Test with a scope; if noise exceeds 200mV peak-to-peak, add a 0.1μF capacitor near the switch to filter alternator whine.
Advanced Diagnosis for Common Failures
When windows move sluggishly, focus on the brown/orange stripe wire (door lock/unlock actuator feed). Voltage spikes here can backfeed into the window circuit–install a bidirectional TVS diode (P6KE15A) across the motor terminals to absorb transient surges exceeding 18V.
For complete non-operation, check the black/white stripe wire at the central module for a pulsed 10Hz signal during switch activation. Absence suggests a faulty body control module; bypass temporarily by jumpering the signal pin to 5V through a 1K resistor to isolate the issue.

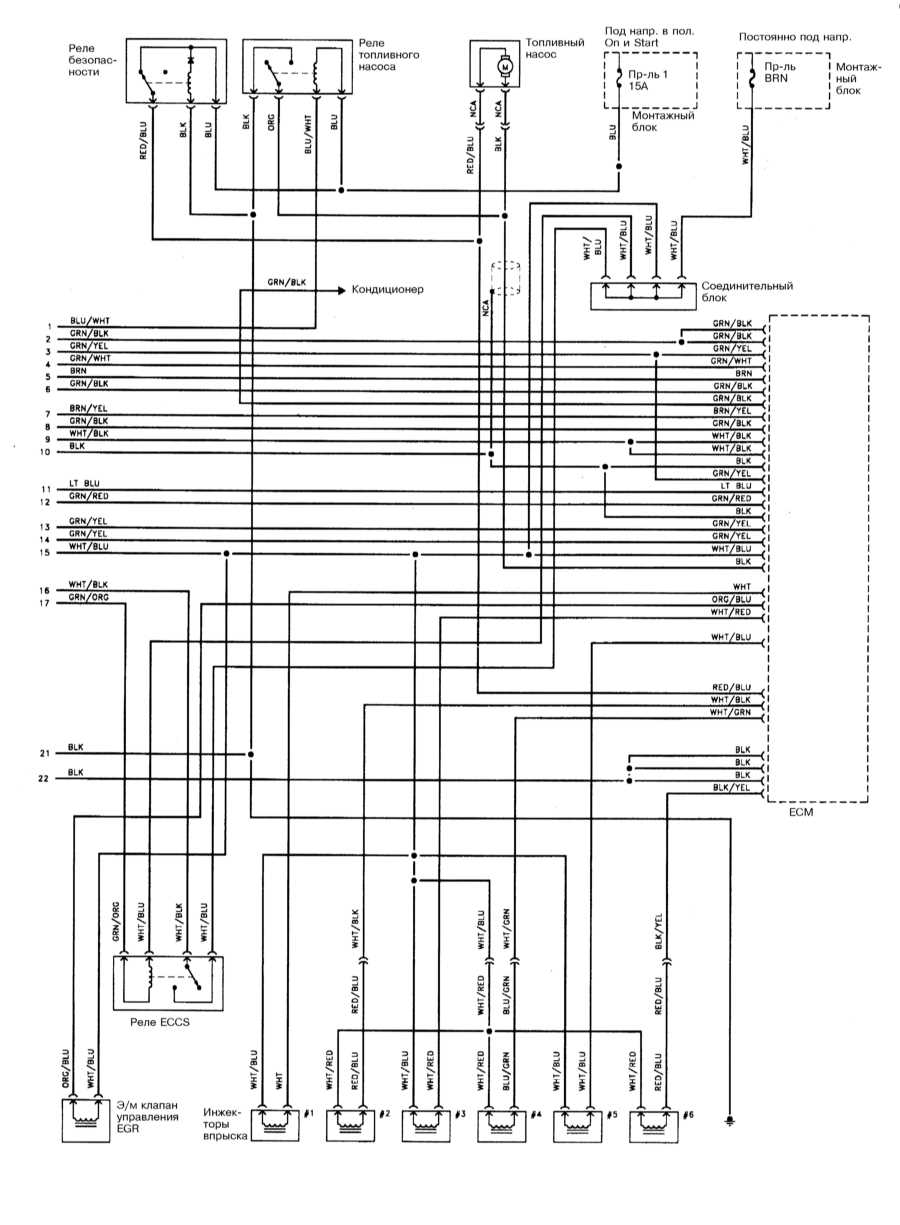

Locating and Following the Powertrain Control Unit Cable Path
Begin by identifying the PCU harness connector near the engine bay firewall on the driver’s side. Pinpoint the black plastic junction box–this houses the main power and ground leads for the unit. Disconnect the negative battery terminal before handling any connectors to prevent short circuits or accidental ignition triggers.
- Trace the red/black stripe cable (B+) from the junction box to the starter solenoid–this is the primary ignition feed.
- Follow the solid black wire (ground) from the PCU to the chassis; ensure it terminates at a clean, unpainted metal surface to avoid resistance.
- Check the green/orange stripe sensor power wire; it runs directly to the mass air flow meter and must avoid sharp edges or heat sources.
The PCU’s 64-pin connector splits into three subgroups: power inputs, sensor feeds, and actuator controls. Focus first on the pinouts labeled 1-16 (power/ground), then 17-48 (sensor circuits like throttle position and coolant temp), and finally 49-64 (injector and coil commands). Use a multimeter to verify 12V on pins 1 and 2 with the key in the ON position–absence indicates a broken fuse or relay issue.
Route critical cables away from moving parts like the serpentine belt and exhaust manifold. Secure harnesses every 15 cm with nylon ties, avoiding metal fasteners that could chafe insulation. For the knock sensor cable (gray/red stripe), route it along the valve cover’s inner edge to minimize interference from ignition noise.
- Inspect the oxygen sensor leads (white and black) for fraying near the exhaust manifold–replace if insulation is cracked.
- Test continuity on the camshaft/crankshaft position wires (blue and white); resistance should read between 500-700 ohms.
- Reconnect the battery last, verifying the MIL (malfunction indicator lamp) illuminates briefly before extinguishing–this confirms PCU initialization.
For diagnostic access, mirror the harness layout on a diagnostic scanner by labeling each connector branch. Document deviations from the original schema–for example, aftermarket alarm installations often splice into the ignition harness (red/black wire), causing erratic PCU behavior. Restore factory routing paths whenever possible.
