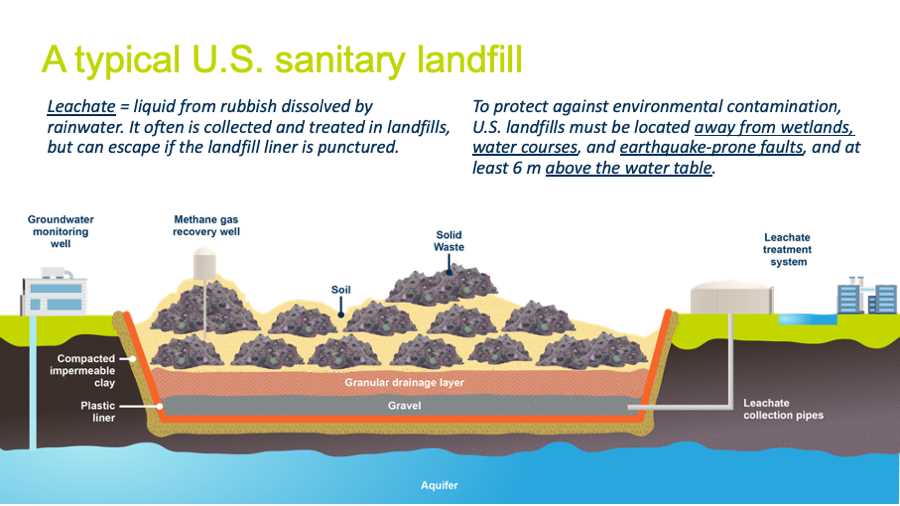

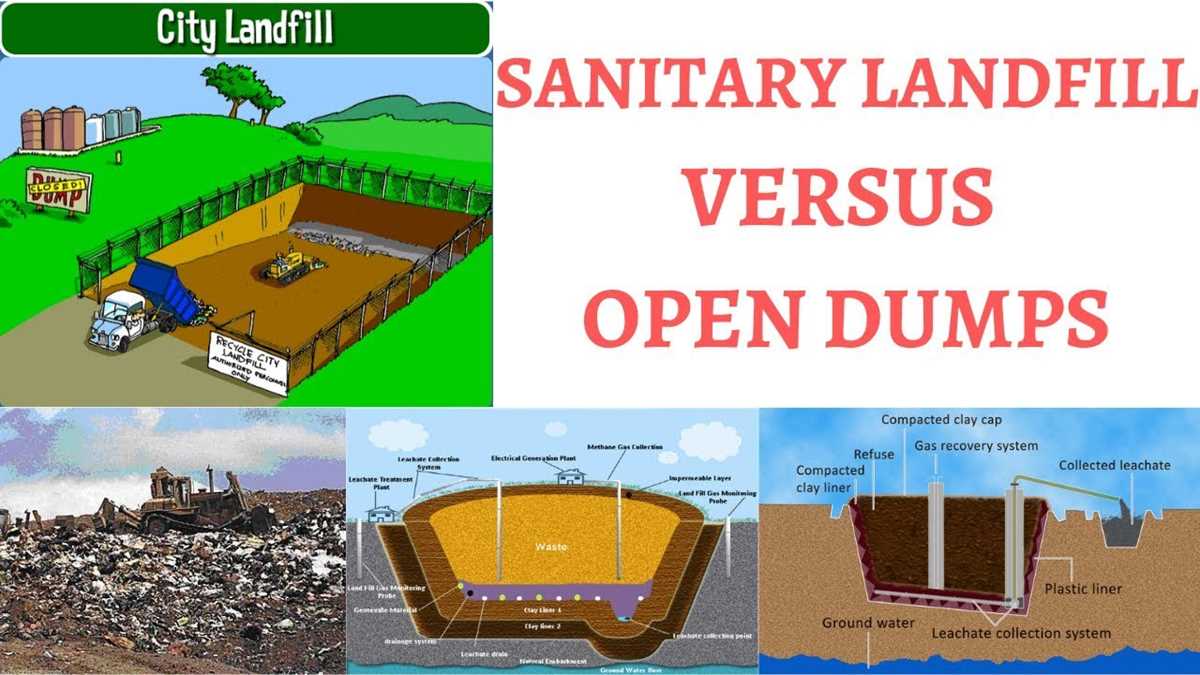

Schematic Design and Key Components of Modern Sanitary Landfills
Begin by ensuring the site layout includes four distinct layers: a bottom liner, drainage collection, waste containment zones, and a final capping system. The base must consist of a 1.5-mm high-density polyethylene (HDPE) liner welded at seams to prevent leachate migration. Install a geocomposite drainage layer above the liner with a minimum 300-mm gravel bed to channel liquids to collection pipes. Position perforated pipes at 3% slope gradients to maintain flow rates of 0.05 m³/m²/day.
Divide waste placement into 5-meter vertical lifts, compacted in 0.3-meter layers using steel-wheeled or padfoot rollers. Maintain a 4:1 slope ratio for sidewalls to prevent slumping, with intermediate soil covers of 0.5 meters applied every 2 days of operation. Install gas extraction wells at 50-meter intervals, connected to horizontal collection trenches with 150-mm diameter perforated HDPE pipes. Vent methane concentrations above 25% for flaring or energy recovery.
For the closure cover, layer 0.6 meters of compacted clay over the waste, topped with a 30-mm synthetic geomembrane. Add a 0.3-meter protective soil layer and a 0.5-meter vegetative layer with drought-resistant grasses (e.g., Festuca arundinacea). Include runoff diversion channels at 2-meter spacing sloped at 2% to prevent erosion. Post-closure monitoring requires quarterly groundwater sampling from down-gradient wells for 30 years, testing for pH, heavy metals (Cd, Pb, Hg), and volatile organic compounds (benzene, vinyl chloride).
Locate the site >300 meters from residential zones and >100 meters from surface water. Use windbreaks of 4-meter coniferous trees to mitigate odor dispersion, positioned on the prevailing downwind side. Implement real-time sensors for methane (CH₄), hydrogen sulfide (H₂S), and leachate levels, with automatic alarms triggered at CH₄ > 500 ppm or H₂S > 5 ppm.
Engineered Waste Disposal Site Layout and Construction
Designate a minimum 1-meter impermeable clay liner beneath the waste containment zone, compacted to achieve hydraulic conductivity below 1×10-7 cm/sec. Combine this with a 60-mil high-density polyethylene geomembrane for maximum leachate containment. Install drainage pipes with 150mm diameter perforations spaced at 2-meter intervals atop the geomembrane to direct leachate toward collection sumps. Ensure pipes maintain a 2% slope gradient to prevent stagnation.
Stratify the waste layering process in lifts no thicker than 3 meters, compressing each lift with a 35-ton compactor operating in overlapping passes. Schedule daily cover applications of 15cm soil or alternative materials like geotextiles within 24 hours of waste placement to reduce odor emission by 60% and limit vector attraction. Integrate groundwater monitoring wells at 100-meter spacing along site perimeters, sampling quarterly for pH, heavy metals, and volatile organic compounds.
| Layer Component | Material | Thickness | Function |
|---|---|---|---|
| Bottom Barrier | Compacted clay + HDPE | 1m + 1.5mm | Prevent aquifer contamination |
| Leachate Collection | Crushed stone+perforated pipes | 30cm + 150mm Ø pipes | Channel effluent to treatment |
| Daily Cover | Soil/geosynthetic fabric | 15cm minimum | Odor suppression, pests control |
Position gas extraction wells vertically, spaced every 50 meters across active waste zones, with horizontal recovery trenches at perimeter boundaries. Construct wells using slotted 150mm diameter PVC pipes surrounded by 30-50mm gravel pack extending 1 meter beyond waste limits. Install condensate traps every 200 meters along gas piping to prevent liquid accumulation, maintaining methane concentrations below 25% lower explosive limit at wellheads.
Implement final capping consisting of 60cm compacted clay overlain by a 40-mil LLDPE geomembrane, topped with 45cm protective soil layer and 15cm vegetative support. Grade cap surfaces to 5% slope to facilitate runoff while preventing erosion. Install a toe drainage system at base perimeters using 200mm diameter perforated pipes embedded in gravel to intercept lateral moisture migration. Conduct post-closure monitoring for 30 years, testing settlement, leachate quality, and landfill gas composition biannually.
Critical Structural Elements of a Waste Disposal Site Cross-Section
Begin with a 60-mil high-density polyethylene (HDPE) geomembrane liner, heat-welded at seams to prevent leachate migration. This layer must withstand hydrostatic pressure up to 2.5 meters of water head and resist punctures from aggregate cover. Install a geotextile cushion beneath to distribute stress from overlying waste and drainage layers. Verify liner integrity through electrical leak detection surveys before waste placement–failure here compromises groundwater protection.
Leachate Collection Systems
Design perforated HDPE pipes (150mm diameter) with 0.5% slope to collect leachate efficiently, directing flow to sumps at the site’s lowest elevation. Position pipes atop a 30cm granular drainage layer (crushed stone, 20–50mm gradation) to prevent clogging from fines. Include redundant pumps with 15,000 L/hour capacity to handle peak flows during heavy rainfall events. Sample leachate weekly for pH, BOD, and heavy metals–treat off-site if parameters exceed local limits (e.g., pH 12.5).
The daily cover layer requires 15cm of compacted clay or alternate daily cover (ADC) like tarpaulins or foams to minimize vector attraction and odor. Avoid organic materials prone to decomposition; use inert soils with

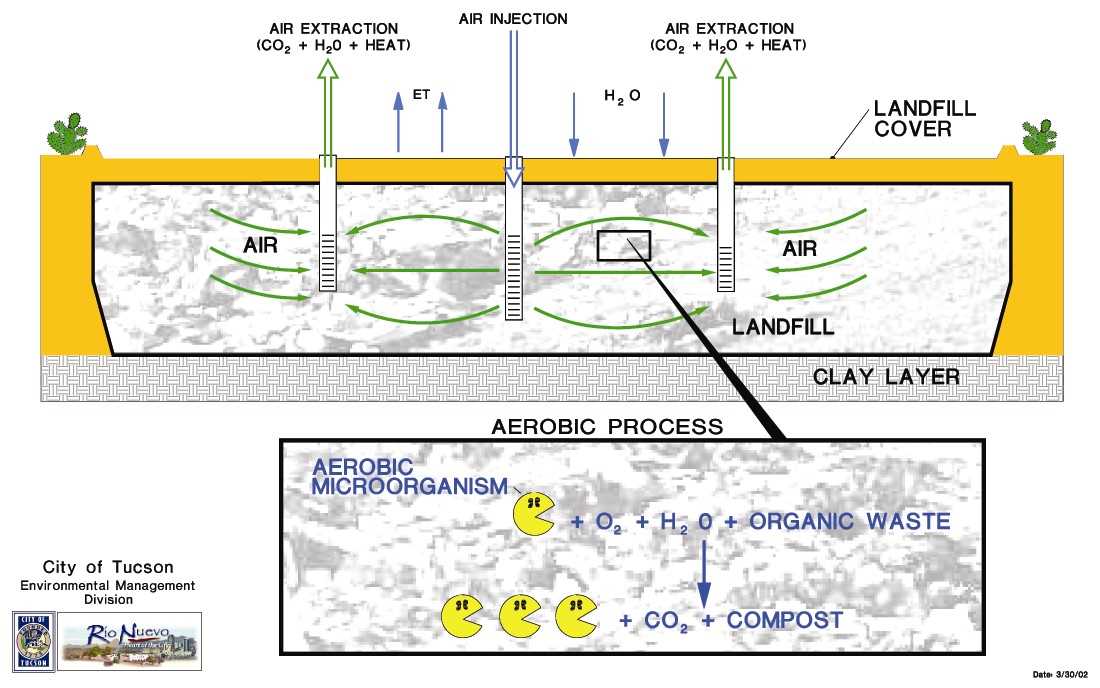

Gas Venting and Monitoring Infrastructure
Install passive gas vents every 30 meters, extending vertically through waste layers to a 1-meterベント above final grade. Use perforated HDPE risers (150mm diameter) wrapped in geotextile socks to prevent clogging. Connect vents to a network of horizontal collection trenches filled with 50mm gravel. Monitor methane concentrations quarterly–action levels trigger active extraction if >25% methane by volume is detected. Flare systems must achieve 98% combustion efficiency to meet emission standards.
Cap the entire structure with a final cover system comprising 45cm of compacted clay overlain by a 40-mil HDPE geomembrane, protected by 30cm of vegetative soil. Design the surface gradient at 3–5% to shed precipitation while preventing erosion. Include a biotic barrier (coconut coir or synthetic turf) to deter root penetration. Post-closure maintenance mandates quarterly inspections for settling (
Base liner systems demand a 60cm subgrade layer of low-permeability clay (hydraulic conductivity ≤1×10⁻⁷ cm/sec) beneath the geomembrane. Test soil samples from every 10,000 m² using triaxial permeability methods–reject areas exceeding the threshold. For high-water-table regions, incorporate a secondary composite liner with geosynthetic clay liner (GCL) as backup. Slopes >15% require geogrid reinforcement to prevent slumping of the liner system under loaded conditions.
Step-by-Step Layers in Waste Disposal Site Engineering
Begin with a minimum 1-meter-thick compacted clay base (hydraulic conductivity ≤1×10⁻⁷ cm/sec) to prevent leachate migration. Layer thickness must be verified via field testing before proceeding to avoid future breaches. If native clay is inadequate, import bentonite or synthetic liners with proven performance records.
Install a 60-mil high-density polyethylene (HDPE) geomembrane over the clay, ensuring 100% seam integrity through dual-track welding. Use conductive geomembranes for electrical leak detection–mandatory for sites handling hazardous waste. Overlap edges by 30 cm and anchor in a perimeter trench to prevent uplift from gas pressure.
Deploy a geosynthetic clay liner (GCL) above the geomembrane, with bentonite granules bonded to geotextiles. Verify uniform bentonite distribution (minimum 4.5 kg/m²) to maintain self-sealing properties. Avoid GCL hydration until the next layer is placed to prevent swelling that compromises barrier performance.
Add a minimum 30-cm granular drainage layer (washed gravel, 20–40 mm diameter) over the liner system. Slope the base at 2–5% to direct leachate to collection sumps. Embed perforated HDPE pipes (150–200 mm diameter) within this layer, spaced ≤30 meters apart, and wrap in non-woven geotextile to block fines.
Cover the drainage layer with a protective geotextile (mass per unit area ≥270 g/m²) to shield liners from puncture during waste placement. Use needle-punched or thermally bonded fabrics with tear resistance exceeding 600 N (ASTM D4533). Avoid woven geotextiles–they clog faster under organic load.
Compact waste in 30–50 cm lifts, alternating with 15–30 cm daily cover (native soil, shredded green waste, or foamed cement). Maintain compaction ratios ≥1.2:1 for municipal waste; ≥1.5:1 for construction debris. Monitor settlement patterns weekly–differential settlement >10 cm requires regrading to avoid liner strain.
Cap completed sections with a multi-layer final cover: 60-cm compacted clay barrier (k≤1×10⁻⁷ cm/sec), 40-mil LLDPE geomembrane, 30-cm gas drainage layer, and 60-cm vegetative soil layer. Install a passive gas venting system with vertical risers spaced ≤30 meters apart to prevent methane buildup.
Conduct quarterly integrity assessments using electrical resistivity mapping for liner breaches and robotic crawlers for pipe obstructions. Replace damaged components within 72 hours–leachate leaks as small as 1 mm can contaminate groundwater at rates exceeding 50 L/day. Keep maintenance records tied to GPS coordinates for lifetime traceability.
