How to Wire a 7Pin Trailer Socket StepbyStep Guide with Diagram
Begin by verifying the pin configuration on both the vehicle’s socket and the attached harness. Most modern setups follow a standardized 7-way layout, but variations exist–especially in older models or heavy-duty applications. Check the manufacturer’s specifications for your vehicle; mismatched pin assignments can lead to reverse polarity, short circuits, or failed lighting systems. Use a multimeter to confirm pin functions before making permanent connections.
Grounding is the most common failure point in these systems. Always attach the ground wire (typically white or brown) directly to a clean, unpainted metal surface on the chassis–never to plastic or rusted areas. A loose or corroded ground can cause intermittent signal loss, flickering lights, or even damage to onboard modules. Solder or crimp connections with heat-shrink tubing to prevent moisture ingress, which accelerates corrosion.
For lighting functions (brake, turn, tail), use 18-gauge or thicker wire to handle current loads without overheating. Thinner wires may suffice for auxiliary circuits, but they’ll fail under sustained draw, especially in stop/start driving. Route wires away from sharp edges, moving parts, and exhaust components. Secure them at 12–18 inch intervals with zip ties or wire loom to prevent chafing. Avoid using tape or electrical grease alone; they trap moisture and degrade over time.
Test each function before finalizing installation. Activate brakes, turn signals, and running lights in sequence while observing the attached unit. If a circuit behaves erratically, recheck connections rather than assuming a fuse or bulb issue. For auxiliary power (e.g., 12V hot lead), ensure the wiring gauge matches the intended load–undersized wires will overheat and could melt insulation. Use a relay for high-draw accessories like winches or refrigerators to avoid overloading the harness.
Document your setup with a hand-drawn schematic or photograph connections before covering them. Label wires at both ends to simplify future troubleshooting. If the unit includes a reverse light function, confirm its operation in a safe, open area–improper polarity here can trigger trailer brakes unexpectedly. Replace worn or oxidized plugs immediately; a $15 component prevents $500+ in potential damage to tow vehicle electronics.
How to Wire Vehicle Plugs for Towing: A Practical Guide
Start by identifying the pin configuration of the plug used on your towing vehicle. The most common layouts are 7-pin (round or flat) and 13-pin (Euro-style). Check the owner’s manual or visually inspect the socket–pins should be numbered or color-coded. Mismatched assignments cause malfunctions.
Use a multimeter to verify pin functions before connecting. Probe each terminal while activating lights, brakes, or auxiliary power. Record voltage readings:
- 12V+ (constant) for charging or fridge circuits.
- 12V+ (switched) for tail/brake lights.
- Ground (common return).
Polarity errors damage sensitive components.
Strip wires to expose 6-8mm of copper, but avoid nicking strands. Crimp terminals with ratcheting pliers–cheap tools deform connections. Apply heat-shrink tubing or dielectric grease to prevent corrosion. Loose strands create intermittent faults.

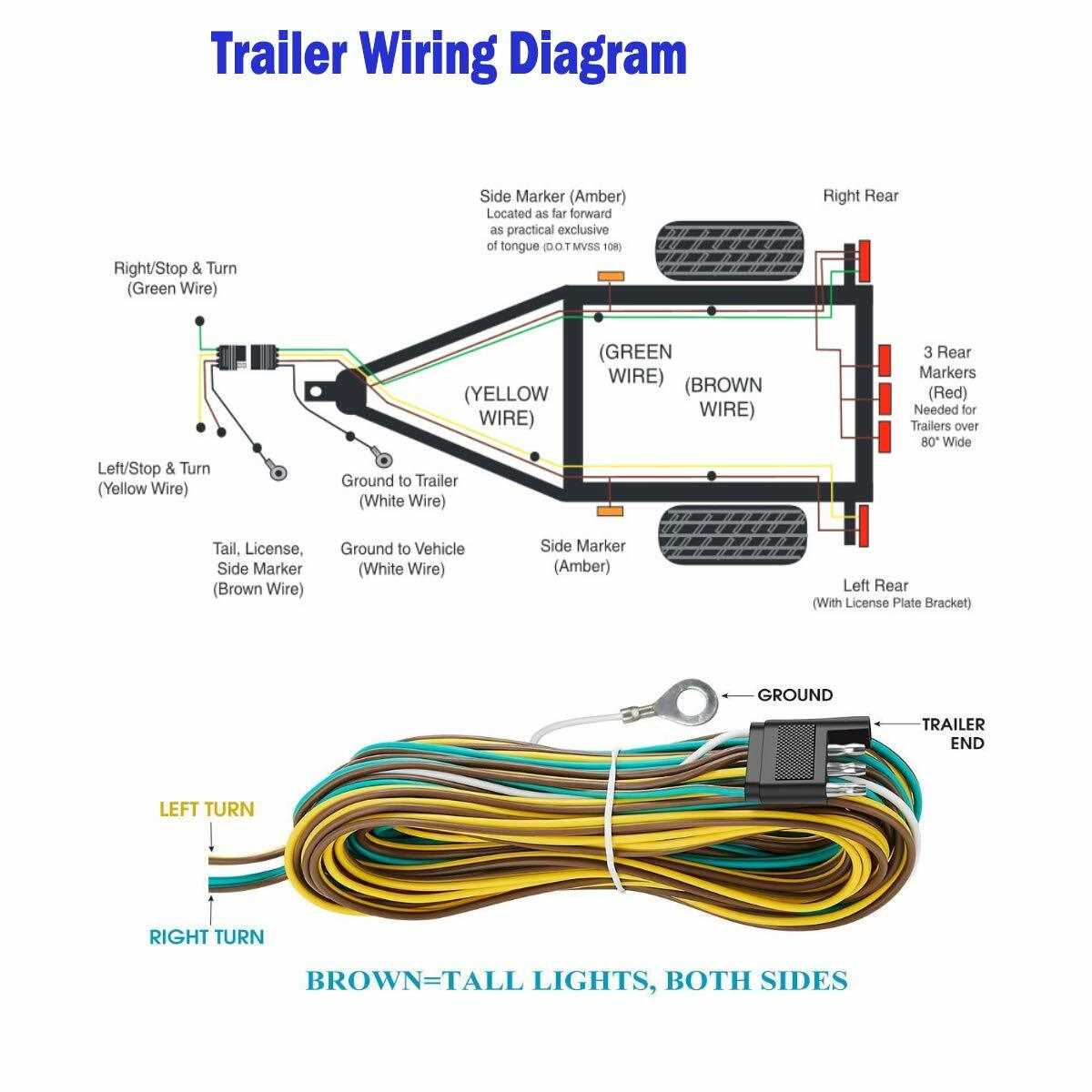

Follow a standardized color scheme to avoid confusion:
- White – Ground (return).
- Brown – Running lights.
- Green – Right turn/brake.
- Yellow – Left turn/brake.
- Blue – Electric brakes or auxiliary.
- Black – Battery charge line.
- Red – Reverse lights (if equipped).
Deviations from this scheme complicate troubleshooting later.
Route harnesses along frame rails using loom tape every 30cm. Avoid sharp edges, exhaust pipes, and moving parts. Secure excess length with zip ties–not cable ties–to allow thermal expansion without chafing. Use grommets when passing through metal panels to prevent insulation wear.
Test all circuits with a load (e.g., trailer bulbs) before final installation. LED loads require load equalizers if the vehicle has incandescent bulbs. Verify brake controller output (4-12V) on a dynamometer or with a linear actuator. Random failures often trace to poor pin contact–clean terminals with a wire brush yearly.
For adapters between 7-pin and 13-pin systems, purchase molded units rather than DIY splicing. Pre-wired adapters include built-in surge protection and proper fusing. Note that some pins (e.g., auxiliary power) may remain disconnected–map unused circuits clearly to avoid confusion.
For heavy-duty applications (e.g., horse trailers), install a dedicated relay for the battery charge line. A 30A fuse within 30cm of the battery prevents fire hazards. Upgrade ground wires to 10AWG minimum–thin grounds cause voltage drops under load.
Selecting the Optimal Plug Type for Towing Needs
Begin by matching the heavy-duty socket to your towing setup’s demand. For light-duty applications–such as bike racks or small cargo carriers–a 4-pin flat plug suffices, delivering power solely to tail, brake, and turn lights. Vehicles frequently hauling heavier loads, like caravans or boats, require a 7-pin round or blade socket, which adds circuits for reverse lights, electric brakes, and auxiliary functions. Verify the tow vehicle’s existing harness; retrofit kits are available if incompatible.
Consider regional standards before purchasing. North American setups typically use a 7-way blade configuration, while European models (ISO 11446) favor a 13-pin design, integrating all lighting, charging, and stabilizer controls into one compact unit. Below is a comparison of key specifications:
| Type | Pin Count | Common Uses | Voltage Handling | Durability Rating |
|---|---|---|---|---|
| 4-pin flat | 4 | Utility trailers, small campers | 12V, 10A max | Moderate (weather-resistant) |
| 7-pin round | 7 | Boat trailers, horse trailers | 12V, 20A max | High (rubber gasket seal) |
| 7-way blade | 7 | RVs, large enclosed trailers | 12V, 30A max | Very high (heavy-duty housing) |
| 13-pin ISO | 13 | Caravans, advanced stabilization | 12V, 25A + 12V/24V charging | Extreme (IP55 ingress protection) |
Prioritize corrosion resistance for outdoor or marine use. Gold-plated contacts, like those in high-end 13-pin setups, prevent oxidation better than standard brass. For off-road or muddy conditions, opt for plugs with integrated LED diagnostic indicators–these provide instant feedback if a circuit fails during transit. Skip cheaper molded plastic designs; metal-housed units endure rough terrain and temperature fluctuations without cracking.
Always test continuity before finalizing the install. Use a multimeter to confirm each pin carries voltage under load–auxiliary pins (e.g., for electric brakes) should show zero resistance when engaged. If adapting an older tow vehicle, install a relay-based module to prevent voltage drops to the lighting circuit, especially on long hauls. Store spare sockets vertically to avoid water pooling in the housing; silicone dielectric grease applied during assembly doubles the lifespan.
How to Install a 7-Way Vehicle Socket: Clear Instructions
Begin by securing the tow hitch socket with at least two mounting screws to prevent vibration damage. Use a junction box if the harness lacks a pre-installed ground–attach the white wire directly to the vehicle’s chassis using a self-tapping screw and star washer for a corrosion-resistant bond. Verify the wire gauge matches the socket’s specs: 12 AWG for circuits under 20 amps, 10 AWG for heavier loads like brakes or auxiliary power.
Connect the brown wire to the running lights by tapping into the rear lamp’s positive side–avoid splicing near the bulb holder to prevent heat damage. For the yellow (left turn/signal) and green (right turn/signal) wires, use a multimeter in diode mode to identify the correct feed from the flasher relay. Skip generic butt connectors; crimp and solder each joint with heat-shrink tubing rated for 125°C to withstand road debris and moisture.
Testing Critical Paths Before Final Assembly
Use a 12V test probe to confirm power at each socket pin: apply the probe to pin 1 (yellow) while activating the left signal, then repeat for pin 4 (green) with the right signal. Check pin 2 (blue) for brake output by pressing the pedal–the probe should read battery voltage. If readings fluctuate, inspect for loose grounds or oxidized terminals. Replace any factory clips showing green corrosion with tin-plated copper versions.
For the 12V auxiliary circuit (pin 7, purple), fuse the wire within 7 inches of the battery using a 15-amp fuse to prevent fire hazards. Route the harness through a grommet in the vehicle’s frame to avoid chafing against sharp edges–secure it every 12 inches with nylon ties, not steel clamps, to prevent galvanic corrosion. Before sealing the socket, apply dielectric grease to all contacts to block moisture ingress.
Finalize the setup by verifying trailer functions: plug in a test light to confirm signal, brake, and marker lights activate simultaneously with the vehicle’s controls. If markers flicker at idle, install a capacitor across the brown wire and ground to stabilize voltage. For heavy trailers, add a dedicated brake controller–wire it directly to pin 5 (black) with a 30-amp breaker to handle surge currents during emergency stops.
Standard Color Coding for Auxiliary Vehicle Links
Use yellow for left-turn signals–this is a baseline across North American and European fleets, ensuring consistency even when switching between different makes of towable units. Verify the wire’s function with a multimeter if documentation is unclear, as some aftermarket modifications may deviate from factory norms.
Brown leads are universally assigned to running or marker lamps; connect these first when assembling harnesses to confirm basic visibility before tackling signal circuits. In 7-pin layouts, brown may split into two circuits for separate side and tail illumination–label both branches clearly to prevent miswiring during future servicing.
Variations in Power and Ground Assignments
White wires demand extra attention: they serve as both chassis ground and return path for lighting circuits. Secure connections with self-tapping screws or crimp terminals rated for outdoor exposure, avoiding oxidized surfaces which introduce voltage drops. For heavy-duty applications, upsize the white conductor to 12 AWG to handle surge currents from brake actuators and auxiliary powertrains.
Blue circuits activate breakaway brakes or electric drum systems–test by pulling the pin manually before on-road trials. In 13-pin European configurations, blue shifts to reverse lights, requiring cross-referencing with the installation manual to avoid conflicts with brake controllers. Always fuse blue leads at the source to protect against short circuits collapsing the entire stopping mechanism.
International Differences and Adaptor Needs
Australian standards swap yellow (left turn) and green (right turn) positions, necessitating dedicated adaptors when interfacing with North American rigs. Pin 6 in ISO 11446 layouts carries permanent 12V supply–isolate this from intermittent feeds to prevent parasitic battery drain while parked. Check for dual-purpose pins in Asian-market connectors, where a single terminal might combine tail and license plate illumination.

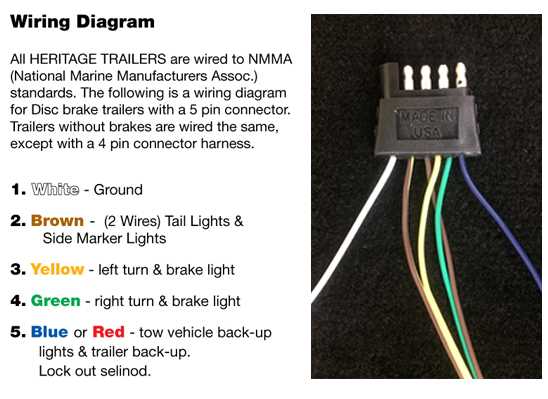

For 5-pin round connectors, verify whether green carries right-turn signals or brake lights; documentation from the utility manufacturer overrides generic color tables. When in doubt, trace each circuit from the light bulb socket back to the harness junction, noting any splices or relays that could alter expected behavior. Keep a roll of contrasting-color heat shrink tubing on hand to re-mark wires if original labels peel off under UV exposure.
