Complete 2006 Toyota Tacoma Trailer Wiring Harness Diagram Guide
Locate the factory connector behind the rear bumper–it’s a rectangular plug with six or seven pins, typically black or gray. If your setup includes auxiliary lighting or electric brakes, verify the brown wire (right turn/brake), green wire (left turn/brake), yellow wire (reverse lights), and white wire (ground) match the industry-standard color codes. Mismatches here cause signal failures; cross-check with a multimeter before finalizing connections.
For vehicles equipped with a separate control module, the main harness often terminates in a 4-pin flat connector. If your trailer requires additional circuits–like a 12V hot lead for interior lighting–splice into the red wire (fused at 10A) near the under-dash fuse box. Avoid tapping into the taillight circuit directly; this overloads the system and triggers warnings on the instrument cluster.
Install a relay if you’re adding high-draw accessories (winches, compressors). Use 10-gauge wire for power runs and 12-gauge for lighting circuits. Secure all splices with heat-shrink tubing–electrical tape degrades in under two years under UV exposure and road salt. Test each function with a trailer simulator or bulb tester before hitching; intermittent faults often trace back to corroded grounds or loose crimps.
Factory wiring diagrams are vehicle-specific and rarely published; rely on aftermarket manuals or OEM schematics extracted from service portals. If the system includes a brake controller, the blue wire (brake output) must connect to the trailer’s brake module–incorrect polarity here results in erratic braking behavior. For newer LED trailers, add a load-equalizing resistor between the turn signal and brake wires to prevent hyperflashing.
Understanding Your Pickup’s Electrical Hookup for Hauling

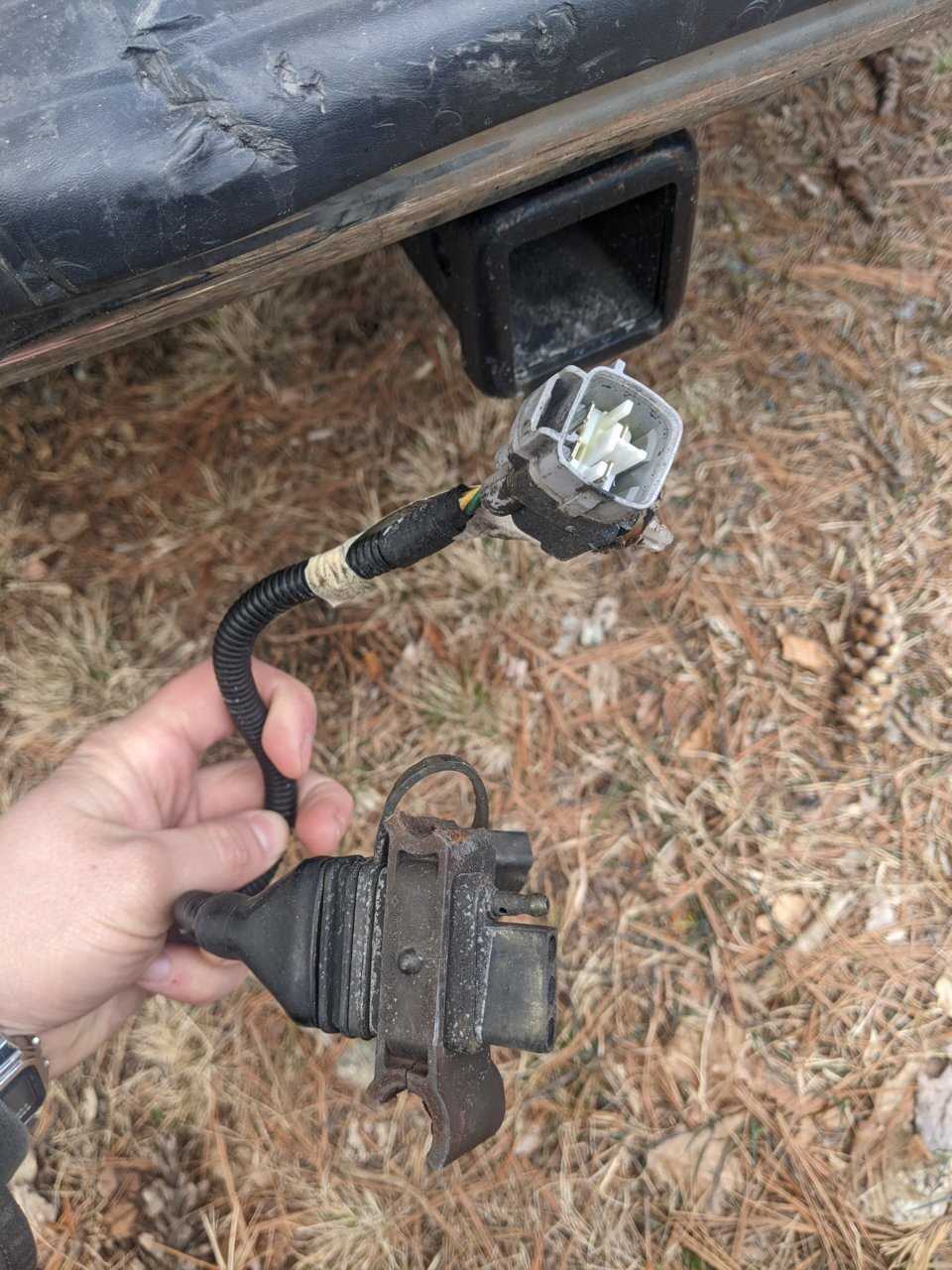

Locate the factory tow connector behind the rear bumper on the driver’s side–it’s a 7-pin rectangular socket. Pin assignments follow this layout: pin 1 (left turn/brake, yellow), pin 2 (tail/running lights, brown), pin 3 (right turn/brake, green), pin 4 (ground, white), pin 5 (auxiliary power, red), pin 6 (backup lights, purple), pin 7 (electric brake controller, blue). Verify each circuit with a multimeter set to 12V DC; readings should match 12.6V when the ignition is on and corresponding lights are activated. If voltage drops below 11.8V, inspect the 30-amp fuse under the dash and the inline fuse near the battery.
Splice connections require heat-shrink tubing and crimp connectors rated for 16-gauge wire. Avoid twisting wires together–corrosion sets in within months. For aftermarket brake controllers, route the blue wire directly from the socket to the controller’s output terminal, bypassing the vehicle’s multifunction switch if feedback occurs. Grounding must be bare metal; paint or undercoating will cause intermittent failures. Tighten grounding bolts to 10 Nm, ensuring a clean surface with a wire brush.
Test blinker function by connecting a tow light bar–rapid flashing indicates insufficient load, corrected by adding a 50-ohm resistor across the affected circuit. Reverse lights often trigger false alarms on backup sensors; disable the sensor module behind the rear wheel well if interference persists. Heavy-duty relay installations benefit from a separate 30-amp relay mounted near the rear bumper, reducing voltage drop over extended runs. Keep wire runs at least 15 cm from exhaust components to prevent melting.
For diagnostic trouble codes related to the lighting system, use a scan tool capable of reading body control module data–P0413 (low input signal) typically points to an open circuit between the socket and the body ECU. Replace the factory wiring harness if insulation feels brittle or displays cracks–aftermarket harnesses offer superior waterproofing but may require reprogramming the vehicle’s computer to avoid false bulb-out warnings.
Finding the OEM Tow Package Connector on Pre-Facelift Pickup Models
Begin under the driver-side rear fender, directly above the leaf-spring mount. The harness exits the vehicle frame through a 1-inch grommet at frame rail position RH-245 (measured 245 mm rearward from the front cab mount). Peel back the black protective tape; the connector is a 7-pin round plug with red locking tab, color-coded terminals: brown (12 V stop), green (right turn/brake), yellow (left turn/brake), white (ground), blue (electric brakes), black (aux 12 V), and gray (rear lamp). If absent, trace forward along the same frame rail; a splice block may sit 80 mm ahead of the grommet.
| Terminal | Wire Gauge | Frame Exit Point | Tape Color |
|---|---|---|---|
| GC/Brown | 14 AWG | RH-245 | Black |
| G/Yellow | 14 AWG | RH-245 | Black |
| W/White | 12 AWG | RH-260 | Clear |
| L/Blue | 14 AWG | RH-240 | Black |
Step-by-Step Color Code Guide for Towing Connector Installation
Begin by locating the vehicle’s factory harness behind the rear bumper. Most late-model off-road-capable pickups use a seven-pin round connector, though some models may include a four-pin flat adapter. Identify the main harness plug by tracing the wires to the tailgate area–look for a bundled set of colored leads emerging from a protective sheath.
Use a multimeter to verify each lead’s function before making permanent connections. Set the meter to DC voltage (20V range) and probe the pins while an assistant activates the corresponding vehicle lights. The standard color assignment for a seven-way blade arrangement is as follows:
- Yellow (YL): Left turn/brake signal (12V pulse)
- Green (GN): Right turn/brake signal (12V pulse)
- Brown (BR): Running lamps (constant 12V when lights are on)
- White (WH): Ground (attach to bare metal frame; avoid painted surfaces)
- Blue (BL): Electric brake output (12V when brakes are engaged)
- Red (RD): Battery hot lead (fused 12V constant; requires relay for high-amperage loads)
- Black (BK): Auxiliary power (often used for reverse lights or 12V accessories)
For four-pin flat connectors, the remaining wires collapse into three circuits: road illumination (brown), left/right signals (yellow and green), and a single ground (white). Skip the brake, charge, and auxiliary outputs–these require the seven-way upgrade. Measure wire gauge before splicing; most factory leads use 16-14 AWG for signals and 12 AWG for power feeds.
Strip only ¼ inch of insulation from each wire to prevent short circuits. Use crimp connectors rated for automotive applications–avoid generic hardware-store variants. Apply dielectric grease inside each connector before joining to prevent corrosion. Test each connection with a load (e.g., a trailer side marker) before finalizing the harness route.
Troubleshooting Common Issues
If signals flicker or fail, recheck the ground connection first. A weak ground causes intermittent operation, especially when brakes are applied. For electric brake systems, ensure the blue wire carries a clean 12V pulse; voltage drops below 11V indicate a relay or controller problem. Verify fuses on both the vehicle and any aftermarket brake control module.
Route the harness away from sharp edges and exhaust components. Secure with zip ties every 6–8 inches, using existing chassis holes where possible. For extended trailers, consider adding a junction box near the hitch for easy diagnostics. Label all connections with heat-shrink tubing marked with the color code to streamline future repairs.
Final Validation Procedure
After installation, perform a full system check:
- Activate hazard lights–both turn signals should flash in unison.
- Apply brakes while monitoring rear lamps–all brake lights must illuminate.
- Engage reverse gear (if applicable)–verify backup lights and auxiliary circuits.
- Measure voltage at the connector with a clamp meter under load (e.g., trailer plugged in and brakes activated).
Document any deviations from the standard color scheme, as some manufacturers swap green and brown for running lamps and markers. Retain this reference for future towing setups.
Common Issues and Fixes for Aftermarket Towing Electrical Hookups
Brittle or corroded pins in the seven-way plug often cause intermittent power loss to brake lights or turn signals. Replace the entire connector if more than one pin shows green oxidation–cleaning with contact spray provides only temporary relief. Match the new plug’s pin configuration exactly; some aftermarket units swap the auxiliary and reverse light circuits.
Chafed cables running along the frame can short when exposed copper touches metal. Route replacement harnesses through plastic looms and secure with nylon zip ties every 12 inches–avoid steel straps that corrode under road splash. Use heat-shrink tubing with adhesive lining over every splice; standard electrical tape wears out within six months under UV exposure and road grime.
Flickering LED marker lamps usually stem from insufficient ground. Always connect the ground wire directly to the chassis with a star washer, not the threaded bolt of a trailer hitch. For multi-light setups, run a dedicated 10-gauge ground wire back to the battery negative terminal; shared grounds create voltage drops visible as erratic brightness.
Relay-controlled circuits sometimes fail because the module lacks a diode across the coil, allowing reverse voltage spikes to damage the ECM. Install a 1N4007 diode across the relay coil terminals with the cathode (striped end) toward the +12 V side. Verify the diode’s polarity with a multimeter before energizing; incorrect orientation will immediately short the fuse.
Mismatched amperage between the vehicle’s fusebox and the added circuit causes overheating. Upgrade the fuse for the towing harness to a slow-blow type, sized 20 % above the maximum rated draw of the heaviest loaded circuit–typically 25 A for brake controllers or 30 A for dual-axle setups with electric drums. Never substitute standard ATC fuses; they cannot handle the inrush current of solenoids and compressors.
