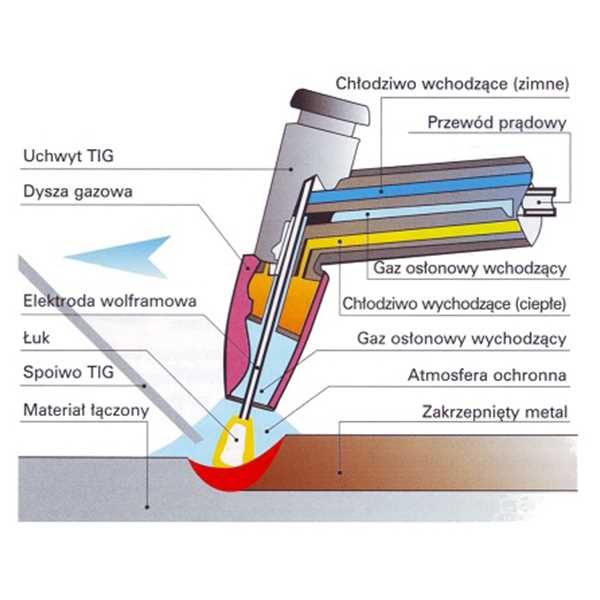

Understanding the TIG Welding Electrical Setup and Wiring Schematics

For consistent gas tungsten arc operations, a power source with high-frequency startup capability is critical. Direct current electrode negative (DCEN) configurations yield deeper penetration on steel and stainless alloys, while alternating current (AC) balances heat distribution for aluminum and magnesium. A 200-amp transformer-rectifier unit with square-wave output minimizes arc instability during polarity shifts. Ensure the control module regulates amperage within ±5% of the set value to prevent tungsten erosion.

Ground connections demand a minimum 2 AWG copper cable for currents exceeding 150 amps to reduce resistive losses. The work clamp should fasten directly to bare metal–oxide layers increase resistance by up to 15%, leading to uneven heat input. For mobile setups, employ a magnetic ground or C-clamp rated for 300 lbs pull force to avoid detachment during operation.

Cooling systems become mandatory above 120 amps for continuous duty cycles. A dual-stage coolant pump circulating 1.5 GPM at 20 PSI prevents overheating–temperatures above 400°F degrade torch components within 30 minutes. Use distilled water with a 10% ethylene glycol mix to inhibit corrosion in brass fittings. Replace coolant every 50 operating hours to maintain thermal efficiency.

Gas flow meters must deliver 15-30 CFH for standard applications, with precise adjustment preventing oxidation or excessive turbulence. A two-stage regulator reduces downstream pressure fluctuations to ±1 PSI. For helium-rich mixes, increase flow by 40% to compensate for lower gas density. Always purge the line for 10 seconds before striking an arc to displace atmospheric contaminants.

Foot pedals or thumb controls must modulate current linearly across the full range–non-linear response causes inconsistent bead width. Test pedal responsiveness by measuring amperage output at 25%, 50%, and 75% depression; deviations exceeding ±2% indicate worn potentiometers or faulty wiring. Remote amperage selectors should lock into detents to prevent accidental adjustments mid-operation.

Understanding Gas Tungsten Arc Electrical Flow Layouts

Start by connecting a 240V AC power source to a transformer-rectifier unit capable of delivering 15-200 amperes. Ensure the primary side includes a proper breaker rated at least 1.25 times the max current draw–for a 30-amp circuit, use a 40-amp breaker. The secondary side must output DC with high-frequency start capability, typically achieved via an auxiliary circuit injecting 3-5 kV for arc initiation. Verify cable gauge: for 70-amp loads, 6 AWG copper suffices; for 125 amps, move to 4 AWG.

• Place a foot pedal or fingertip remote between the power source and torch to regulate amperage dynamically–opt for a linear taper potentiometer rated for 50kΩ.
• Install a gas solenoid valve upstream of the torch, set to open 1-2 seconds before arc initiation and close 5-10 seconds post-shutdown to prevent tungsten oxidation. Use a 24V DC coil for compatibility with most inert gas systems.
• Integrate a water cooler if running above 150 amperes continuously–recirculate deionized water at 1-2 GPM through a closed loop with a 3/8″ ID hose.

For pulsed operations, wire a pulse module in series with the main power leads. Configure pulse frequency between 0.5-20 Hz, with peak amperages reaching 1.5-2x the background current. Example: for 100-amp background, set peaks to 150-200 amps at 2-5 Hz. Use a shielded cable (e.g., Belden 9841) between the module and power source to minimize EMI interference on digital controls.

1. Ground the workpiece clamp directly to the return terminal using braided copper straps (minimum 2″ wide) to avoid voltage drop–resistance should not exceed 0.1Ω.
2. Avoid shared neutrals; run separate return paths for each station if operating multiple setups.
3. Add a snubber circuit (0.1μF capacitor + 100Ω resistor in series) across the primary input to suppress transient spikes during HF ignition.

Test the layout with a multimeter before energizing: measure open-circuit voltage (60-80V DC), verify gas flow at 15-30 CFH, and confirm water flow indicators (if applicable) show proper pressure (30-50 PSI). For aluminum processing, switch to AC output with a square-wave balance set to 60-70% electrode positive for cleaning action. Maintain a 1/16″ arc length; deviations beyond 3/32″ reduce heat concentration and increase tungsten consumption by 40%.

Critical Elements of an Arc Fusion Power Network

Select a power source with adjustable amperage spanning 5–350 A for versatile metal joining, ensuring minimal heat input distortion for thin sheets under 2 mm. Inverter-based units reduce weight by 40% while improving arc stability compared to transformer models, which require bulkier copper windings. Verify the unit’s duty cycle at maximum output–industrial-grade equipment typically delivers 60% at 300 A, while hobbyist variants often drop below 30%.

Employ a high-frequency start system to eliminate tungsten contamination; this method initiates the arc without physical contact, preserving electrode longevity. For AC operations on aluminum, integrate a square-wave output to balance cleaning action and penetration–adjustable balance control (30–70%) prevents excessive heat buildup on heat-sensitive alloys. DC operations on steel or stainless demand a stable, ripple-free current; opt for units with ≤2% ripple amplitude to avoid inconsistent bead formation.

Core System Parts and Specifications

Component	Key Metrics	Recommended Parameters
Power Inverter	Frequency response, efficiency	50–100 kHz switching, ≥90% efficiency
Foot Pedal/Remote	Control resolution, hysteresis	1% amperage resolution,
Cooling System	Flow rate, thermal capacity	1.5 L/min flow, 120 W heat dissipation @ 85°C
Gas Valve/Solenoid	Response time, leakage rate	≤20 ms activation,

Ground clamps must maintain

Gas Delivery and Arc Stabilization

Use a two-stage gas regulator to maintain 15–25 CFH flow rates within ±2% accuracy; stainless-steel diaphragms resist argon diffusion better than brass. Pre-flow/post-flow timers should be adjustable from 0.1 to 10 seconds–shorter intervals suffice for thin materials, while thicker sections (>6 mm) require extended post-flow to prevent tungsten oxidation. For helium blends, increase flow by 30% due to its lower density, and verify torch compatibility with higher thermal conductivity.

Direct-current electrode-negative (DCEN) configurations demand 2% thoriated or ceriated tungsten (1.6–3.2 mm diameter) for steel; larger diameters (>4 mm) reduce arc wander but necessitate higher amperage. Replace electrodes when the tip deviates >0.8 mm from its original shape. For robotic integration, ensure the power feed’s analog input accepts 0–10 V or 4–20 mA signals with

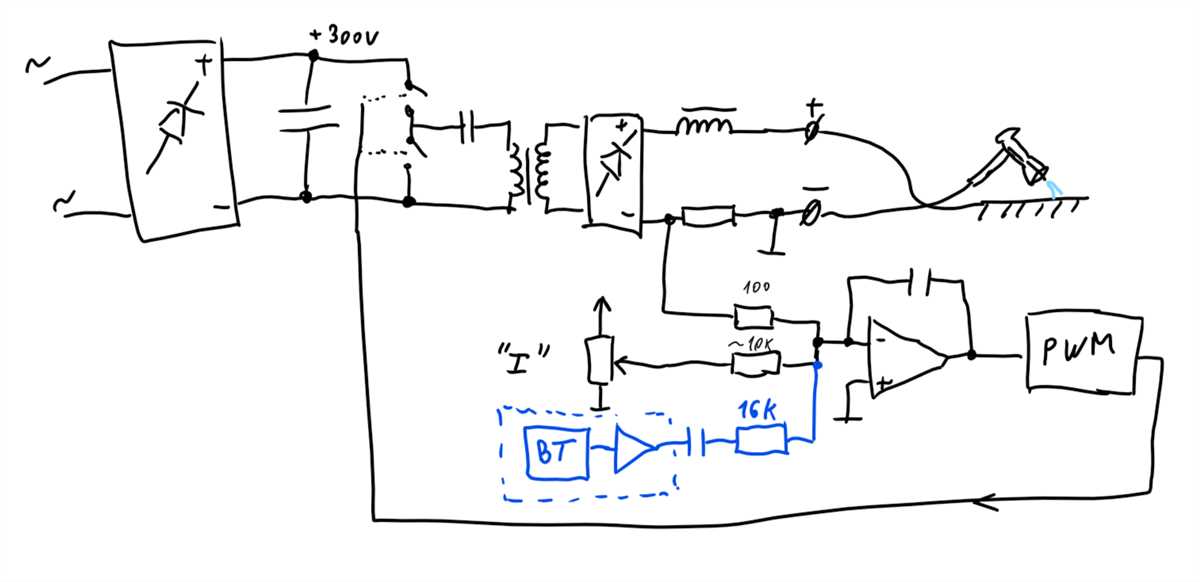

Understanding Arc Equipment Electrical Schematics

Locate the power source symbol first–typically a rectangle or transformer icon with input/output labels. Check voltage ratings (e.g., 230V, 460V) and verify they match your facility’s supply. Trace thick lines from the source to the control module, noting fuse ratings (commonly 10A–15A) and any breaker switches marked “HF” or “Pulse.”

• Identify the tungsten feed path: thin dashed lines indicate gas flow, solid red lines signify current, and blue/green denote shielding output.
• Mark foot pedal connections–usually a two-pin plug–confirming polarity matches the schematic (DCEN/DCEP).
• Compare all relay contacts: NC (normally closed) and NO (normally open) must align with component labels on the unit’s rear panel.
• Cross-reference color codes: black=ground, red=positive, white=negative (for AC models, note split-phase wiring).

Building a Precision Arc Generator: Component Integration Guide

Begin with a 200-250 amp rated toroidal transformer–core dimensions no smaller than 120x80x50mm, wound with 8-gauge enameled copper wire for primary (220V input) and 6-gauge for secondary outputs. Layer insulation between windings using 0.2mm mica paper, ensuring creepage distance exceeds 8mm. Mount the transformer on a 3mm galvanized steel chassis, grounding the core directly to the frame via a 10 AWG braided strap. Connect a bank of 47,000 μF 450V electrolytic capacitors in parallel, spaced at least 30mm apart for thermal dissipation. Install a dual-stage inrush limiter: a 15Ω 10W ceramic resistor in series with a 20A SCR for soft-start control.

Attach the rectifier assembly using a single-phase bridge configuration with HFA25PB60 diodes–each rated for 25A continuous at 600V–soldered to a 3mm aluminum heatsink (minimum surface area: 200cm²). Secure the output terminals with M8 copper terminal blocks, torqued to 12 Nm. Wire a 50mV/200A shunt resistor to the negative return path, bypassing it with a 0.1μF 630V film capacitor to suppress high-frequency noise. For voltage regulation, incorporate a TL494 PWM controller, feeding its error amplifier with a scaled feedback signal from a 10kΩ multi-turn potentiometer across the output terminals. Calibrate the feedback loop with a 1.2kΩ resistor and 1μF tantalum capacitor to maintain steady-state ripple below 2% at full load.

Troubleshooting Arc Stability Problems and Fixes

First, inspect the tungsten electrode for contamination. Even microscopic debris alters arc behavior, causing erratic strikes or uneven heat distribution. Clean the tip with a dedicated abrasive pad–never use standard sandpaper. Verify the electrode grind angle matches the application: 15–25° for steel, 25–35° for aluminum. Incorrect angles force current to concentrate, leading to inconsistent performance. Measure the stick-out length–it should not exceed 1.5 times the nozzle diameter. Longer exposures dilute shielding gas coverage.

Gas flow irregularities often disguise themselves as electrical faults. Confirm the regulator delivers 15–25 CFH for most tasks, adjusting upward for windy conditions. Check hoses for kinks or leaks by spraying soapy water–bubbles reveal breaches. A dirty or damaged flowmeter distorts readings; replace if the float sticks. Ensure the gas diffuser isn’t clogged with spatter; a blocked diffuser creates turbulent flow, which destabilizes the arc. Store gas cylinders upright to prevent liquid CO₂ carryover in argon blends.

Diagnosing High-Frequency Ignition Failures

High-frequency starters fail silently when spark gaps widen beyond 1mm. Measure gap annually–use feeler gauges for precision. Corroded relay contacts in the starter unit cause intermittent ignition; deoxidize with contact cleaner. Verify the power source’s open-circuit voltage (OCV) stays above 60V–low OCV prevents reliable starts. Some machines require grounding the workpiece via a dedicated strap; paint or rust insulates current, forcing the starter to compensate.

Foot pedal malfunctions mimic electrical issues but often stem from mechanical wear. Check the pedal potentiometer for smooth resistance changes–erratic readings trigger erratic amperage jumps. Lubricate pedal pivots with dry graphite to prevent binding. If the pedal behaves unpredictably, bypass it temporarily using the machine’s panel controls to isolate the problem. Loose pedal cables cause intermittent drops; re-terminate connections with heat-shrink tubing to prevent shorts.

Contaminated filler rods introduce porosity misinterpreted as gas defects. Store rods in airtight containers with desiccant packs–humidity causes surface oxidation. Before use, wipe rods with acetone to remove oils. Adjust torch angle to 10–15° drag for steel, 20–30° push for aluminum; incorrect angles trap impurities in the pool. Overheating the base material through excessive dwell time also generates porosity–limit arc time to 3–5 seconds per spot for thin sections.

Unbalanced three-phase input causes voltage fluctuations that disrupt precision work. Measure input lines with a multimeter–imbalances exceeding 3% degrade performance. Single-phase machines on shared circuits suffer from voltage sag–dedicate a 20A breaker for consistent output. Some newer units filter line noise poorly; install a power conditioner if dimming lights coincide with arc inconsistencies. Finally, reset the machine’s internal calibration if it drifts post-power outages–most models require a full cold restart to recalibrate.
