Complete 2011 Chevy Silverado Radio Wiring Harness Color Code Guide

Locate the C200 connector behind the dashboard cluster–this is your starting point. The pink (hot at all times) and yellow (switched 12V) wires must bypass the factory harness to avoid blown fuses during aftermarket unit installation. Use 18-gauge crimp connectors for splices; soldering introduces resistance and risks poor grounding.

Identify the dark green (left front speaker +) and light green (left front speaker –) leads–these terminate at the door tweeter. The rear speaker wires (gray/brown for positive, gray/black for negative) run through the cab pillar grommet; avoid stretching the loom during routing or the insulation will crack under vibration.

Ground the black antenna coax shield to the chassis near the firewall, not the stock bolt–the original paint creates high resistance. The orange/white illumination wire requires a 330-ohm resistor in series if retaining dimming control; skipping this step will fry the new head unit’s backlight circuit.

For steering wheel controls, the light blue data bus wire must interface with an ASWC-1 adapter–direct splicing triggers fault codes in the BCM. If the stock amp is retained, the purple amp turn-on lead needs a relay (30A SPDT) to prevent overheating the head unit’s low-current trigger.

Test continuity on the brown ground strap (located behind the glove box) before final assembly–corrosion here mimics speaker shorts. Replace the fuse holder (A24, 10A) with a mini ANL fuse if upgrading to higher-power aftermarket components to prevent meltdown.

Locating the Correct Aftermarket Audio Connector Pinout for GMC Pickup Models

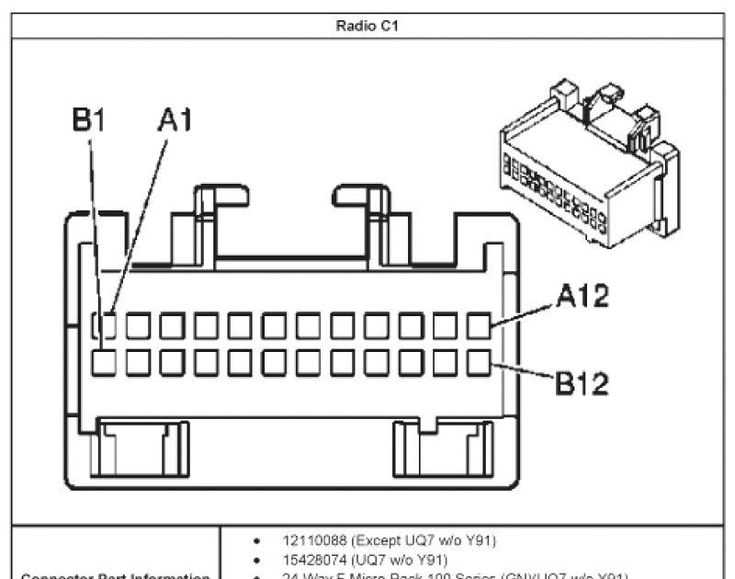

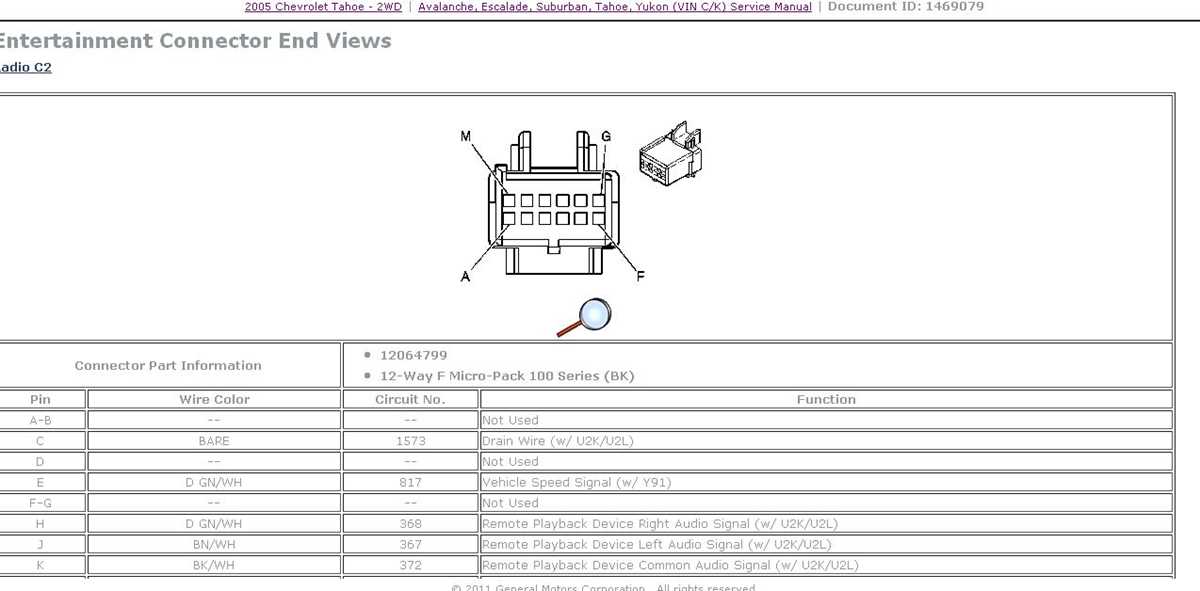

Begin by identifying the C1 and C2 plugs on the OEM interface–these 12-pin and 8-pin connectors correspond to the factory speaker and power leads. For quick reference, use this verified color-code breakdown:

Function	Color	Pin (C1/C2)	Voltage
Battery (+12V)	Yellow	C1-6	Continuous
Ignition (+12V)	Pink	C1-5	Switched
Ground	Black	C1-4	0V
Left Front (+)	Light Green	C2-1	4V
Left Front (-)	Dark Green	C2-2	4V
Right Front (+)	Gray	C2-3	4V
Right Front (-)	Light Blue	C2-4	4V

Remove the climate control panel first–it unclips without tools–to expose the dashboard harness behind the center stack. The circled anchor points secure the head unit bracket; depress both tabs simultaneously to slide the assembly forward. Match aftermarket adapter cables directly to the exposed leads using the color scheme above; avoid splicing unless verifying continuity with a multimeter.

Compatibility Notes for Third-Party Units

Factory amplifiers on LT and LTZ trims require a separate line-out converter for RCA integration; base models connect directly. Antenna triggers are active-low–test with a 12V signal before routing through vehicle firewalls.

Matching the Right Electrical Connector for Your Pickup’s Audio System

Locate the OEM part number printed on the factory plug behind the dashboard fascia–typically a white sticker on the plastic casing. For trucks equipped with the base sound setup, Metra 70-1004 or Axxess AX-ADCT2 offer exact pinouts; aftermarket units often mislabel auxiliary inputs or amplifier triggers for premium configurations. Verify speaker impedance before installation: 4-ohm for door woofers, 2-ohm for tweeters, and check fuses F3A (10A) and F5A (15A) for accessory circuits.

• Factory amplifier hookup requires an 8-pin mini ISO, not standard DIN.
• OnStar integration needs a separate 4-pin Molex connector.
• USB retention bypasses the factory USB port’s voltage limiter (5V/1A).
• Reverse signal taps into the tail light circuit’s purple wire.

Purchase adapters from direct OE suppliers–TSB 11-08-130 outlines updated connector revisions incompatible with older third-party splices. Measure wire gauges: 16 AWG for main power, 18 AWG for secondary circuits. Avoid universal kits; custom pin assignments prevent HVAC interference or backlight flicker.

Step-by-Step Guide to Locating the Audio Interface Connector Behind the Instrument Panel

Disconnect the vehicle’s negative battery terminal before beginning to prevent short circuits or accidental airbag deployment. Remove the lower dashboard cover by unscrewing the three 7mm bolts located beneath the steering column and gently prying the panel away from the clips along its top edge–there are eight clips total, spaced evenly. Once freed, tilt the panel downward to expose the rear of the center console unit; the main electrical connector block will be visible on the right side, attached to a bundled cable assembly secured with a single 10mm bolt.

Identify the 12-pin rectangular plug by tracing the cables from the back of the head unit–it will be adjacent to two smaller connectors (one 4-pin for illumination and one 8-pin for amplifier control if equipped). Press the release tab on the side of the connector block while pulling straight outward to detach it; wiggling the plug side-to-side helps loosen tight fits. Label each wire by wrapping masking tape around the exposed ends and marking with a fine-tip marker according to function: yellow (constant 12v), red (switched 12v), black (ground), blue/white (amp turn-on), and the remaining color-coded speaker leads. Verify connections with a multimeter set to DC voltage before proceeding.

Understanding Wire Colors for Seamless Aftermarket Integration

Locate the 12V constant power lead (typically yellow) on the vehicle’s plug and match it to the corresponding yellow terminal on the new unit–this ensures memory functions remain intact without draining the battery. The switched power source (red) must connect to the ignition-controlled line (usually orange or light purple) to activate the device only when the key is in the “on” or “accessory” position. Ground wires (black) should splice directly to chassis metal, not the factory connector, to prevent interference or voltage drops that degrade performance.

Signal and Speaker Connections

Pair rear speaker outputs (gray/gray-black for right, green/green-black for left) to the replacement system’s rear channels, observing polarity–reversing these causes phase cancellation, muting bass frequencies. Front speaker lines (white/white-black for left, purple/purple-black for right) follow the same rule; verify factory wiring with a multimeter if colors deviate, as some trim levels use dark blue/tan for tweeters. If the new head unit lacks dedicated amplifier outputs, strip 18-gauge wire and crimp RCA adapters to the pink line (amplifier turn-on) to prevent a parasitic draw.

For steering wheel controls, splice the light blue and white/brown wires into an aftermarket interface module–brands like Metra or PAC provide PIN diagrams specific to factory switch protocols. Avoid twisting or soldering speaker wires directly to harness plugs; instead, use male/female bullet connectors to preserve factory connectors for future OEM restorations. Test each connection with a 9V battery before final installation to confirm audio signal direction; a quick touch to negative/positive leads should produce a crisp pop through the intended speaker.

Common Mistakes When Integrating Aftermarket Audio Units with Factory Connectors

Mismatching speaker polarity causes phase cancellation, creating weak bass and hollow sound. Factory connector pins often lack clear labeling, so verify each wire against a multimeter before splicing. Rear speaker outputs (white/gray pairs) and front channels (green/purple) share similar colors–crossing them swaps left/right placement, disorienting the stereo image. Use heat-shrink tubing instead of electrical tape to prevent stray strands from shorting adjacent connections; a single frayed filament can overload the amplifier circuit within seconds.

Skipping the memory saver leads to loss of seat positions, clock settings, and theft-deterrent codes stored in the vehicle’s computer module. Disconnecting the battery triggers a power cycle that resets these values, requiring dealer reprogramming–costing $80–$150 labor. Always connect a 12V power source, like a 9V battery through fusible link wires, to maintain volatile memory during installation.
