Complete Trane Thermostat Wiring Diagram and Connection Guide

Start by locating the control panel on your HVAC unit–typically a 24V low-voltage board marked with labeled terminals. Identify R (power), C (common), W (heat), Y (cool), and G (fan), as mismatched connections cause 80% of installation failures. Use a multimeter to verify voltage between R and C–readings should stabilize at 24-28V AC; fluctuations signal transformer issues.

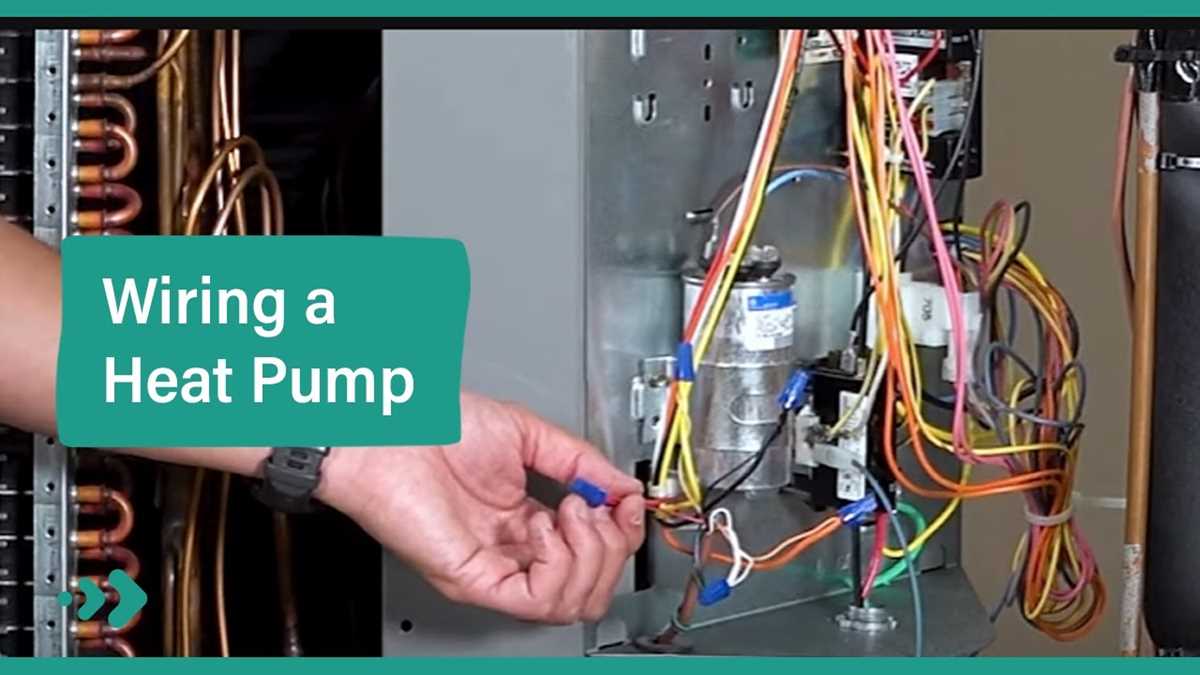

For single-stage systems, route the red wire to R, white to W, yellow to Y, and green to G. Disable power before attaching wires to prevent short circuits. For heat pumps, add O/B (reversing valve) and E (emergency heat) if present–these require separate relays wired through the board’s auxiliary ports. Avoid twisting wires together; use crimp connectors or terminal screws rated for 30A minimum.

Test functionality by setting the control device to auto and adjusting temperature range ±5°F above and below ambient. Listen for a click from the relay within 30 seconds–delayed response indicates loose connections or low voltage. If the compressor cycles but airflow remains weak, check G’s continuity with the air handler; a broken fan signal drops efficiency by 35%. For multi-stage units, verify W2/Y2 engagement at higher differentials (typically +3°F from first-stage activation).

Color codes follow industry standards but vary by manufacturer–never assume: blue often serves as C, but some brands repurpose it for Y2 or dehumidification. Document each wire’s path with labels or a schematic; photograph critical connections before closing the panel. Replace all screws torque-rated at 8-12 in-lbs to prevent vibration loosening over time. If error codes appear (e.g., E2 or Open Circuit), compare against the unit’s technical manual–90% map to incorrect or missing C wiring.

Understanding Climate Control Connection Schematics

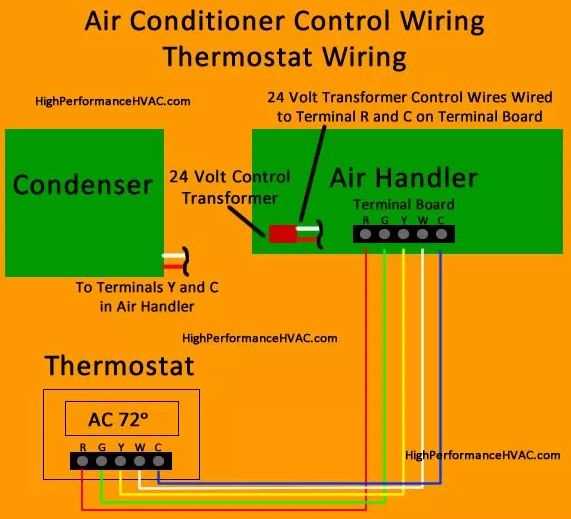

Begin by examining the color-coded leads on the backplate of your climate regulator. Standard configurations typically include:

• Red (R) – power supply, 24VAC
• White (W) – heating command
• Yellow (Y) – cooling activation
• Green (G) – fan control
• Blue or Black (C) – common ground, essential for smart regulators requiring continuous power

Disconnect all power at the circuit breaker before handling any electrical components. Use a multimeter set to AC voltage to verify no live current is present between any two terminals. Safety glasses are recommended during this step.

Match each lead to its corresponding terminal on the equipment control board. Typical labels on the board may differ slightly:

• Rc/Rh – transformer hot lead (may be split or combined depending on system)
• W1/W2 – single or dual-stage heat
• Y1/Y2 – single or dual-stage cooling
• G – fan relay
• C – common return path

For dual-transformer systems, ensure correct isolation between heating and cooling circuits. Cross-connecting Rc and Rh without a jumper can damage the transformer or prevent proper function. Install a short jumper wire between Rc and Rh if using a single transformer configuration.

Reverse-engineer the existing setup by photographing original connections before removal. Label each wire with masking tape for quick reattachment. If upgrading to a programmable model, note that additional wires (e.g., auxiliary heating or emergency heat) may be required.

Test functionality after reconnection. Set the regulator to call for heat; the equipment should energize within 30 seconds. Use the fan override switch to verify blower operation. If cooling fails to engage, check for proper Y terminal connection and ensure the compressor is receiving 240V at the outdoor unit.

Smart models often require a C-wire for continuous power. If no C-terminal exists, alternatives include:

• Repurposing unused wires (e.g., spare thermostat wire)
• Installing a 24VAC transformer with C-wire adapter
• Using a power extender kit designed for HVAC systems

Final verification involves cycling all modes (heat, cool, fan) while monitoring system response. Record any error codes displayed on digital panels–refer to equipment documentation for specific troubleshooting steps. For variable-speed equipment, note that initial startup may take 2–5 minutes for optimal performance calibration.

Finding the Right Control Layout for Your Climate Device

Check the model number etched on the back plate or inside the battery compartment of your unit. This alphanumeric code–often starting with “T,” “XL,” or “XR”–is the fastest route to the exact electrical schematic. Visit the official manufacturer’s support portal and enter this code into the search bar to pull up a PDF that matches your specific hardware configuration.

If the label is missing, inspect the manual included with the original packaging. Look for terms like “connection guide” or “circuit instructions” in the table of contents; these sections typically include clear color-coded lines and terminal assignments. Digital copies can be downloaded from the brand’s archive by filtering results with the exact model number and selecting the revision date closest to your purchase.

Cross-Referencing with Common Configurations

Compare the voltage rating printed on your device–typically 24VAC–with the terminal labels on the schematic. Low-voltage units often use red (R), white (W), green (G), yellow (Y), and blue (C) leads, but verify each hue against the legend in the guide to avoid splicing mismatches. For dual-fuel installations, ensure the auxiliary heat strip connections align with the diagram’s labeled stages.

Locate the access door behind the subbase where wires enter. Photograph the existing hookups before detaching anything, then overlay this image onto the schematic to confirm every pinout. If discrepancies appear, consult the troubleshooting appendix which lists common error codes tied to incorrect terminal pairings.

Alternative Sources for Precise Documentation

HVAC distributors often host technical bulletins not listed on the primary consumer site. Search for the model number followed by “service data” or “tech sheet” on forums dedicated to heating and cooling professionals–these threads frequently link to cached schematics that detail rare or discontinued setups. Use quotation marks around the full model identifier to refine results.

Contact local authorized dealers with the serial number; they maintain offline databases with updated revisions even after online repositories purge older files. Request a fax or email of the exact revision that corresponds to your firmware version, which is usually stamped on a sticker near the circuit board or printed in tiny font alongside the part label.

Step-by-Step Guide to Connecting Low-Voltage Control Cables for Climate Control Systems

Shut off power at the circuit breaker before handling any wires to prevent electrical hazards. Remove the faceplate of the existing control unit to expose the terminal block. Identify the labeled connection points–typically marked as R (24V power), C (common), W (heating), Y (cooling), and G (fan). Strip 1/4 inch of insulation from each low-voltage cable end using wire strippers, ensuring no stray strands remain. For a single-stage heating and cooling setup, attach the red wire to R, the white to W, the yellow to Y, the green to G, and the blue or black to C if a common terminal exists. Secure each connection with a screwdriver, tightening just enough to hold the wire firmly without damaging the core.

Testing and Troubleshooting

Restore power and set the control to heat mode. If the system fails to activate, verify connections haven’t loosened–vibration during installation can cause shifts. Check for 24V across R and C using a multimeter; readings below 22V indicate a transformer issue or excessive load. If the fan runs continuously, ensure the G terminal isn’t shorted to R. For dual-fuel systems, confirm the O/B terminal (if present) is connected to the reversing valve wire–orange for heat pump, brown for gas/electric. Replace the faceplate only after confirming all functions operate as expected.

Key Color Codes and Connection Points in Climate Control Setups

Begin by locating the red (R) lead–this carries 24VAC power from the heating/cooling unit’s transformer and must connect to the corresponding R or Rh terminal. Without it, the control interface won’t energize. Verify voltage with a multimeter before tightening screws; loose connections here cause intermittent failures, often misdiagnosed as sensor errors.

For heating stages, white (W) links to W1 (single-stage) or W2 (dual-stage) terminals. In heat pumps, this same conductor splits to W/O for auxiliary heat. Confusion arises when installers jumper W and Y–this forces compressor activation during emergency heat cycles, risking damage. Always separate circuits for precise staging.

Yellow (Y) governs cooling operations, routing to Y1 (primary) or Y2 (secondary). In variable-speed models, a Y loop connects to the outdoor unit’s control board, enabling modulate capacity. Cross-wiring Y with G (green, fan control) triggers erratic blower behavior, especially in systems with ECM motors. Check continuity if cooling fails unexpectedly.

Dedicated green (G) handles fan activation via the G terminal–critical for airflow in “on” modes. Systems with dehumidification features may repurpose this signal; consult the unit’s logic flow chart before modifying. Blue (C) serves as the neutral return for 24V circuits, paired with C. Omitting it disables smart controls and zoning dampers entirely.
