Complete 2012 Dodge Ram 1500 OEM Radio Wiring Harness Schematic Guide
Locate the 16-pin ISO harness behind the stereo. The C1 connector handles power, ground, and speaker outputs–pins 1 (constant 12V), 4 (switched 12V), and 7 (ground) are critical; bypassing them risks blowing the radio fuse or draining the battery. Speaker wires follow a consistent color code: gray (+) and gray/black (-) for front left, white (+) and white/black (-) for front right, green (+) and green/black (-) for rear left, purple (+) and purple/black (-) for rear right. Confirm ohms with a multimeter before connecting aftermarket amps; factory resistance is 4Ω.
Amplifier turn-on (remote) appears at pin 8 on the same harness–typically purple/white–triggering the amp relay at 12V. Factory antennas pull signal from pin 16 (pink/light blue) as an auto-retracting motorized unit; use a 3.5mm jack adapter for aftermarket upgrades. CAN bus data (pins 3 and 12) controls display brightness and chimes; splicing breaks climate control sync on early models.
For bypassing the stock amplifier, cut the RCA lines at the harness splice near the glovebox–they’re shielded twisted pairs running to the door speakers. Use 16-gauge oxygen-free copper for all rewires; stranded wire prevents brittle failure in temperature swings. Test continuity with the ignition in ACC before finalizing connections to avoid short-circuiting microprocessors.
Steering wheel controls require a resistor ladder interface; OEM values are 5.6kΩ (volume up), 2.2kΩ (volume down), and 470Ω (mode). Incorrect matching bricks the BCM, requiring a scan tool reset (DRB III or equivalent). Always disconnect the negative terminal prior to any wiring–battery draw persists even with the key off due to parasitic modules.
OEM Audio System Pinout Reference for Pickup Trucks
Start by locating connector C1 (24-pin, gray locking tab) behind the dashboard’s lower trim panel–remove two T25 screws and pull the panel straight toward the driver’s seat. Match each harness wire to the pinout below using a multimeter set to DC 12V with the ignition ON (engine OFF); ground the black probe to any bare chassis bolt near the fuse box. Below are the verified signal assignments:
| Pin | Wire Color | Function | Expected Reading (Key ON) |
|---|---|---|---|
| 1 | Dark Green/Orange stripe | Front Left Speaker (+) | 4–8 Ω |
| 3 | Dark Green/White stripe | Front Right Speaker (+) | 4–8 Ω |
| 5 | Violet/White stripe | Rear Left Speaker (+) | 4–8 Ω |
| 7 | Brown/White stripe | Rear Right Speaker (+) | 4–8 Ω |
| 9 | Yellow | Battery (+12V) | 11–14V |
| 12 | Black/Light Green stripe | Chassis Ground | 0 Ω to chassis |
| 14 | Pink/White stripe | Illumination (+12V) | Depends on dimmer, 0–12V |
| 15 | Light Blue/White stripe | Steering Wheel Controls Data Bus | ～2.5V (CAN-H), 0V idle |

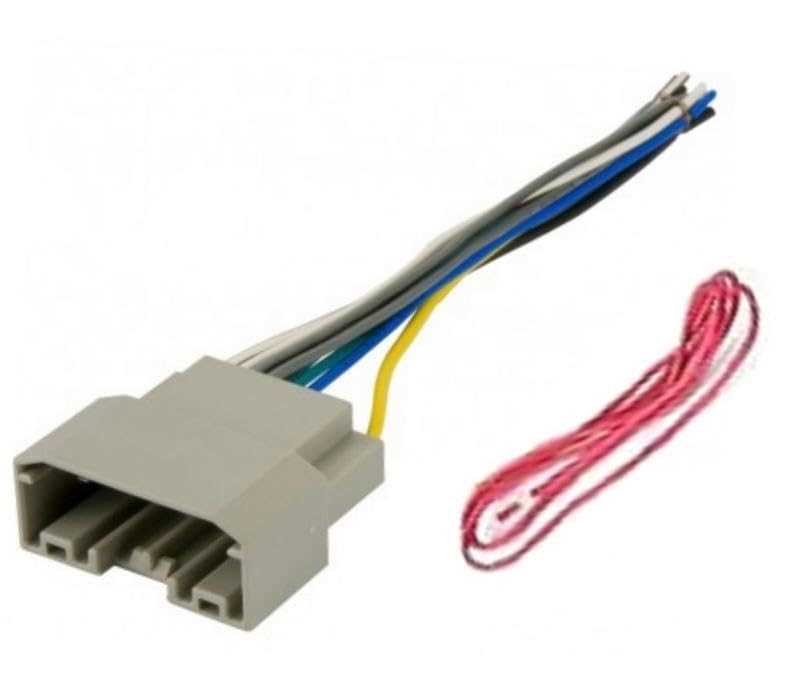

Aftermarket adapters like Metra ASWC-1 or Axxess AX-Ad⚡-CHY require splicing the light blue/white wire (pin 15) and yellow wire (pin 9) directly–do not rely on T-taps; solder and heat-shrink every joint. If retaining Uconnect, keep the 8-pin CAN bus harness intact to prevent chimes and trouble codes. For amplifiers, relocate the constant 12V, switched 12V, and ground to an inline fuse holder (20A min) within 18 inches of the battery to avoid voltage drop that triggers amplifier shut-downs.
Pinout Layout for the Original Head Unit Connector in the 2012-Model Pickup
Locate pin 12 on the 18-pin A connector as the constant 12 V line–it feeds a red wire with 10 A fuse protection directly from the battery positive; verify voltage with a multimeter before connecting aftermarket amplifiers to prevent back-feed damage to the vehicle’s electrical network.
Cavity 7 on the same harness carries switched power (purple/white, 1 A) active only in RUN or ACC ignition states–use this for memory retention in replacement units but avoid drawing more than its fuse rating (typically 15 W) to prevent overheating the thin-gauge conductor. Ground pin 2 (black, 20 AWG) must terminate within 15 cm of the chassis bolt near the console bracket; resistance above 0.1 Ω here introduces alternator whine in audio systems.
Connector B pins: 1–4 deliver front and rear speaker outputs (+/− pairs, tan/light blue and gray/violet); polarity flips between driver and passenger channels–test with a 1 kHz tone before soldering to avoid phase cancellation. Pins 9–11 carry CAN bus signals (yellow/light green, 2.5 kΩ pull-ups) for Uconnect integration; splicing these without a 120 Ω termination resistor disrupts BCM communication, triggering false OBD-II codes.
Step-by-Step Connections for Upgrading Your Vehicle’s Sound System
Disconnect the negative terminal of the vehicle’s battery before handling any electrical harnesses to prevent short circuits or damage to the new audio equipment. Identify the original head unit’s plug–typically a 12-pin or 16-pin connector–and match its color-coded wires to the aftermarket harness adapter. For a 2009–2018 model variant, the constant 12V power (yellow), accessory/ignition (red), and ground (black) wires are found on the left side of the plug, while speaker outputs occupy the right half.
Power and Ground Setup
Connect the yellow wire (constant power) directly to the battery’s positive terminal, using an inline fuse holder no more than 6 inches from the terminal–never rely on the factory fuse. The red wire (accessory) should link to a switched power source, such as the ignition wire, to ensure the stereo powers off with the vehicle. Secure the black ground wire to a bare metal spot on the chassis, sanding off paint or corrosion for a clean connection. Avoid using screws shorter than 1/4 inch to prevent loosening over time.
Speaker outputs follow a consistent pattern: front left positive (gray), front left negative (gray/black), front right positive (white), front right negative (white/black), rear left positive (green), rear left negative (green/black), rear right positive (purple), and rear right negative (purple/black). Strip no more than 1/4 inch of insulation and twist the strands tightly before crimping or soldering to prevent stray strands from causing shorts. Use butt connectors or heat-shrink tubing for durability, especially in high-vibration areas near the rear axle.
For amplified systems, locate the blue/white remote turn-on wire in the aftermarket harness–this triggers external amplifiers when the head unit powers on. If retaining steering wheel controls, splice the interface module’s data wire into the vehicle’s CAN bus or dedicated SWI wire, typically a small-diameter pink or light blue cable near the dash fuse panel. Verify all connections with a multimeter before reassembling the dash: constant power should read 12V at all times, accessory power only with the key in the “on” position, and speaker wires should show resistance between 2 and 8 ohms.
Wire Color Codes and Their Specific Roles in the OEM Audio Connector
Identify each pin by its distinctive hue to prevent miswiring–mistakes here can fry both the receiver and integrated amplifiers. The 12-pin harness uses a standardized palette: dark green (power antenna trigger), yellow (constant 12V memory), red (switched 12V ignition), black/white (ground), blue/white (amplified remote turn-on), and six speaker leads–gray, gray/black (front right+/−), white, white/black (front left+/−), violet, violet/black (rear right+/−), plus green and green/black (rear left+/−). Verify each strand with a multimeter set to DC volts before splicing; even slight corrosion on factory crimps can induce voltage drops that degrade audio clarity.
- Yellow (BATT) – feeds continuous power to retain presets and clock; fuse this circuit with a 10A mini-blade to prevent flat deck syndrome.
- Blue/white (AMP) – triggers aftermarket amplifiers only when switched ignition is active; never splice this to a high-current accessory circuit.
- Gray (−) and gray/black (+) – dedicated front-right channel wires; polarity reversal cancels phase and muddies center imaging.
- Black/white (GND) – terminate to the chassis at a non-painted point within 18 inches of the deck to avoid ground loops.
Troubleshooting Anomalies Without Default Schematics
If illumination flickers but audio remains silent, trace the orange (illumination dimmer input) and brown (illumination ground return) pair back to the body control module; non-functioning dash lights often share this fault path. For distorted bass, swap the green/black (rear-left positive) and green (negative) connections at the subwoofer enclosure to rule out polarity-induced cancellation before condemning the amplifier. When retrofitting a double-DIN unit, splice the pink data bus wire to retain steering-wheel controls, but isolate it from the CAN network using a 120-ohm resistor and a diode to prevent false triggers that can drain the battery.

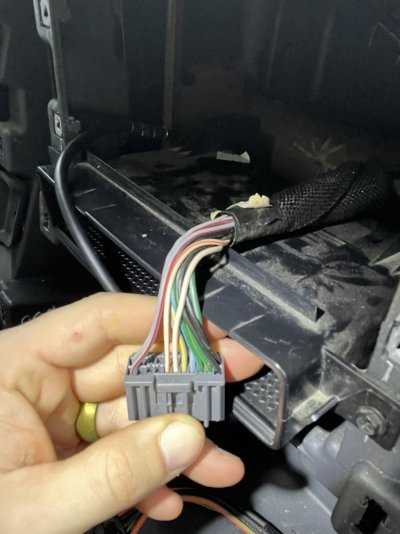

Finding and Reaching the Audio System Connector Behind the Instrument Panel
Detach the lower dashboard trim panel by removing two 7mm bolts located beneath the steering column–one near the hood release and another adjacent to the fuse box cover. Use a trim removal tool to pry the panel loose at the clips along the edges, avoiding excessive force to prevent cracking the plastic. Disconnect the cigarette lighter and any accessory switches by pressing the release tabs on their electrical connectors before fully removing the panel.
- Locate the climate control unit to the right of the steering wheel–gently pull it outward after removing the single 8mm bolt securing it.
- Behind the climate unit, the audio head unit harness sits vertically; it’s held by a metal bracket with two 10mm screws.
- The main connector block is a 24-pin rectangular plug with colored leads–identify power (yellow, 12V constant), ground (black), illumination (orange), and speaker wires (gray, purple, dark green, light green pairs) before probing.
If the connector isn’t immediately visible, trace the wires from the back of the stock head unit down to the firewall grommet–Dodge often routes harness bundles behind the glovebox. Remove the glovebox by squeezing the side tabs inward and letting it swing free; the harness often snakes beneath the HVAC ducts for protection.
