Complete 2nd Gen Dodge Ram Radio Wiring Harness Color Code Guide

Begin by locating the factory wiring harness behind the center console. The 12-pin connector (black or gray, depending on trim) carries all necessary signals. Pin assignments follow this structure: 1 (constant 12V), 3 (illumination), 5 (left front speaker+), 7 (left rear speaker+), 9 (antenna trigger), 11 (ground). Use a multimeter to verify voltages before connecting aftermarket components–factory wirings often include 10A fuses inline that newer systems may not tolerate.

For vehicles equipped with premium sound packages, an additional 6-pin amplifier connector appears near the glove box. Key wires here include pin B (right rear speaker-), pin D (remote turn-on). Splice these carefully–cross-wiring risks damaging the amplifier’s internal circuits. If replacing the head unit, retain the original chime module (white connector, 4 pins) to maintain vehicle warnings.

Color-coding differs between base and premium models. Standard harnesses use dark green (LF+), dark blue (LR+), beige (RF+), purple (RR+), while upgraded versions swap light blue for rear-right ground returns. Never rely on color alone–trace each wire to its destination using a continuity tester. Shorts in the door speaker circuits (4-door models) can drain the battery in under 48 hours.

For auxiliary inputs or backup camera retrofits, tap into the orange/white wire (pin 8) for reverse signal. Solder connections and seal with heat-shrink tubing–factory harnesses are exposed to moisture under the dash. If static occurs, check the ground wire (pin 11) at the chassis connection point near the driver’s left knee; corrosion here is common after 15+ years.

Aftermarket units with higher amperage requirements may need a dedicated relay wired to the battery. Use 16-gauge wire for power and 18-gauge for speakers. Keep power wires at least 6 inches from audio signal cables to prevent interference. Test all functions–volume, balance, fade, seek, and steering-wheel controls–before reassembling the dash panel.

Vehicle Audio System Hookup Guide for 1994-2001 Pickup Models

Begin by locating the factory harness behind the dashboard. For trucks manufactured between 1994 and 1998, the color codes follow this pattern: yellow powers the constant 12V, red supplies switched 12V, black grounds the chassis, blue activates the amplifier, and orange dims the display. Aftermarket units typically require a harness adapter–part numbers Metra 70-1002 or Axxess ASWC-1 simplify the connection. Splice only the yellow, red, and black wires directly if no adapter is available, ensuring crimped connections sealed with heat-shrink tubing.

For 1999-2001 vehicles, pink replaces yellow as the constant 12V source, while dark green becomes the switched 12V lead. Aftermarket stereos often miss the illumination wire (light blue with a white stripe), critical for dashboard brightness sync. Route this wire to the dimmer circuit or the factory green-violet wire near the fusebox. Omitting it risks dashboard lights remaining on with the headlights off, draining the battery. Check voltages with a multimeter before finalizing connections–constant 12V should read 12-14V regardless of the ignition state, while switched 12V drops to 0V when the key is removed.

Troubleshooting Common Errors

Static or no audio signals often trace back to improper grounding. Attach the black ground wire to the metal chassis near the original mounting point, scraping off paint to ensure bare-metal contact. If the amplifier turns on but produces no sound, verify the blue amplifier wire connects to the factory harness’s dark blue lead–disconnecting it mutes rear speakers in some models. For persistent issues, probe the speaker wires: white-left front (+), white-black-left front (-), gray-right front (+), gray-black-right front (-), green-left rear (+), green-black-left rear (-), violet-right rear (+), violet-black-right rear (-). Swap polarity if audio plays faintly or backwards.

Compatibility varies by trim. Base models lack premium amplifier wires, while SLT trims require the 12-pin harness adapter to retain steering wheel controls. If upgrading to a touchscreen unit, note that factory steering wheel buttons need a separate interface–Pac SWI-JACK or iDatalink Maestro retain full functionality without cutting original wires. Always disconnect the negative battery terminal before starting to prevent shorts and reset the vehicle’s computer post-installation to clear error codes.

Finding the Audio System Harness in 1994–2001 Truck Models

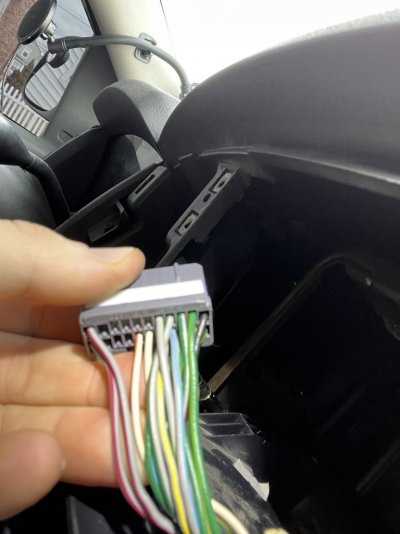

Start by removing the dashboard trim panel above the climate controls. Use a plastic pry tool to avoid scratching the finish–these panels clip into place with six retainers: two at the top, two along the bottom, and one on each side. Once detached, the wiring connectors for the entertainment unit will be visible behind the factory head unit’s mounting bracket. The primary harness is the larger 16-pin plug (color-coded white or gray) on the right side, while the smaller 8-pin connector handles illumination and power antenna signals.

For models equipped with premium sound systems (like Infinity or Chrysler’s Ultimate Sound), an additional wiring bundle will be tucked behind the heater core cover. This bundle includes a 4-pin amplifier harness (black housing) that must be unplugged before removing the main harness. Note that 1998–2001 trucks use a modified harness layout–look for a purple stripe on the power wire (constant 12V) and an orange stripe on the accessory wire (switched 12V). Earlier models (1994–1997) lack these stripes, so rely on pin position: constant power is pin 10, switched power is pin 9.

The vehicle’s fuse box (located under the driver-side dash) can help verify harness connections. Pull fuse #13 (10A) and check for power loss at the harness–this confirms the accessory wire’s path. If installing an aftermarket system, tap into the yellow wire (pin 14) for memory retention, as it provides uninterrupted power even when the ignition is off. Avoid splicing the red wire (pin 8) for accessory functions, as it carries a higher current load and risks damaging the new unit’s circuitry.

Common trouble spots include corroded connectors in trucks exposed to moisture. If the harness feels brittle or shows green oxidation, replace it entirely rather than cleaning contacts–cheap repairs will fail within months. For manual transmission models, the backup camera connector (if present) is integrated into the main harness, typically a small 6-pin plug near the top of the unit. This is rarely used but must be disconnected before removing the harness.

• 1994–1995 models: Main harness is behind stereo; amplifier wires (if equipped) run behind glove box.
• 1996–1997 models: Amplifier harness shifts to behind center console (requires console removal).
• 1998–2001 models: Added security chip in harness (gray plug, pins 1–4) for theft-deterrent systems.
• 2000–2001 trucks: Single-DIN units include an extra ground wire (black/white stripe) for stabilizer modules.

Step-by-Step Color Codes and Terminal Mapping for OEM Audio System Swap

Disconnect the negative battery terminal before handling any harness connectors to prevent short circuits or electrical damage. The factory stereo harness in these models uses a 16-pin rectangular plug (typically METRA 70-1817 or equivalent). Identify the following wires by their insulation colors and functions:

Constant 12V Power (Memory Keep-Alive): Locate the solid orange wire (or orange with a thin white stripe in some trim levels). This lead maintains preset stations, clock settings, and anti-theft features. Connect it directly to the aftermarket head unit’s yellow wire or “battery” input, ensuring a secure crimp or solder joint with heat-shrink tubing for insulation.

Speaker Outputs and Ground Reference

Match the speaker wires to their corresponding channels on the new unit. Color pairs follow a consistent pattern but verify with a multimeter (set to 20V DC) to confirm polarity if documentation varies:

• Front Left (Positive): Dark green with a black stripe (or gray with a violet stripe in later revisions).
• Front Left (Negative): Solid dark green or gray.
• Front Right (Positive): Violet with a white stripe (or light blue with an orange stripe).
• Front Right (Negative): Solid violet or light blue.
• Rear Left (Positive): Brown with a yellow stripe (or tan with a dark blue stripe).
• Rear Left (Negative): Solid brown or tan.
• Rear Right (Positive): Dark blue with an orange stripe (or pink with a green stripe).
• Rear Right (Negative): Solid dark blue or pink.

Test each pair by touching the leads to a 9V battery briefly–speakers should emit a popping sound. If no sound is heard, recheck connections or inspect for blown fuses (usually 10A or 15A in the under-dash fuse box).

Ground the chassis by connecting the solid black wire (or black with a gray stripe) to the vehicle’s metal frame near the stereo cavity. Use a dedicated self-tapping screw or bolt, ensuring bare metal contact. Avoid daisy-chaining grounds to other components, as this can introduce noise or interference.

Illumination and Dimmer Control: The light green with a red stripe wire (or gray with a black stripe) adjusts display brightness in sync with the dashboard lights. Connect this to the aftermarket unit’s orange or orange/white lead labeled “illumination” or “dimmer.” If the new stereo lacks dimming functionality, cap the wire with electrical tape to prevent shorts. For steering wheel control integration (if applicable), the tan with a blue stripe wire carries resistive signals–consult the adapter harness manual (e.g., PAC RP4-CH11) for pinout specifics.
