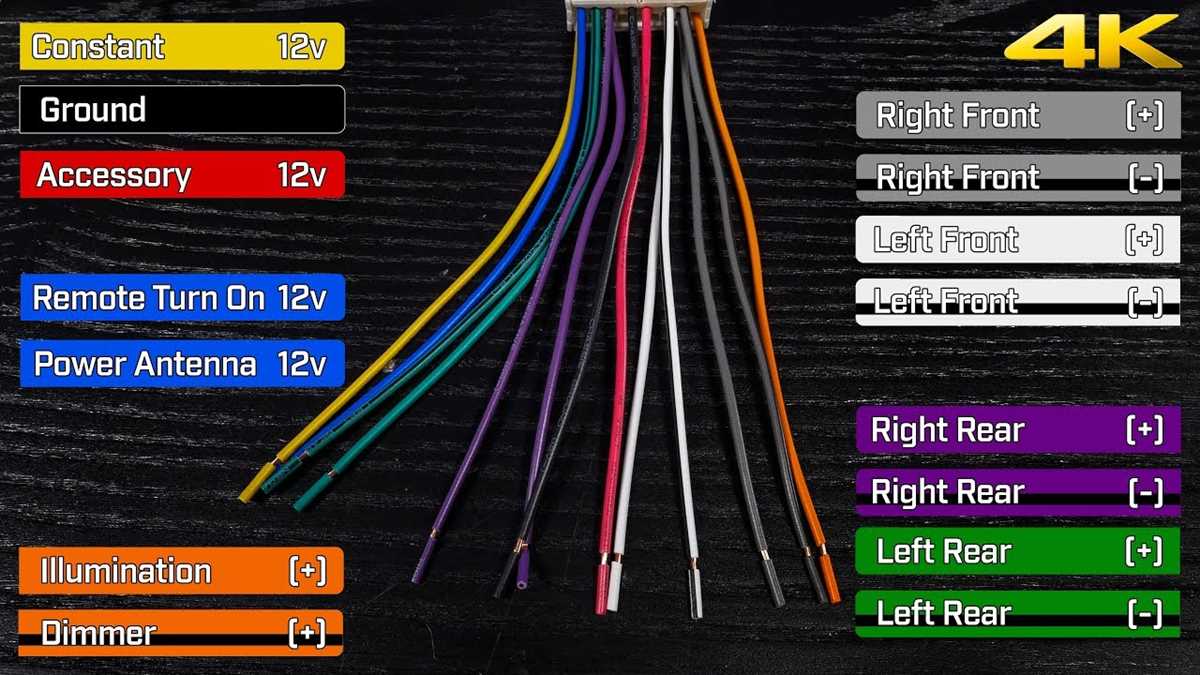

Ford Focus 2018 Radio Wiring Diagram Full Color Coded Guide
Locate pin 16 on the harness behind the entertainment unit–this carries constant 12V power from the fused circuit under the dashboard. Splice this wire directly to the red lead of aftermarket amplifiers to maintain memory settings during key-off periods. Avoid tapping into pin 8 (switched ignition); it disrupts equalizer presets on reboot.
Trace the yellow and blue speaker outputs through the firewall grommet, following factory color codes: left front positive matches solid gray, negative pairs with gray-black stripe. Cutting these wires cleanly prevents signal degradation–strip 5mm of insulation, twist strands tightly, then apply solder before heat-shrinking connections. Loose strands introduce high-frequency noise that persists even after grounding corrections.
Verify ground integrity by probing the chassis mount near the pedal assembly; resistance readings above 0.5 ohms indicate corroded fasteners requiring dielectric grease. Misdiagnosed grounds cause intermittent power loss to the head unit’s illumination circuit, mimicking fuse failure. Replace the 15A slow-blow fuse in slot 17 before further diagnostics if display brightness flickers erratically.
Reverse-engineer the CAN bus protocol by connecting a OBD-II breakpoint adapter between pins 3 (CAN low) and 11 (CAN high) of the factory connector. Monitor data packets at 500kbps baud rate–steering wheel controls transmit on distinct identifiers separate from the infotainment cluster’s video sync signals. Ignoring this differentiation locks out volume knob functionality after third-party firmware updates.
Label each extracted wire with masking tape during disassembly; manufacturer-specific plugs often omit indexing notches that secure proper alignment. Reassembly errors invert channel phasing, forcing subwoofer out of phase even at mid-level volume thresholds. Confirm polarity with a multimeter set to AC voltage mode while playing a 1kHz test tone through the system.
Electrical Integration Guide for Vehicle Audio Systems
Begin by locating the harness connector behind the dashboard unit. The primary power feed is a yellow cable, rated for 10 amperes continuous current. Verify voltage at pin 8 of the 12-pin plug using a multimeter–expected reading should be 12.6 volts with ignition off. If absent, inspect fuse #24 in the junction box beneath the left-hand kick panel.
Signal amplification outputs connect via purple and purple-white wires, corresponding to left and right rear channels. These terminate at the amplifier module bolted to the chassis near the spare tire well. Ensure crimped connections use a 22-18 AWG butt splice; soldering introduces thermal stress risks. The ground reference (black) must attach to bare metal–clean surface with 120-grit sandpaper and secure with a serrated washer.
Factory-supplied navigation signals travel through the teal cable, labeled “NAV TX” on the schematic. This line carries 5V TTL pulses; interference from aftermarket components may disrupt GPS lock. If retrofitting, insert a 100nF ceramic capacitor between the teal wire and chassis ground to filter high-frequency noise above 1kHz. Avoid splicing into this circuit unless replacing the entire GPS antenna assembly.
- Front speakers: grey (+) and grey-black (-) for driver side; white (+) and white-black (-) for passenger side.
- Subwoofer output: green (+) and green-black (-), limited to 75 watts RMS.
- Illumination control: orange, dims display in sync with headlights–test with parking lights activated.
Steering wheel remote signals terminate at two resistors in parallel: 2.2kΩ and 680Ω. Bypass options for third-party adapters require scouting the CAN bus data stream at pin 3 and 11 of the 16-pin plug. Probe with an oscilloscope; valid packets appear as 2.4V differentials at 500kbps. Miswiring here triggers DTC U1900–reset via OBD-II port with ignition cycled three times.
Tape-wrap all splices with PVC electrical tape rated for -40°C to +105°C. Secure harnesses every 150mm using nylon zip ties, avoiding sharp edges. The antenna lead (blue) carries 8.5VDC phantom power–never substitute coaxial cable with RG-58 for distances exceeding 3 meters, signal loss exceeds 3dB at 900MHz.
Diagnose silent channels by probing the ground plane continuity: expect resistance below 0.5Ω from any speaker terminal to battery negative. If readings exceed 1Ω, inspect bonding points near the firewall bulkhead–corrosion accumulates behind the brake master cylinder. For persistent issues, remove the climate control module; its EMI shielding often interferes with AM band reception.
Finding the Audio System Harness Plug in Your Compact Sedan
Begin by removing the center console trim panel. Use a trim removal tool to carefully pry off the gear shift surround–it snaps into place with six plastic clips (two at the front, two at the rear, and one on each side). Once detached, unbolt the 10mm screws securing the ashtray assembly; this exposes the rear of the infotainment unit. The harness connector sits directly behind, identifiable by its 12-pin plug with color-coded wires. Match the following wire colors to their functions before disconnecting:
| Wire Color | Function | Connector Pin |
|---|---|---|
| Yellow/Black | Constant 12V Power | Pin 1 |
| Red/Yellow | Switched 12V Power | Pin 3 |
| Black/White | Ground | Pin 5 |
| Gray/Blue | Front Left Speaker (+) | Pin 7 |
| White/Orange | Front Right Speaker (+) | Pin 9 |
If the connector doesn’t release, press the small locking tab on its top edge–applying excessive force risk damaging the housing. For models equipped with satellite navigation, an additional 8-pin harness (located to the right of the main plug) handles antenna and GPS signals; label these separately to avoid confusion during reinstallation.
Pinpointing Harness Wire Colors and Roles for OEM-Compatible Head Unit Upgrades
Connect the aftermarket receiver’s yellow 12V constant power lead to the vehicle’s solid orange wire–a thicker gauge indicates higher current capacity, typically reserved for memory retention in the factory harness. The red ignition-controlled wire pairs with the striped pink/light green conductor, ensuring the unit powers synchronously with accessory mode without parasitic drain. Ground the black wire from the new unit to the unpainted metal chassis point near the original mounting bracket, avoiding the factory harness’s brown ground wire, which often carries additional shielding.
- Speaker wires: Match polarity by testing with a 9V battery–positive wires (front left: gray/violet stripe, rear left: gray/green stripe) will push the speaker cone outward. Factory tweeters use violet wires (front) and dark blue (rear), often requiring separate high-pass crossovers.
- Amplified systems: The dark green/white wire carries signal for external amplifiers–tap this for aftermarket subwoofers, but preserve the factory load resistor (typically 1–2 ohms) inline to prevent error codes.
- Steering wheel controls: The light blue/yellow data wire interfaces with CAN bus adapters–verify compatibility with the vehicle’s protocol (FordF1) before splicing. Auxiliary inputs may use the purple/white wire, but this varies by trim.
- Antenna trigger: The pink wire (often fused at 10A) activates the motorized mast–connect directly to the aftermarket unit’s power antenna lead, not the blue/white remote turn-on wire, to avoid interference.
Use a multimeter to confirm wire functions pre-soldering: 12V constant (orange), ignition (striped pink), and speakers (gray, violet, dark blue) should read 4–8 ohms at rest. Twist paired wires (positive/negative) together when testing to prevent short circuits. Secure connections with heat-shrink tubing, not electrical tape, to withstand humidity and vibration.
Step-by-Step Guide to Safely Removing Factory Audio System Connections
Locate the trim panel surrounding the stereo unit and gently pry it away using a plastic removal tool. Begin at the bottom-left corner, where the clips are least resistant. Work clockwise, applying steady but controlled force to avoid damaging the dashboard surface. The panel is secured by 8 hidden clips–4 along the top edge, 2 on each side, and 2 at the base. If resistance increases, stop immediately; misaligned pressure can snap the plastic retaining tabs.
Unscrew the mounting brackets holding the head unit in place. Most models use two 10mm bolts at the top and a single 7mm bolt at the bottom. A magnetic screwdriver prevents dropped fasteners from falling into the dash cavity. Store screws in a labeled container–mixing them with similar hardware from other projects causes delays during reinstallation. Behind the unit, identify the main harness connector and antenna lead; trace both to their mounting points before disconnecting.
Press the locking tab on the primary wiring harness and pull the connector straight out. Avoid twisting or angling the plug–internal pins bend easily, leading to intermittent power or signal issues later. For vehicles with amplified systems, a second smaller connector (usually gray or purple) handles low-level signals; disconnect this first to prevent accidental short circuits. If the harness resists, check for additional securing clips or adhesive tape before applying force.
The antenna feed requires a different approach. Twist the coaxial connector counterclockwise while pulling gently–the threaded collar unscrews in 3-4 full rotations. Set it aside immediately; the thin center pin bends if dropped. For models with satellite or GPS antennas, follow the same twisting motion but note the smaller diameter–these connectors use a finer thread and strip if overtightened during reconnection.
Inspect the wiring behind the unit for remnants of foam sealing tape or zip ties. Remove these entirely; residual adhesive attracts dust, while old ties restrict cable movement and cause poor connections. Label each disconnected wire using masking tape and a fine-point marker–include the pin number referenced in the factory service manual (e.g., “C212 – Illumination+”). Store removed components in a static-safe bag to prevent moisture absorption if reinstallation is planned.
