Complete Car Audio Wiring Diagrams Explained Step by Step

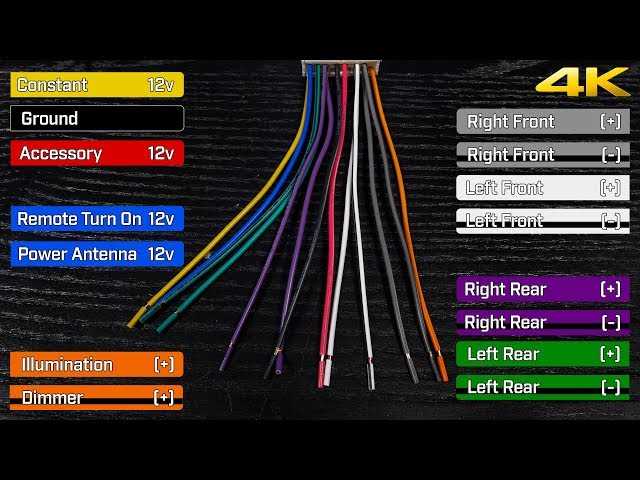

Start by identifying the head unit’s harness connector–typically a 16-pin plug with color-coded wires. Match each wire to its function: yellow (constant 12V), red (switched 12V), black (ground), and blue/white (remote turn-on). Use a multimeter to verify voltage (0V when off, 12V when active) before splicing. Incorrect connections risk frying the unit or blowing fuses.
Speaker outputs follow a consistent pattern: gray (+) and gray/black (-) for front right, green (+) and green/black (-) for rear right, with left channels in white and purple respectively. Twist strands to prevent interference, and solder connections for durability–crimp connectors often corrode over time. Avoid bridging positive and negative wires; even brief contact destroys voice coils.
Amplifier integration requires separate power cables: 4-gauge wire for distances under 12 feet, 2-gauge for longer runs. Route power cables away from RCA signal wires to prevent noise. Ground the amp within 18 inches of its location, scraping paint to bare metal for a clean connection. Install an inline fuse (size depends on amplifier RMS–typically 60A for 500W RMS) within 18 inches of the battery to protect the circuit.

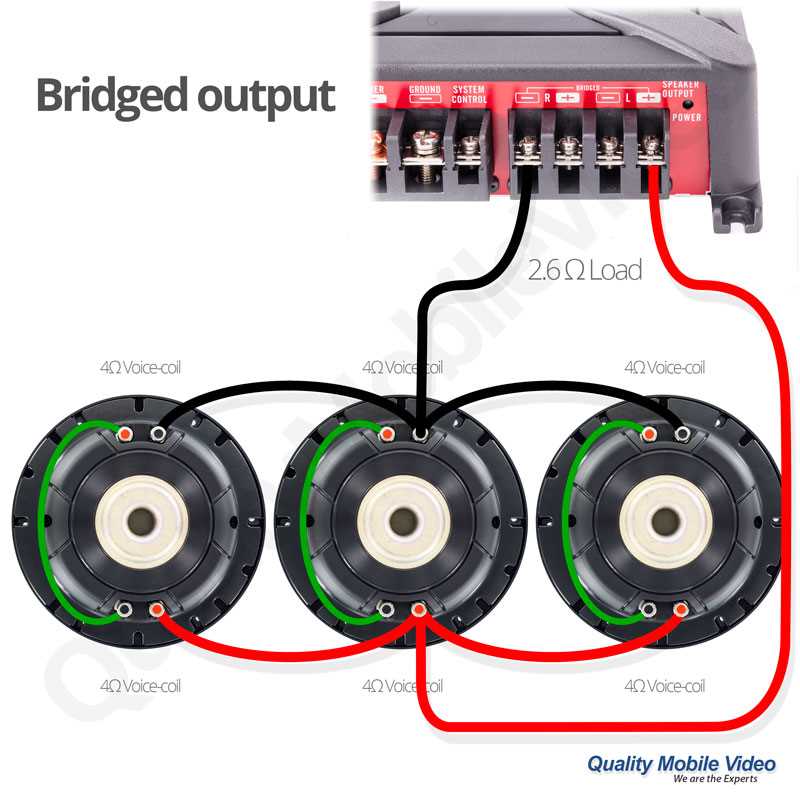

Subwoofer wiring demands heavier gauge: 12-gauge for single 4-ohm voice coils, 8-gauge for dual 2-ohm loads. Parallel wiring drops impedance–two 4-ohm subs in parallel equal 2 ohms. Always confirm the amplifier’s minimum impedance rating before wiring. Bridging amplifiers doubles output but requires stable ground and proper load matching to avoid overheating.
Common mistakes include reversed polarity (causing out-of-phase sound) and loose ground connections (humming noises). Use a wiring guide specific to your vehicle make–aftermarket harnesses often differ by year and model. Test each component sequentially: head unit, speakers, amplifier, before final installation. A poorly grounded system creates a 60Hz hum that persists even when the engine is off.

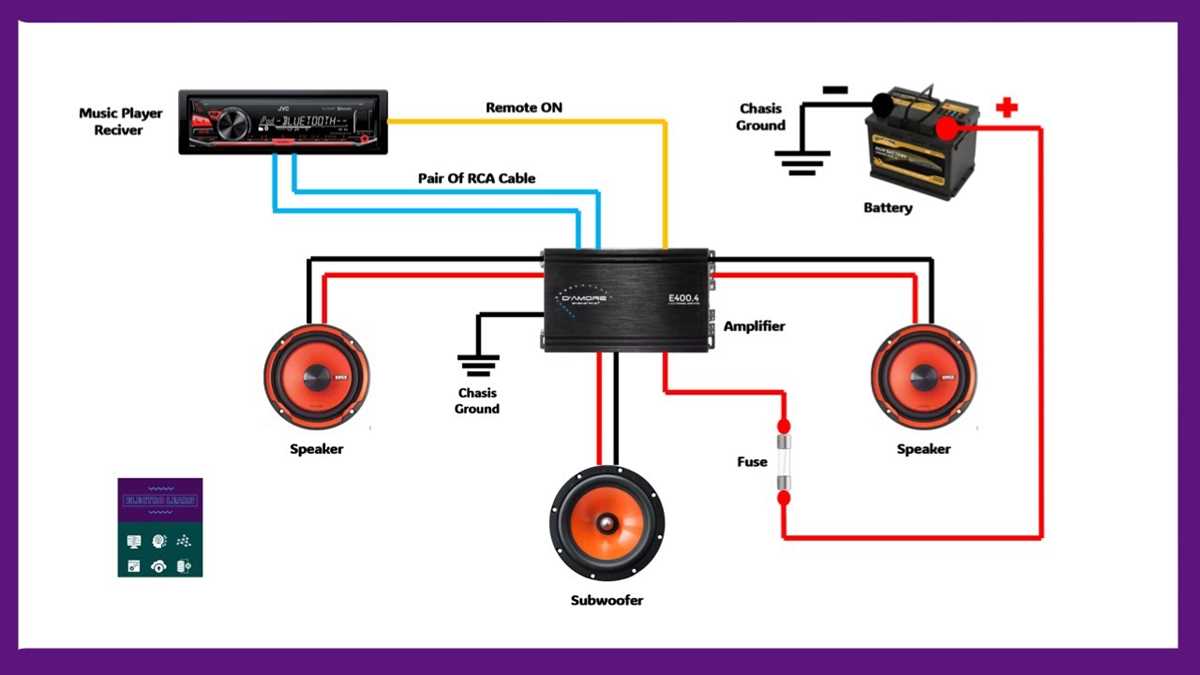

Vehicle Sound System Connection Schematics
Always match the amplifier’s impedance with the speaker’s rating to prevent overheating or damage. Most aftermarket units use 4-ohm speakers, while factory setups often pair with 2-ohm loads–verify the specifications before making connections. For multi-channel amplifiers, use bridging only if the manual explicitly supports it; otherwise, individual channels deliver cleaner power distribution.
Label each wire with heat-shrink tubing or color-coded sleeves before routing them to avoid misconnections. Ground the amplifier to a bare metal surface within 18 inches of its mounting location, sanding the contact point to remove paint or corrosion. Avoid daisy-chaining grounds; each component should have its own direct path to the chassis. For RCA cables, run them on the opposite side of power wires to minimize interference, keeping a minimum 6-inch separation where they cross.
Test the system with a digital multimeter before finalizing installations–check for 12-14.4V at the head unit’s power terminal and no more than 0.1V drop between ground and chassis. If distortion occurs at high volumes, relocate the power wire away from sensitive signal cables or add a noise filter. Always fuse the main power lead within 18 inches of the battery terminal, using a value matching the amplifier’s recommended fuse rating (typically 60-100A for mono blocks, 40-60A for multi-channel).
Decoding Aftermarket Receiver Wire Colors and Connector Layouts
Always start by locating the manufacturer’s manual for your new head unit–this document typically includes a color-coded pinout chart. If unavailable, cross-reference the model number with online forums or the brand’s official support page, where verified schematics are often posted. Universal color schemes exist, but deviations are common, especially in budget or obscure brands.
For power connections, the red (ignition-controlled) and yellow (constant 12V) wires are critical–swapping them will cause erratic behavior or drain the battery. Ground (black) must attach directly to bare metal, preferably near the chassis, not to painted surfaces or bolts shared with other components. Dimmer (orange) and illumination (orange/white) wires, though optional, ensure the display adjusts with dashboard lights–skip these only if dimming isn’t needed.
Common Wire Color Standards Across Brands
Pioneer and Kenwood typically use blue/white for amplifier remote turn-on, while Sony and Alpine may use solid blue. Speaker wires follow a consistent pattern: front left (+) gray, (-) gray/black; rear left (+) green, (-) green/black; front right (+) white, (-) white/black; rear right (+) purple, (-) purple/black. Verify with a multimeter–set to DC voltage–by probing the wires while playing audio; a reading confirms polarity.
USB (red/black) and auxiliary inputs (red/white or red/blue) often lack standardization–refer to the manual for exact pin assignments. Some units bundle multiple functions into a single wire (e.g., illumination + dimmer), requiring splicing or adapters. For steering wheel controls, seek out the accessory wire (usually yellow or blue) and pair it with a compatible interface module.
Harness adapters simplify installations but can introduce errors–always test continuity between the adapter and vehicle plug before connecting the head unit. If colors mismatch, strip back the insulation and compare wire gauges; the thickest wires (18-16 AWG) are typically power or ground. For custom setups, label each wire with masking tape during disassembly to avoid guesswork later.
Avoid relying on “universal” wiring guides–they’re rarely accurate for niche models. Instead, use a 9V battery to test speaker wires: briefly touch the wire ends to the battery terminals; a pop confirms it’s the positive lead for that channel. If wires aren’t labeled, document each connection with photos or diagrams before disconnecting the factory harness.
Step-by-Step Guide to Integrating Stock Signal Boosters with Updated Acoustic Units
Begin by locating the OEM power enhancer behind the vehicle’s trim panels–typically near the rear or beneath front seats. Disconnect the battery ground terminal to prevent short circuits during installation. Use a multimeter to confirm pin configurations on the enhancer’s output harness; stock connectors often vary by model year, so cross-reference with factory service manuals if discrepancies arise.
Match the impedance of new acoustic units to the enhancer’s RMS rating. Most factory systems deliver 15–50 watts per channel at 4 ohms, while aftermarket components may require 2–8 ohms. Failure to align these values risks distortion or hardware damage. For resistance mismatches, introduce impedance-matching resistors or passive line converters–values should be within 10% of the original load.
Harness Compatibility and Repinning
Identify the stock harness’s color-coding scheme. Common standards include:
| Wire Color | Function | Voltage (DC) |
|---|---|---|
| Red/Black | Switched +12V input | 11–14V |
| Yellow/Blue | Front left signal (+) | 0.5–4V |
| Green/White | Rear right signal (-) | Ground |
| Purple | Remote turn-on | 5–12V |
For non-standard harnesses, use a breakout box to trace signals. Re-pin connectors with crimp terminals rated for 20A current to ensure stable connections. Avoid soldering factory harnesses–heat can degrade the insulation, leading to intermittent faults.
Install a capacitor between the enhancer’s power input and ground if voltage sag occurs under high loads (e.g., bass spikes). Select a capacitor with a value of 1 farad per 1,000W of system power. Mount it within 18 inches of the booster’s power terminal to minimize inductive losses. Use 4-gauge oxygen-free cable for all high-current paths to reduce resistance.
Signal Verification and Load Testing
Reconnect the battery and activate the system without acoustic units attached. Measure output voltages at each channel with an oscilloscope. A healthy signal should show a clean sine wave (0.5–4V RMS) with
Attach the acoustic units one channel at a time, monitoring for excessive draw. If the enhancer’s thermal protection trips, allow 10–15 minutes of cooldown before resuming. Secure all wiring with nylon ties, avoiding sharp edges or moving parts. Reinstall trim panels only after verifying all connections with a continuity tester.
For vehicles with fiber-optic or MOST networks, retain the original signal processing module. Bypassing it may trigger error codes, disabling ancillary features (e.g., chimes, navigation alerts). Use CAN bus filters to mask aftermarket modifications from the onboard diagnostics.
Critical Errors in Subwoofer Installation and Proven Fixes
Overloading signal cables with excessive current burns insulation and distorts bass. Measure impedance before connecting–matching the amplifier’s minimum rating (usually 2 ohms) prevents overheating. Use a multimeter to verify resistance; deviating by ±0.5 ohms risks hardware failure.
Soldering joints without heat shrink tubing exposes connections to corrosion. Strip wires no more than 6 mm, twist tightly, solder, then slide tubing over the joint before heating. Silicone-filled shrink tubing resists moisture better than standard types.
Grounding to painted metal or thin panels creates voltage drops. Scrape paint down to bare metal, attach the grounding lug with a serrated washer, and tighten bolts to 12 Nm. Bolts smaller than M6 struggle to handle peak currents–upgrade if necessary.
Ignoring fuse proximity to the battery invites fire hazards. Place the fuse within 20 cm of the battery terminal; shorter distances reduce resistance. AGU fuses melt at lower temps (160°C) than ANL (250°C), so choose based on expected current draw.
Skipping polarity tests reverses cone movement, canceling low frequencies. Test with a 1.5V battery–if the subwoofer’s cone moves inward, repolarize by swapping the positive and negative leads. Confirm with a voltmeter; even 0.1V differences cause phase issues.
Using undersized cables lowers power transfer. For 500W RMS, use 4 AWG copper wire–aluminum needs one gauge thicker. Length matters: 5 meters of 8 AWG adds 0.02 ohms resistance, bleeding 5W at 20A. Pre-tinned wire resists oxidation in humid environments.
Running signal and power cables parallel induces noise. Separate them by at least 20 cm; cross at 90° angles if unavoidable. Ferrite beads on RCA cables suppress EMI from alternators–clamp them near the amplifier’s inputs for cleaner bass reproduction.
