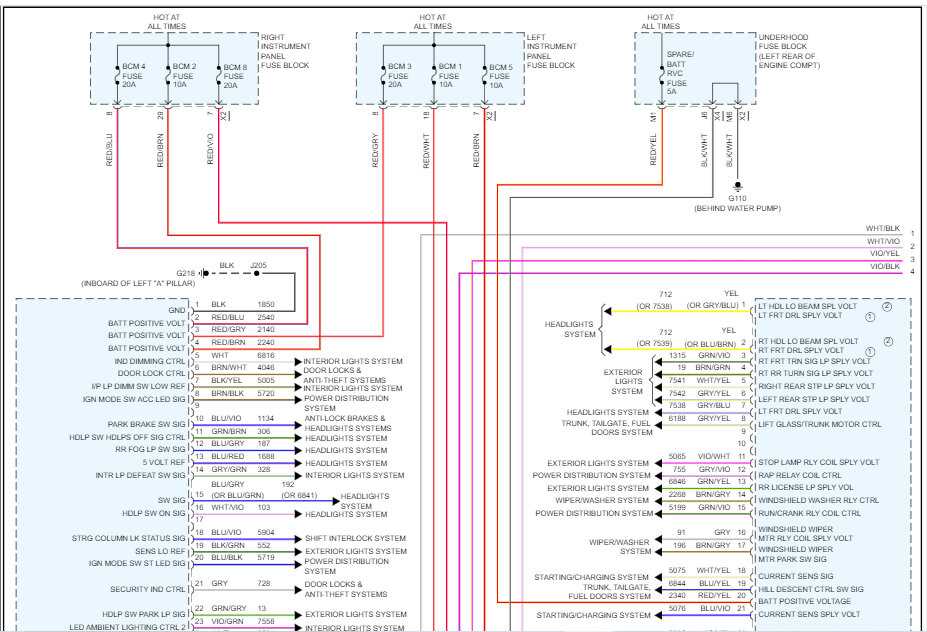

How to Read the 2023 Chevrolet Silverado BCM Wiring Schematic Guide

Locate the X2 connector on the body control module–typically a 50-pin harness near the under-dash fuse box–and verify pin assignments before disassembly. The C2 gray connector (24-pin) carries critical signals for lighting, HVAC, and powertrain interfaces; miswiring here disrupts multiple systems simultaneously. Use a multimeter to test continuity between pins C2-6 (battery voltage) and C2-20 (ground)–resistance above 0.5 ohms indicates corrosion in the harness.

For the front lighting subsystem, trace the violet/yellow stripe wire from the headlamp switch (pin 8) to the left low-beam bulb socket (T3f 3). This 16-gauge wire serves as a trigger for the daytime running lights; confirm 12V DC at the socket with the ignition in the RUN position. If voltage drops, inspect the J28 bulkhead connector near the firewall–oxidation here mimics bulb failure.

When addressing keyless entry issues, focus on the dark blue/white stripe wire running from the receiver module (X3 pin 1) to the door lock actuator (T6a 1). A weak signal here prevents remote commands; test for 8–10V pulses during lock/unlock cycles. Replace the wire if insulation damage is visible–chafing near the driver’s A-pillar is common in high-mileage vehicles.

The trailer brake controller circuit relies on the orange wire (X1 pin 42) supplying fused 12V from the under-hood junction block. Verify this feed before diagnosing controller failures–missing voltage suggests a blown 10A fuse (position 32) or a corroded stud connection. For integrated trailer lighting, cross-check the brown/white stripe wire (pin 2) entering the 7-way connector; no continuity typically points to a broken ground at the trailer frame.

Save time by referencing the color-coded legend imprinted on the backside of the main instrument cluster harness. Mismatched wire colors between different model years necessitate direct pin validation–never assume consistency. For persistent electrical gremlins, probe the CAN bus wires (yellow/black and purple/white) at the OBD-II port; erratic voltage swings above 2.5V indicate a failing node elsewhere in the network.

Chevy Full-Size Pickup Electrical Hub Connections

Start troubleshooting by probing the T47 connector on the body control module’s rear. Pin 3 connects to the 5VT orange ignition feed, while pins 18 and 19 splice into the GMLAN high/low circuits to the instrument cluster. Measure 12V across pins 2 (fused B+) and 8 (ground) during crank–readings below 10.5V suggest corroded splice J110 near the underhood fuse block. For intermittent wake-up faults, back-probe pin 28 (accessory delay relay output) and check for 100ms 5V pulses with a PicoScope; missing signals require reflashing the module via Tech2Win.

Key Circuit Interfaces

Connector	Pin	Wire Color	Function	Voltage (Key On)
X5	1	WHT	Parking lamp output	Battery
X5	12	BRN	Passkey III data	3.3V pulsed
X2	9	YEL	Trailer brake controller	Ignition
X1	7	PPL	DRIVER DOOR AJAR	0-1V toggle

Replace the X2 harness if chafing occurs at the frame rail near the transfer case–common failure point for loss of cruise control. Validate splice S204 integrity by loading the trailer brake circuit with a 3Ω resistor; drops below 11.8V indicate a compromised ground junction in the left kick panel.

Locating the Central Module Connectors and Pin Layouts

Begin by lifting the driver-side dashboard panel to expose the vehicle’s primary control interface. The main harness plugs are tucked behind the lower steering column cover, identifiable by three distinct connectors: a 72-pin (X1), a 32-pin (X2), and a smaller 8-pin (X3) grouping. Mark each connector with masking tape and note their positions–X1 sits closest to the firewall, X2 aligns vertically beneath, and X3 offsets to the right.

Trace the wiring harness from the fuse box to the module housing. The X1 connector handles high-current circuits; inspect its pins for corrosion or bent terminals before probing. Use a multimeter set to continuity mode to verify connections against factory documentation–pins 1-12 control exterior lighting, 13-24 manage powertrain relays, and 25-36 serve interior sensors. Cross-reference each pin with the service manual’s color codes to avoid misidentification.

• X1: 72-pin (black) – Critical systems:
  • Pins 5-8: Headlamp actuation
  • Pins 18-22: Ignition feed
  • Pins 37-48: CAN bus communication
• X2: 32-pin (gray) – Secondary functions:
  • Pins 1-4: Door lock actuators
  • Pins 12-16: Window motors
  • Pins 20-24: HVAC blower relay
• X3: 8-pin (white) – Low-current signals:
  • Pin 1: Battery voltage sense
  • Pin 3: Security system interface
  • Pin 7: Fuel level sender

Disconnect the battery’s negative terminal before probing any circuit. Probe X1 pin 6 for a 12V signal at KOEO–absence indicates a blown fuse or open circuit. For X2, measure resistance between pins 15 and ground (expected: 3-5 ohms); values exceeding 10 ohms suggest a faulty window motor relay. X3 pin 4 should carry a 5V reference signal–verify with an oscilloscope for steady voltage or ripples indicating a failing sensor.

Label each harness branch with its corresponding system to streamline reassembly. The X1 connector’s middle row (pins 37-54) carries CAN-H and CAN-L lines–check for twisted green/orange wires; frayed shielding disrupts diagnostics. Replace any corroded terminals with gold-plated replacements rated for 20A, particularly in pins 5-12 where LED lamp currents concentrate.

Before reconnecting, apply dielectric grease to the terminals to prevent oxidation. Reattach connectors in reverse order–X3 first, then X2, and X1 last–to avoid binding. Cycle the key to ACC, then ON, monitoring for dashboard warning lights; persistent ABS or traction control errors may require a scan tool to reset module parameters.

Step-by-Step Guide to Tracing Vehicle Controller Power and Ground Circuits

Locate the fuse box under the dashboard or hood–refer to the service manual for the exact panel layout. Use a multimeter set to DC voltage (20V range) to probe the input terminals of the designated 10A or 15A fuse while the ignition is in the OFF position. If voltage reads below 11.8V, trace the red (power) wire upstream to the battery junction block or ignition relay, checking for corrosion at connectors or chafed insulation. Record each splice point with a circuit tester to confirm consistent voltage.

Verifying Ground Paths

Identify the main grounding points near the firewall or chassis, typically marked in factory schematics as G100 or G200. Remove the bolt securing the bare copper or black wire, clean both surfaces with a wire brush, and reinstall with dielectric grease. Test continuity between the controller’s ground terminal and chassis using the ohmmeter mode on the multimeter–readings above 0.5 ohms indicate oxidation or loose connections. For modules with secondary grounds, follow the bundled harness to its termination point, ensuring no splices have been added that violate OEM specifications.

Common Electrical Faults and Signal Verification for Control Modules

Check for voltage drops on power feeds using a multimeter set to DC volts. Probe the input terminals of the module’s main connectors while the ignition is ON–readings below 10.5V indicate resistance in supply lines, often caused by corroded splices or undersized ground straps. Trace the circuit back to the fuse panel, examining splice points for oxidation, particularly near the firewall or under-door seals where moisture accumulates.

Ground Path Failures

Measure resistance between the control unit’s ground pin and the battery negative terminal–values above 0.2 ohms confirm a degraded connection. Inspect chassis ground eyelets for paint overspray or loose mounting bolts, then clean surfaces with a wire brush and apply dielectric grease. For models with multiple grounding points, use a continuity tester to verify all paths are intact, focusing on engine block and frame connections.

Signal inputs from sensors often fail due to intermittent opens. Use a scan tool to monitor live data for erratic readings, then backprobe the sensor’s signal wire with an oscilloscope to detect voltage spikes or noise. For digital signals (e.g., CAN bus), capture waveforms and compare them to known-good patterns–fluctuations exceeding 0.5V or distorted edges suggest wire chafing or poor shielding.

Test module outputs by activating circuits via diagnostic mode and verifying actuator response. For relays or solenoids, measure coil resistance (typically 50-120 ohms) and ensure control voltage reaches the component. If signals are absent, inject a 5V reference pulse into the module’s output pin while monitoring current draw–no response indicates internal processor failure rather than wiring faults.

Interpreting Electrical Schematics for Illumination and Auxiliary Device Management

Locate fuse F54 (10A) in the under-dash panel–this powers the entire headlight switch circuit. Trace its output through connector C1 (24-pin, black) pin 12 to the multifunction switch: a misaligned connection here will disable low beams despite proper relay operation. For accessory circuits like fog lamps, verify the orange/black wire at C2 pin 18 carries 12V only when the ignition is active; any voltage at rest signals a short to the ignition feed, requiring immediate isolation.

• Headlight wiring sequence: battery (+) → F54 → C1-12 → multifunction switch (input) → C1-8 (low beam) or C1-4 (high beam) → front harness → lamp sockets (resistance
• Fog lamp activation: park lamp relay (controlled by body control output) closes → yellow/black wire at C3-6 → front bumper harness → fog lamp sockets (current draw 3.2A max).
• Courtesy light auto-off: door ajar switch closes → purple wire at C2-1 activates timer in the central module → interior lights remain energized for 45±5 seconds unless overridden by ignition.
• Trailer lighting: brown wire at C4-22 supplies running lights (3A max), while C4-15 (yellow) handles left turn signal fusion (7.5A). Cross-wire here causes feedback to the brake circuit.

Test accessory circuits with a 5A load first. Voltage drop exceeding 0.5V at any terminal indicates corrosion or undersized wire gauge–replace the segment with TWP 14AWG for lighting or 12AWG for power outlets.
