Building and Understanding the Hx711 Load Cell Amplifier Circuit Layout

Start by connecting the strain gauge bridge directly to the analog front-end input pins–labeled E+ and E−. This pairing must handle differential signals up to ±20 mV/V full-scale; any mismatch beyond 10 Ω in source impedance risks offset drift above 0.5 µV/°C. Use twisted-pair shielded cable for runs exceeding 15 cm to suppress 50/60 Hz mains interference and RF pickup.

Power the sensing IC from a stable 3.3 V or 5 V rail–regulator ripple below 20 mV peak-to-peak prevents clock jitter affecting PGA settling. Decouple with 0.1 µF ceramic (X7R dielectric) and 10 µF tantalum capacitors within 5 mm of the VCC and GND pins. Avoid inductors: their resonant peaks above 1 MHz can corrupt the internal 10-bit ADC.

Grounding demands a star-configuration: link all analog grounds at a single point beneath the PCB, distinct from digital ground. Keep digital traces (SCK, DOUT) at least 3 mm away from bridge wires to limit crosstalk exceeding -80 dB. If isolation is critical, add a 1 kΩ series resistor on serial lines to dampen reflections during 80 kHz SPI bursts.

Clock the interface at 1.2 MHz for 10 readings/second; exceeding 2.5 MHz shifts the 64x PGA output pole past 30 Hz, reducing noise rejection of 1/f flicker components below 10 Hz. For battery operation, enable the on-chip low-power mode by toggling the PD_SCK line low after each measurement–current drops to 1 µA while preserving calibrated offsets.

Calibration requires zero-scale and full-scale adjustment. Zero-scale: short E+ to E− and read the 24-bit output; subtract this code from subsequent samples. Full-scale: apply a known 2 kg force, capture the value, then derive the transfer slope: (measured code – zero code) / 2 kg = counts/kg. Store these constants in EEPROM; typical linearity error stays below 0.02% FSO.

Practical Load Cell Amplifier Wiring: Step-by-Step Execution

Connect the strain gauge bridge directly to E+ and E- terminals using shielded twisted-pair cable (22-24 AWG) with a maximum length of 50 cm to minimize noise coupling. Ground the shield at a single point–preferably at the signal conditioner’s ground plane–to prevent ground loops. For stable readings, add a 0.1 μF ceramic capacitor between the AVDD and AGND pins, placed as close as possible to the chip’s package, along with a 10 μF tantalum capacitor for bulk decoupling.

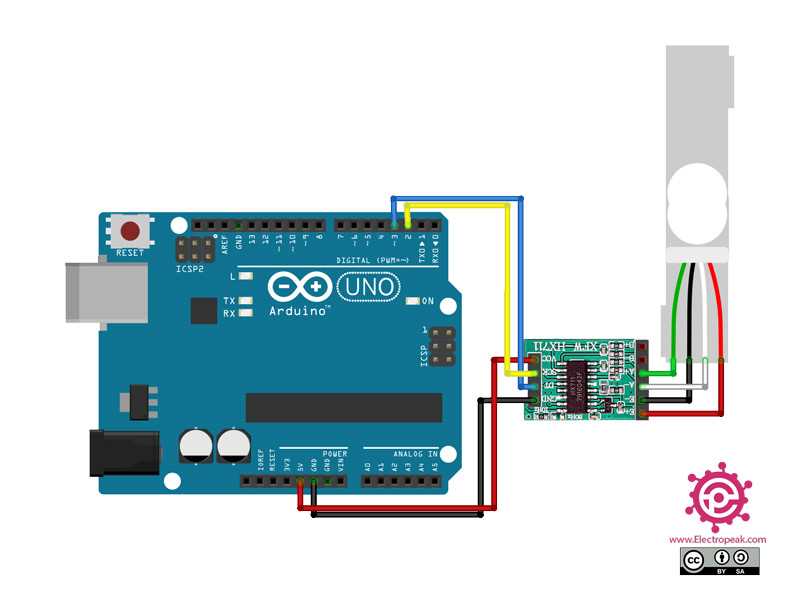

Interface with a microcontroller using these pin assignments: SCK to any digital output (push-pull recommended), DT to an interrupt-capable input (falling edge trigger). Set the clock line low initially; pulses must not exceed 50 kHz for standard 10 Hz conversion rates. Power the device with 3.3–5 VDC, ensuring load regulation below 20 mV ripple. Verify excitation voltage (3.0–4.5 V) at the bridge before proceeding–deviations beyond ±5% indicate improper wiring or component mismatch. Enable channel A gain of 128 for most 24-bit applications; switch to channel B gain of 32 only for faster sampling at reduced resolution.

Troubleshooting Common Pitfalls

Erratic readings: Confirm proper strain relief for all connections; mechanical stress introduces offset shifts detectable via bridge voltage checks. Offset drift: Implement a 2-second settling delay after power-on–thermal transients persist even in precision amplifiers. Cross-talk: Separate digital and analog traces by at least 2 mm; use a ground plane to isolate return paths. For active filters, a simple RC low-pass (1 kΩ resistor + 1 μF capacitor) on the DT output attenuates high-frequency noise without software overhead.

Pinout Configuration and Power Supply Requirements for the Precision ADC Module

Connect the excitation voltage (E+) and reference voltage (E−) pins directly to a stable 4.7V–5.3V DC source to prevent zero-drift errors; bypass capacitors of 0.1 µF (ceramic) and 10 µF (tantalum) must be placed within 5 mm of the module’s VCC and GND pads to suppress high-frequency noise and low-frequency ripple.

Signal Input Pairs:

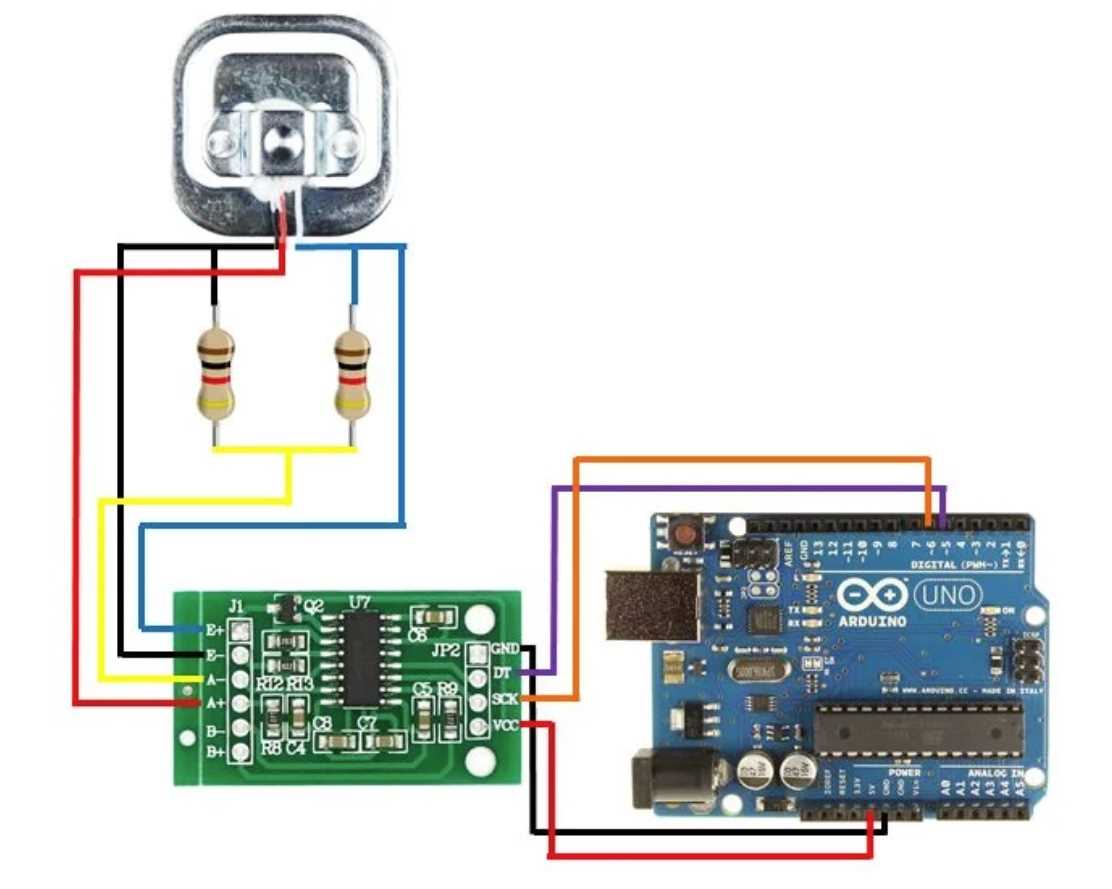

• A+ (channel A, positive): connect to the load cell’s red wire; ensure no more than 20 cm of unshielded cable runs from the sensor to the ADC to prevent EMI pickup.
• A− (channel A, negative): link to the load cell’s black wire; keep the differential trace pair parallel and ≤1 mm apart for common-mode rejection ≥90 dB.
• B+ (channel B, positive): reserved for secondary sensors; if unused, float or pull low via 10 kΩ resistor to prevent undefined states in 32× gain mode.
• B− (channel B, negative): same treatment as B+ if channel B is idle.

Power Rail Decoupling Strategy

Use a dedicated linear regulator (e.g., LT1963A-5) supplying 5.00 V ±2 %; switching regulators introduce spurious harmonics ≥20 kHz that escape onboard filtering and corrupt LSB readings. If a switcher is unavoidable, insert a π-filter (10 Ω, 47 µF, 47 µF) right before the ADC’s input pin and mount the components

Ground planes must be star-routed to a single chassis ground point; avoid daisy-chain ground runs between the digital side (MCU GND) and analog side (ADC GND) to prevent ground loops. If the MCU shares the same power domain, split the ground planes with a 0 Ω jumper or 1 µH ferrite bead to isolate high-frequency digital return currents.

Low-Power Operation:

1. Pull PD_SCK low; module enters normal mode, consuming 120 µA.
2. For standby, toggle PD_SCK high ≥60 µs; current drops to 1.4 µA.
3. Restore normal operation by cycling PD_SCK low for ≥1 µs; first conversion post-wake requires 400 ms settling before valid data is clocked out.

Never power the module with voltage

Clock and Data Pins:

• DOUT: open-drain output; pull-up resistor ≤4.7 kΩ to VCC to match MCU logic thresholds.
• PD_SCK: must idle high; minimum pulse width ≥0.2 µs for 10 SPS rate, >1 µs for 80 SPS rate.

Keep clock pulses 1.5 Vpp on PD_SCK can falsely trigger internal gain latches, corrupting the next conversion cycle.

Heat dissipation typically ≤8 mW; thermal vias under the LDO pad are unnecessary for ambient ≤85 °C, but if the board exceeds 65 °C, add a 10 mm² copper pour on the rear layer tied to GND to act as a heatsink, improving long-term drift

Load Cell Connection and Wiring Best Practices

Use shielded twisted pair (STP) cable for all load cell connections to minimize electromagnetic interference (EMI). AWG 22–24 conductors with foil shielding reduce noise by 60–80% compared to unshielded alternatives. Ground the shield at one end only–typically at the amplifier’s analog ground–to prevent ground loops. Avoid looping the shield back to the load cell, as this creates a secondary noise path.

Termination Resistance and Excitation Voltage

Verify excitation voltage matches the load cell’s datasheet. Most precision cells operate at 5V, but industrial models may require 10V for optimal signal-to-noise ratio. Use a regulated power supply with ≤0.1% ripple–fluctuations above this threshold introduce zero drift. For 4-wire sensors (excitation+, excitation−, signal+, signal−), connect excitation lines directly to the supply without intermediate resistors to prevent voltage drops. For 6-wire cells, utilize the sense lines to compensate for lead resistance, improving accuracy by 0.3–0.5% in long cable runs.

Cable Length (m)	Recommended Gauge (AWG)	Expected Voltage Drop (mV)	Max Safe Current (mA)
≤2	24	3–5	200
2–5	22	8–12	300
5–10	20	20–30	500
10+	18	50–70	800

Solder all connections with 60/40 lead-tin or SAC305 alloy. Crimp connectors alone fail under vibration–add a strain relief loop (6–10mm diameter) where the cable meets the load cell housing. Test continuity after assembly: resistance between signal lines should be ≤1Ω, while insulation resistance to ground must exceed 500MΩ at 50VDC. For outdoor installations, seal terminals with conformal coating (e.g., MG Chemicals 422B) to prevent oxidation. Replace any cable with nicks or abraded shielding immediately–internal conductor exposure degrades signal integrity within 72 hours in high-humidity environments.

Environmental and Mechanical Factors

Route cables away from motors, relays, and switching power supplies, maintaining a minimum 15cm clearance from AC lines carrying >5A. Secure cables with non-metallic tie wraps every 20–30cm to prevent sagging, which induces low-frequency noise. For weighbridges or dynamic applications, use flexible stranded copper with ≥19 strands per conductor–solid core wires fatigue and break within 10,000 cycles under 0.5g vibration. Calibrate the system after any wiring change: re-zero drift of >0.05% full scale indicates compromised connections. Store spare cables in ESD-safe bags at 10–30°C–temperature extremes alter insulation resistance by ±2%/°C above 40°C.

Filter Capacitor Placement and Noise Reduction Techniques

Place a 100nF ceramic capacitor directly between the power supply pins of the ADC frontend, within 2mm of the package. This minimizes high-frequency noise coupling through the power rail by providing a low-impedance path to ground for transients above 1MHz. For best performance, use a X7R or C0G dielectric with a voltage rating at least 50% higher than the supply voltage to prevent derating effects.

Decouple analog and digital grounds at the sensor interface with separate vias connecting to a common star point near the power source. Avoid daisy-chaining ground returns, as this creates a shared impedance path for noise. Add a 10µF tantalum capacitor at the power entry point to suppress low-frequency ripple (50-120Hz) from switching regulators. Place series ferrite beads (1kΩ @ 100MHz) on supply lines feeding mixed-signal components to isolate noise domains without affecting DC accuracy.

Shield sensitive traces with a continuous ground plane on an adjacent layer, maintaining a 3:1 width-to-spacing ratio for the signal trace to minimize crosstalk. For differential pairs, use matched lengths with less than 5 mil variation to prevent skew-induced noise pickup. Terminate unused op-amp inputs to a quiet mid-rail reference (typically VCC/2) via 10kΩ resistors to prevent floating-node oscillations, which can couple into adjacent stages.
