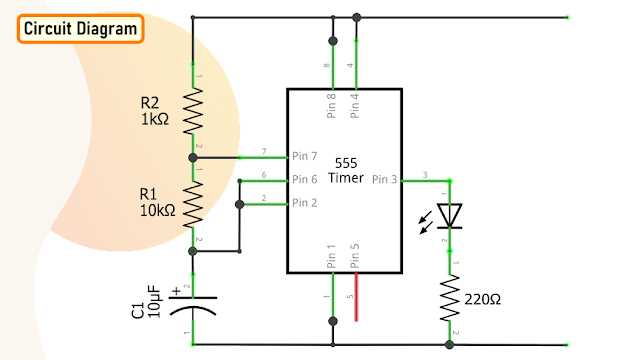

Simple 3 LED Circuit Schematic and Connection Guide for Beginners

Start with a 220-ohm resistor for each component to prevent burnout–this value balances brightness and longevity for standard 5mm indicators. If using a 5V supply, consider reducing resistance to 150 ohms for a noticeable intensity boost, but monitor heat output, especially in enclosed setups. For 12V systems, stick to 470 ohms or higher to avoid excessive current draw.

Arrange the components in series for simplicity: supply → resistor → first element → second → third → ground. This method drops equal voltage across each, but failure in one breaks the entire chain. For reliability, opt for parallel wiring–each branch gets full input voltage, letting the rest function if one fails. Use resistors individually per branch to regulate current.

Test configurations with a multimeter before finalizing. Measure voltage drops across each element in series (~1.8–3.3V per unit, depending on color) and confirm total doesn’t exceed supply voltage. In parallel, verify current per branch–sum should match the source’s capacity. For unstable power, add a 100µF capacitor near the input to smooth fluctuations.

For dimming, replace fixed resistors with 1K potentiometers in series, but ensure wattage rating (minimum 0.25W) handles the load. Avoid exceeding 20mA per element; sustained higher currents degrade lifespan. If heat becomes an issue, switch to SMD variants or heatsink-mounted packages for better dissipation.

Constructing a Three-Element Light Setup: A Hands-On Walkthrough

Begin by arranging your components in a series configuration if uniform brightness is critical. Use a 9V alkaline battery with 220Ω resistors for each light emitter to prevent burnout–this pairing balances longevity and visibility. For parallel assembly, 470Ω resistors will suffice, but ensure the power source delivers at least 500mA to avoid dimming. Verify polarities: the anode (+) connects to the positive rail, the cathode (-) to the resistor. Twist bare wires tightly or solder joints to eliminate flickering caused by loose connections.

A multimeter is non-negotiable–measure voltage across each emitter to confirm 2.0–2.2V for standard 5mm types. If readings drop below 1.8V, reduce resistor values incrementally (e.g., from 220Ω to 180Ω) until consistent output is achieved. Below is a reference for common emitter types and their ideal resistor matches:

Emitter Type	Typical Forward Voltage (Vf)	Recommended Resistor (Ω)	Current Draw (mA)
Red (620–630nm)	1.8–2.0	220–330	20–30
Green (520–530nm)	2.1–2.4	270–470	15–25
Blue/White (460–470nm)	3.0–3.3	330–560	10–20

Troubleshooting Poor Performance

If one emitter underperforms, check for uneven resistor values or a failing power supply. Swap in a 12V adapter for higher-demand setups, but recalculate resistor values using R = (Vs - Vf) / I, where Vs is supply voltage and I is target current (e.g., 20mA). Heat-shrink tubing over exposed joints prevents short circuits–apply it after testing the configuration. For battery-powered builds, opt for rechargeable lithium cells (3.7V each) in series to extend runtime beyond 8 hours of continuous use.

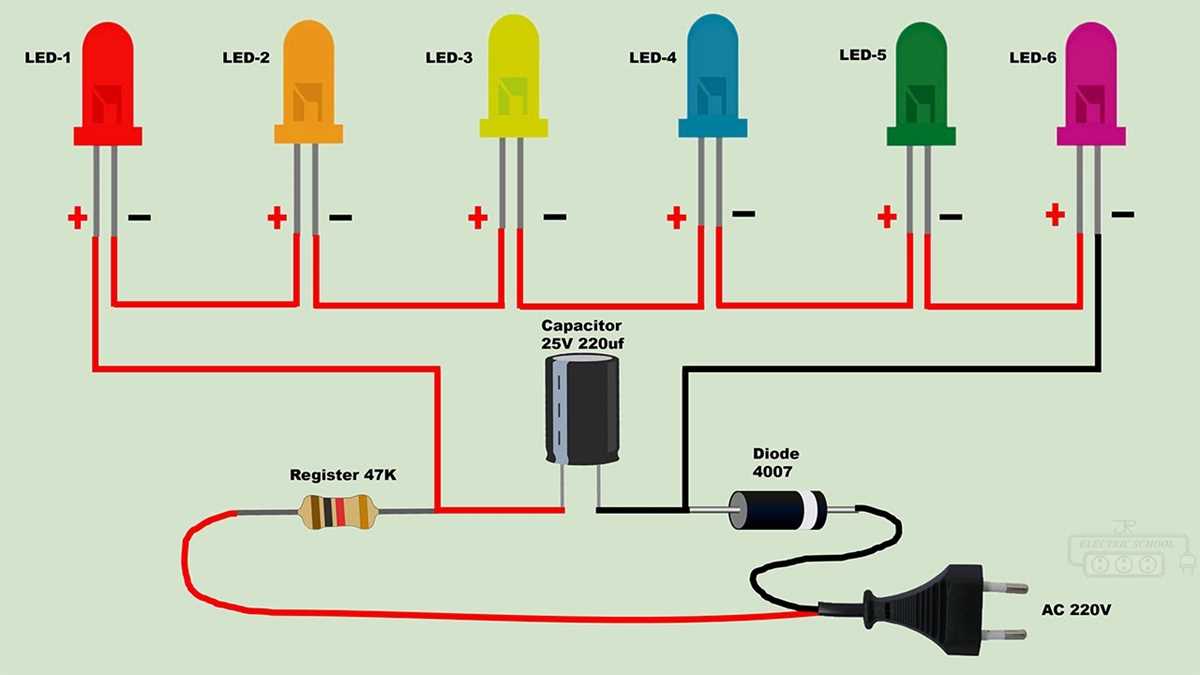

Connecting Three Light Sources in Sequence with a Current-Limiter

Begin by verifying the forward voltage of each indicator–most standard 5mm types require between 2V and 3.3V. Add these values: if the total exceeds your supply’s output, the setup will fail to illuminate. For example, three 2V emitters need at least 6V; a single 9V battery is therefore suitable. Choose a current-limiter based on your desired brightness: 20 mA is common, but 10 mA prolongs life.

Cut three equal lengths of 22 AWG solid core wire, each long enough to span the installation distance plus 5 cm extra for connections. Strip 6 mm of insulation from both ends of every wire segment. Twist each exposed tip clockwise to prevent stray strands. Tin the tips using a low-temperature soldering tool–this ensures reliable joints and prevents cold-solder failures.

Position the power source’s positive terminal as the starting point. Connect the first wire from this terminal directly to the anode of the first light source–identified by the longer leg or a flat edge on the lens. Route a second wire from the cathode of this first emitter to the anode of the second. Repeat this step, linking the second and third indicators in identical fashion. The final cathode returns to the current-limiter.

Identify the correct current-limiter value using Ohm’s rule: subtract the combined forward voltages from the supply voltage, then divide by the target current. For three 2V devices on a 9V source at 20 mA, the calculation yields (9V – 6V) / 0.02A = 150 Ω. Select the nearest standard rating; a 150 Ω carbon-film type tolerates ¼ W dissipation without overheating.

Attach one current-limiter lead to the final cathode and the other to the power source’s negative terminal. Insulate every joint with 3 mm shrink tubing; slide each sleeve over before soldering, then heat with a heat gun until tight. Avoid wrapping tape–it can absorb moisture and degrade conductivity over time.

Testing and Troubleshooting Sequence Patterns

Activate the supply and observe each indicator; uniform intensity confirms correct voltage and current division. If one appears dimmer, recheck all forward voltages–even a 0.1V discrepancy alters brightness. Replace any defective device immediately; prolonged uneven loading stresses remaining elements, shortening lifespan.

For applications requiring precise timing, wire a microcontroller’s GPIO pin to the series string via a low-side NPN transistor. Drive the base with 3.3V logic; specify a saturation current below the transistor’s maximum. Use a single bypass capacitor (10 µF ceramic) across the supply near the indicators to suppress voltage spikes that can damage components.

Secure the entire assembly on a perforated prototype board or custom PCB. Route conductors away from sharp edges and heat sources, and anchor fragile legs with hot glue. Label both supply legs at the power source to simplify future diagnostics or modifications.

Parallel Wiring for Three Light Sources: Direct Assembly Guide

Select a 5V power supply with a current rating at least 20% higher than the combined forward current of your light emitters to prevent voltage drops. For typical indicators drawing 20mA each, use a 70mA or 100mA adapter. Never exceed the maximum forward voltage of your components–check datasheets for precise values.

Place a current-limiting resistor on each branch to protect the semiconductors. Calculate resistance using Ohm’s Law:

R = (Supply Voltage - Forward Voltage) / Target Current

.

For 5V input and 2V forward voltage emitters at 20mA:

R = (5V - 2V) / 0.02A = 150Ω

.

Use 160Ω resistors for standard tolerances.

Arrange components on a breadboard first to test connections:

• Connect the positive terminal of the power source to the common rail.
• Link each resistor’s free end to the anode of a separate emitter.
• Join all cathodes directly to the ground rail.
• Verify polarity–reverse connections will not illuminate.

Solder joints for permanent installations:

1. Tin wires and pads with minimal solder to avoid bridges.
2. Secure each resistor-emitter pair with heat-shrink tubing.
3. Route ground wires to a single terminal for clean assembly.
4. Test continuity with a multimeter before applying power.

Brightness will remain consistent across all three sources if resistors match values. Mismatched resistors cause uneven output–prioritize ±5% tolerance components. For adjustable brightness, replace fixed resistors with potentiometers rated for your target current.

Troubleshoot with this checklist:

• No light: Check power supply voltage at input/output.
• One dim emitter: Measure voltage drop across its resistor.
• Flickering: Confirm stable power or add a 100μF capacitor across the supply.
• Overheating: Reduce current or use heat sinks for emitters rated above 50mW.

For 12V systems, recalculate resistor values to dissipate excess voltage. Example for 2V emitters at 15mA:

R = (12V - 2V) / 0.015A = 666Ω

–use 680Ω resistors. Higher voltages require resistors with sufficient wattage:
P = (12V - 2V)² / 680Ω ≈ 0.15W;

select ¼W or ½W parts.

Calculating Resistor Values for Common Voltage Sources

For a 5V input with standard indicator components (typically 2V forward voltage, 20mA current), subtract the component’s voltage drop from the supply: 5V – 2V = 3V. Divide by current (0.02A) to find resistance: 3V / 0.02A = 150Ω. Use the nearest higher standard value (160Ω) to avoid exceeding current limits. For 9V, apply the same method: 9V – 2V = 7V; 7V / 0.02A = 350Ω (closest available: 360Ω). At 12V, the calculation yields 12V – 2V = 10V; 10V / 0.02A = 500Ω (use 510Ω). Always derate power dissipation: P = (supply voltage – component voltage) × current. For 5V: (3V × 0.02A) = 0.06W (1/8W resistor suffices). For 9V: (7V × 0.02A) = 0.14W (1/4W minimum). For 12V: (10V × 0.02A) = 0.2W (1/4W or higher).

Adjustments for Non-Standard Components

For high-brightness variants with 3.2V drops (e.g., blue or white), recalculate: 5V supply needs (5V – 3.2V) / 0.02A = 90Ω (use 100Ω). For 9V: (9V – 3.2V) / 0.02A = 290Ω (300Ω). At 12V: (12V – 3.2V) / 0.02A = 440Ω (430Ω or 470Ω). Current-sensitive designs may require tighter tolerances–replace 5% resistors with 1% where stability is critical. Validate with a multimeter; measure actual forward voltage under load to refine values. Overdriving risks thermal failure; ensure dissipation stays below resistor ratings (e.g., 0.25W for most through-hole axial components).
