Designing Home Electrical Wiring Schematics for Safe and Functional Power Distribution
Start with a 40-60 A main breaker panel rated for 230V single-phase supply–this covers most modern households consuming up to 14 kW. Use 10 mm² copper cables for branch circuits powering outlets and lighting; reserve 16 mm² for high-demand appliances like electric stoves or water heaters. Ground every circuit through a dedicated 6 mm² protective earth conductor connected to a buried copper rod at least 1.5 m deep, ensuring resistance below 10 Ω.
Avoid circuit overload by distributing loads evenly: dedicate separate 16 A breakers for kitchen outlets, another for heating systems, and a third for plug-in devices in living areas. Install residual-current devices (RCDs) with 30 mA trip thresholds on all circuits serving wet zones–bathrooms, laundry rooms, and outdoor outlets–to prevent lethal shocks. Label each breaker clearly on a standardized diagram mounted inside the panel door.
For hybrid setups integrating solar or backup power, use a transfer switch capable of handling 25% more than the maximum expected load. Size inverters and battery banks based on daily kWh consumption–store at least 1.5× the daily usage for reliable operation during outages. Connect batteries in series-parallel configurations to match system voltage (e.g., 24V or 48V) while maintaining balanced charge currents across cells.
Route cables through conduits whenever possible; use rigid PVC for underground sections and flexible metallic tubing for surface runs in exposed areas. Maintain a minimum 30 cm clearance between power lines and low-voltage cabling (network, phone) to prevent interference. Secure all junctions in weatherproof junction boxes rated IP65 or higher when outdoors.
Test continuity, insulation resistance, and polarity before energizing circuits–target values should exceed 1 MΩ for insulation and zero continuity between live conductors and earth. Use a calibrated multimeter and torque screwdriver to tighten terminal connections to manufacturer specifications, preventing overheating at contact points.

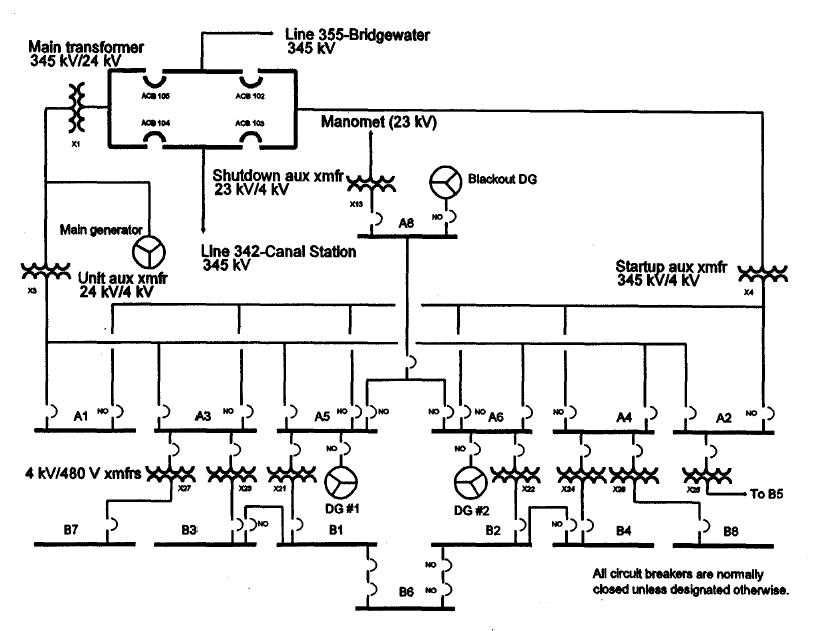

Power Flow Blueprints: From Grid Hubs to Home Systems
Begin by mapping the primary high-voltage transmission lines entering the local substation, typically rated at 110–400 kV. Use distinct symbols for breakers, transformers, and isolators–ANSI/IEEE standards ensure clarity across teams. Label each component with its nominal voltage and current capacity to prevent overload risks during phase balancing.
Avoid daisy-chaining protective relays; instead, deploy dedicated fault detection for each feeder line. For a 20 MVA transformer, specify a differential relay with a 0.5% sensitivity threshold and an inverse-time overcurrent relay with a 1.2× pickup ratio. Below is a recommended relay configuration:
| Relay Type | Settings | Application |
|---|---|---|
| Differential | 0.5% slope, 0.1s delay | Transformer protection |
| Inverse-Time Overcurrent | 1.2× pickup, 0.4s reset | Feeder lines |
| Ground Fault | 10% of phase current | Neutral circuits |
Integrate surge arresters at both ends of underground cables–copper conductors larger than 50 mm² require Class II arresters rated for 10 kA. Overhead lines should use polymer-housed arresters spaced every 200 meters to mitigate lightning-induced transients.
For low-voltage distribution (230/400 V), use ring main units near load clusters, limiting each ring to 8–10 connections to maintain voltage drop under 3%. Specify aluminum conductors for runs exceeding 50 meters–their 61% conductivity-to-weight ratio reduces sag without compromising efficiency. Below is a conductor sizing chart:
| Load (kW) | Distance (m) | Recommended Conductor (mm²) | Voltage Drop (%) |
|---|---|---|---|
| 10 | 30 | 16 | 2.1 |
| 25 | 80 | 35 | 2.8 |
| 50 | 150 | 95 | 2.5 |
Install residual current devices on all final circuits serving socket-outlet and wet-area loads. For temporary loads (e.g., construction sites), use RCDs with a 30 mA trip threshold and a 40 ms response time to comply with IEC 60364-4-41.
Grounding grids must achieve a resistance below 1 Ω for substations and under 10 Ω for domestic installations. Use galvanized steel rods (minimum 2.4 m length, 16 mm diameter) spaced at intervals equal to their embedded depth. Bond all metallic enclosures–transformer tanks, switchgear frames–to a common earth bar via 70 mm² copper conductors.
Document every connection point with a unique identifier and QR code linking to test records. Include thermal camera readings post-installation to verify joint integrity–temperature gradients above 5°C between phases indicate loose connections requiring torque checks to 25 Nm ± 10%.
Critical Elements for Linking a Power Hub to Home Installations
Install a isolation transformer rated for at least 125% of the anticipated load between the neighborhood network and the meter panel. Models like Schneider Electric’s TRIHAL series handle 10–160 kVA with built-in surge suppression, reducing voltage distortion to under 2% at full capacity. Avoid cheaper dry-type units–oil-filled variants last 20–30 years without active cooling.
Use armored underground cable (AWG 2/0 aluminum or 4/0 copper) for runs exceeding 50 meters. Direct burial requires PVC conduit (Schedule 80) with a minimum 600 mm cover depth; rocky soil demands sand bedding. UL-listed cable like Southwire’s XHHW-2 resists moisture and crush damage, critical where excavation activity is frequent. Label each end with heat-shrink sleeves showing phase (L1/L2/L3), voltage, and meter box designation.
Mount a fused disconnect switch adjacent to the home’s entry point–minimum 200 A frame, with Class RK5 fuses sized to 110% of the main breaker rating. Square D’s QO series allows visible blade confirmation before maintenance, eliminating accidental re-energization. Include a locking handle (Kirk key interlock optional for multi-tenant sites) and a ground lug bonded to the enclosure with a 4 AWG copper jumper.
Specify a smart meter with Zigbee or cellular backup (Itron Riva or Landis+Gyr Revelo) to monitor real-time demand and detect 0.1 A leakage currents. Configure dual-tariff sampling every 15 minutes to flag atypical usage spikes. Avoid models with Wi-Fi modules–hardwired RS-485 to the gateway reduces false positives from interference.
Integrate a whole-house surge protector (Eaton CHSPT2ULTRA) with 80 kA per mode and built-in thermal fusing. Install on the load side of the main breaker, tapping into a dedicated 2-pole, 50 A circuit. Replace varistors every 5 years or after a 10 kA+ event, whichever comes first–record incidents in a logbook stored behind the panel’s inner cover.
For rural sites, add a step-up transformer (7.2 kV to 24 kV) if transmission spans exceed 200 meters, paired with a neutral grounding resistor (NGR) sized to limit fault current to 10 A. Cooper Power Systems’ Form 6 recloser can interrupt 12 kA symmetrical faults, but manual bypass switches must be installed for coordinated outage repairs–test the sequence annually.
Run a separate 8 AWG equipment grounding conductor (EGC) alongside feeder cables, terminating in a buried ground rod cluster (three 10 ft rods spaced 1.8 m apart) bonded with exothermic welding. Verify resistance below 25 ohms with a clamp-on tester; if higher, add magnesium anodes and bentonite slurry to improve conductivity in clay-heavy soil.
Label every junction box, disconnect, and splice point with embossed aluminum tags (Brady B-499) etched with circuit ID and torque specs (e.g., “L1-200 A – 25 lb•ft”). Update labels after any modification–audit compliance against NFPA 70E Article 110.16 and local utility tariffs every 18 months to avoid inadvertent violations.
Step-by-Step Feed Line Installation from Power Line to Home Energy Box
Secure permits from local authorities before excavation. Check underground utility markings–call 811 in the U.S. at least two business days prior. Depth requirements vary: 18–24 inches for direct burial cables, 36 inches for conduit in vehicle-crossed areas. Use Schedule 40 PVC conduit for runs exceeding 50 feet or where soil instability exists. Bury warning tape 12 inches above the cable as a fail-safe.
Conduit and Cable Selection
- Pick 1/0 AWG aluminum for spans under 100 feet; 2/0 AWG for 100–200 feet. Over 200 feet, use copper or upsize.
- Direct burial XLP cables withstand moisture, UV, and rodents. Avoid THHN in buried applications–it degrades.
- Rebar-stake every 8 feet to prevent conduit shifting during backfill.
Pull wires with a nylon mule tape, never steel–it scratches insulation. Apply wire lube generously at bends. Maintain 25% fill rule in conduit: a 2-inch conduit handles up to three 2/0 cables. Tape cable ends with waterproof caps immediately after pulling to block moisture ingress.
Meter Base and Panel Prep
- Mount the meter base 4–6 feet above grade per NEC 230.66, away from downspouts and eaves.
- Install double lugs rated for the service size–bronze for aluminum, copper for copper.
- Connect ground rod (8 feet × 1/2 inch) within 6 feet of the meter base, bonded with #4 AWG bare copper.
Strip only the outer jacket when terminating at the meter lugs–leave insulation intact until the final 1/2 inch. Torque to manufacturer specs: 45 in-lbs for 200A lugs. Seal conduit entry with silicone sealant to prevent corrosion from condensation. Energize only after inspection.
Test continuity with a multimeter before closing the panel. Set to ohms; readings below 1Ω confirm solid connections. Open neutral or ground paths trigger fault codes in smart meters–recheck all splices if errors appear. Maintain access clearance: 30 inches deep, 36 inches wide in front of the panel per NEC 110.26.
