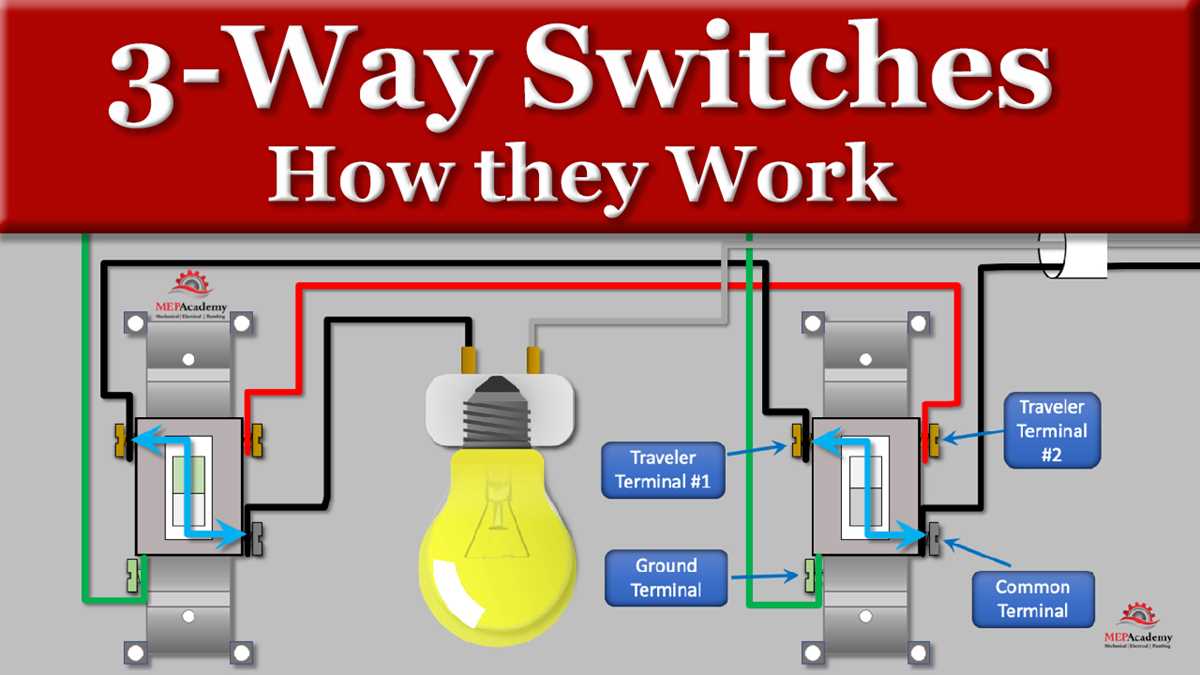

How to Wire a 3-Way Switch Step-by-Step Diagram Guide for Homeowners
Begin by identifying the common terminal on both control units–this is the screw marked differently (usually black or copper-colored) and is the key to proper circuit flow. If the devices lack markings, use a multimeter in continuity mode to locate the terminal that bridges the other two when toggled. Failure to connect this first risks short-circuits or non-functional setups.
Run 14/2 or 14/3 NM cable between the power source, first control unit, and light fixture, ensuring each conductor lands on the correct terminal. The hot wire (black or red) from the source attaches to the common terminal of the first toggle. A traveler wire (red) connects the brass-colored screws of both units, while a second traveler (black) bridges the remaining brass terminals. Neutral (white) bypasses the controls and goes directly to the load.
For larger installations, use 12-gauge wire to handle up to 20 amps. Label all wires at both ends before stripping insulation to avoid confusion. When securing terminals, tighten screws to 18-24 inch-pounds–over-torquing cracks plastic housings, while loose connections cause arcing. Install a wall plate cover after testing; exposed terminals violate NEC 300.4.
Test the setup with the breaker on before finishing the installation. Every toggle position should alternate control between the two traveler paths, completing the circuit to the load. If flickering occurs, recheck traveler continuity or common terminal attachments. For three-location control, add a four-terminal intermediary device between the existing two.
Understanding Multi-Location Toggle Circuit Connections
Start by identifying the common terminal on each control unit–look for the darker or differently colored screw. This terminal connects to the power source on one unit and the light fixture on the other. Miswiring this element causes flickering or complete failure of the circuit. Mark these terminals with tape to prevent errors during installation.
Use 14-gauge stranded copper wire for all connections, ensuring flexibility and durability. Solid conductors risk breaking under stress from repeated toggling. Route cables through conduit if running along walls to protect against physical damage or interference. Avoid sharp bends–maintain a minimum 4-inch radius to prevent wire strain.
Follow this sequence for secure connections:
- Connect the power source’s hot wire to the common terminal on the first control.
- Link the traveler wires (one black, one red) between the two units’ corresponding terminals.
- Attach the light fixture’s hot wire to the common terminal on the second control.
- Join all ground wires to the green terminals and bond to the metal box if present.
Test each combination before securing the units in place. Toggle both controls to verify the fixture responds correctly in all positions. If issues arise, check for loose connections or reversed travelers–swap the two traveler wires if the circuit behaves inversely.
For three-location setups, add a four-way toggle between the existing pair. Connect travelers from the first control to the four-way’s input terminals, then run new travelers from its output to the final unit. Label all cables to simplify future troubleshooting.
Essential Gear and Supplies for Multi-Location Control Setup
Start with a voltage tester to confirm circuits are dead–non-contact models like the Klein NCVT-3 are precise, detecting live currents up to 1000V AC. Pair it with insulated screwdrivers (VDE-certified, 1000V rating) to handle terminal screws without risk. Wire strippers with 12-14 AWG markings ensure clean cuts without nicking conductors, critical for maintaining circuit integrity.
Use 14/3 NM-B cable for 15-amp circuits or 12/3 for 20-amp setups–both include a red traveler conductor, essential for three-point coordination. Secure connections with twist-on wire nuts (Ideal Twister #17-18 for 2-3 wires, #20-22 for 4+). Avoid push-in terminals; they’re less reliable under load fluctuations.
Label every conductor with color-coded tape or heat-shrink tubing–match travelers (red) and common terminals (black or brass) consistently across both control points. A multimeter set to continuity mode verifies proper sequencing before energizing, preventing miswires that could bypass safety grounds.
For junction boxes, opt for deep 4″ square models (minimum 18 cubic inches) to accommodate bundled cables without violating NEC 314.16 fill codes. Steel boxes with built-in clamps simplify grounding; use #10-32 screws for solid bonding. Keep a roll of UL-rated electrical tape (Scotch Super 33+) for insulating splices in tight spaces.
Step-by-Step Guide to Installing a Dual-Control Lighting Configuration
Turn off the power at the circuit breaker before handling any conductors. Verify the absence of current using a non-contact voltage tester on all terminals to prevent accidental shorts or shocks.
Identify the common terminal on each controller–typically marked darker or labeled “COM.” The remaining two terminals (travelers) on each device must connect to corresponding wires, usually colored red and black or brass screws.
Run a 14-3 or 12-3 NM cable between the two controllers, ensuring the neutral wire (white) remains untouched at both ends. Strip ½ inch of insulation from each conductor, then secure the travelers to their designated screws. Twist the bare ground wires together with a pigtail attached to the green grounding screw on each unit.
Connect the incoming hot wire (from the power source) to the common terminal of the first controller. At the second controller, attach the conductor leading to the fixture’s hot terminal to its common terminal. Double-check all connections with a continuity tester to confirm correct pairing of travelers between the two devices.
Cap all unused neutral wires with a wire nut and tuck them into the junction box. Avoid leaving exposed conductors, as stray currents can cause unexpected operation or safety hazards. Secure both controllers into their enclosures with mounting screws, ensuring no wires are pinched or stressed.
Restore power and test each controller independently. If the fixture fails to respond, recheck traveler connections–swapped wires are the most common issue. Label the circuit breaker for future reference, and use a permanent marker to note the common terminal on each controller for maintenance clarity.
Locating Key Conductors in Multi-Point Control Configurations
Begin by verifying the common terminal–the lone screw, often darker (black, brass, or copper) and positioned apart from the pair. This conductor carries the permanent line or load; test with a multimeter to confirm continuous voltage when the setup is powered. The other two screws, typically lighter (silver or gold) and interchangeable, are messenger cables. They alternate current between control points depending on position.
- Toggle all control units to the same state–if a bulb activates, the active conductor is the common; otherwise, retest.
- Mark each messenger cable with tape after identifying: wrong pairing will disable the circuit.
- Avoid relying on color coding–manufacturers frequently deviate (red, black, white, or striped cables may serve either role).
For hidden junction boxes, trace the path backward from the fixture: the common conductor will always terminate at the source or load, while messenger cables split into parallel branches. Use a continuity tester to map conductors across boxes–messenger cables will show open circuits when toggled opposing positions, whereas the common remains consistent.
Linking the Supply Line to the Initial Control Point
Position the main feed conductor (typically 12 AWG for 20-amp circuits or 14 AWG for 15-amp paths) adjacent to the first toggle’s common terminal. Use a wire stripper to remove ⅝ inch of insulation from the end, ensuring no stray strands remain exposed beyond the terminal screw. If working with armored flexible conduit, secure the ground wire to the fixture’s grounding lug before addressing the live wire.
Match the conductor color to the screw terminal designation–black (hot) for brass screws, white (neutral if present) for silver, and bare or green for grounding. Torque the terminal screws to 12–15 inch-pounds using an insulated screwdriver; overtightening can deform the conductor or crack the device’s housing, while insufficient tension risks arcing. For push-in terminals (back-wired types), insert the stripped end fully until it clicks, then tug gently to confirm retention.
| Cable Type | Minimum Bend Radius (inches) | Recommended Clamping Method |
|---|---|---|
| Non-metallic sheathed (NM-B) | 5× cable diameter | Plastic clamps or staples (every 4.5 ft) |
| Armored (AC/BX) | 7× cable diameter | Metal straps with insulated bushings |
| Conduit (THHN/THWN) | 6× conduit diameter | Set-screw connectors (pull-out tested) |
Route the supply cable through the junction box knockout using a knockout punch set if necessary–avoid kinking, which can compromise insulation integrity. For boxes deeper than 3 inches, add a ½-inch spacer ring to meet NEC 314.16(B) volume requirements. If the circuit includes a ground fault circuit interrupter (GFCI) upstream, connect the supply line to the “LINE” terminals first before branching to downstream devices.
When daisy-chaining power to an additional control point, splice the supply conductor to the traveler wires within the first box using a UL-listed twist-on wire connector (e.g., Ideal 75 or 76B). Ensure all splices have at least ¼ inch of bare conductor visible beyond the connector’s skirt; conceal the excess length neatly with a cable tie or retainer clip to prevent abrasion against the box edges.
For metal enclosures, bond the box to the grounding conductor using a green grounding screw or a listed grounding clip. Verify continuity with a multimeter (resistance should read
Energize the circuit in stages: first test the supply line to the initial control point with a non-contact voltage tester, then check downstream connections after wiring the second device. If the toggles fail to operate reciprocally, recheck the traveler wire assignments–transposing them at one device will reverse the on/off sequence but maintain functionality.
