Complete Hi-Link AC-DC Power Supply Module Circuit Schematic Guide

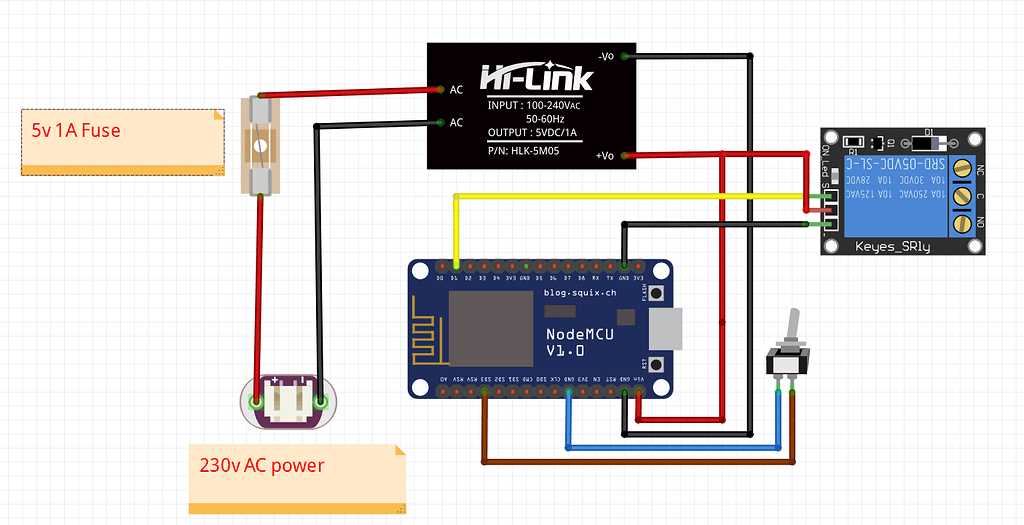

Start with a HLK-5M05 module for compact offline conversion–its isolated 5V output at 1A handles most low-power applications without external components. Connect AC live and neutral through a fusible resistor (10Ω, 1W) and a varistor (MOV, 275VAC) for surge suppression. These two parts prevent transformer saturation and clamp voltage spikes before they reach the primary winding.
Add a 220nF X2-class capacitor across the input to filter EMI; place it as close as possible to the module’s pins to reduce loop area. For noise rejection on the DC side, use a 100μF electrolytic (low ESR) in parallel with a 1μF ceramic directly at the output terminal. This combination stabilizes transient response and reduces ripple below 50mV peak-to-peak.
In layouts, keep the high-frequency return path (ground) short and wide–copper pours wider than 2mm minimize parasitic inductance. Route the AC traces at least 2.5mm apart to meet 2.5kV isolation requirements. If the load exceeds 800mA, add a heatsink to the module’s tab; thermal vias (0.3mm diameter, 1mm pitch) underneath improve dissipation into the PCB’s internal plane.
For over-current protection, insert a resettable PTC fuse (e.g., RXE050) in series with the output. It trips at 1.1A and resets once cooled, preventing catastrophic failure. When debugging, use a differential probe across the MOV–measured voltage should never exceed 400V under normal operation.
Key Design Features of Compact AC/DC Converters
Choose a module with a built-in EMI filter and over-voltage protection when working with sensitive loads like microcontrollers or wireless transceivers. Models with HLK-5M05 or HLK-PM01 series include these safeguards as standard, reducing the need for external components. For 220V AC input, ensure the PCB traces for high-voltage lines are at least 1.5 mm wide with a 2 mm clearance from low-voltage sections to prevent arcing. Test insulation resistance with a megohmmeter at 500V DC before applying power.
Common Pitfalls in Implementation
- Input capacitors: Use X2-class (275V AC) capacitors rated for direct mains connection. Incorrect classification risks explosion under voltage spikes.
- Enclosure: Seal modules in fire-retardant ABS plastic (UL94-V0 rating) to meet IEC 62368-1 safety standards.
- Thermal management: Mount the module on a 2 oz copper pour with thermal vias to dissipate heat from the bottom pad. Ambient temperatures above 70°C degrade efficiency by 10-15%.
- Output ripple: Add a 10µF MLCC (X5R/X7R dielectric) in parallel with the onboard capacitor to suppress noise below 100 mVpp for analog circuits.
For projects requiring long-term reliability, replace the stock output diode with a Schottky diode (e.g., SS34, 40V/3A). This reduces forward voltage drop from 0.7V to 0.3V, cutting power loss by up to 60%. When designing a custom PCB, place the module ≥5 mm from high-frequency switching components (e.g., buck regulators) to avoid magnetic coupling. Verify load regulation by testing at 10%, 50%, and 100% of rated current–deviation should stay within ±2%. For medical or industrial use, add an isolated feedback optocoupler (e.g., PC817) to meet IEC 60601-1 or IEC 61010-1 creepage requirements.
Key Components in a Miniature AC-DC Conversion Module Schematic
Select an EMI filter with a minimum attenuation of 20 dB at 100 kHz and 40 dB at 1 MHz. Use X2-rated capacitors (typically 100 nF–220 nF) on the AC side and ferrite beads on the DC output lines. Placement matters: keep the filter within 10 mm of the input terminals to prevent conducted noise from escaping.
Opt for a bridge rectifier rated at least 1.5× the maximum input voltage and 2× the expected RMS current. Schottky diodes reduce forward voltage drop but have lower reverse voltage tolerance; for 230 VAC applications, ultra-fast recovery diodes like UF4007 are better. Check thermal resistance–place the bridge on a copper pad connected to the PCB ground plane.

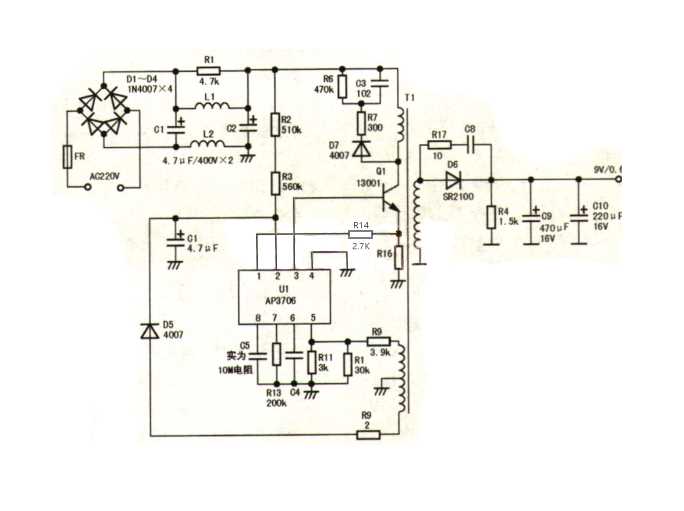

Choose a flyback or quasi-resonant controller that operates below 70 kHz to minimize switching losses. Look for ICs with built-in soft-start (5–10 ms) and overload protection. Ensure the feedback loop uses an isolated error amplifier; common parts include PS2501 optocouplers with a CTR between 80% and 160%. Compensate with a 22 pF–470 pF capacitor across the phototransistor to avoid oscillations.
Use a transformer with a primary inductance between 800 µH and 1.5 mH and a leakage inductance under 2% of the primary value. Core material should have low hysteresis loss–PC40 or PC47 ferrite is standard for 50–100 W modules. Wind primary and secondary with at least 2 mm creepage distance; triple-insulated wire simplifies compliance for reinforced isolation.
Add a snubber network across the primary MOSFET: a 100 Ω resistor in series with a 1 nF–4.7 nF (630 V) capacitor clamps voltage spikes to 10–15% above the DC bus. Place the snubber within 3 mm of the MOSFET drain and transformer tap to prevent parasitic ringing.

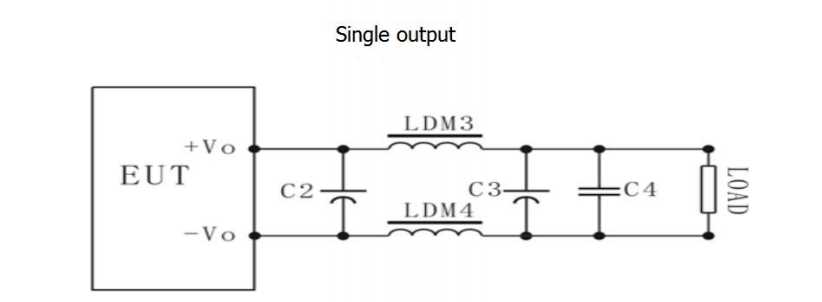

Output capacitors should have low ESR (under 50 mΩ) and ripple current ratings above the load current. Use polymer tantalum (e.g., 330 µF–1000 µF) or ceramic MLCCs (10 µF–22 µF, X5R/X7R) in parallel to filter high-frequency ripple. Mount ceramic capacitors as close as possible to the load terminals to reduce impedance.
Include a transient voltage suppressor (TVS) diode on the output–a 1.5KE series device clamps voltage surges within nanoseconds. Place a 0.1 Ω–1 Ω series resistor before the TVS to limit inrush current. For redundancy, add a self-recovery fuse rated 110% of the nominal load current; it resets after a fault without manual intervention.
Step-by-Step Wiring Guide for Compact AC-DC Modules
Begin by isolating the input leads–L (live) and N (neutral)–from the mains cable with a sharp utility blade. Strip 5–7 mm of insulation, twisting strands tightly to prevent fraying. Use 24–22 AWG wire for low-current models (≤2 A) and 20–18 AWG for higher loads (3–10 A). Tin the exposed ends immediately to avoid oxidation, ensuring solder wets evenly without bridging.
Secure the module to a heatsink or PCB using thermal adhesive if the case lacks mounting holes. Verify clearance: maintain ≥3 mm between high-voltage traces and adjacent components. For enclosed designs, drill ventilation holes spaced ≤15 mm apart to prevent overheating; airflow testing with a fan at 2 m/s should show ≤5°C rise above ambient.
Connect the input terminals observing polarity: most units mark L with a red dot or indentation, N with blue. Swap leads only if reverse polarity is explicitly permitted in the datasheet. Use crimp ferrules or solder cups to terminate wires–bare copper degrades under 230 VAC within months due to micro-arcing. Torque terminal screws to 0.5–0.8 Nm; overtightening cracks the housing.
| Module Rating | Min. Fuse Value | Wire Gauge (Input) | Max. Transient Energy |
|---|---|---|---|
| 5 W (0.2 A) | 0.5 A | 24 AWG | 20 J |
| 20 W (0.8 A) | 1.5 A | 22 AWG | 45 J |
| 60 W (2.5 A) | 4 A | 20 AWG | 120 J |
Route output wiring through a dedicated ground plane if noise coupling risks exceeding 50 mVpp. For 5 V outputs, decouple with a 10–47 µF electrolytic capacitor ≤1 cm from the load; for 12–24 V, add a 0.1–1 µF ceramic in parallel. Avoid loose loops in high-current paths–inductance above 200 nH causes voltage spikes during load transients.
Test with a variac: ramp input from 90 VAC to 264 VAC while monitoring output ripple on an oscilloscope. Acceptable levels: ≤1% Vout for resistive loads, ≤3% for switching regulators. Capture transient response with a 50% load step; recovery time should stay under 500 µs. Failures here typically indicate insufficient bulk capacitance or poor grounding.
Seal unused terminals with dielectric silicone to meet IP44 standards. For outdoor use, apply conformal coating–acrylic or polyurethane–directly over the module, avoiding the heat spreader. Cure at 60°C for 2 hours to prevent moisture ingress. Label both input and output with shrink tubing marked in accordance with EN 60950: input “L-N~230 VAC,” output “+-Vdc MAX X A.”
Common Mistakes When Interpreting Modular Converter Schematics
Misidentifying input polarity marks on a compact transformer’s PCB often leads to immediate component failure. The small “+” and “-” silkscreen symbols near the AC terminals may be partially obscured by solder mask residue or poor lighting, causing technicians to reverse connections. Always verify markings with a multimeter in continuity mode before energizing–some manufacturers omit polarity indicators entirely, relying instead on pad shapes (e.g., square pads for negative, round for positive). Test probes should touch the actual copper, not the surrounding solder, to avoid false readings from oxidized surfaces.
Overlooking Thermal Derating Curves
Many assume a 10W-rated module will deliver full output at 60°C ambient without consulting its derating specifications. Most compact converters reduce capacity by 2-5% per degree above 45°C, yet datasheets rarely highlight this on the first page. Locate the “Maximum Output Current vs. Temperature” graph–often buried in section 8–before finalizing heat sink requirements. Failure to account for derating results in thermal throttling or premature shutdowns under load, particularly in enclosed installations where ambient temperatures exceed 50°C.
Treating EMI filters as optional components invites conducted noise that violates FCC Class B limits. The schematic’s common-mode choke and X-capacitors appear insignificant, but removing them during reverse-engineering or cost reduction causes input current harmonics to surge above 150mA, triggering false OCP trips. Measure leakage current with a LISN before bypassing filters–values above 0.75mA indicate improper grounding or missing Y-capacitors. Always compare the physical board to the reference design; cloners frequently omit these components to save pennies.
Ignoring isolation barriers when probing live circuits risks damaging test equipment or violating safety standards. The primary-secondary gap on these modules is typically 4mm, but flux residues or improper soldering can reduce creepage distance below 3mm. Never connect an oscilloscope ground to secondary-side voltage without an isolated probe–ground loops will short through the scope’s chassis. Instead, use differential probes or optoisolators when measuring switching nodes. Additionally, verify isolation voltage with a withstand tester; fake modules often fail at 2kV, despite claiming 3kV compliance.
