Step-by-Step Guide to Wiring a 4-Prong Generator Plug Safely
Use a heavy-duty, 10-gauge copper conductor for terminals X and Y (hot) and a 12-gauge wire for terminal N (neutral) if the circuit handles up to 30 amps. For 50-amp circuits, increase all wires to 8-gauge. Terminate green or bare copper at the ground stud marked G–failure to secure this connection risks equipment damage and electrical shock.
Match each color-coded strap to the correct slot on the outlet body: black wires attach to brass screws (X terminals), white wires to silver screws (N), and the safety earth remains exclusive to the green screw. Verify tightness with a torque screwdriver at 18 lb-in on all connections; loose fastening generates heat and can melt insulation.
Install an inline fuse holder between the main switch and the first hot terminal. Choose a fuse rating equal to the circuit’s breaker capacity: 30-amp circuits require a 30-amp fuse, while 50-amp circuits need a 50-amp fuse. Position the fuse holder within 12 inches of the main disconnect to meet NEC section 240.22.
Label every terminal with indelible marking tape before closing the junction box. Specify “X1 – L1,” “X2 – L2,” “N,” and “G” alongside voltage readings obtained under load: X1-to-N should read 120VAC, X2-to-N 120VAC, and X1-to-X2 240VAC.
Test continuity between the grounding lug and the equipment chassis with a multimeter set to the lowest resistance scale. Readings above 0.1 ohms indicate corrosion; disassemble, clean contacts, and reapply antioxidant paste before reassembly.
How to Correctly Connect a 240V Outlet for Portable Power Sources
Ensure the power unit neutral conductor is securely fastened to the silver terminal on the four-slot receptacle. This connection must be tight to prevent resistance buildup, which can cause overheating. Verify neutrality by measuring voltage between this terminal and the ground slot–it should read near zero volts under load.
Connect the two hot wires to the brass terminals labeled L1 and L2. The order doesn’t affect functionality but matching wire colors (typically red and black) to the terminal screws simplifies future troubleshooting. Use a multimeter to confirm 240V between L1 and L2, and 120V between each hot wire and neutral.
- Green wire: Ground connection to the green screw or metal housing
- White wire: Neutral terminal (silver screw)
- Red/black wires: Hot terminals (brass screws)
Before energizing, apply a torque screwdriver to each terminal screw according to the receptacle manufacturer’s specifications–usually between 12 and 15 inch-pounds. Loose connections create dangerous arc faults. After tightening, wrap electrical tape around the receptacle base to cover exposed metal parts except for the slots.
Label the cable jacket with the circuit amperage (e.g., 30A or 50A) and date of installation. Use heat-shrink tubing or permanent marker for outdoor durability. Test under load by running a space heater or welder for thirty minutes while monitoring for unusual heat, smells, or voltage drops exceeding 5%.
- Turn off the main breaker before any work
- Strip wire ends to expose 3/4 inch of copper
- Insert wires into slots, ensuring no strands are nicked
- Tighten screws to spec, alternating between terminals to prevent misalignment
- Fasten receptacle to junction box without pinching wires
For outdoor installations, use a weatherproof cover rated NEMA 3R or higher. Seal cable entry points with silicone sealant to prevent moisture intrusion. Replace the entire assembly if any component shows signs of arcing, melting, or discoloration–repair attempts are unsafe and void UL certification.
Identifying the Terminals on a 4-Pin Power Connector
Start by locating the L14-30 or NEMA 14-30 outlet on your device. The brass or copper-colored terminals correspond to the hot wires: X (left) and Y (right). These carry 120V each in a split-phase system, combining to deliver 240V. The silver terminal at the bottom is the neutral (W), while the green or bare terminal is the ground (G). Use a multimeter to verify: probe between X and Y for 240V, X/W or Y/W for 120V, and any hot to ground for the same 120V.
Labeling and Color Coding

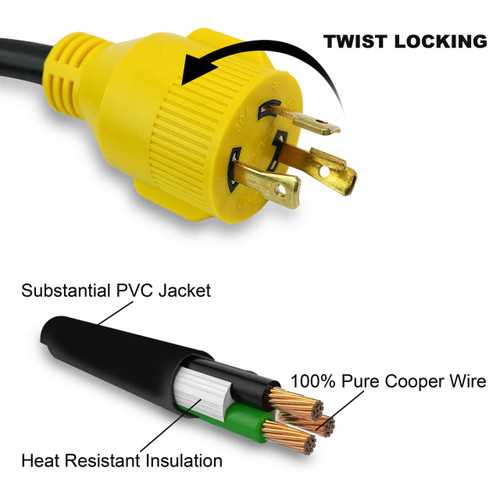

Follow the standard color scheme to avoid errors: black for X, red for Y, white for neutral, and green for ground. If wires deviate from this (e.g., blue or brown for hots), mark them with heat-shrink tubing or labels. Mismatched colors increase the risk of reversed polarity–always cross-check with a circuit tester before energizing. For twist-lock variants like the L14-30R, note the terminal positions may rotate clockwise, but the relative order (X, Y, W, G) remains consistent.
Tighten terminal screws to 12–15 inch-pounds of torque; overtightening can strip threads, while loose connections create high-resistance points prone to arcing. For older equipment, inspect for corrosion–clean terminals with a wire brush and apply antioxidant paste if present. Never assume symmetry; always confirm terminal functions against the manufacturer’s documentation or a pinout reference specific to your model.
Step-by-Step Connection Guide for a 4-Terminal Receptacle
First, verify the circuit is de-energized at the breaker panel using a non-contact voltage detector. Strip 0.75 inches of insulation from each conductor, ensuring no exposed strands extend beyond the terminal clamp. Secure the green (ground) conductor to the bottom U-shaped slot–this connection must never be bypassed, as it prevents lethal shock during faults. Attach the white (neutral) wire to the wider silver-colored screw terminal, torquing to 12 inch-pounds with a calibrated driver. The two remaining hot leads (typically black and red) fasten to the brass screws: tighten each to 15 inch-pounds, alternating torque application to avoid terminal plate distortion.
Snap the outlet into its electrical box, ensuring no wires are pinched beneath the mounting ears. Energize the circuit, then validate operation with a multimeter–measure 120 volts between each hot and neutral, and 240 volts across the hots. Confirm the ground path registers zero volts against neutral. Label the receptacle with the circuit identifier and date of installation to comply with NEC 406.11.
Critical Errors to Sidestep When Connecting a Four-Pole Connector
Mixing up the neutral and ground terminals ranks as the most hazardous misstep. The neutral (white conductor) must attach to the silver-colored post, while the green or bare copper ground connects to the designated green post. Swapping these leads to stray current flowing through unintended paths, creating shock risks or damaging appliances. Always verify continuity with a multimeter before energizing: ground-to-neutral resistance should read near zero ohms, while ground-to-hot should show infinite resistance in a properly configured setup.
Using undersized conductors invites overheating and potential fire. The table below specifies minimum wire gauges for copper cables based on circuit amperage:
| Device Rating (Amps) | Minimum Copper Wire Gauge (AWG) | Max Recommended Length (Feet) |
|---|---|---|
| 20 | 12 | 100 |
| 30 | 10 | 80 |
| 50 | 6 | 50 |
Skipping torque specifications on terminal screws causes loose connections. Use a calibrated torque screwdriver: for #8 screws, 15-20 inch-pounds; for #10 screws, 25-30 inch-pounds. Loose terminals arc under load, degrading conductivity and creating hot spots. Always recheck torque after initial energizing–thermal cycling loosens fasteners over time.
Ignoring polarity on the hot legs disrupts 240-volt equipment. The brass posts receive the red and black wires, but their sequence matters for devices like dryers or welders that rely on phase rotation. Mark one side with colored tape at both ends of the cable run to maintain consistency. Reverse polarity causes motors to spin backward or electronics to malfunction.
Failing to secure the strain relief allows cable movement to fatigue internal copper strands. Route the cable through the clamshell clamp so two inches protrudes inside the housing, then tighten the clamp screw until the jacket compresses but doesn’t cut. Tug-test the cable–if it shifts, disassemble and readjust. Vibrations from portable units accelerate failures at stress points.
Essential Equipment and Supplies for Connecting a Heavy-Duty Outlet
Begin with a voltage tester rated for your system’s amperage–no less than 600V for residential setups. Cheap non-contact models fail to detect faint currents; invest in a cat III or IV rated device to avoid false negatives. Fluke 1AC-II or Klein NCVT-3 provide reliable readings without false triggers from nearby magnetic interference.
Secure screwdrivers with insulated handles–rubber-coated shafts alone won’t suffice. Look for tools marked VDE-certified (Verband Deutscher Elektrotechniker) or IEC 60900 compliant, tested to withstand 1000V. A #2 Phillips and 1/4″ flathead are mandatory; magnetic tips prevent dropped fasteners inside junction boxes.
Strip wire with precision-cutting pliers–avoid generic multi-tools with adjustable gaps. Knipex 12 40 200 or Ideal T-Stripper maintain gauge integrity without nicking copper strands. For 10-6 AWG wires, use rotary-style strippers (e.g., Klein Katapult) to reduce wrist strain. Dedicated strippers prevent insulation tear-out on older, brittle coatings.
Specialized Gear for Safe Termination
- Torque screwdriver (Wiha 77790 or Wera 05020700). Factory-installed outlets require 10-12 lb-in of torque; manual tightening risks loose connections leading to arcing.
- Anti-oxidant joint compound (e.g., DeoxIT D-Series). Apply sparingly on aluminum-to-copper splices to prevent galvanic corrosion–oxidation occurs within hours at 80°F.
- Knockout punch if modifying an existing panel. Greenlee 799 delivers clean 2″ holes without hydraulic burrs; cheaper models leave sharp edges that damage conduit.
Choose UL-listed NM cable clamps for securing entrance cables. Romex connectors with plastic bushings crack under UV exposure; opt for metal-bodied clamps (Arlington NM842) rated for direct burial if routing outdoors. Verify clamps match cable jacket thickness–standard 1/2″ clamps bind on 3/8″ NM-B.
Keep heat-shrink tubing (3:1 ratio, polyolefin) in three sizes: 1/4″, 1/2″, and 3/4″ diameter. Adhesive-lined tubing (TE Connectivity ATUM series) seals moisture-prone splices better than standard vinyl electrical tape. Pre-cut pieces to 1.5x splice length before starting–overheating shrunken tubing makes it brittle.
Safety and Verification Gear
- Arc-flash face shield (Salisbury AFH2) rated 8 cal/cm² minimum. Standard safety glasses won’t stop molten copper droplets during a 240V fault.
- Insulated gloves (ANSI Class 2, 21,000V dielectric test). Leather protectors alone won’t stop 240V–latex outer gloves crack after multiple flexes.
- Ground impedance tester (Amprobe GT-60). Multimeters misread path resistances above 10 ohms; dedicated testers measure true loop impedance under load.
Stock fiberglass fishing tape (Klein 5368) for pulling cable through obstructed conduit. Avoid steel tapes–they kink permanently in 1/2″ EMT. Apply silicone spray to reduce friction; 40 lb pull force drops to 15 lb with proper lubrication.
