How to Create and Read PLC Wiring Diagrams for Industrial Automation

Begin by isolating power sources on your schematic–color-code AC, DC, and neutral lines before plotting sensor or actuator paths. Use red for 240V AC, blue for 24V DC, and yellow for ground to prevent miswiring during panel assembly. Label every conductor with its function (e.g., “Motor Start,” “Temp Sensor RTD”) and terminal number to eliminate ambiguity. For systems with redundant power supplies, depict both feeds in parallel, ensuring each branch includes a fuse rated for 125% of the maximum load.

Group I/O modules logically: segregate analog signals (4–20mA, 0–10V) from digital (24V on/off) and high-speed counters (PTO/PWM) on separate sheets. If the hardware limits analog resolution, specify filter capacitors (typically 1μF) near signal inputs to suppress noise. For motor control, draw interlocks–both hardwired (auxiliary contacts) and software-based (NC/NO in ladder logic)–to prevent conflicting commands like forward/reverse simultaneous activation.

Terminate shields at one end only, typically at the controller chassis, never at the sensor. Use twisted pair cabling for differential signals (RS-485, encoder feedback) with a minimum twist rate of 20 turns per meter. For critical safety circuits (E-stop, light curtains), implement mirrored wiring in dual-channel configurations, validating both paths via PLC logic before motion is permitted. Always include spare terminals (20% capacity) for expansion, and annotate them as “Future Use” to avoid accidental connections.

Schematic Layouts for Industrial Controller Integration

Label every terminal with a unique identifier matching the schematics and device specifications. Use waterproof, self-laminating tags for field wires and pre-printed adhesive labels for cabinet connections to prevent miswiring during maintenance. For 24V DC inputs, connect the positive lead to the common rail and route the negative through the sensor or switch to the input module, reducing voltage drop over long distances.

Separate signal, power, and communication conductors into distinct trunking channels to minimize interference. For analog sensors, shielded twisted pair cable with the shield grounded at a single point near the controller’s grounding bus eliminates noise without creating ground loops. Use ferrite cores on RS-485 networks when cable runs exceed 50 meters to suppress high-frequency disturbances.

Termination and Grounding Practices

Employ DIN rail-mounted terminal blocks with spring-loaded or screw clamp connections, ensuring a torque of 0.5–0.6 Nm for copper conductors to avoid loose connections. Ground all enclosures, shields, and sensitive electronics to a central star point linked to the facility’s earth ground, keeping resistance below 0.1 ohms. Avoid daisy-chaining grounds, as this introduces potential differences between devices.

For high-speed communication protocols like Profibus or EtherCAT, use Category 5e or better cables with impedance-matched connectors. Terminate bus lines with the correct resistor values (typically 220 ohms) at both ends to prevent signal reflections. Verify cable lengths against protocol specifications–EtherCAT, for instance, supports segments up to 100 meters without repeaters.

Color-code power and signal cables according to IEC 60204: yellow for 24V DC, blue for neutral, and green/yellow for protective earth. For motors and actuators, mark power cables with phase sequence labels (L1, L2, L3) to ensure correct rotation. Store digital copies of schematics in PDF format with hyperlinked components for quick reference during troubleshooting, embedding device datasheets as attachments.

Safety and Compliance Labistics

Include emergency stop circuits as hardwired safety loops bypassing the controller’s logic. Use dual-channel relays with forced-guided contacts for safety functions, ensuring redundancy and self-monitoring. Label all disconnect switches with voltage ratings and arc flash warnings in compliance with NFPA 70E, and position them no higher than 1.8 meters for operator accessibility.

How to Read Industrial Controller Input/Output Terminal Labels on Common Modules

Check for standardized numbering first. Most manufacturers follow IEC 61131-2 or similar conventions, where digital inputs use prefixes like I, DI, or IN followed by a slot number (e.g., I0.0 or DI1). Outputs typically use Q, DO, or OUT (e.g., Q2.3 or DO4). Analog terminals often include A or AI/AO alongside channel numbers–verify whether the label indicates voltage (0-10V), current (4-20mA), or temperature (PT100) input/output. Look for suffixes like +, –, or COM to identify polarity or common terminals; some modules use L+ and M for power supply connections.

Decode module-specific variations with these steps:

• Siemens: Slots are numbered left to right starting at 0 (CPU) or 1 (expansion modules). Example: I3.1 is the second input on the fourth slot. Analog inputs may show AIW0 for word-0 data or PIW256 for peripheral input.
• Allen-Bradley: Uses Local:X.Y format, where X is the rack (usually 1) and Y the terminal. Example: Local:1:I.Data.0 for the first input. Analog channels appear as Local:1:AI.Ch0Data.
• Omron: Inputs start at 0.00 (CJ/CS series) or 100.00 (CP1E). Outputs use 100.00 or 200.00. Special functions occupy higher ranges (e.g., 3000+ for internal relays).
• Schneider/Modicon: Follows %I(X) or %Q(X) for inputs/outputs, with X as the address. Analog inputs use %IW(X) (e.g., %IW2). Expansion modules add an index (e.g., %Q5.2 for the third output on the sixth module).

Cross-reference labels with module documentation–manufacturers like Phoenix Contact or WAGO include terminal block diagrams on the device housing. For mixed modules (e.g., 8DI/4DO), group terminals by function: inputs clustered at the top, outputs below, with power/commons usually at the bottom. If labels are missing or ambiguous, trace the PCB silkscreen for tiny printed identifiers (e.g., IN1, OUT3, +24V).

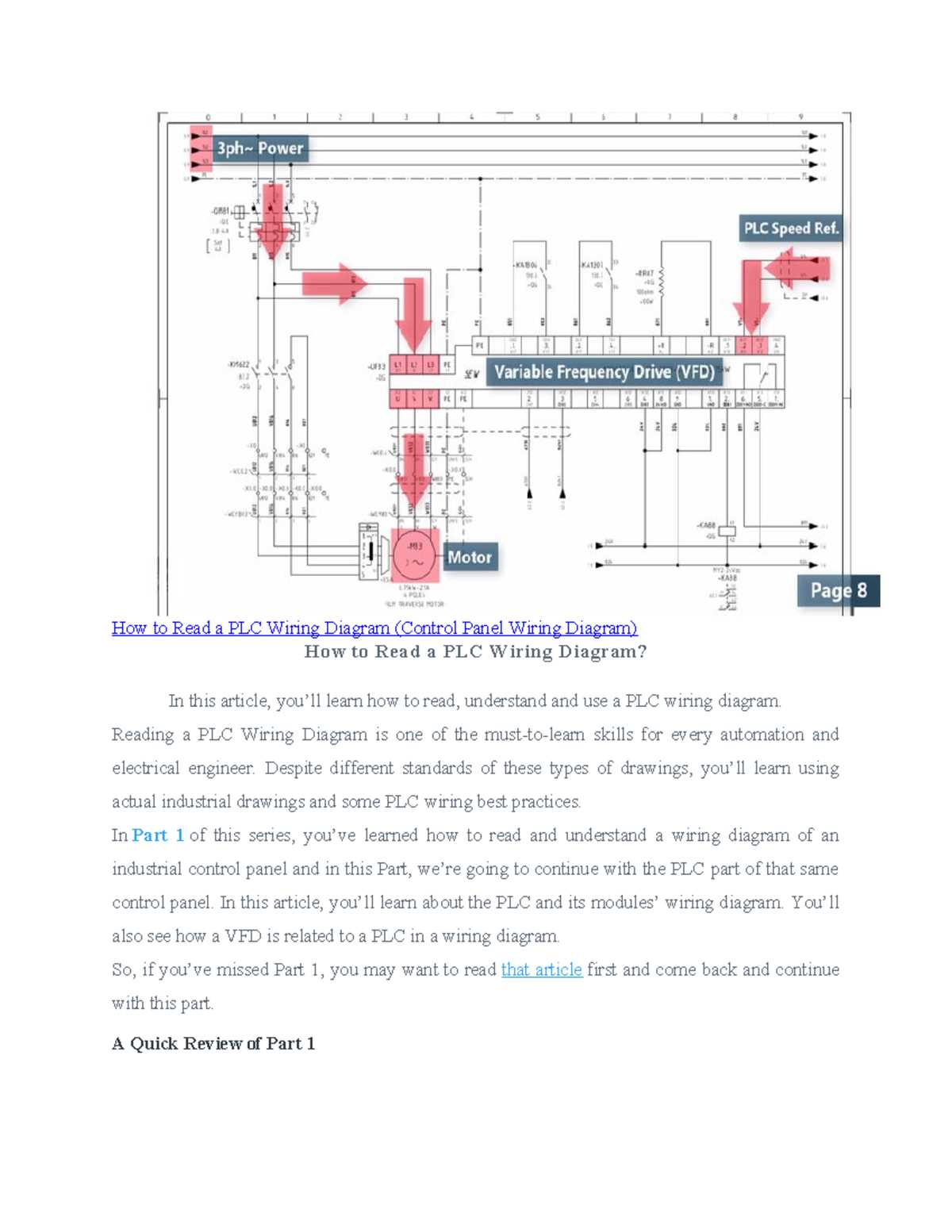

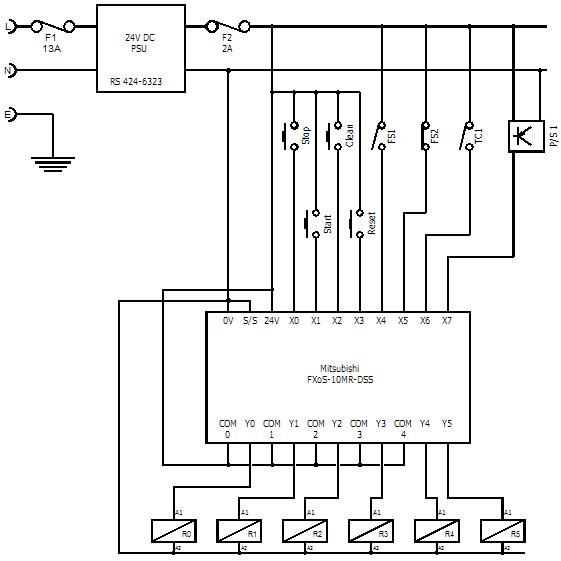

Step-by-Step Guide to Connecting Sensors to Industrial Controller Digital Inputs

Select a sinking or sourcing configuration based on your sensor’s output type. Sinking inputs require a sensor with an NPN (current-sinking) transistor, while sourcing inputs need a PNP (current-sourcing) transistor. Verify the sensor’s datasheet for voltage compatibility–most industrial controllers accept 24VDC, but some sensors operate at 12VDC or 5VDC. If voltage levels differ, use a relay or voltage divider to prevent damage.

Strip 5–7mm of insulation from sensor wires, then crimp ferrule terminals for secure connections. Twist stranded conductors to avoid fraying before inserting into terminal blocks. Label each wire with its function (e.g., “DI1,” “24V+”) to simplify troubleshooting. For noise-prone environments, use shielded twisted-pair cables with the shield grounded only at the controller end to reduce interference.

Sensor Type	Connection Method	Common Issues
Proximity (inductive/capacitive)	Connect brown (+24V), blue (0V), black (signal) to DI terminal	False triggers due to metal debris; adjust sensing distance
Photoelectric (diffuse/reflective)	Brown (+24V), blue (0V), black (signal); white wire for teach-in (if available)	Misalignment; ensure emitter/receiver are parallel
Mechanical (limit switch)	Common/NO/NC contacts wired directly to DI	Contact bounce; use debounce delay in logic (10–50ms)

Power the sensor first, then verify signal integrity with a multimeter. For sinking inputs, measure voltage between the signal wire and 0V–active state should show ≤2VDC. For sourcing inputs, measure between the signal wire and +24V–active state should show ≥20VDC. If readings are inconsistent, check for loose terminals or short circuits. Finally, configure the controller’s input filter to match the sensor’s response time (e.g., 5ms for fast-moving objects, 50ms for manual switches).

Connecting 2-Wire, 3-Wire, and 4-Wire Sensors to Industrial Controller Analog Inputs

Begin by verifying the sensor’s signal type and compatibility with the input card’s specifications. For 2-wire devices (e.g., 4-20mA transmitters), connect the positive terminal to the analog input’s current sink (+I) and the negative terminal to the common return (–I) or ground. Ensure the input module supports passive loop power–most modern cards provide 24VDC excitation for 2-wire transmitters, but older units may require an external power supply. Check the module’s manual for maximum loop resistance (typically 0–500Ω) and confirm the sensor’s load rating does not exceed this limit.

• 2-wire: Sensor (+) → input (+I), Sensor (–) → common (–I) or chassis ground.
• 3-wire: Power (+) → external 24VDC, Sensor (+) → input (+V or +I), Sensor (–) and power (–) → common ground.
• 4-wire: Excitation (+) and (–) → dedicated power terminals, Signal (+) → input (+V or +I), Signal (–) → common reference.

For 3-wire configurations (e.g., RTDs or potentiometers), isolate the excitation and signal lines. Apply 24VDC from an external source to the sensor’s power terminal, then route the signal wire to the input’s voltage (+V) or current (+I) terminal. Ground the third wire (sensor and power common) to the controller’s reference bus. Avoid sharing excitation returns with high-current loads; use a separate ground path for analog signals to prevent noise injection. Measure loop resistance between the sensor and input–excessive resistance (>10Ω for 0–10V, >100Ω for 4–20mA) degrades signal integrity.

4-wire devices (e.g., precision load cells or bridge sensors) demand strict separation of power and signal circuits. Connect excitation (±) to a stable, low-noise DC supply (10VDC typical for strain gauges). Route signal (+) to the input’s high-impedance terminal (±V or ±I) and signal (–) to the module’s reference. For differential inputs, ensure signal returns are not tied to chassis ground unless specified. Validate connections with a multimeter: excitation voltage at sensor terminals (±0.1V tolerance), signal voltage matching expected output (e.g., 0–5V, 0–10V, or 4–20mA). Replace standard cable with shielded twisted pair (22–18AWG) if run lengths exceed 30 meters, grounding the shield at one end only (controller side).
