Stepper Motor Wiring Guide 4-Wire Configuration and Connections

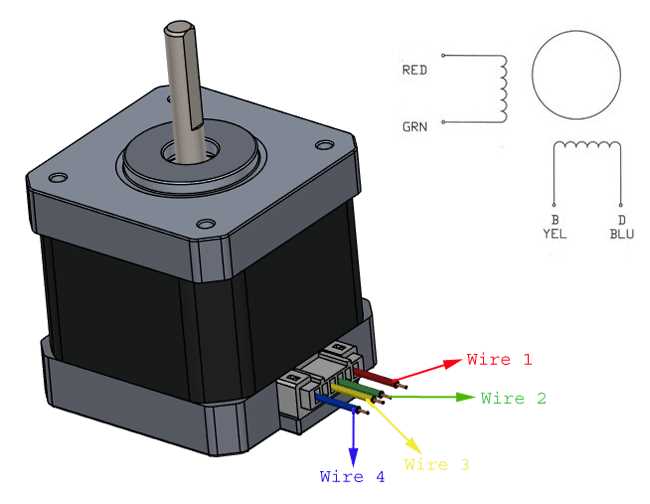

Use color-coded leads to identify coil pairs before applying power. Bi-polar windings always form two distinct circuits: red/blue wires belong to one coil, green/yellow to the opposite. Confirm with a multimeter–expected resistance between leads of a single coil ranges 10–50 Ω, while open or short readings signal damage. Match polarity correctly: red (+) and blue (−) must align with driver terminals marked A+ and A−; green (+) and yellow (−) with B+ and B−.
Identify driver voltage first. Common NEMA 17 units tolerate 12 V low-current setups, but check datasheets–high torque variants (e.g., 42×48 mm) often demand 24–48 V supplies. Overvoltage causes overheating; undervoltage skips steps. Use a switching regulator with sufficient current margin; e.g., a 2 A driver for a 1.7 A actuator prevents coil saturation.
Solder or crimp connectors directly–breadboards or loose jumper cables introduce resistance spikes. Keep wire length under 50 cm to prevent voltage drop; for longer runs, use 18 AWG stranded copper. Twist coil pairs with 3 twists per cm to minimize induced noise; untwisted sections act like antennas, distorting step signals.
Mandatory safety check: reverse one coil polarity accidentally, and the rotor spins erratically or stalls. Test direction by sending single pulses–verify both coils swap polarity per step without unexpected reversals. Use an oscilloscope if microstepping (1/8 to 1/32) is employed–driver waveforms should match sine-cosine microstep tables precisely.

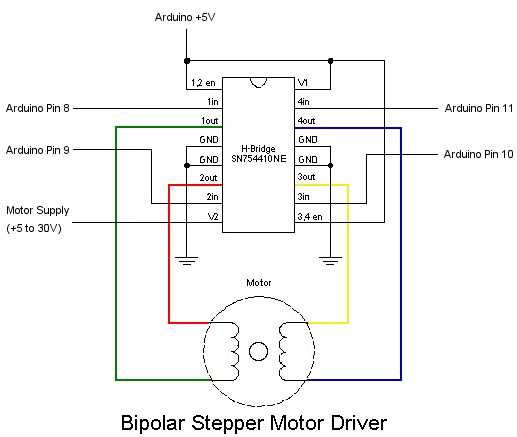

Connecting Bipolar Coils: A Practical Schematic

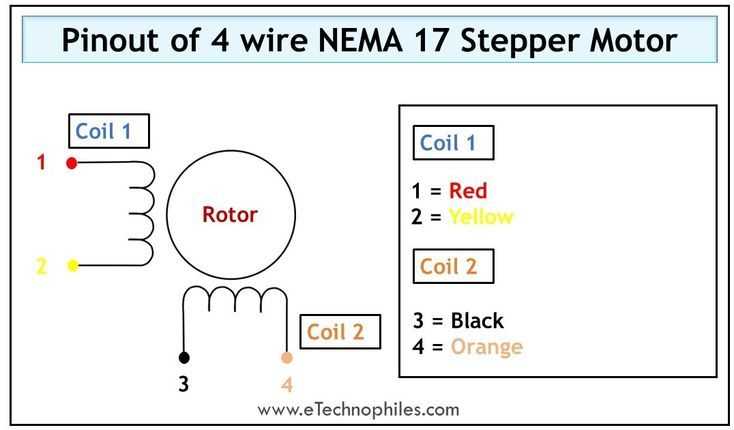

Begin by identifying the two coil pairs on the device. Most manufacturers color-code leads–common schemes include black/red and green/yellow or blue/orange. Use a multimeter in resistance mode to confirm pairs: each pair should register identical ohms (typically 5–50Ω), while measurements between unrelated leads show infinite resistance.

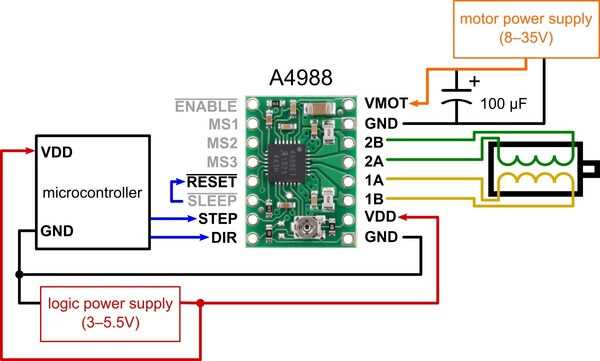

Attach the first pair to the driver’s phase A outputs and the second to phase B. Polarity matters–swapping leads reverses rotation. If oscillation occurs instead of smooth movement, invert one pair’s connection. Drivers like the DRV8825 or A4988 require 1–2A per phase for NEMA 17 variants; exceed this and risks overheating the coils.
For low-voltage setups (under 12V), add a 100µF capacitor across the power supply to suppress voltage spikes. High-voltage drivers (24–48V) need no extra filtering but demand a heatsink on the controller if current exceeds 1.2A. Check datasheets–some controllers implement 1/16 microstepping natively, while others need manual dip-switch configuration.
Sequence wiring for clockwise motion follows A+, A-, B+, B-; counterclockwise swaps B+ and B-. Test with short pulses (1ms) before continuous operation. NEMA 8 devices often stall at 300 RPM; NEMA 23 variants handle 1000+ RPM if accelerated gradually to avoid resonance issues around 150–250 RPM.
Ground shielding if noise affects adjacent sensors–twist each pair tightly (3 twists per inch) and route away from encoder lines. For precision applications, add 10Ω resistors in series with each lead to dampen ringing at steep current transitions. Avoid soldering directly to leads–use crimp connectors sized for AWG 26–28 wire.
Driver-Specific Quirks
TB6600 controllers integrate optocouplers–enable them by pulling STEP/DIR high (3.3–5V) or risk erratic motion. L298N modules lack microstepping; expect audible whine at full torque due to full-step drive. Trinamic drivers (TMC2209) require serial configuration to enable stealthChop mode, reducing noise below 50 dB at 1A loads.
Fault Diagnosis
If the rotor jerks but doesn’t turn, back-EMF may exceed supply voltage–reduce speed or switch to chopper drivers. Overheated coils signal stalled current; measure temperature–above 80°C degrades insulation. Check waveform on an oscilloscope–distorted sine-waves indicate incorrect microstepping settings or insufficient supply voltage.
Determining Lead Assignments in a Bipolar Coil Assembly
Begin by locating the datasheet or product label–most manufacturers embed a color code schematic on the housing or include it in documentation. If absent, use a multimeter in resistance mode: probe pairs until readings stabilize between 5Ω and 200Ω, confirming coil pairs. Cross-reference measured values against the expected impedance for your model (e.g., 12Ω for NEMA 17, 45Ω for larger frames). Discrepancies beyond ±10% suggest incorrect pairing or damaged windings.
For precision, identify the phase sequence without relying on color alone. Mark one wire from each pair temporarily (e.g., twist a small loop). Energize one coil pair briefly (≤1A) via a bench supply; note rotor motion direction. Reverse polarity–if rotation flips, the marked leads define Phase A. Repeat for the second pair to establish Phase B. Label permanently with heat-shrink tubing or tags, distinguishing +/− for consistent torque generation.
Common pitfalls include misinterpreting series vs. parallel configurations. Dual-coil variants (e.g., 8-lead *reduced to 4*) often share a center tap; verify this by checking resistance between three leads–center-tap setups yield ½ the impedance between outer pairs. If unresolved, consult the drive manufacturer’s pinout: some controllers expect bipolar connections tied together, while others isolate phases via separate H-bridges.
Tools for Accurate Identification
- Digital multimeter (autorange, >10MΩ impedance)
- Low-current DC supply (0–5V,
- Non-conductive markers (e.g., PTFE labels)
- Oscilloscope (optional for waveform validation)
Critical: Never exceed 30% of rated current during testing–transient spikes degrade insulation integrity.
Alternative method for unbranded units: Apply a 1kHz signal (≤2V p-p) across suspected coils. A non-inductive pair reads
Troubleshooting Mismatched Behavior
- Erratic rotation: Swap ONE pair only–reversing both cancels the effect.
- No motion: Confirm voltage matches driver specifications (e.g., 24V for DRV8825, 12V for A4988).
- Excessive heat: Check for crossed leads or partial short–impedance
Final validation: Run a test script (e.g., 200 full steps at 50% rated current). Observe smooth acceleration; cogging or vibration indicates phase sequencing errors.
Interfacing a Bipolar Actuator with a Control Module
Identify the coil pairs on your bipolar actuator by measuring resistance between leads–each pair should register near-identical low ohms (typically 10–100 Ω). Match these pairs to the labeled outputs on your control module (e.g., A+/A- and B+/B-). Polarity reversal swaps rotation direction, so verify with a datasheet before securing connections. Use twisted-pair wiring, 22–24 AWG copper, for runs under 2 meters to minimize inductive noise; splice with ferrite beads for longer distances.
| Controller Pin | Actuator Lead | Color Coding (Common) |
|---|---|---|
| A+ | Coil 1 (+) | Red |
| A- | Coil 1 (-) | Green |
| B+ | Coil 2 (+) | Yellow |
| B- | Coil 2 (-) | Blue |
Power down the controller before attaching clips to avoid damaging internal H-bridges. Set microstepping to 1/8 or 1/16 for most NEMA 17 variants to balance torque and smoothness; incorrect settings cause missed steps or overheating. Current limiting is mandatory: adjust the driver’s potentiometer until the coil current matches the actuator’s rated value (e.g., 1.2 A for 0.33 N·m units) and secure with thread-locking compound. Test with short pulses, monitoring temperature rise–excess current (>10°C above ambient after 5 minutes) requires immediate adjustment.
Precise Connection Method for Bipolar Drive Coils
Identify the two coil pairs by resistance measurement: each pair’s resistance will match, typically between 10–50 ohms depending on the device. Mark the leads with colored tape if necessary–pair A (phases 1 and 2) and pair B (phases 3 and 4)–to prevent misalignment later. Use a digital multimeter in continuity mode to confirm no accidental shorts exist between the pairs before proceeding.
Connect pair A’s first lead (phase 1) to the driver’s A+ terminal, and the second lead (phase 2) to A–. Repeat identically for pair B: phase 3 to B+, phase 4 to B–. Verify polarity by briefly energizing the driver–if the rotor moves unexpectedly, swap the leads of one pair only. Incorrect polarity will cause erratic motion or overheating.
Secure all connections with crimp connectors or solder, ensuring no exposed wire strands remain. Loose strands can short adjacent terminals, causing erratic behavior or driver damage. Apply heat-shrink tubing or electrical tape to insulate each joint, particularly in high-vibration environments. Maintain consistent tightness across all four connections to prevent intermittent failures.
For drivers requiring a common ground, link the negative terminals of both coil pairs together and connect to the driver’s ground pin. Ensure the driver’s ground matches the power supply’s ground to avoid ground loops. If the driver lacks a dedicated ground, connect the power supply’s negative directly to the driver’s ground terminal instead.
Set the driver’s current limit to 70–90% of the coil’s rated current to account for inductive spikes during operation. Overcurrent protection prevents thermal damage while undercurrent reduces torque. For microstepping drivers, begin with 1/4-step resolution to balance smoothness and accuracy; finer steps increase vibration sensitivity.
Supply power in stages: first low voltage (5–12V) to confirm correct coil energization, then ramp to the device’s rated voltage. Use an oscilloscope to check waveform symmetry–uneven microsteps indicate driver misconfiguration or driver damage. If waveforms appear distorted, reduce step frequency or increase supply capacitance (minimum 100µF low-ESR capacitor per 10W output).
Test rotor movement at half the maximum rated speed, observing for skipped steps or overheating. If vibration exceeds expected levels, reduce acceleration or increase microstepping resolution. For closed-loop systems, ensure encoder feedback aligns with step commands; misalignment causes position drift over time. Check mechanical coupling–loose couplings introduce backlash, degrading repeatability.
Finalize connections with strain relief: bundle wires using spiral wrap or cable ties, keeping leads away from moving parts and heat sources. Label both ends of each lead with phase identifiers (e.g., A+, A–, B+, B–) for future reference. Store the device’s schematic alongside connection records to simplify troubleshooting later.
