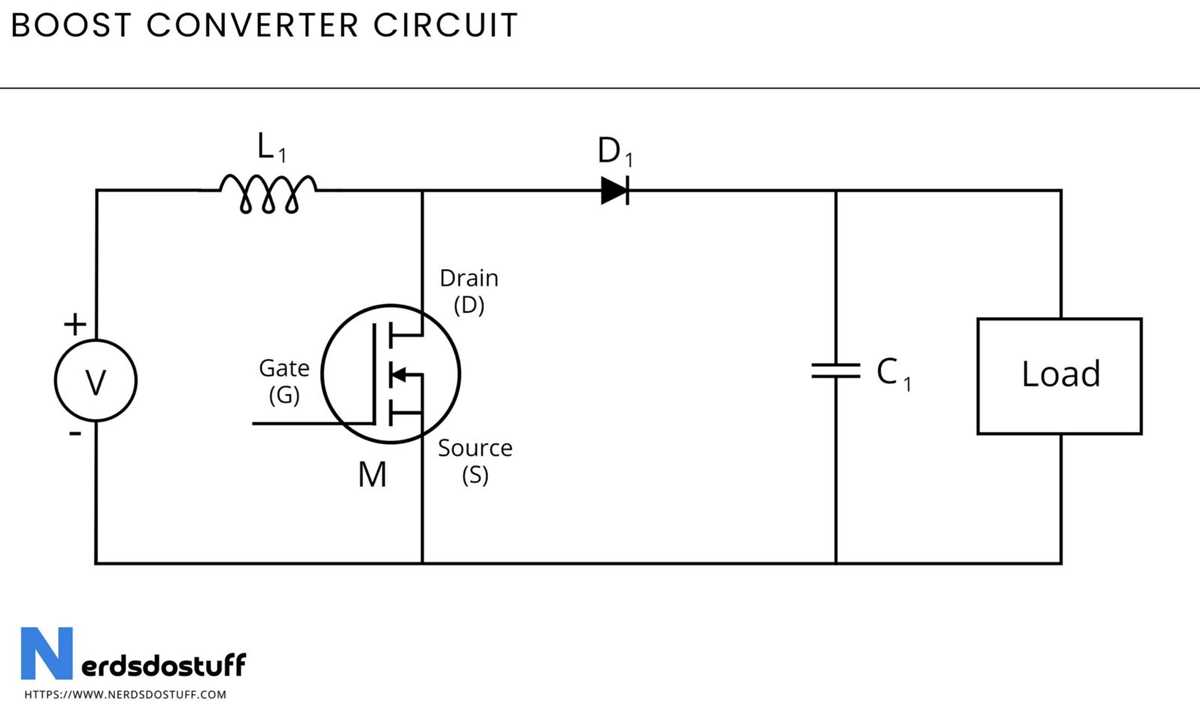

How to Build a High Efficiency MOSFET Based Boost Converter Step by Step

Select an N-channel enhancement-mode transistor with a breakdown voltage rating 20-30% above the target output. For 12 V to 48 V transfer, a device rated for 60 V or higher eliminates avalanche risk during transient loads. Pair it with a 10 A continuous drain current rating if the average input exceeds 3 A; undersized components will thermally throttle within seconds under sustained duty cycles above 80%.

Fast recovery diodes–preferably Schottky–prevent reverse recovery losses that can exceed 1 W at 100 kHz switching frequency. Place the diode as physically close to the transistor drain terminal as PCB layout permits; trace inductance beyond 10 nH introduces ringing amplitudes capable of exceeding gate-source thresholds, leading to false turn-on. For 500 kHz operation, replace the diode with a synchronous rectifier whose gate driver shares the same ground reference to eliminate shoot-through.

Gate drive requirements scale linearly with switching frequency. A 6 V minimum gate-source voltage ensures full enhancement; lower voltages leave the channel resistance above 50 mΩ, dissipating excess heat. Use a dedicated driver IC with propagation delay under 50 ns if slew rates exceed 5 V/ns to prevent Miller plateau effects that distort rise/fall edges. Bootstrap capacitors–typically 0.1 µF–must be positioned within 2 mm of the driver’s supply pin; longer distances introduce series resistance that drops the gate voltage by 0.5 V or more at 20 A peak current.

Inductor core material dictates saturation behavior. Powdered iron tolerates 50% overcurrent for milliseconds, while ferrite saturates abruptly, collapsing inductance by 90% at 2× rated current. For 30 µW/W loss budgets, select an inductor with DC resistance below 15 mΩ; each additional 10 mΩ costs approximately 1% efficiency at 24 V input, 5 V output, 0.5 A load. Windings configured as a single-layer, edge-aligned coil reduce proximity effects that otherwise double AC losses at frequencies above 100 kHz.

Output capacitor selection balances ripple current and voltage transients. Ceramic capacitors (X7R dielectric) tolerate 2 A ripple but lack long-term capacitance stability; tantalum and polymer hybrids provide 10× better ripple current ratings yet degrade under reverse voltage beyond 10% of their rating. Place at least three capacitors in parallel–one 22 µF for bulk energy storage and two 10 µF for high-frequency attenuation–to split ESR and maintain output ripple below 50 mV peak-to-peak during load steps of 1 A/µs.

Step-Up Voltage Regulator: MOSFET-Based Design Guide

Start with a low-side N-channel power switch like the IRFZ44N for cost-effective implementations under 50W. Its R_DS(on) of 17.5 mΩ at 10V gate drive minimizes conduction losses, while the 55V drain-source breakdown voltage provides sufficient headroom for 12V-to-24V conversions. Pair it with a Schottky diode (MBR1045) rated for 1A continuous current to reduce forward voltage drop to 0.5V–critical for maintaining 90%+ efficiency in compact layouts.

Gate driving requires precise timing: use a dedicated PWM controller such as the UC3843 configured for 40–100 kHz switching. Match the gate resistor to MOSFET capacitance–typically 10–47 Ω for IRFZ44N–to prevent false turn-on from miller effect. For higher currents (>10A), replace the diode with a synchronous rectifier (e.g., IRF3205) and implement dead-time control via the PWM driver to avoid shoot-through.

Component Selection Table

Function	Part Number	Key Spec	Typical Use Case
Power Switch	IRFZ44N	55V, 49A	12V↗24V,
Diode	MBR1045	45V, 10A	Low dropout
Inductor	SLH6030-220M	22 µH, 8.3A	3A continuous
PWM IC	UC3843	0.4–1 V/µs	Fixed 52 kHz

Inductor choice dominates ripple current: select a 22 µH core with saturation current exceeding 120% of maximum load (e.g., SLH6030-220M for 3A applications). For 5V-to-15V hops, reduce inductance to 10 µH (DO3316P-103ML) to keep peak currents below 5A, ensuring the MOSFET stays within safe operating area (SOA). Windings should use magnet wire rated for >10A/mm² current density to prevent overheating.

Feedback network demands a 10 kΩ trimpot in series with a 33 kΩ resistor for output voltage adjustment. Place a 10 nF ceramic capacitor in parallel with the feedback path to filter high-frequency noise, improving transient response. For output currents >5A, replace the trimpot with fixed resistors (1% tolerance) to eliminate thermal drift–critical in battery-powered designs where 0.2V error translates to 2% efficiency loss.

Thermal management dictates layout: mount the MOSFET on a 1 oz copper pad (min 5×5 mm) with thermal vias to spread heat into a ground plane. Keep high-current paths (>1A) wider than 3 mm to reduce trace resistance–even 50 mΩ adds 0.25W loss at 5A. Place the diode within 5 mm of the inductor to minimize parasitic inductance, preventing voltage spikes from exceeding MOSFET breakdown limits.

For 48V outputs, migrate to a GaN switch (EPC2034) with 150V drain-source rating. GaN cuts switching losses by 70% versus silicon, allowing 300 kHz operation for component miniaturization. Ensure the PWM driver (LM5113) includes level-shifting (3.3V↗5V) and under-voltage lockout (UVLO) to protect GaN’s sensitive gate oxide–thresholds below 1.5V risk permanent damage.

Choosing Optimal Power Transistors for High-Side Switching in Step-Up Configurations

Prioritize N-channel field-effect transistors with low gate charge (Q_g) and output capacitance (C_oss) for high-frequency operation above 200 kHz. Devices like Infineon’s OptiMOS 5 series (e.g., BSC042N10NS5) or ON Semiconductor’s NTMFS5C628NL demonstrate switching losses below 50 μJ at 12 V input, making them ideal for compact designs. Ensure the threshold voltage (V_gs(th)) falls between 2–4 V to avoid false triggering during transient states.

Thermal performance dictates long-term reliability. Select packages with junction-to-case resistance (R_thJC) under 1.5 °C/W–DFN or PowerPAK formats outperform traditional TO-220 variants here. For 10A continuous current, Stefan Boltzmann’s law confirms a temperature rise of ~30°C over ambient when using a 1 cm² copper pad on FR-4, but this drops to ~15°C with 2 oz copper. Always pair with a gate driver capable of 4A peak sourcing capability to minimize turn-on delays.

The avalanche energy rating (E_AS) must exceed 100 mJ for inductive load survival, even at 85°C. Toshiba’s TPCA8068-H and Vishay’s SIHP22N50E meet this criterion while maintaining fast reverse recovery times (t_rr ≤ 50 ns). For synchronous configurations, complement with a low-side transistor exhibiting R_DS(on)

Dynamic on-resistance (R_DS(on)) behavior diverges significantly across manufacturers. Unlike planar structures, trench-based architectures (e.g., Rohm’s PrestoMOS series) show R_DS(on) at 150°C, whereas older planar designs exceed 25%. Test under actual operating waveforms using a double-pulse setup to capture real-world performance before finalizing.

Key specifications to verify:

• Breakdown voltage (V_DSS): ≥ 1.5× maximum input voltage.
• Internal gate resistance (R_g): ≤ 2 Ω to limit oscillations.
• Body diode reverse recovery charge (Q_rr):
• Gate plateau voltage (V_gp): Between 3–5 V to ensure full enhancement.

Parasitic inductance in traces induces overshoot; route gate and power loops with 2 kV HBM events.

Cost-performance trade-offs surface at higher voltages. Above 60 V, super-junction devices like ST’s MDmesh DM2 offer lower R_DS(on) than planar counterparts but at the expense of higher C_oss. For 40–60 V ranges, Infineon’s StrongIRFet devices provide a balanced compromise, while below 30 V, standard trench devices suffice without premium.

Final validation requires a clamped inductive load test at 125°C ambient. Confirm ringing amplitude stays below 10% of nominal voltage and adjust snubber networks if exceeding this threshold. Document thermal imaging results; hotspots >10°C above average indicate improper heat spreading or driver mismatches. For mass production, batch-test a statistically significant sample (n ≥ 30) to ensure parametric consistency across units.

Constructing a 5V to 12V Voltage Elevator on a Prototyping Board

Start by placing an N-channel switching transistor like the IRFZ44N into the breadboard. Secure its legs firmly–gate (pin 1), drain (pin 2), and source (pin 3)–orienting them so the tab faces away from nearby components to prevent shorts. Connect the gate to a 10kΩ pull-down resistor heading to ground to ensure the transistor remains off by default. For the input, bridge a 5V power source directly to the drain via a 47μF electrolytic capacitor, observing polarity to avoid damage.

Insert a 40μH inductor between the transistor’s drain and the input capacitor’s positive terminal. Select a shielded inductor with a saturation current of at least 1A to handle transient spikes during switching. To minimize noise, keep the inductor’s leads short and route them away from the feedback network. Solder a 1N5822 Schottky diode to the inductor’s free end, aligning its cathode toward the output side–this fast-recovery diode cuts reverse current and slashes switching losses.

Attach a 100μF output capacitor across the diode’s cathode and ground, ensuring the positive lead faces the diode. This capacitor smooths voltage ripples; any lower value risks unstable output under load. For feedback, position an LM317 regulator adjacent to the output, wiring its IN pin to the capacitor’s cathode via a 240Ω resistor and its OUT pin to a trimmer potentiometer (10kΩ) grounded at the wiper. This forms a closed-loop control, adjusting PWM to maintain 12V regardless of input fluctuations.

Test the setup incrementally: apply 5V, then probe the inductor with an oscilloscope–expect a clean waveform (~20kHz) without ringing. If voltage dips below 12V, reduce the feedback resistor to 220Ω; if overshoot occurs, increase the output capacitor to 220μF. Load the output with a 120Ω resistor (100mA); stable performance confirms proper assembly. Recheck solder joints–cold connections cause intermittent failures–and trim excess lead length to prevent stray inductance.
