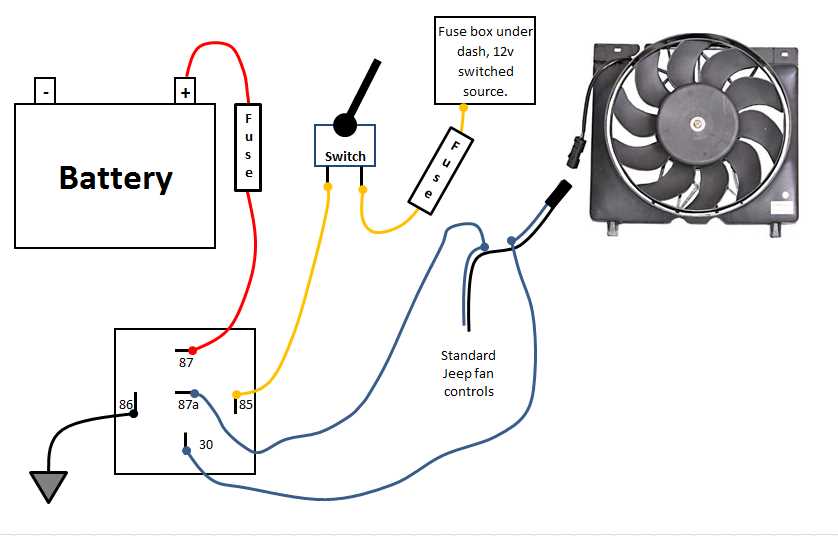

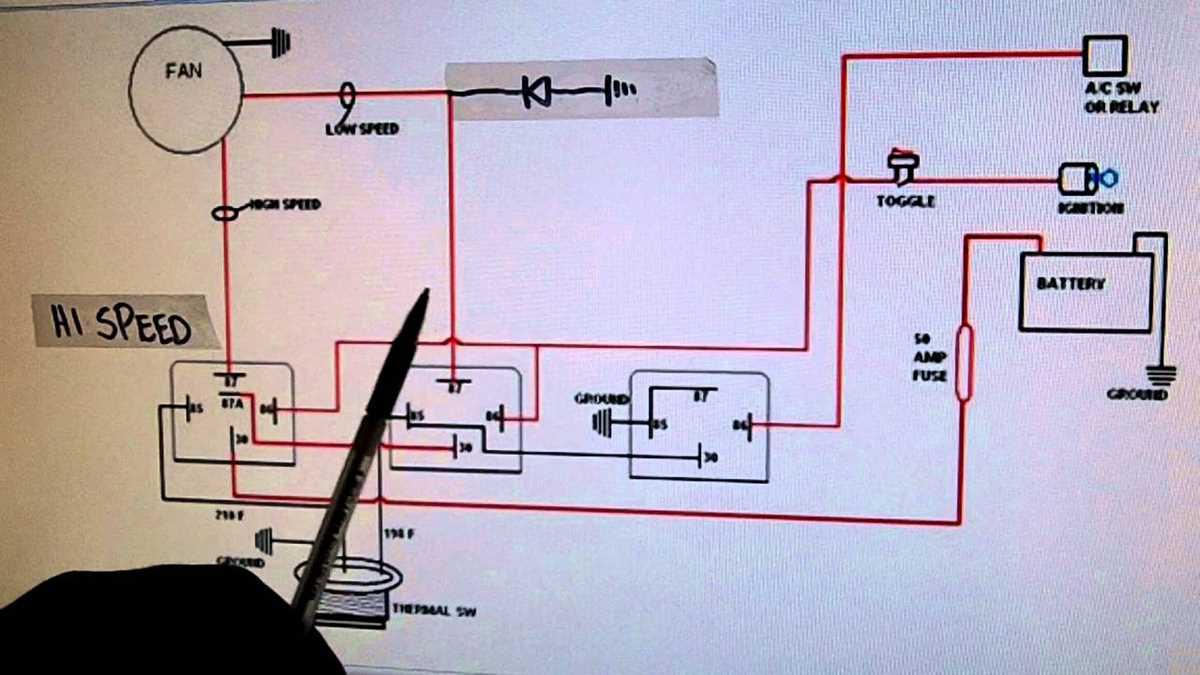

How to Wire a Single Electric Fan Relay Step-by-Step Guide with Diagram
For a functional 12V auxiliary cooling setup, begin with a SPST mechanical switch rated at 30A minimum. Connect its input terminal directly to the vehicle’s accessory power bus–this ensures the module draws current only when the ignition is active. Attach the output terminal to the control coil input of a 40A Bosch-style electromagnetic contactor.
Ground the second coil terminal to the chassis using 10-gauge copper wire–secure it with a ring terminal crimped to bare metal, not painted surfaces. For the high-current circuit, splice the contactor’s common terminal into the cooling unit’s positive lead using 8-gauge silicone-insulated wire. Route the wire away from sharp edges and exhaust components, maintaining a 5cm minimum clearance.
Install an inline 30A blade fuse within 15cm of the battery’s positive terminal–this protects the entire circuit if the contactor sticks closed. Verify operation by activating the switch; the contactor should emit a crisp click, and the motor’s RPM should stabilize at 2,800–3,200 under no load. If RPM drops below 2,500, inspect the ground connection–corrosion on the mounting point increases resistance, reducing performance.
For fault diagnosis, use a multimeter set to 20V DC. Probe the coil terminals; readings should show 12V when the switch is on and 0V when off. If voltage persists, check the switch for internal shorting or replace it with a latching relay if frequent cycling is required. Avoid tapping into existing fuse boxes–dedicated wiring prevents voltage sag during high-demand scenarios like idling.
Automotive Cooling Circuit Connection Guide
Install the control module between the temperature sensor and the power source to prevent voltage spikes. Use a 30/40-amp SPDT switch with a 12V DC coil, rated for at least 20% above the motor’s peak draw–common 12-inch blades typically require 8-12A under load. Crimp 10-gauge copper wire for the high-current path, soldering optional but recommended for vibration-prone setups.
Connect the ignition-switched line to terminal 85 if the system must shut off with the engine; alternatively, use a fused direct battery link (terminal 30) for continuous operation. Ground terminal 86 to the chassis at a clean, unpainted point within 18 inches of the coil to minimize resistance. Ensure the ground path carries at least double the motor’s rated current.
| Component | Wire Gauge | Color Code (SAE) | Torque Spec (in-lb) |
|---|---|---|---|
| Power Input | 10 | Red | 12-15 |
| Motor Feed | 12 | Black/Red stripe | 8-10 |
| Sensor Trigger | 18 | Green | 4-6 |
Install an inline fuse holder no more than 7 inches from the battery terminal; 30A for most applications, 40A for high-draw aftermarket setups. Avoid using the fusible link alone–pair it with a blade-type fuse for double protection. Route all high-current leads away from moving components and sharp edges, securing them at 12-inch intervals with nylon ties or adhesive mounts.
Test the trigger circuit before final assembly: apply 12V to the control input (terminal 85 or 86) and verify an audible click from the coil. Measure voltage drop across the normally-open contacts (terminals 30 and 87) with a multimeter–acceptable drop is ≤0.2V at full load. If drop exceeds 0.5V, clean the contacts with electronic cleaner or replace the switch.
Mount the unit vertically, coil facing downward, to prevent moisture ingress. Seal all connector interfaces with dielectric grease and heat-shrink tubing rated for 125°C. Label every connection with heat-resistant tags–PHOTOGRAPH THE LAYOUT before closing the fuse box to simplify future diagnostics.
For variable-speed applications, insert a PWM controller between the switch and the motor. Set the frequency range to 300-1500Hz for smooth operation; frequencies below 200Hz may induce unwanted humming. Calibrate the duty cycle at 50% during initial testing, adjusting increments of 5% as needed to fine-tune airflow without overheating the windings.
Verify ground continuity with a megohmmeter–resistance should not exceed 0.5 ohms. If corrosion is present, remove the fasteners, sand the surfaces with 220-grit paper, apply anti-seize compound, and tighten to spec. Recheck all connections after 50 miles of driving to catch early loosening.
Understanding the Key Parts of a Cooling System Control Circuit
Begin by identifying the thermal switch–this component acts as the circuit’s brain, triggering activation based on temperature thresholds. Most automotive setups use an 87°C to 92°C rated switch, but verify specs for your model. Direct replacement isn’t always safe; mismatched values can cause premature engagement or engine overheating. Check resistance with a multimeter (typically 0Ω when closed, infinite when open) before installation to avoid false signals.
- Power source: A fused 12V line tied to the ignition or battery ensures steady current without voltage drops. Use 10A-15A fuses depending on the motor’s draw–consult amp ratings on the label.
- Ground path: Bolt the return wire to unpainted chassis metal; corrosion here disrupts operation faster than anywhere else. Clean surfaces with a wire brush and apply dielectric grease to prevent oxidation.
- Activation coil: The electromagnetic coil inside the control module typically pulls 150-300mA. If voltage exceeds 14V, add a voltage stabilizer to prevent coil burnout.
Choosing the Right Control Module
Common SPDT designs switch either low-side (ground) or high-side (power) circuits–match the configuration to your motor. Automotive-grade units withstand 125°C ambient and 30g vibration, whereas cheap relays fail within months. Check the data sheet for pull-in/drop-out voltages (often 6V-8V pull-in, 2V-4V drop-out) to ensure compatibility with your charging system’s voltage swings.
Wire gauge matters: 14 AWG handles 15A continuous, but upgrade to 12 AWG if the run exceeds 3 meters to minimize resistive losses. Solder connections only when necessary; crimp terminals combined with adhesive-lined heat shrink provide better long-term reliability under hood vibrations. Always route wires away from sharp edges and rotating parts–abrasion here is a common failure point.
Test the setup before final assembly: jumper the thermal switch connector and monitor current draw with a clamp meter. Expect 5A-10A startup surge, then 2A-4A steady-state. If draw exceeds spec, inspect for binding blades or shorted motor windings. Finalize by securing all connections with zip ties and verifying no exposed conductors remain–exposed wires invite moisture ingress and intermittent faults.
Step-by-Step Guide to Installing a Cooling Circuit Switch
Identify the power source lead–typically a 12V ignition-switched wire–near the temperature sensor. Strip 6mm of insulation, twist, and secure it to the coil input terminal (85) using a crimp connector. Ensure the wire is rated for at least 18AWG to avoid voltage drop. Skip solder unless working in a high-vibration environment.
Connect the ground leg (86) directly to the chassis or a dedicated engine block point. Avoid paint or corrosion; clean the surface with a wire brush and apply dielectric grease if the connection will be exposed. Test continuity with a multimeter (less than 0.5 ohms) before proceeding–poor grounding causes erratic operation.
Attach the output terminal (30) to the motor’s positive lead with a 14AWG wire. Use a fuse holder (20A blade type) within 15cm of the power source to protect the circuit. Route wires away from exhaust manifolds or sharp edges, securing them every 20cm with nylon ties. Verify the switch closes at the correct temperature by temporarily powering the coil with a 12V probe.
Finally, insert the trigger sensor wire (87) into the existing harness near the radiator. Match the thread size–usually M10x1.25–and apply thread sealant to prevent coolant leaks. Reconnect the battery, start the engine, and monitor current draw (should not exceed 15A under load). If the motor fails to activate, check for voltage at terminal 30 with the coil energized; absence indicates a faulty switch or open circuit.
Common Pitfalls in Cooling System Circuitry and Prevention Strategies
Always verify the power source polarity before connecting leads to the control module. Reversed polarity damages internal components instantly–no warning signs appear until failure. Use a multimeter set to DC voltage to confirm the positive wire reads 12V+ relative to ground. Label confirmed wires with heat-shrink tubing matching standard color codes: red for power, black for ground, yellow or blue for switched circuits.
- Solder joints must be insulated with adhesive-lined shrink tube–not electrical tape. Bare connections corrode within months under engine bay conditions. Test joint resistance after cooling; a reading above 0.5 ohms indicates incomplete fusion.
- Mount the switch mechanism at least 15 cm from hot surfaces. Excessive heat degrades plastic housings and melts solder bonds. Aluminum heat sinks or ceramic standoffs extend service life by dispersing thermal load.
- Skipping the flyback diode invites voltage spikes up to 200V. Install a 1N4007 diode across the coil, cathode to the positive terminal. Polarity matters–reversal renders the protection useless.
Ground loops create phantom resistances causing erratic operation. Dedicate a single point for all returns–not the chassis or adjacent bolts. Use an 8-gauge copper wire bonded directly to the negative battery post. Paint or corrosion at connection points adds 0.2–0.8 ohms per joint; clean surfaces with a wire brush and apply dielectric grease.
Incorrect fuse ratings compromise safety. Size the fuse to handle 125% of the maximum current draw. For a 10A motor, select a 12.5A fuse–round up to the nearest standard size: 15A. Place the fuse holder within 15 cm of the battery to limit exposed length. AGW gauge recommendations:
| Motor Current (Amps) | Minimum Wire Gauge (AWG) | Fuse Rating (Amps) |
|---|---|---|
| 5 | 18 | 7.5 |
| 10 | 14 | 15 |
| 15 | 12 | 20 |
Route conductors away from sharp edges or moving parts. Abrasion tears insulation after 100–200 cycles. Secure wires every 20 cm using nylon zip ties or spiral wrap. Avoid tight bends–minimum radius equals 10× the outer diameter to prevent conductor fatigue.
Test the switching mechanism under load before final assembly. A relay with a 50 mA coil may not actuate if the trigger circuit supplies only 30 mA. Use a 12V test light to confirm full voltage at the control pin. Mechanical relays require a snubber circuit (0.1 µF capacitor in series with 100 Ω resistor) across contacts to suppress arcing.
- Measure coil resistance with the circuit powered off. A reading below 50 Ω suggests insulation breakdown. Replace the component immediately.
- Check contact voltage drop under load. Apply 10A through closed contacts–drop should not exceed 0.2V. Higher values indicate pitted or oxidized surfaces.
- Inspect for voltage leakage between the coil and contacts. Anything above 100 kΩ at 500V DC warrants replacement.
Store spares in anti-static bags away from moisture and direct sunlight. Silica gel packets prevent condensation; UV exposure embrittles plastics within one year. Handle terminals with clean gloves–oils from skin accelerate oxidation.
