Complete Wiring Guide for 60 Amp AC Disconnect Installation
Start by installing a 240-volt, two-pole circuit breaker in your main service panel. Use 6 AWG copper conductors for the feed–this gauge handles the load without overheating. Route the cables through conduit if running underground or exposed; use flexible metal or rigid PVC for protection. Label each wire at both ends: black and red for hot legs, white for neutral, and green or bare for ground.
Mount the isolation device on an exterior wall near the HVAC unit or solar inverter. Position it within six feet of the equipment it serves, following NEC 440.14. Use outdoor-rated enclosures for wet locations–check the IP rating (minimum IP65). Secure the box with stainless steel screws into studs or masonry anchors, ensuring it sits level for proper terminal alignment.

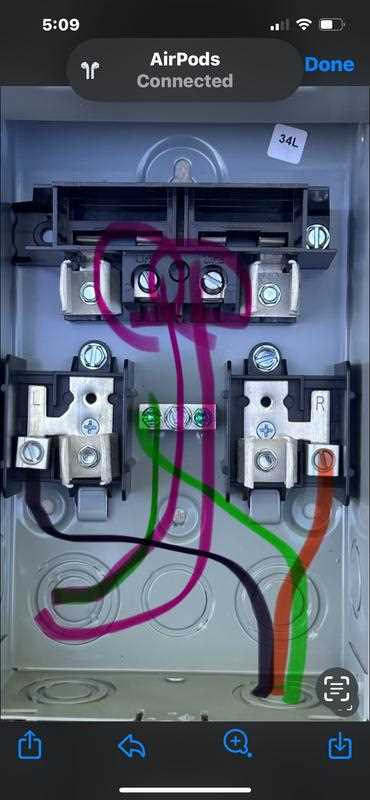

Strip ½ inch of insulation from each conductor before termination. Connect the hot legs to the top terminals of the switch, tightening to 20 inch-pounds with a torque screwdriver. Attach the neutral to the designated bus bar–only if the system requires it (e.g., for 120-volt components). Ground the enclosure by bonding the green wire to the box’s internal grounding lug and the system ground rod. Verify continuity with a multimeter before energizing.
For submetered setups, link the switch’s load terminals to the equipment’s disconnect using 4 AWG aluminum or equivalent copper. Maintain a 30° bend radius in conduit runs to prevent wire strain. Install a lockable cover over the switch to comply with OSHA 1910.333(b)(2); use a non-conductive padlock. Test the installation with a non-contact voltage detector after turning the breaker on–confirm the switch cuts power within one second when toggled.
How to Safely Connect a 60-Current Outdoor Power Cutoff for Air Conditioning Units
Position the service switch at least five feet from the condensing unit but within sight of the outdoor compressor. Use 6 AWG copper conductors for the full run between the breaker panel and the cutoff box if the circuit length exceeds 50 feet–voltage drop calculations must confirm a maximum 3% loss.
Mount the enclosure on a non-combustible surface, ensuring a minimum 36-inch clearance from vegetation, windows, or vents. Knockouts must face downward to prevent moisture ingress; seal unused openings with waterproof conduit plugs rated for outdoor conditions.
Grounding requires a separate 8 AWG bare copper conductor connected to the cutoff’s grounding lug and extended to the condensing unit’s ground terminal. Bond all metallic conduit sections with listed grounding bushings and locknuts to prevent corrosion galvanization.
Terminal Connections and Wire Sizing
| Component | Required Conductor Gauge (Copper) | Torque Specification (inch-pounds) |
|---|---|---|
| Line Side Lugs | 6 AWG | 20–25 |
| Load Side Lugs | 6 AWG | 20–25 |
| Ground Lug | 8 AWG | 15–20 |
Label each conductor at both ends with heat-shrink tubing or permanent markers–line (L1, L2), load (T1, T2), and ground. Use a calibrated torque screwdriver to tighten connections; over-torquing breaks strands, under-torquing causes overheating.
Verify continuity across all poles with a multimeter before energizing. Expected readings: closed position shows 0 ohms, open position displays infinite resistance. If readings deviate, inspect for loose connections or damaged contacts before proceeding.
Install a weatherproof cover over the lever handle to comply with NEC 404.2(C). Ensure the cover hinges freely without obstructing the switch action–misalignment can prevent full engagement, creating a hazardous condition.
Field-Tested Troubleshooting Checklist
If the compressor fails to start, verify the following in sequence:
- Cutoff switch in “ON” position–no debris obstructing the lever.
- Breaker at the panel has not tripped–reset once if needed.
- Voltage between L1 and L2 at cutoff lugs–should match supply (240V ±5%).
- Voltage between T1 and T2 at compressor terminals–loss indicates loose connection.
- Capacitor charge–use a dedicated tester, replace if microfarads deviate ±10%.
Avoid bypassing the service switch for temporary operation–this violates NEC 440.14 and exposes the circuit to uncontrolled start-up currents exceeding 200% of the nameplate rating. For replacement units, match the minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP) values listed on the condensing unit’s data plate.
Key Components for a 60-Current Outdoor Power Cutoff Setup

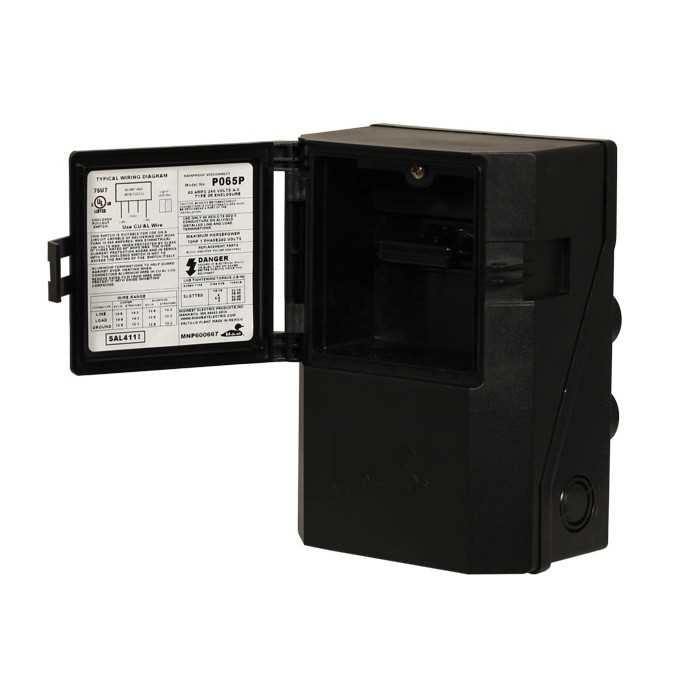

Select a heavy-duty safety switch rated for 60 currents minimum, matching the unit’s maximum load. A 75-current model provides flexibility for future upgrades without replacement. Brands like Siemens, Square D, or Eaton offer NEMA 3R enclosures, ensuring protection against rain, dust, and corrosion–critical for outdoor placement. Verify the switch includes a visible blade mechanism or fuse block; some models integrate both for dual-layer protection.
Choose 6-gauge copper conductors or 4-gauge aluminum wires for the main circuit, adhering to NEC Table 310.16. Copper resists oxidation better in humid environments, while aluminum requires anti-oxidant compound at terminals. For wire insulation, THHN/THWN-2 suits conduit runs, but USE-2 or RHW-2 works better underground. Avoid Romex (NM-B) as it’s unsuitable for high-current outdoor use.
- Line-side lugs must accept 6–4 AWG wires; compression connectors prevent loosening under thermal cycling.
- Load-side terminals should include strain relief if connecting to flexible cords (e.g., SOOW).
- Ground busbar must be sized for 6 AWG minimum to handle fault currents.
Install a fused version with time-delay Class RK5 fuses (60-rated) if the system lacks breaker protection upstream. Fuses prevent nuisance tripping from brief motor inrush currents during compressor startup. Use a fusible pullout block for easy replacement–ensure spare fuses are stored on-site in a labeled, weatherproof container.
A 1/2-inch or 3/4-inch rigid metal conduit (RMC) or intermediate metal conduit (IMC) protects conductors from physical damage and moisture ingress. Schedule 40 PVC works in non-location-exposure areas but requires burial at 18-inch depth. Seal conduit ends with duct seal compound to block pests and water; install expansion fittings every 10 feet to accommodate temperature shifts.
- Torque all terminals to manufacturer specs: 20–25 lb-in for 6 AWG copper, 30–35 lb-in for aluminum.
- Wrap connections with electrical tape, then cover with adhesive-lined heat shrink to prevent corrosion.
- Label wires at both ends with indelible markers: “L1,” “L2,” “Ground,” and “Neutral” (if present).
Equip the enclosure with a padlock hasp if installed in accessible areas. Add a weather cover over the switch handle to shield the mechanism from direct exposure. For locations prone to flooding, mount the unit at least 18 inches above ground level on a treated wooden post or concrete pedestal. Test operation by simulating a cutoff: verify the compressor halts within 2 seconds to confirm proper relay functionality.
Step-by-Step Installation Guide for a 60-Current Safety Switch
Ensure the main power supply is off at the breaker panel before handling any conductors. Use a non-contact voltage tester on the incoming cables–both line and load sides–to confirm de-energization. Strip ¾ inch of insulation from each copper wire using wire strippers calibrated for 6 AWG conductors, avoiding nicked strands which reduce current capacity by up to 12%. Securely fasten the bare ground wire to the designated green screw terminal at the base of the enclosure, tightening to 18 lb-in torque using a torque screwdriver to prevent grounding faults.
Route the two hot leads (typically black and red) to the upper terminals of the fuse block or rotary switch, matching the labeling (L1/L2). Insert each conductor fully into its terminal, then apply 22 lb-in torque to the terminal screws–exceeding this risks damaging the enclosure’s internal threading. For the load side, connect the corresponding hot wires to the lower terminals (T1/T2), ensuring polarity consistency with the incoming supply to prevent reversed-phase issues. Cap any unused terminals with insulated wire nuts rated for at least 75°C.
Attach the neutral conductor (white) to the neutral bar if required by your circuit configuration–verify local electrical codes, as some split-phase systems omit this connection. When securing conductors, maintain a minimum 1-inch clearance from the enclosure’s edges to prevent accidental shorting against metal surfaces during cover installation. Double-check all terminal connections for stray wire strands or loose screws, which can create hotspots exceeding 90°C under full load.
Reinstall the safety switch’s cover, ensuring it snugly fits without pinching any wires–gaps wider than ⅛ inch void the enclosure’s NEMA 3R rating. Restore power at the main panel and use a clamp-on multimeter to verify the circuit draws no more than 48 currents at idle; readings above this indicate potential shorts or incorrect conductor sizing. Tag the installation with the date, breaker size, and your license number if local regulations require documentation.
Critical Safety Measures for Handling 60-Amp Electrical Isolation Systems
Shut off the main power supply at the breaker panel before touching any conductors. Verify absence of voltage using a multimeter rated for 600V AC; test leads must be insulated to prevent accidental shorts. Never rely on visual confirmation–live components can appear identical to de-energized ones.
Wear arc-rated PPE: gloves with a minimum Class 2 rating, face shields, and flame-resistant clothing. Cotton or synthetic blends melt under electrical arcs, increasing burn severity. Remove all conductive jewelry, watches, or tools from pockets to eliminate short-circuit risks.
Use insulated tools certified for 1000V to avoid unintended ground paths. A single uninsulated screwdriver slipping against a terminal can trigger a 10,000°F arc flash, vaporizing copper and releasing toxic metal fumes. Keep a 3-foot clearance from exposed live parts at all times.
Secure the isolation switch in the “OFF” position with a lockout-tagout (LOTO) device. Apply tags with the date, your name, and contact details–unlabeled locks are frequently removed by unauthorized personnel. Test the LOTO by attempting to switch it on; if it fails, reassess the lock’s integrity before proceeding.
Check for damaged or brittle insulation on conductors, especially near entry points. Cracked sleeves create leakage paths, increasing fire hazards even when the system is disconnected. Replace any wiring with visible wear; repairs with electrical tape are temporary and unreliable.
Ground the system properly before energizing. A floating neutral in a 60-cycle setup can cause erratic voltage spikes, damaging connected equipment. Use a grounding rod with
Work with a partner trained in CPR and electrical emergency response. A solo operator incapacitated by a shock leaves no one to cut power or call for help. Maintain a charged fire extinguisher (Class C) within 10 feet–water-based suppressants conduct electricity and worsen arc blasts.
Document all changes in a logbook: terminal tightness (25-30 lb-in torque), wire gauge continuity, and insulation resistance (>1MΩ). Loose connections generate heat buildup, reducing conductor lifespan by 50%. Recheck torque after 24 hours; copper relaxes under load, requiring retightening.
