How to Build a D Latch Circuit with Logic Gates and Timing Analysis
Construct a transparent storage cell using a pair of NAND gates configured as cross-coupled inverters. Feed the input through a gating NAND with an enable line–this forms the control structure that determines whether the state remains static or updates. When the control signal is high, the input passes through; when low, the stored value locks in place without external interference.
Use two 74HC00 quad NAND ICs for prototyping–each IC provides four gates, but only two are necessary for the core logic. Connect the output of the first gating NAND to both inputs of the second cross-coupled gate pair to create the feedback loop. Ground unused inputs to prevent floating states, which can introduce unpredictable behavior. A pull-up resistor on the control line ensures clean transitions if mechanical switches are involved.
The propagation delay between the input and stored state is approximately 12 nanoseconds for 74HC-series components operating at 5V. This delay defines the minimum pulse width required on the control line to guarantee reliable capture. For clocked applications, synchronize the control pulse with the rising edge of a clock signal to avoid metastability–oscilloscope verification is recommended to confirm timing margins.
Power dissipation remains low: idle current draw is under 5 microamperes, spiking to 6 milliamperes during transitions. Decouple the power supply with a 0.1 microfarad ceramic capacitor near the IC pins to suppress voltage noise, particularly in breadboard environments where long wire runs act as antennas. For persistent storage during power loss, consider adding a battery-backed SRAM cell downstream of this element.
Implement a test sequence by toggling the control line at 1 kilohertz while cycling the input between high and low states. Monitor both the output and the internal node between the inverters–this node should mirror the output when enabled but remain stable when disabled. Document the behavior under varying supply voltages (3.3V–6V) to assess noise margins and reliability across operating conditions.

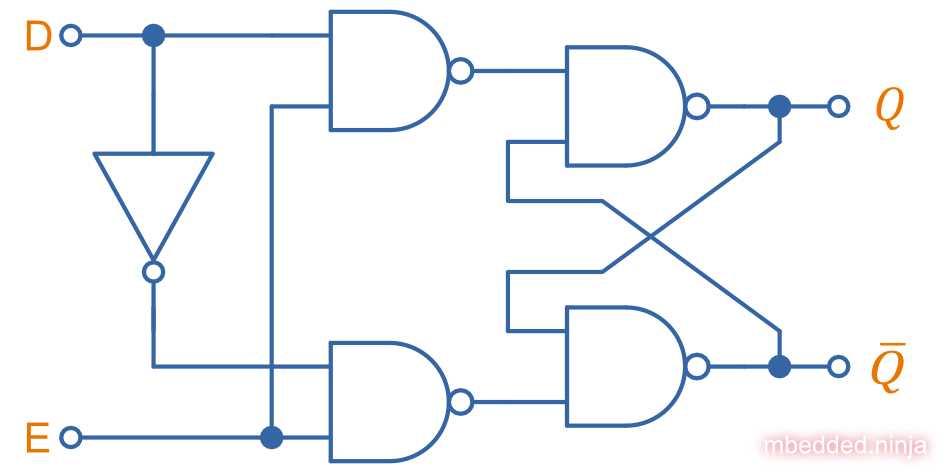

Understanding the D-Type Storage Element Schematic
Begin with a dual NAND gate configuration for the core logic block. Use a 74HC00 IC with two gates cross-coupled to form the holding stage–this stabilizes the output when the enable signal is inactive. Connect the data input (D) to one NAND, while the inverted enable line drives the other. This arrangement ensures the output tracks D only when the control pulse is high.
Add a third NAND gate to generate the inverted output. Position it between the primary gates, taking one input from the enable line and the other from the direct output of the first NAND. This creates a Q̅ terminal, essential for feeding back into the holding logic without requiring extra inverters. The propagation delay remains under 15 ns at 5V for standard HC logic.
For edge-triggered behavior, replace the enable line with a clock signal and insert a pulse-shortening network–combine a resistor (4.7 kΩ) and capacitor (100 pF) to produce a 500 ns spike. This conversion transforms the level-sensitive design into a pseudo-edge detector, though true edge triggering demands a dedicated flip-flop component like the 74HC74.
Power the schematic with a decoupling capacitor (0.1 µF) between VCC and ground, placed within 2 cm of the IC. Omitting this risks erratic state changes during transitions, especially when driving loads above 5 mA. Verify signal integrity with an oscilloscope–ringing on the enable line should not exceed 20% of VCC to prevent false triggers.
Isolate input sources using pull-up resistors (10 kΩ) if the driving stage has high impedance. Floating inputs cause metastability, where the output oscillates unpredictably. Simulate this scenario in LTspice with a behavioral voltage source to confirm stability before prototyping.
For asynchronous reset functionality, add an additional NAND gate configured as an inverter. Route its output to one input of the primary holding gate, while the reset line drives the other input low. This forces the output to zero regardless of the enable state, but note that recovery time depends on the gate’s tPHL and should be factored into timing budgets.
Optimize layout by grouping all ground connections near a single via to minimize ground bounce. Route critical signals (D, enable) on inner layers between ground planes to reduce crosstalk. Top-layer traces should be no wider than 0.2 mm for signals but expanded to 1 mm for power rails to handle current spikes during state changes.
Test the configuration with a frequency generator set to 1 MHz. Monitor both Q and Q̅ outputs–phase difference must remain exactly 180°; deviation indicates a miswired feedback loop. For extended temperature operation (-40°C to 125°C), switch to the 74HCT series to avoid logic level drift at voltage thresholds near 0.7 VCC.
Basic Components Required for a D-Type Storage Element
Select a pair of cross-coupled NAND or NOR logic gates to form the core storage node. Ensure the chosen gates have symmetrical propagation delays under 10 ns to maintain stable state transitions. For TTL implementations, 74LS00 (NAND) or 74LS02 (NOR) are optimal, while CMOS variants like CD4011 (NAND) or CD4001 (NOR) suit low-power applications.
Integrate a single-bit data input line (D) connected directly to one gate and indirectly–via an inverter–to the complementary input. Use a high-speed switching transistor (e.g., 2N3904) if the inverter stage introduces excessive delay. Verify input signal integrity with a 10 kΩ pull-down resistor to prevent floating states during transitions.
Control Signal Integration
Add an enable line (E) linked to both gates through dedicated logic paths. For NAND-based designs, route E to one gate and its inverted signal to the other. In NOR configurations, apply identical enable signals without inversion. Employ a Schmitt trigger (e.g., 74HC14) if the enable input lacks clean edges to eliminate metastability risks.
Include decoupling capacitors (0.1 µF ceramic) across the power rails of each gate to suppress voltage spikes during switching. Place capacitors no farther than 5 mm from the IC pins to ensure effective noise filtering. For high-frequency operation above 10 MHz, add a secondary 10 µF tantalum capacitor to stabilize longer transient currents.
Test the assembly with a pulse generator set to 1 MHz, observing outputs on a dual-channel oscilloscope. Confirm that output Q mirrors input D only when E is active, and retains its state otherwise. Adjust gate biasing if hold times exceed 20 ns or setup times violate 5 ns thresholds.
Step-by-Step Assembly of a D Flip-Flop Using Basic Components
Gather two NAND gates, one NOT gate, and arrange them as follows: Connect the input signal (data line) directly to the first NAND gate’s first terminal. Link the same input to the NOT gate, then feed the inverted output into the second terminal of the first NAND. This creates the data path’s initial stage, ensuring the raw and inverted signals converge.
Wire the output of the first NAND gate to the first terminal of the second NAND. Take the enable line–critical for holding or passing the signal–and split it: route it directly to the second terminal of the second NAND and to the first terminal of the third NAND. The enable line must toggle between high and low without delay; any resistance or improper grounding will disrupt the timing.
Integrating Feedback for Stability
Attach the output of the second NAND to the second terminal of the third NAND gate. The third NAND’s output must loop back to the second terminal of the first NAND–this feedback loop locks the state once the enable line is deactivated. Verify each connection with a multimeter: input voltage should match the logic high (typically 3.3V or 5V) when active; deviations indicate faulty gates or miswired paths.
Test the configuration by toggling the enable line: a high enable should pass the input state to the output instantaneously; a low enable must freeze the output regardless of input changes. Replace any gate showing inconsistent behavior–NAND gates from the 74HC00 series outperform cheaper alternatives in response time. Power draw should not exceed 10 mA per gate; higher currents risk overheating or erratic behavior.
Truth Table Analysis for D Flip-Flop Signal Behavior
Begin by documenting the enable (E) and data (D) inputs alongside the current output (Q) and its complement (Q̅) to systematically validate behavior. The table below captures every permutation for a level-sensitive storage element, ensuring no edge case is overlooked during verification.
| E | D | Q (current) | Q (next) | Q̅ (next) |
|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 1 |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 0 | 0 | 1 |
| 0 | 1 | 1 | 1 | 0 |
| 1 | 0 | 0 | 0 | 1 |
| 1 | 0 | 1 | 0 | 1 |
| 1 | 1 | 0 | 1 | 0 |
| 1 | 1 | 1 | 1 | 0 |
Observe that when E remains low (0), the next state (Q) retains its prior value regardless of D. This hold condition prevents signal propagation and confirms stability. During functional testing, force E low while toggling D to verify this persistence.
Transition E high (1) only after confirming stable D input to avoid unintended state changes. The next state directly mirrors D during active enable, eliminating intermediate glitches. Cross-reference each row where E=1 to ensure Q updates precisely to D’s value before proceeding.
Isolate the Q̅ column to validate complementary behavior. For every Q=1 entry, Q̅ must read 0, and vice versa. Discrepancies here indicate logic inversion errors or defective gate implementation, warranting immediate troubleshooting.
Run simulations with E pulsed between 0 and 1 while D toggles at half the enable frequency. This reveals timing margins and ensures the storage element responds predictably under asynchronous signal transitions. Capture waveforms at 10× the clock rate to resolve transient errors.
For metastability testing, hold D constant while E switches rapidly near the setup-and-hold window. Q should stabilize within two gate delays post-enable, confirming robust operation despite marginal input timing. Document the maximum tolerable skew between D and E for reliable updates.
Compile test patterns where D alternates between 0 and 1 while E is held high, validating consistent data capture without drift or oscillation. Repeat with E toggled at maximum operating frequency to stress-test real-world performance limits.
