How to Build a 7805 Voltage Regulator Schematic Step by Step Guide
The fixed-voltage module LM78xx variant outputs 1.5A at +5V with internal safeguards against overheating and short circuits. Typical input demands range from 7V to 35V, but thermal dissipation limits drop-out voltage to 2V under full load. Always pair it with a 0.33µF input capacitor placed within 3mm of the input lead to prevent oscillations, and a 0.1µF output capacitor at the same proximity to stabilize transient response.
For noise-sensitive loads, an additional 10µF tantalum capacitor on the output leg attenuates ripple to below 10mV p-p. Ground wiring must carry return currents directly to the input capacitor’s negative terminal–avoid daisy-chaining ground paths, which introduces voltage gradients and undermines regulation accuracy. Heat sinking should target a thermal resistance below 25°C/W; if ambient exceeds 50°C, reduce output current to 800mA or add forced-air cooling.
Schematic placement order matters: input filter → voltage stabilizer → output filter → load. Reverse this sequence and transient spikes can exceed 5V by 1V for 20µs, risking downstream IC damage. For PCB traces, keep high-current routes (≥1A) at least 2.5mm wide (1 oz copper) to prevent resistive drops above 50mV. Test the assembled board under full load for 30 minutes; if case temperature surpasses 85°C, redesign heat sinking or lower input voltage.
Step-by-Step Guide to Building a 5V Fixed-Voltage Supply

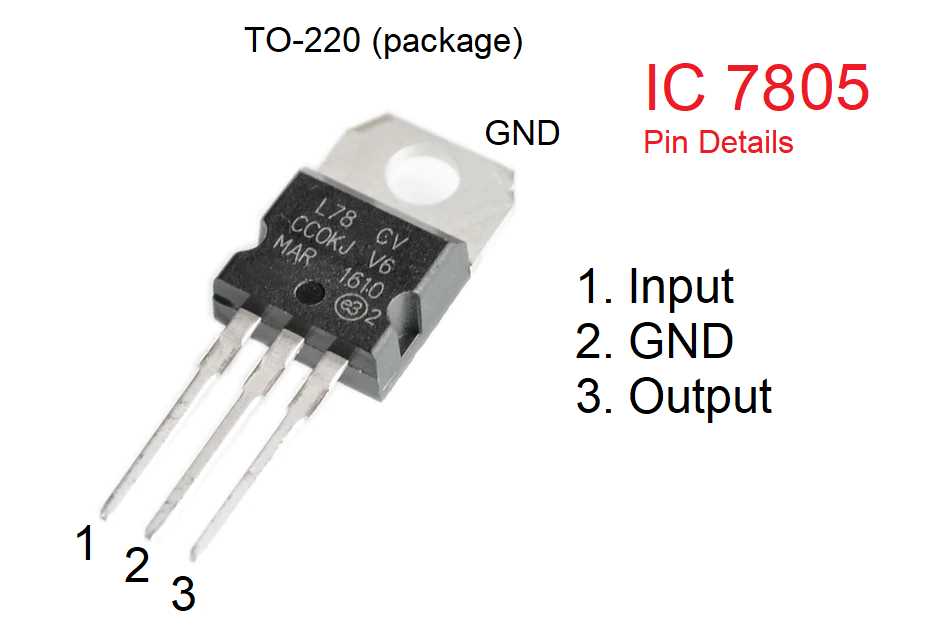

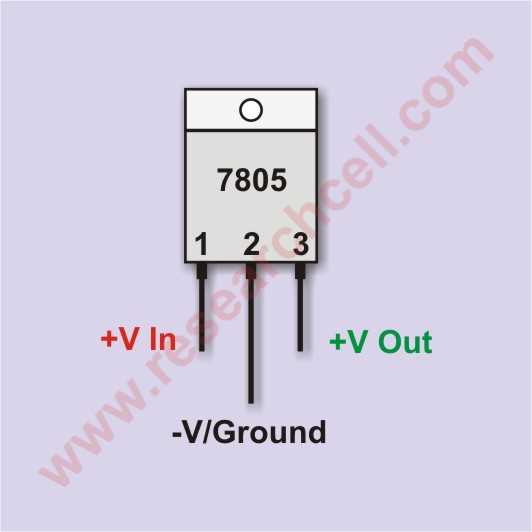

Start by selecting a linear converter IC with a TO-220 package–ensure the input voltage range exceeds your maximum source by at least 2V to prevent dropout. Connect a 0.33µF ceramic capacitor directly between the input pin and ground, as close to the IC as physically possible, to suppress high-frequency oscillations. On the output side, place a 0.1µF ceramic capacitor within 3 mm of the output pin; this bypasses transient current spikes generated by microcontroller loads. If the load exceeds 50 mA, add a 10 µF electrolytic capacitor in parallel to the 0.1 µF unit–this combination reduces ripple to under 20 mV peak-to-peak when fed from a 9V unregulated DC input.
Thermal management dictates trace width: route the ground return from the output capacitor back to the input ground with a minimum 2.5 mm-wide trace to handle 1 A continuous current without voltage sag. For loads above 300 mA, attach a heatsink–calculate dissipation using P = (Vin – 5 V) × Iload; a 6 °C/W heatsink keeps junction temperature below 100 °C with a 12 V input and 500 mA load. Verify stability by monitoring transient response: apply a 10 µs, 300 mA load step and confirm output recovers within 20 µs without overshoot above 5.2 V. Avoid placing PCB vias directly under the IC tab–this creates thermal voids that elevate junction temperature by up to 15 °C.
Fundamental Stabilizer Module Assembly Guidelines
Position the input capacitor as close to the component’s Vin and GND pins as physically possible–no more than 10 mm of trace length. Use 22–47 µF tantalum or X5R/X7R ceramic for bulk storage; aluminum electrolytics introduce excessive ESR that destabilizes transient response above 250 mA loads. Route both traces with minimum width 2.5 mm for 1 A designs to avoid voltage drops exceeding 100 mV under full load.
A grounded star network prevents common-impedance coupling: separate noisy return paths of load, decoupling, and feedback directly to the system’s reference plane. Daisy-chaining returns risks 5–15 mV oscillations when load current exceeds 300 mA. Add a 0.33 µF ceramic bypass directly between the output pin and the return path, placed within 3 mm of the component’s body, to mitigate high-frequency ripple up to 1 MHz.
Thermal relief pads sized 2 mm × 2 mm improve solder heat distribution during hand assembly; omit them for automated reflow to reduce parasitic thermal resistance. On 1 oz copper, a 25 mm² pad lowers junction temperature rise by 12 °C/W under 1 W dissipation compared to standard footprint. Double-sided heat sinking–via thermal vias to an internal plane–reduces θJA to 22 °C/W for TO-220 packages.
| Trace Length | Max Current | Voltage Drop (0.5 oz Cu) |
|---|---|---|
| 10 mm | 1 A | 20 mV |
| 30 mm | 500 mA | 18 mV |
| 50 mm | 200 mA | 12 mV |
Input-to-output isolation requires a reverse-biased diode across the device–1N4007 suffices for 1 A designs–positioned within 15 mm of the pins. Omitting this diode risks catastrophic failure when Vin collapses faster than 1 V/µs, as stored energy in output capacitors back-feeds through the internal pass transistor.
Guard rings around sensitive nodes suppress leakage currents at temperatures above 85 °C. A 1 mm wide grounded copper ring around the feedback trace reduces noise pickup by 40 dB compared to unshielded traces when switching frequencies exceed 200 kHz. Combine this with a 1 kΩ resistor in series with the adjustment pin for adjustable variants to prevent parasitic oscillations.
Validate layout integrity with thermal imaging under worst-case load: 80% of rated current, ambient temperature 60 °C, and minimal airflow. Hotspots exceeding 100 °C indicate inadequate heat sinking or excessive trace resistance. Rework thermal interfaces using 50 µm thick thermal gap fillers if interfacial resistance exceeds 0.2 °C/W.
Input and Output Capacitor Values for Stable Linear Voltage Converter Performance
Use a 0.1µF ceramic capacitor at the input terminal to suppress high-frequency noise and prevent oscillations. Ensure it is placed within 5mm of the device’s input pin to minimize lead inductance, which can degrade transient response.
For bulk input filtering, an electrolytic or tantalum capacitor of 10µF to 100µF is recommended, depending on the source impedance. Lower capacitance suffices if the supply impedance is under 0.1Ω; above this threshold, increase capacitance proportionally to maintain stability under load transients.
The output requires a 0.1µF ceramic capacitor for high-frequency decoupling, positioned as close to the output pin as possible. This value counters output impedance-induced ringing during sudden load changes, particularly when driving digital logic or microcontrollers.
Add a 1µF to 10µF output capacitor for low-frequency stability and improved load regulation. Electrolytic capacitors work, but low-ESR types (e.g., polymer tantalum) reduce voltage droop during fast current spikes, enhancing response time to dynamic loads.
Capacitance values must account for temperature derating: ceramic X7R/X5R types lose up to 50% capacity at 85°C, while electrolytics may see 20% reduction. Adjust values upward if operating near or above room temperature.
Reverse-biasing input capacitors during supply removal can damage both the converter and downstream components. Implement a reverse-polarity protection diode (e.g., 1N4007) or ensure input capacitance discharges fully within 10ms after power-off.
Verify stability by monitoring output voltage noise under pulsed loads (e.g., 10Hz–10kHz with 50% duty cycle). Peak-to-peak ripple should remain below 50mV; if exceeded, increase output capacitance or reduce ESR until compliance is achieved.
Heat Sink Selection and Thermal Management Guidelines
Select a heat sink with a thermal resistance at least 30% lower than the calculated maximum allowable value for the component. For TO-220 packages dissipating 5W, aim for a sink with <8°C/W thermal resistance in natural convection. Extruded aluminum profiles (e.g., 6063-T5) offer 4–12°C/W depending on fin geometry, while bonded-fin designs drop to 2–6°C/W for the same footprint.
- Fin-to-base thickness ratio should exceed 8:1 for optimum surface area efficiency. Avoid sinks with fins thinner than 0.8mm to prevent collapse under clamping force.
- Oxide-black anodizing improves emissivity from 0.1 (bare aluminum) to 0.8–0.9, reducing radiation losses by 40–60%. Specify 25–50μm coating thickness to balance cost and performance.
- Natural convection sinks require 5–10mm fin spacing. Forced airflow allows 2–4mm gaps, increasing heat transfer coefficient from 10–15W/m²K to 30–50W/m²K.
Attach the heat sink using thermal interface material (TIM) with <0.5°C-cm²/W impedance. Arctic MX-6 achieves 0.12°C-cm²/W, outperforming zinc oxide-based compounds by 3–5×. Apply 0.1–0.2mm thick layer, clamp with 2–3Nm torque for TO-220, or 5–6Nm for D²PAK. Avoid excessive compression, which deforms soft aluminum bases and reduces effective contact.
For transient loads, select heat sinks with a thermal mass exceeding the component’s by 5–10×. A 50g copper pedestal (c ≈ 0.39J/g°C) delays temperature rise by 5–8s compared to a 10g aluminum equivalent. Embedded heat pipes in base plates reduce hotspot temperatures by 15–25°C, but add 20–40% cost.
- Mount sinks vertically to maximize natural convection. Horizontal mounting reduces airflow by 30–50%.
- Keep ambient below 40°C for full specification compliance; each 10°C rise above reduces reliability by 5–10%.
- Use passive sinks for <10W dissipation; integrate forced airflow at 10–30W; liquid cooling beyond 30W.
Fan selection hinges on static pressure. Axial fans (120mm, 2000 RPM) deliver 3–5mm H₂O, suitable for fin pitches ≥4mm. Blower-style radial fans (25–40mm H₂O) handle <3mm gaps but draw 2–3× the current. PWM control (25kHz) reduces acoustics by 7–10dB compared to linear voltage regulation.
Surface treatments alter performance metrics. Polished aluminum (Ra <0.2μm) reflects 85–95% incident heat, while bead-blasted finishes (Ra 1–3μm) improve convection by 10–18%. Electroless nickel plating adds 0.2–0.5°C/W but prevents galvanic corrosion with copper-based components. Composite sinks (Al+Cu) achieve 1.5–3°C/W but weigh 2–3× more than pure aluminum.
