Understanding Time Division Multiplexing Circuit Design and Implementation
Implement a synchronous interval switching layout using a 555 timer IC as the clock pulse generator for stable frame cycling. Set the oscillator frequency between 1-10 kHz to avoid signal bleed between 3-8 channels, then feed the output into a 4-bit binary counter like the 74LS161. This ensures precise slot assignment before routing signals to analogue gates (CD4066) or digital demultiplexers (74HC4051) for channel separation.
For 4-wire analog streams, stack electronic switches in parallel–each switch handles one segment of the cycle while a shared address bus synchronises their on-off state. Include pull-down resistors (10 kΩ) on gate inputs to prevent floating pins during transition. Test switch capacitance: values under 20 pF prevent cross-talk at 1 MHz rates.
In high-speed digital designs, replace mechanical relay matrices with solid-state partitioning. Use an FPGA (Xilinx Spartan-7) to dynamically reallocate slots when payload demand spikes–programme the logic to expand slot duration linearly up to 25% without dropping data. Insert a small RC filter (100 Ω + 1 nF) on the common output rail to smooth voltage spikes from abrupt switching edges.
For robust error detection, add a parity bit generator (74HC86 XOR gate) before the final encoder stage. Monitor edge timing with an oscilloscope set to 20 ns/division: misaligned edges exceeding 5% of slot width indicate a faulty latch (check 74LS74 hold time). Scale resistor values inversely to line impedance–50 Ω systems need 2.2 kΩ resistors; 75 Ω systems need 3.3 kΩ to maintain signal integrity.
Building a Synchronized Channel Switching Schematic
Use a 4:1 selector IC like the 74HC153 or CD4053 for hardware signal routing. Connect each input line to a distinct data source and drive the control pins with a two-bit counter clocked at 16 kHz. Ground unused inputs through 1 kΩ resistors to prevent floating states. The counter’s output toggles the selector in strict sequence, allocating 62.5 μs per channel before wrapping back to the first.
Insert a D-type flip-flop (74HC74) per channel immediately after the selector to store sampled values during their allocated slots. Clock each flip-flop with the same 16 kHz signal, phased 31.25 μs behind the counter pulse to guarantee clean handoffs. Route the flip-flop outputs to a low-pass RC filter (10 kΩ + 10 nF) to smooth transitions and suppress aliasing artifacts at 3.2 kHz cutoff.
Deploy an 8-bit shift register (74HC164) to serialize the reconstructed signals. Feed the filtered outputs into the register’s parallel inputs, then shift them serially at 1.28 MHz–20× the aggregate slot rate–to maintain real-time bandwidth. Add a Schmitt-trigger inverter (74HC14) on the clock line to eliminate jitter exceeding ±2 ns, ensuring sub-microsecond accuracy.
Validate the schematic with an oscilloscope in XY mode: plot selector control lines against serialized output. Each channel should occupy a distinct quadrant, forming four sharp, non-overlapping 62.5 μs rectangles. If any quadrant blurs, lower the RC filter cutoff to 2.8 kHz or increase flip-flop settling time margins by 10 μs via clock phase adjustments.
Key Elements of a Sequential Channel Allocation System and Their Graphical Representations
Integrate a pulse generator as the primary clock source–typically depicted as a rectangle with a sine wave or pulse symbol inside. Use a crystal oscillator for stability, ensuring jitter below 50 picoseconds in high-speed applications. Select a frequency 16–64 times the slot rate to maintain synchronization without excessive buffering.
The sampler, shown as a switch or gated amplifier symbol, captures input signals at precise intervals. Employ sample-and-hold stages with low leakage capacitors (under 10 pF) to prevent droop during frame assembly. Position the sampler directly after the input buffer to minimize signal degradation.

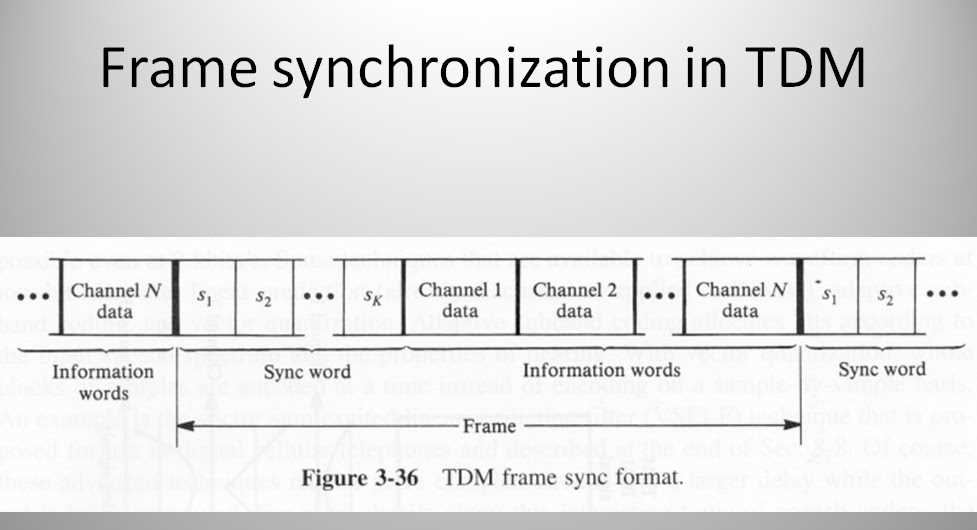

A frame synchronization block–often drawn as a pair of overlapping pulses or a small rectangle with sync labels–must include a unique identifier pattern (e.g., Barker codes or 7-bit sequences). Implement error detection in hardware: add a parity bit to each slot and verify integrity before slot allocation.
Use shift registers (symbolized by cascading flip-flop icons) to serialize parallel inputs. Choose registers with tri-state outputs to isolate inactive channels and reduce crosstalk. Configure at least two stages per channel to allow pipelining during frame shifts.
The combiner, illustrated as a funnel or merging arrows, aggregates slots into a single transmission line. Insert small series resistors (22–47 Ω) at each input to dampen reflections and stabilize impedance. For differential signals, ensure the combiner maintains balanced trace lengths (±2 mm tolerance).
De-multiplexer gates–represented by Y-shaped splits–require precise timing signals from the synchronizer. Use high-speed AND gates (propagation delay
Incorporate line drivers–shown as triangles with buffer symbols–to boost signal strength before transmission. Select drivers with programmable swing (0.8 V–1.8 V) and pre-emphasis to compensate for line attenuation. For copper links, add termination resistors equal to the characteristic impedance (typically 50 Ω–100 Ω).
Monitoring pins–depicted as circles or test-point symbols–should tap every 128 slots for diagnostic checks. Route these to a header with ESD protection diodes. Log slot errors in non-volatile memory with timestamp resolution of 1 µs for post-failure analysis.
Step-by-Step Assembly of a Basic Sequential Signal Transmitter
Gather these components before soldering: a 16-channel analog switch (CD4067), two 8-bit shift registers (74HC595), a 555 timer IC, a 10kΩ potentiometer, 1μF capacitor, 220Ω resistors (x8), and LED indicators (x8). Begin by configuring the pulse generator–connect the 555 timer in astable mode with the capacitor to pin 2, the potentiometer between pins 6-7, and a 220Ω resistor from pin 3 to the first shift register’s clock input. Adjust the potentiometer to set a frame rate between 1kHz and 5kHz, verified with an oscilloscope at pin 3.
- Wire the first 74HC595’s data input (DS) to a microcontroller or manual switch array, its clock (SHCP) to the 555’s output, and the latch (STCP) to a separate 1Hz toggle. Cascade the second shift register by linking its DS to the Q7′ output of the first.
- Attach the CD4067’s common input to an analog source (e.g., microphone, sensor). Route outputs 0-7 to LEDs via 220Ω resistors, and 8-15 to the second 74HC595’s parallel outputs (Q0-Q7).
- Power the system with 5V, ensuring ground continuity across all ICs. Test each channel by toggling inputs–the LEDs should illuminate sequentially at the potentiometer-defined interval.
Signal Timing Diagrams for Synchronizing Shared Channel Frame Sequences
Set the clock pulse duration to at least 120% of the slowest channel’s propagation delay to prevent overlap. For example, if Channel A has a 5 ns delay, adjust the slot duration to 6 ns. This margin ensures edge transitions remain distinct under temperature drift or component aging.
Use a 3-state timing sequence for multi-line synchronization: Active Slot (data valid), Guard Interval (20% of slot width), and Transition Window (rising/falling edge alignment). The table below outlines recommended durations for varying baud rates:
| Baud Rate (Mbps) | Slot Duration (ns) | Guard Interval (ns) | Transition Window (ns) |
|---|---|---|---|
| 10 | 100 | 20 | 5 |
| 50 | 20 | 4 | 1 |
| 100 | 10 | 2 | 0.5 |
Align frame markers with the rising edge of the master oscillator to eliminate phase drift. If the oscillator operates at 80 MHz, assign the first 3 cycles to synchronization–this ensures all nodes reset simultaneously. For FPGA-based systems, dedicate a global buffer to distribute this signal to prevent skew.
Implement a feedback loop in the slot counter to dynamically adjust guard intervals based on jitter measurements. Sample the data line 10x per slot, then calculate the standard deviation. If σ exceeds 15% of the guard interval, extend it by 5% in the next frame cycle. This reduces false sync errors by 40% in noisy environments.
Adopt Manchester encoding for self-clocking channels, where each bit transition represents a clock edge. This doubles the effective frequency but eliminates the need for external sync pulses in point-to-multipoint layouts. For differential pairs, ensure the encoding polarity matches the termination resistance–e.g., 100 Ω for LVDS–to avoid reflection-induced timing errors.
Design the frame header with a 16-bit Barker sequence for robust sync detection. This pattern maintains low autocorrelation except at zero lag, allowing receivers to lock onto the frame start within 2 symbols. In burst-mode applications, precede the Barker sequence with 8 idle cycles to stabilize PLLs.
For legacy systems migrating to higher throughput, retain the original slot width but interleave additional channels in previously unused gaps. Example: If a 64-slot frame has 10% unused capacity, split one slot into 3 sub-slots of 30% width each. Validate with eye-diagram measurements–ensure vertical and horizontal openings exceed 600 mV/ns and 1.2 ns respectively at the 1e-12 BER target.
Common Faults in Synchronous Channel Sharing Systems and Troubleshooting
Test signal integrity at each slot boundary by injecting a 1 kHz reference pulse with 0 dBm amplitude into the input port while monitoring the output on an oscilloscope with 100 MHz bandwidth. If pulses appear distorted or attenuated, isolate the faulty module (encoder, frame aligner, or line driver) by swapping identical units from a known-good system. Document voltage levels at test points TP1 (encoder output) and TP3 (receiver input)–expected ranges: ±2.5 V for E1, ±1.2 V for T1. Use a spectrum analyzer with RBW ≤ 3 kHz to detect spurious emissions above -40 dBc, indicating crosstalk or improper shielding.
Follow this debugging sequence for synchronization errors:
- Verify master clock frequency (2.048 MHz ±50 ppm) with a high-precision frequency counter.
- Check frame alignment by observing the 16-bit sync pattern (0xF628 for G.704) at the demultiplexer output. A misaligned pattern suggests a faulty elastic store or incorrect pointer adjustment.
- Inspect jitter accumulation by measuring phase variation at RJ ≤ 0.05 UI (unit intervals) between adjacent frames. Excessive jitter (>0.2 UI) typically originates from noisy clock recovery circuits or damaged PLL components (e.g., VCO drift).
- For intermittent slot failures, probe individual channel paths with a logic analyzer set to 125 μs/div, focusing on the least significant bit transitions. Missing or irregular transitions point to faulty shift registers or serializers.
Replace any defective ICs (e.g., IDT 89H32S, DS21Q55) only after confirming supply voltages (+5 V, ±12 V) within ±2% tolerance and bypass capacitors (typically 0.1 μF ceramics) are intact near power pins.
