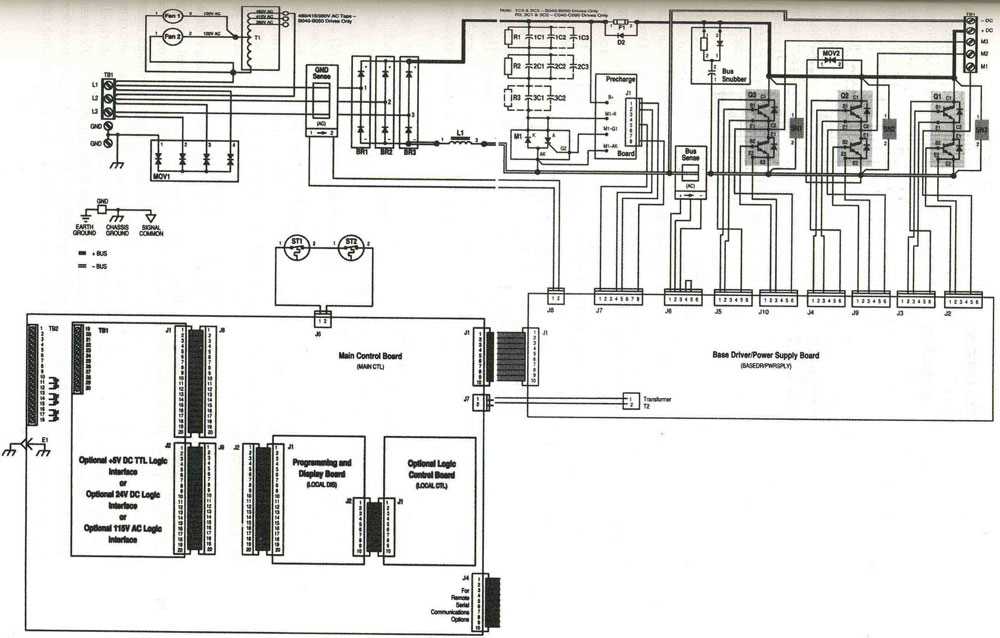

Complete AC Drive Circuit Schematic with Component Connections Guide

Begin with a three-phase input at 380V–480V AC. This voltage range suits most industrial setups where power modulation is critical. Ensure the rectifier stage uses six fast-recovery diodes rated at minimum 1.5× the peak input voltage to handle transient spikes without failure. For 400V mains, select diodes with a 1000V PIV margin to mitigate breakdown risks under heavier loads.

Between the DC bus and inverter bridges, insert a snubber network consisting of a 1µF polypropylene film capacitor in parallel with a 10Ω wirewound resistor. This dampens voltage ringing caused by parasitic inductance in the motor cables, reducing EMI emissions by up to 40% during switching transitions. Keep lead lengths under 5cm to prevent resonant oscillations above 1MHz.

Implement isolated gate drivers using optocouplers with 5kV isolation voltage and 10ns propagation delay. Infineon 1ED020I12-F2 or Toshiba TLP3546 meet these specs. Connect each gate driver output via a 10Ω series resistor directly to the IGBT terminal to minimize gate ringing. Position the driver PCB within 10cm of the power module to eliminate stray inductance-induced voltage spikes.

For PWM control, configure the microcontroller to switch at 4kHz–8kHz for motors below 10HP, and 2kHz–4kHz for larger units. Higher frequencies increase switching losses in the IGBTs linearly; a 2.2kW drive loses approximately 1.5W per 1kHz increase above 4kHz. Use dead-time between complementary PWM signals of 2µs–3µs to prevent shoot-through currents which can destroy the inverter bridge in under 50ms.

Place a thermistor rated at 100kΩ @ 25°C (e.g., Vishay NTCLE100) directly on the heatsink surface, no further than 2cm from the center of the IGBT module. Configure the microcontroller to shut down the PWM outputs when the thermistor resistance drops below 20kΩ, indicating a heatsink temperature of 85°C–90°C. This prevents thermal runaway without relying solely on software-based overcurrent protection.

Use shielded twisted pair cables for all analog sensor lines, with the shield grounded only at the control board end. Keep cable lengths below 3m for 0–10V signals and 5m for 4–20mA loops to avoid signal attenuation and noise pickup. Separate power and signal grounds internally on the PCB via a star grounding scheme at a single point near the DC bus electrolytic capacitor to eliminate ground loops.

Key Components for Designing Frequency Converter Schematics

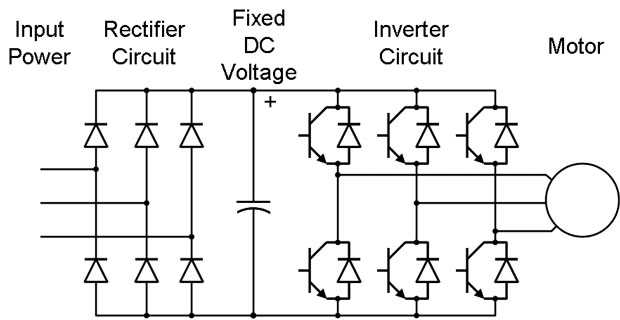

Start with a three-phase rectifier bridge using ultrafast recovery diodes (e.g., STTH30L06TV1) to convert incoming AC into stable DC. Include a smoothing capacitor bank–calculate capacitance at 80–100 µF per kW of motor power to minimize ripple voltage below 5%. For 220V systems, use 450V-rated capacitors; for 480V, opt for 630V or 700V models. Place a pre-charge resistor (100–200 Ω, 50W) in series with the capacitor bank to limit inrush current during power-up, bypassed by a relay or contactor after 1–2 seconds.

Select IGBT modules matching the motor’s current rating plus 30% overhead. For 10HP motors, IRG4PH50UD (15A, 600V) or IKW40N120T2 (40A, 1200V) are suitable. Implement snubber capacitors (0.1–0.47 µF, 1000V) across each IGBT to suppress voltage spikes during switching. Gate drivers (e.g., IR2130) must have isolated feedback loops; isolate control signals with optocouplers (HCPL-316J) or pulse transformers to prevent ground loops. Include a heatsink with thermal resistance below 0.5°C/W; for forced-air cooling, ensure airflow exceeds 20 CFM per kW.

Protection and Control Integration

Add a metal-oxide varistor (MOV) across the DC link (e.g., V25S40P) to clamp transient voltages to 1.2× the peak system voltage. Fuse the DC link with semiconductor fuses (e.g., NGTC35) rated at 1.5× the maximum continuous current. Monitor DC bus voltage with a resistive divider (100kΩ/10kΩ) feeding an ADC; set undervoltage trip at 80% nominal, overvoltage at 110%. Implement PWM switching at 4–16 kHz; use a microcontroller (STM32F407) with dead-time insertion (1–3 µs) to prevent shoot-through. Connect hall-effect sensors (ACS712) on each output phase to measure current; scale readings to ±5V for ADC input and trip at 120% rated current for >100 ms.

Key Components of an AC Variable Frequency Control Schematic

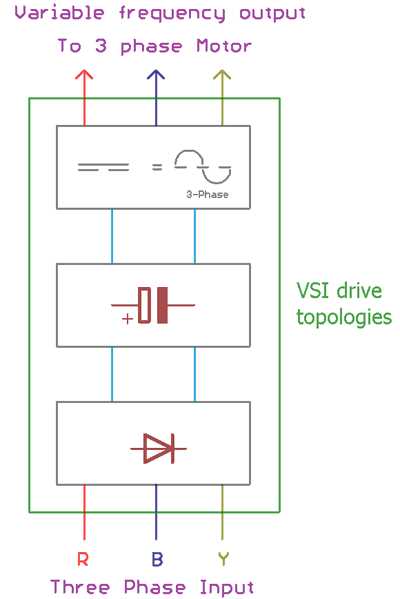

Start by identifying the rectifier stage–typically a three-phase or single-phase bridge configuration using diodes or thyristors. For industrial applications, ensure the diodes are rated at least 1.5 times the peak input voltage to handle voltage spikes and prevent premature failure. Silicon carbide (SiC) diodes offer lower switching losses compared to traditional silicon, improving efficiency in high-frequency setups.

Select the DC bus capacitors based on ripple current tolerance and voltage stabilization needs. Use film capacitors for high-power systems due to their self-healing properties and longer lifespan, while electrolytic types suffice for cost-sensitive designs. Calculate the required capacitance using the formula:

C = (I_load × Δt) / ΔV

,
where I_load is the load current, Δt is the switching period, and ΔV is the allowable ripple voltage. Overprovision by 20–30% to account for aging and temperature effects.

Inverter Stage Selection

• IGBTs vs. MOSFETs: IGBTs handle higher voltages (600V–3.3kV) and currents (up to 3600A) but have slower switching speeds. MOSFETs excel in low-voltage (≤200V) and high-frequency (>20kHz) applications, reducing audible noise in motor control.
• Driver ICs: Isolate gate drivers (e.g., ISO5851) to prevent ground loops. Use dead-time adjustment (2–5μs) to avoid shoot-through in complementary switches. Opt for drivers with built-in desaturation detection for short-circuit protection.
• Snubber Circuits: Place RC snubbers across switches to dampen voltage overshoots during turn-off. Design values using:
  R = V_clamp / I_leakage and C = (I_switch × t_fall) / (ΔV × 2).
  Polypropylene film capacitors (X2 class) are preferred for high dv/dt immunity.

Implement current and voltage sensing with galvanic isolation. Hall-effect sensors (e.g., ACS712) provide 1–3% accuracy for currents up to 100A, while current transformers are better for high-power (>200A) applications. For voltage sensing, use differential amplifiers (e.g., AD8221) with at least 80dB CMRR to reject common-mode noise. Calibrate sensors at operating temperature to compensate for drift.

Control and Protection Layers

1. PWM Generation: Use microcontrollers (STM32, TI C2000) with hardware PWM modules for precise timing. Set switching frequency between 4–20kHz–higher frequencies reduce motor audible noise but increase losses. Implement space vector modulation (SVM) for 10–15% better DC bus utilization than sinusoidal PWM.
2. Feedback Loops: Closed-loop control (V/f, sensorless vector, or field-oriented control) requires tuning PI controllers. For V/f, keep V/Hz ratio constant below base speed (e.g., 400V/60Hz = 6.67V/Hz). Use sliding-mode observers for sensorless control to estimate rotor position at low speeds (≤10Hz).
3. Protection: Add hardware overcurrent trips (e.g., MAX4372) for response times

Step-by-Step Assembly of an AC Motor Controller Power Stage

Start by securing a heatsink rated for ≥50 W dissipation per switching device. Align the IGBT or MOSFET modules on the heatsink using thermal compound (0.5 mm bead) and M4 screws torqued to 2.5 Nm. Verify isolation between module bases and heatsink with a 1 kV megohmmeter–resistance must exceed 10 MΩ. Connect the DC bus bars, ensuring polarity matches the silkscreen on the modules; use 6 AWG copper for currents above 20 A, 10 AWG for lower loads. Attach the input capacitors (2× 470 µF/450 V electrolytic) across the bus bars, maintaining

Gate Signal and Protection Integration

Solder 1 kΩ gate resistors directly to the module terminals–use 1206 SMD for frequencies above 5 kHz. Route twisted-pair wires (28 AWG) from the resistors to the gate driver PCB, keeping loops

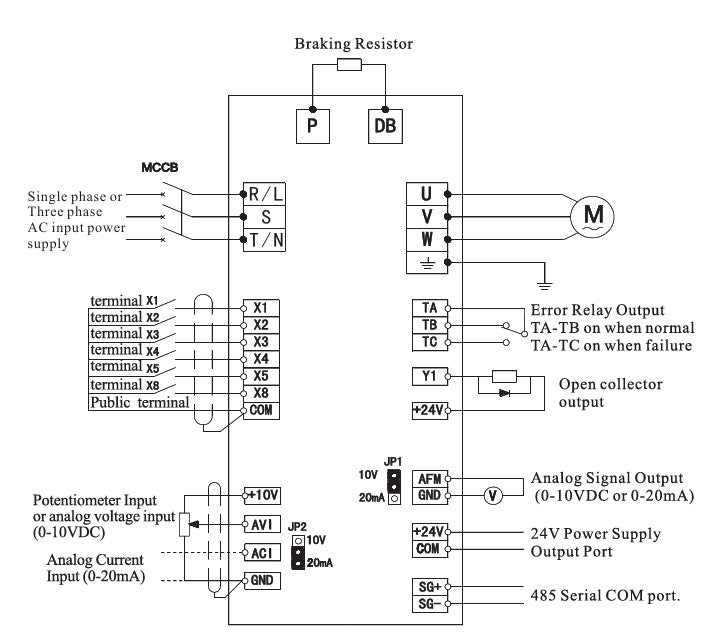

Troubleshooting Common Issues in AC Frequency Converter Wiring

Check for loose terminals before inspecting the power module. Vibration or thermal cycling can loosen connections, especially on screw-type terminals rated below 10 Nm. Use a calibrated torque screwdriver to verify tightness against the manufacturer’s specification–typically 7-9 Nm for M8 terminals. Loose wiring reduces current flow, causing intermittent operation or overcurrent faults.

Measure input voltage with a true RMS multimeter at the converter’s L1, L2, and L3 terminals. A discrepancy exceeding ±10% of the nominal line voltage often indicates wiring resistance or phase imbalance. For 400V systems, each leg should read 380-420V; readings outside this range suggest corroded splices, undersized conductors, or faulty breakers. Replace conductors if voltage drop surpasses 3% over 100 meters.

Inspect the braking resistor wiring if the converter triggers overvoltage faults during deceleration. Ensure the resistor’s wattage matches the motor’s regenerative energy–typically 75% of the motor’s rated kilowatts for standard applications. Verify the resistor’s resistance value with an ohmmeter; deviations beyond ±5% of the datasheet value indicate degradation. Replace resistors exhibiting discoloration or bulging.

Examine ground connections if the system trips earth leakage faults. The grounding conductor should terminate at the converter’s PE terminal with a cross-section no less than 50% of the phase conductors. For 16mm² phase wires, use at least 10mm² grounding. Test continuity with a megohmmeter at 500V; resistance should not exceed 0.5Ω for installations under 100 meters.

Verify shielded cable termination when electromagnetic interference causes erratic operation. The shield must connect to the converter’s ground terminal via a dedicated 360° clamp, not twisted or taped. Strip only the necessary length–typically 10-15mm–to avoid exposing excess unshielded wiring. Use ferrite cores on cable ends if high-frequency noise persists after proper shielding.

Test motor winding insulation if the converter reports ground faults on startup. Disconnect the motor leads and measure between phases and ground with a 1000V insulation tester. Minimum acceptable resistance is 1MΩ; values below 500kΩ suggest winding degradation or moisture ingress. Replace motors with consistent low readings, especially in humid environments.

Review parameter settings if the converter fails to reach target frequency. Confirm the maximum output frequency matches the motor’s nameplate–50Hz for IEC motors, 60Hz for NEMA. Check acceleration/deceleration times; rapid ramping can trigger overcurrent or under-voltage faults. Reset parameters to factory defaults if misconfiguration is suspected, then reconfigure step-by-step while monitoring error codes.
