Complete Guide to Designing a Reliable Elevator Control System Wiring Scheme

Start with a relay-based logic core for small-scale installations. Use Omron MY2N-D2 relays (12V DC coil) paired with Schneider Electric GV2ME07 circuit breakers for overcurrent protection–this combo ensures reliability in buildings up to six floors. Wire the push buttons directly to a PLC like Siemens LOGO! 8 if modularity is critical; otherwise, hardwired terminals with WAGO 221 series connectors simplify maintenance.

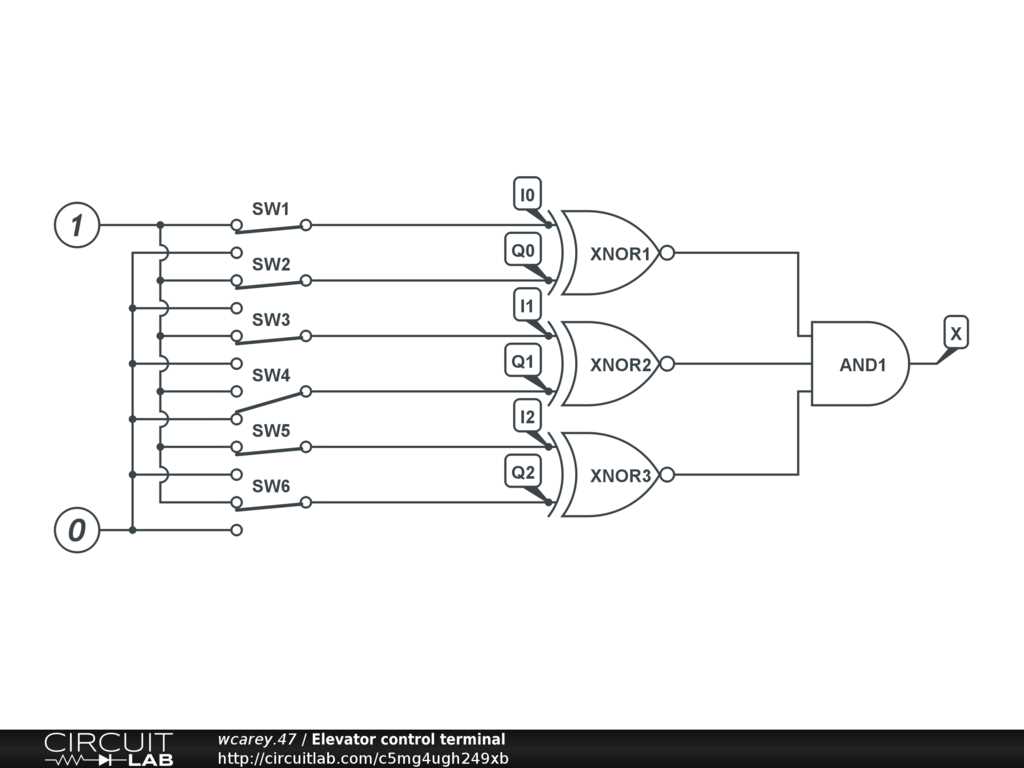

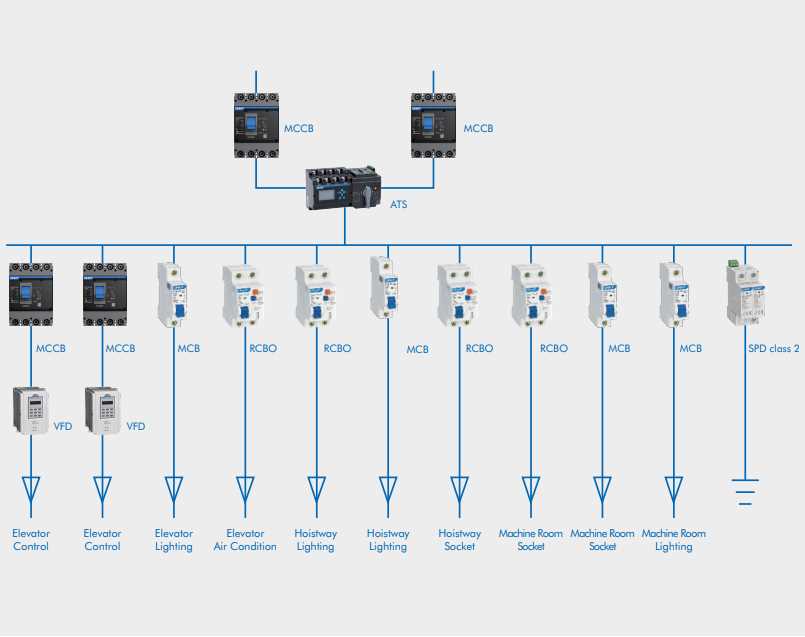

Power distribution demands precise calculation. Dedicate a 24V DC supply for control signals and a separate 400V 3-phase line for the motor drive. Use Siemens SITOP PSU6200 power supplies to handle voltage drops–critical when calls span multiple floors. Ground fault detection via ABB CM-ESS.20 relays prevents latent faults that degrade performance over time.

Safety interlocks must comply with EN 81-20. Integrate Schmersal AZM 170 door locks and ifm SM9000 safety relays for emergency stops. Bypass circuits should never rely on single points of failure; duplicate the call display panel’s feed using redundant conductors (AWG 18 minimum) to avoid signal loss during peak loads.

For variable-speed drives, Yaskawa V1000 inverters offer smoother acceleration curves than Danfoss VLT alternatives, reducing mechanical stress on cables and sheaves. Pair the VFD with a thermal overload relay (e.g., Siemens 3RB30) set to 1.15× motor FLA. Terminate shielded cables at both ends to suppress EMI–unshielded wiring risks interference with floor sensors.

Floor position sensors should be absolute encoders (ifm MHS222), not incremental, to eliminate homing runs at startup. Avoid CANopen if latency is a concern; use RS-485 Modbus RTU instead, even though it requires manual address configuration. Test every call sequence under 110% load with a Fluke 87V multimeter to verify voltage stability at the farthest push button (≤3% drop allowed).

Designing Vertical Transportation Electrical Layouts

Begin by isolating power distribution paths for car operation and safety mechanisms. Use a three-phase supply for the traction motor with a dedicated branch circuit rated at 125% of full-load current to prevent overheating. Integrate a braking resistor bank capable of dissipating kinetic energy during deceleration; select resistance values between 1.5–3 ohms per kW of motor power based on acceleration profiles. Separate low-voltage circuits (24V DC) for call buttons, indicators, and door operators to minimize interference with high-voltage components.

Implement redundant limit switches at both extremes of travel to trigger immediate cutoff–opt for solid-state relays over mechanical contacts for faster response (under 10ms) and lower maintenance. Position overload protection on the main feeder line using inverse-time circuit breakers with trip curves tailored to motor characteristics (class 10 for standard AC motors). Wire door interlocks in series with the safety chain to ensure car movement only when doors are fully sealed; verify contact resistance below 0.5 ohms during commissioning.

Fail-Safe Redundancy in Emergency Scenarios

Integrate dual microprocessors running independent algorithms for position tracking–cross-validate outputs every 20ms to detect discrepancies. Include manual lowering capability via a descent switch, bypassing automated controls but retaining speed regulation through pulse-width modulation of the drive. Specify varistors across coil terminals of contactors to suppress voltage spikes exceeding 2kV, preserving semiconductor components in the inverter stage.

Label all conductors with heat-resistant sleeves and color-code according to IEC 60446: phase conductors in black (L1), brown (L2), grey (L3), neutral in blue, protective earth in green-yellow. Terminate connections with crimp sleeves and torque to 2.5Nm ±0.2Nm for M4 terminals to prevent loosening under vibration. Verify insulation resistance between live parts and ground exceeds 1MΩ at 500V DC before energizing the system.

Critical Elements in Vertical Transit System Electronics

Install a microprocessor-based logic unit with at least 32 MHz clock speed and 512 KB SRAM to handle real-time position calculation and fault detection. Select solid-state relays with 25 A current rating and 600 V isolation voltage for actuator switching, replacing mechanical counterparts to eliminate arcing risks. Integrate dual redundant absolute encoders–optical for precision and magnetic for backup–positioned at both shaft ends for triple-redundant verification.

• Power distribution board with 400–480 VAC input handling, incorporating surge arrestors rated for 10 kA impulses and EMI filters cutting high-frequency interference by 60 dB.
• User interface panel featuring resistive touchscreens (minimum 100,000 cycle durability) with anti-glare coating and haptic feedback for accessible input.
• Safety chain loop using Category 3 architecture: two normally closed contacts per safety device (door locks, overspeed governors) wired in series, monitored by SIL 3-certified relays.
• Load weighing cells (accuracy ±0.5%) translating weight into analog outputs (4–20 mA) for dynamic braking calculations.
• Fire suppression bus bars with smoke detectors triggering automatic descent to the nearest floor at 0.6 m/s, bypassing all call buttons.

Ensure all wiring uses 1.5 mm² copper conductors with THHN insulation for main phases and shielded twisted pair (0.5 mm²) for signal lines, grounded at single point to prevent loop currents.

Step-by-Step Wiring of Vertical Transport Drive and Protection Components

Begin by connecting the main power feed to the isolator switch rated for 125% of the drive motor’s full-load current. Use 6 AWG copper conductors for systems up to 40 horsepower, upgrading to 4 AWG for larger units. Secure the neutral wire to the designated busbar with a torque of 18 inch-pounds to prevent loosening under vibration.

Route the motor cables through flexible conduit, maintaining a 2-inch clearance from all signal wiring. Terminate the phase conductors at the drive unit’s L1, L2, and L3 terminals with crimped lugs, ensuring the insulation extends 5mm into the terminal block. Cross-phase connections must be avoided–verify with a multimeter set to continuity mode before energizing.

Attach the emergency brake solenoid to the drive brake output (typically labeled BRK+ and BRK-) using stranded wire no thinner than 1.5 mm². Test solenoid operation by manually triggering the safety relay: the brake should disengage within 200 milliseconds of voltage application. Delayed release indicates improper spring tensioning or fouled brake pads.

Integrating Safety Interlocks

Wire each door interlock switch in series, starting with the top floor. Use 22 AWG tinned copper wire for contacts, splicing with solder and heat-shrink tubing. Each switch should open the holding circuit when actuated–confirm with an ohmmeter by simulating door opening. Install fire alarm shunt contacts in parallel, sized for 10A at 250VAC.

Connect the overspeed governor to the motor’s centrifugal switch via shielded cable grounded at one end only. Fasten the governor cable to the hoistway wall with non-combustible straps spaced every 1.2 meters. Adjust the governor’s trip speed to 115% of the rated car speed using the manufacturer’s calibration dial–incorrect settings void safety certifications.

Mount the final limit switches 150mm above and below the lowest and highest landing thresholds. Use reed switches for silent operation, ensuring magnetic actuation occurs within 5mm of proximity. Each switch must cut power to the drive and engage the holding brake within 100 milliseconds of activation–test by manually overriding the switches with the system in diagnostic mode.

Diagnosing Frequent Lift System Faults

Check for erroneous hall call signals by isolating the signal wires at the relay panel–oxidation at terminal blocks (especially 14-20 AWG copper) causes random registrations. Measure voltage drop across suspected contacts: values exceeding 0.5V DC (for 24V loops) indicate resistance buildup. Clean terminals with non-corrosive contact cleaner and re-tighten to 2.5 Nm torque. Replace frayed wiring if insulation resistance falls below 5 MΩ when tested at 500V DC.

• For intermittent door reversals: Verify optical sensor alignment by measuring emitter/detector gap–ideal range is 6±1 mm. Dust accumulation on sensor lenses (transmittance
• When the car creeps during leveling: Adjust traction brake air gap to 0.3–0.5 mm using feeler gauges. Check brake coil resistance (typical: 50–120 Ω for 220V AC systems); deviations suggest coil burnout or moisture ingress.
• Unresponsive floor selection: Test pushbutton circuits for cold solder joints by tapping lightly–voltage fluctuations >10% at actuation point indicate internal corrosion. Rework joints with 63/37 Sn-Pb solder and flux-cored wire (0.8 mm diameter).

Examine safety chain continuity with a multimeter in diode test mode: each normally closed contact should show 0.6–0.8V forward voltage drop. Bypass faults typically trace to misaligned door locks or jammed governor switches–verify mechanical linkage free play meets manufacturer specs (≤2 mm lateral movement).

Integrating Emergency Stop Mechanisms with Lift Signaling Networks

Position the emergency halt switch in series with the primary operation relay to ensure immediate power cutoff upon activation. Use a normally closed (NC) contact for the stop button, routed through a dedicated safety relay compliant with EN 81-20. Bypass auxiliary circuits–like door operators or ventilation–to prioritize motor disconnection. Test the latch-in behavior of the safety relay monthly to confirm it remains engaged until manually reset.

Wire the halt mechanism through redundant contacts rated for 24V DC minimum, even if the main supply operates at higher voltages. Include varistors (e.g., 14D471K) across each contact to suppress arcing; monitor varistor degradation via thermal imaging every 5,000 cycles. Avoid reliance on PLC-controlled halts–instead, route the signal path through physical relays with Class A redundancy certified to SIL 3 per IEC 61508.

Implement a dual-channel architecture: one channel triggers the motor brake solenoid, the other severs the power feed via a semiconductor switch (e.g., IXYS DE475-102N). Use twisted-pair cabling for all halt-related wiring, shielded with aluminum foil grounded at a single point near the main panel. Keep impedance below 10 ohms/Km; exceedance risks false tripping from induced transients.

Component	Voltage Rating	Current Rating	Response Time
NC Emergency Switch	250V AC/DC	10A	<20ms
Safety Relay	30V DC	6A	<15ms
Brake Solenoid	110V DC	2.5A	<30ms
Semiconductor Switch	600V	15A	<5µs

Integrate a secondary inhibit circuit: a microcontroller (e.g., STM32F334) samples halt signals at 1kHz, verifying consistency across both channels before permitting operation restart. Program the MCU to reject single-bit failures, requiring synchronized 100ms pulses from both relays to clear the fault. Log all halt events with timestamps, motor current draw, and brake pressure via RS-485 to a non-volatile memory module (e.g., Winbond W25Q128).

For hydraulic systems, add a pilot-operated check valve in the hydraulic line, activated by a 24V solenoid upon halt initiation. Ensure valve closure time aligns with motor brake engagement–typically <100ms for systems under 1000kg rated load. Test valve sealing at 1.5× working pressure biannually; replace seals if leakage exceeds 0.05cc/min.

Ground the halt circuitry at a star point near the main isolator, separate from signal grounds to prevent earth loops. Use 2.5mm² minimum copper conductors for all safety-critical paths; splice connections only via crimped lugs (DIN 46235), never solder. Maintain a 5mm creepage distance between halt wiring and other cables in the conduit.

Install a mechanical interlock on the main panel door: opening the door must physically disconnect the halt circuit’s DC supply, preventing unintended re-energization during maintenance. Label all halt-related components with phosphorescent markers compliant with ISO 17398 for visibility during power outages. Train technicians to verify circuit de-energization with a Category III multimeter (e.g., Fluke 87V) before servicing.

Failure Mode Mitigation

Equip each halt relay coil with a flyback diode (1N4007) to suppress voltage spikes; position diodes within 50mm of the coil terminal. For vertical transport exceeding 30 meters, add a gravity-operated brake backup: a spring-loaded pawl engages a ratchet wheel on the drive pulley if both primary and secondary halt signals fail. Test pawl engagement annually using a 120% overload simulation.
