Complete NEMA 6 30R Wiring Guide with Step by Step Diagram
Start by shutting off power at the circuit breaker to avoid electrical shock. Verify the circuit is dead using a non-contact voltage tester. Strip 0.75 inches of insulation from the ends of a 10 AWG copper wire–this matches the outlet’s 30-amp rating. Bend the exposed wire into a hook to secure it under terminal screws.
Attach the black (hot) wire to the brass-colored screw labeled “X” or “Line 1.” Tighten the screw to 12–15 inch-pounds of torque. Next, connect the red (hot) wire to the second brass screw marked “Y” or “Line 2.” Ensure no bare strands extend beyond the screw to prevent short circuits.
The green or bare (ground) wire secures to the green screw–this is non-negotiable for safety. For a neutral connection (if required), link the white wire to the silver terminal, though this specific outlet type rarely uses it. Double-check each connection for frayed strands or loose screws.
Mount the outlet into the electrical box, ensuring no wires pinch between the device and the box edges. Secure it with the provided screws, then reattach the cover plate. Restore power at the breaker and test with a multimeter or plug-in load tester: 240V between hot terminals, 120V from each hot to ground. Any deviation indicates wiring errors–retrace steps immediately.
Use a torque screwdriver for terminal screws; over-tightening can strip threads, while under-tightening risks arcing. Avoid aluminum wire–copper is mandatory for this ampacity. If extending a circuit, install a junction box every 10 feet using listed connectors, not electrical tape.
For 3-phase applications (rare for this outlet), consult the equipment manual–incorrect wiring will destroy motors. Label the circuit at the breaker panel as “Dryer/Appliance” with red permanent marker. Keep a copy of the configuration taped inside the panel door for future reference.
How to Correctly Install a 6-30 Outlet for High-Power Devices
Begin by shutting off power at the circuit breaker–verify absence of voltage with a multimeter before handling any conductors. The 6-30 plug configuration requires two hot terminals (X and Y) and a ground (G). Strip 0.75 inches of insulation from each wire, ensuring copper strands remain untarnished for optimal conductivity.
Connect the black (or red) wire to terminal X, the white wire (reidentified with black tape) to terminal Y, and the bare or green wire to the grounding screw. Torque screws to 12-15 inch-pounds; overtightening deforms threads, while loose connections risk arcing. Secure the outlet to the electrical box, maintaining a 1/8-inch gap from combustible surfaces.
For 240-volt applications, confirm the circuit uses 10 AWG copper wires rated for 30 amps–undersized conductors cause overheating. Split-phase systems derive 240V across X and Y; measure voltage between terminals to confirm proper potential before energizing. Avoid backfeeding–use a dedicated breaker, never tie into existing circuits.
Ground fault protection isn’t required for fixed appliances but install an in-line fuse or disconnect switch for safety. Test continuity between ground and neutral at the outlet; resistance above 1 ohm indicates a faulty ground path. Label the breaker panel clearly–mark “240V – 30A” to prevent accidental service by untrained personnel.

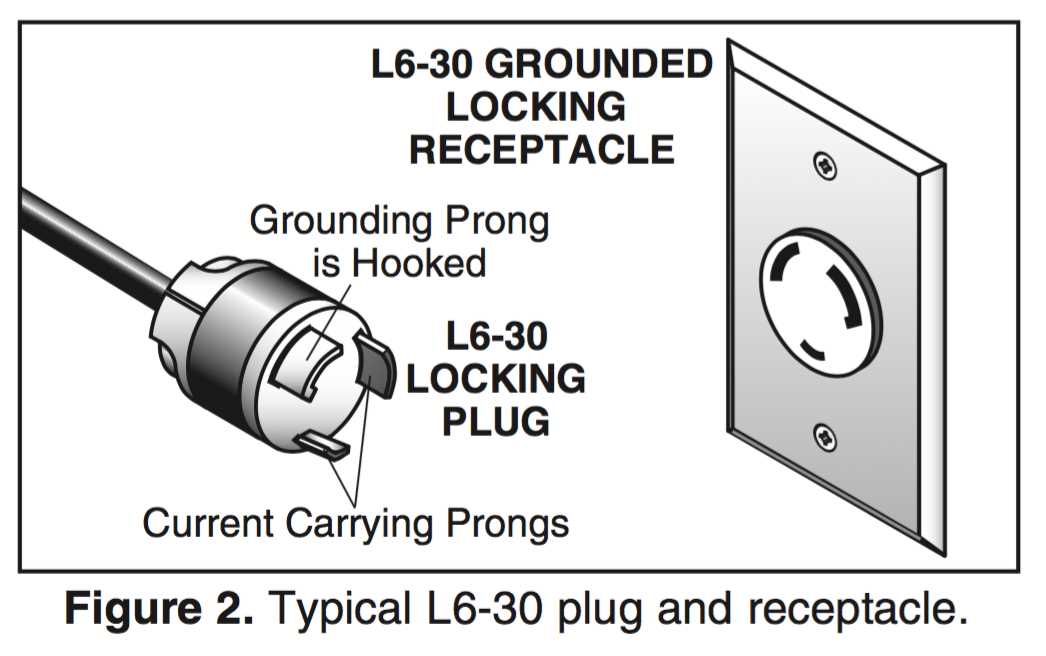

For temporary setups, use a locking plug to prevent dislodging; twist-lock designs resist vibration better than standard connectors. Inspect cables for wear–replace frayed wires immediately. Store unused outlets in a dry environment to prevent corrosion; oxidized terminals increase resistance by 20-30%.
If replacing an older outlet, photograph the existing setup before disassembly. Note wire colors–some installations use non-standard hues. After installation, energize the circuit, then verify voltage with a clamp meter while the device draws load. Fluctuations above ±5% indicate an upstream issue requiring investigation.

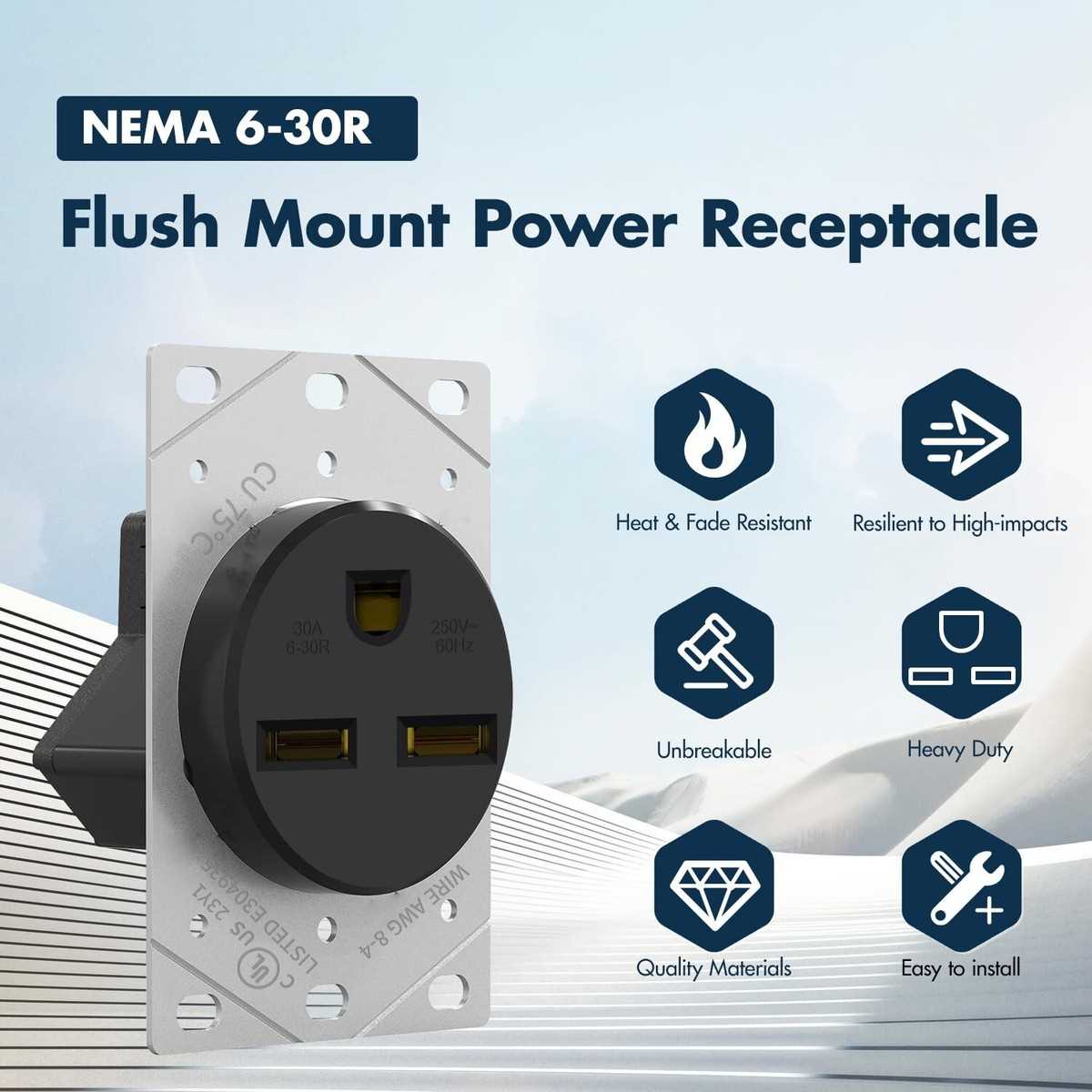

How to Identify 6-30R Receptacle Terminals
Locate the grounding terminal first–it’s the U-shaped slot at the bottom of the outlet, wider than the others. This designation ensures safe dissipation of stray current and prevents equipment damage. Verify its connection point on the device; it’s typically marked with a green screw or a bare wire hookup.
Examine the two vertical slots–these correspond to the hot and neutral terminals. The right slot (when viewed face-on) carries the live conductor, while the left serves as the return path. Use a multimeter to confirm voltage: expect 240V AC between the vertical slots and zero between either slot and ground. Misidentification risks short circuits.
| Terminal | Slot Position | Wire Color (US) | Voltage (Hot-to-Hot) |
|---|---|---|---|
| Hot (X) | Right vertical | Red or black | 240V |
| Hot (Y) | Left vertical | Black | 240V |
| Ground | U-shaped bottom | Green or bare | 0V |
Check for embossed labels on the outlet housing–manufacturers often stamp “X,” “Y,” and “G” near each terminal. If labels are absent, reference the device’s mating plug: the wider vertical blade aligns with the neutral slot, but in 6-30 configurations, both vertical slots are identical hot legs. This symmetry distinguishes it from 120V variants.
Test terminals with a non-contact voltage detector before handling wires. Even with power disconnected, residual charge can linger in capacitors. Probe each screw terminal individually–hot legs should trigger the detector, while ground remains inert. If readings are inconsistent, inspect the circuit breaker for proper tripping or wire continuity at the junction box.
Document terminal assignments with a permanent marker on the outlet’s faceplate or a label inside the electrical box. Include wire gauge (minimum 10 AWG for 30-amp circuits) and torque specifications (typically 15-20 lb-in for terminal screws). Store this information in the panel directory for future maintenance or troubleshooting.
Avoid reversing polarity–while 6-30 outlets tolerate swapped hot legs due to their 240V-only design, miswiring ground to a hot conductor creates a lethal shock hazard. Verify connections with a socket tester displaying “correct” for both hot legs and ground before energizing the circuit.
Connecting Wires to a 6-30 Outlet: Precise Installation Guide
Before handling any electrical terminal, verify the circuit breaker is off. Use a non-contact voltage tester to confirm zero current in the wires. Cut three 12 AWG conductors–two hot wires (black, red) and one green grounding conductor–to the required length, stripping ¾ inch of insulation from each end. Twist stranded copper strands tightly to prevent fraying when inserting into terminals.
Identify the outlet’s L-shaped neutral slot (if present) and two straight slots for live connections. The 6-30 configuration lacks a neutral; both straight slots connect to separate hot legs. Insert the black wire into the left (X) terminal screw and the red wire into the right (Y) terminal screw. Tighten screws to 12–15 inch-pounds using a torque screwdriver–over-tightening can strip threads; under-tightening risks loose connections.
- Align grounding conductor with the U-shaped terminal at the bottom or side of the outlet.
- Loop the bare copper end clockwise around the screw before tightening.
- Ensure no insulation is under the screw head; stray strands can cause shorts.
- Fold excess wire neatly into the electrical box to avoid pinching when securing the outlet.
Double-check connections with a multimeter set to continuity mode. Probe between each hot terminal and ground–expect no reading. Probe between the two hot terminals; resistance should match the appliance’s specifications (typically 0–1 ohm for direct connections). If readings deviate, re-examine terminal tightness and wire seating.
Secure the outlet to the electrical box with mounting screws, aligning it vertically to prevent strain on wires. Snap the cover plate into place, ensuring no gaps. Label the circuit breaker with the outlet’s purpose and amperage rating (30A). Restore power only after verifying all steps–test operation with a compatible device, monitoring for unusual heat or noise during initial use.
Tools Required for Safe Heavy-Duty Receptacle Installation
Use a non-contact voltage tester rated for 240V circuits to verify power is off before touching any conductors. Models like the Fluke 1AC-A II or Klein NCVT-3 detect even residual currents, preventing accidental contact with live wires during termination. Ensure the tester’s batteries are fresh–and test it on a known live circuit first–as false negatives increase risk.
A digital multimeter with true RMS capability is mandatory for measuring voltage between phases and from each phase to ground. Set the meter to 600V AC range; readings should be consistent (typically 208V, 220V, or 240V depending on supply) with no significant drop. Deviations indicate loose connections or supply issues that must be corrected before energizing.
Employ crimping tools with insulated terminal dies specifically sized for 10 AWG copper wire, which is standard for this outlet type. Avoid generic pliers; ratcheting crimpers like the IWISS IWS-2820M ensure proper compression, preventing terminal overheating. Inspect crimps under bright light for uniform deformation and no exposed wire; failed crimps must be cut and redone.
Torque screwdrivers meeting UL 486A standards eliminate guesswork in tightening terminal screws. Set the driver to 12-15 in-lbs for terminal blocks; insufficient torque causes loose connections, while overtightening strips threads. Mark each screw with bright paint after tightening to ensure no terminal is missed during final inspection.
Insulated wire strippers with adjustable depth stop prevent nicking conductors, which weakens them under thermal cycling. For 10 AWG, set the strip length to 0.5 inches; longer exposures increase short-circuit risk. Immediately twist strands lightly before inserting into terminals to prevent stray wires from causing shorts. Discard nicked or kinked wire segments.
A fiberglass fish tape with at least 3/16-inch diameter and non-conductive leader simplifies pulling cable through conduit without damaging insulation. Lubricate the tape lightly with wire-pulling compound for runs exceeding 20 feet. Avoid excessive force–if resistance is felt, inspect the conduit path for obstructions before proceeding.
