Step-by-Step Guide to Air Horn Relay Wiring for Vehicle Installation
Use a 40-amp mechanical switch rated for inductive loads to prevent contact welding under high inrush currents typical for compressed gas alert systems. A 12V automotive-rated switch costs less than $8 and handles repeated activation cycles better than lighter-duty alternatives.
Route the power feed from the battery’s positive terminal through a 20A fuse positioned within 15 cm of the connection point. This protects the conductor against short circuits during installation errors or accidental pinching of 14-gauge copper wire.
Install the triggering control wire between the switch and the signal button using weatherproof connectors (e.g., heat-shrink terminals) if exposed to exterior conditions. A misplaced splice often causes intermittent failures; test continuity with a multimeter before securing the wire loom.
The switching unit’s coil draws 150–200 mA when engaged; verify the vehicle’s charging voltage stays above 12.8V during idle to avoid unintended dropout. Heavy-duty alternators prevent voltage sag, which can disable the device during simultaneous engine cranking.
Ground the compressed gas sounder directly to the chassis using an 8-gauge cable and a star washer under the mounting bolt. Paint-free contact surfaces ensure conductivity; corrosion inhibitors degrade signal reliability over time.
For dual-tone setups, use separate 30A switches wired in parallel with individual fuses. Cross-firing between circuits can overload the wiring harness and trip the fuse repeatedly if not isolated properly.
Setting Up a Loud Alert System Using a Switching Device

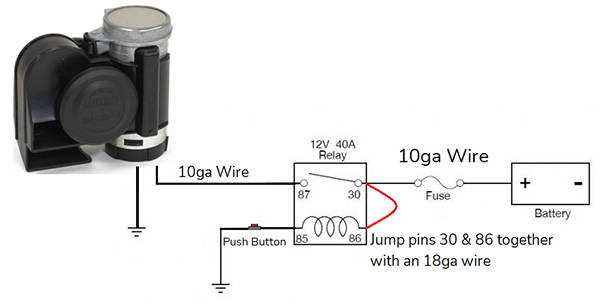

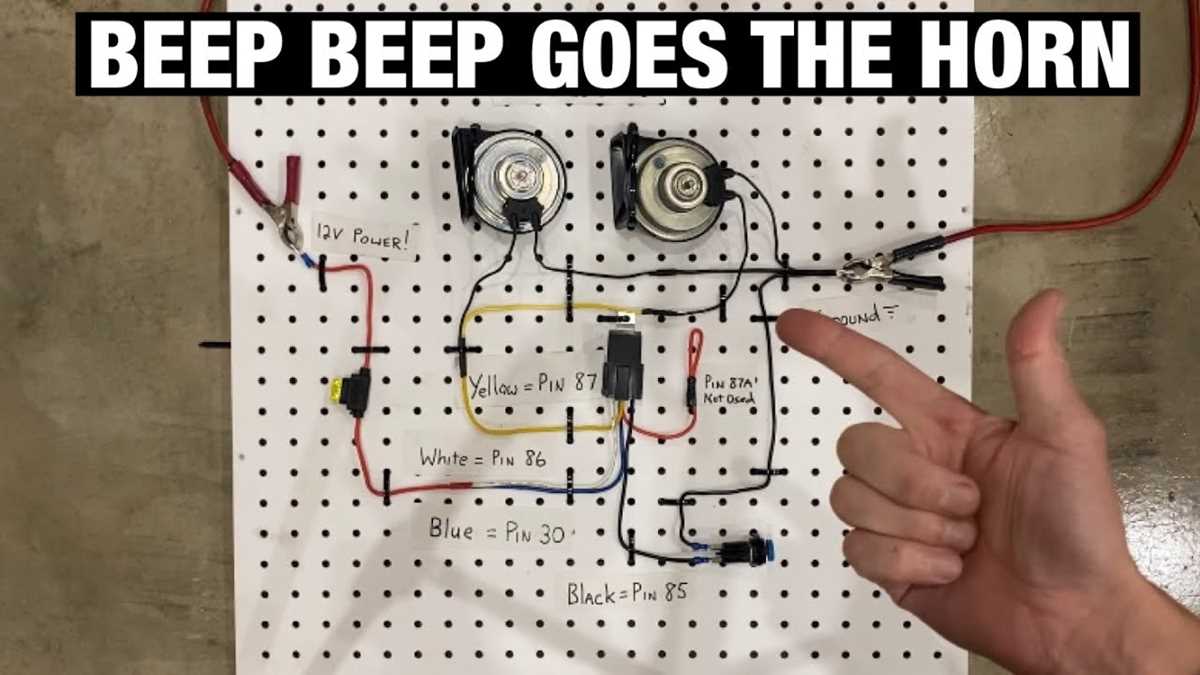

Connect the positive terminal of the battery directly to the 30-pin on the electromagnetic switch using 10-gauge copper wire to handle high current without voltage drop. Avoid thinner wires–12-gauge may overheat under sustained operation, especially in systems exceeding 20 amps.
Attach the control circuit between the trigger source (momentary push-button or dashboard switch) and the 85-pin on the switching device. Ensure the trigger voltage matches the coil rating–typically 12V for automotive setups. Install a 1N4007 diode across the 85 and 86 pins to suppress voltage spikes that degrade the coil over time.
Route the 87-pin from the switching device to the compressor’s positive input, securing the connection with solder and heat-shrink tubing to prevent corrosion. Ground the compressor and switching device to the chassis using star washers to minimize resistance–poor grounding causes intermittent failure.
For dual-trumpet installations, split the output from the 87-pin using a bus bar rated for 40+ amps. Verify each branch has a 15-amp fuse within 7 inches of the connection point to meet SAE J1128 standards and prevent fire hazards.
Test the installation with a multimeter before finalizing connections. Check for continuity across the 30 and 87 pins when the trigger is engaged–voltage should read near battery level. If readings drop below 11.5V, inspect terminals for oxidation or loose crimps.
Mount the trumpet assembly on a rigid bracket spaced at least 12 inches from any moving components to avoid fatigue cracks from vibration. Seal electrical junctions with dielectric grease if operating in humid or off-road conditions.
Selecting the Optimal Switching Device for Audible Signal Upgrades
Opt for a 12V automotive-rated electromechanical activator with a minimum 30A continuous current capacity–SPST (Single Pole Single Throw) models like the Bosch 0 332 209 150 or Tyco V23134 handle 40A inductive loads reliably. Verify the coil resistance (typically 70-120Ω) to ensure compatibility with OEM or aftermarket control units; lower resistance draws excessive current, risking switch burnout. Prioritize sealed units with epoxy-coated coils to resist moisture intrusion, extending operational life in humid or off-road environments.
Critical Specifications to Validate
| Parameter | Recommended Value | Acceptable Range | Failure Risk Below Threshold |
|---|---|---|---|
| Contact Rating (DC) | 40A | 30-50A | Premature pitting/arcing |
| Coil Voltage | 12V | 9-16V | Insufficient magnetic pull |
| Pull-In Time | <15ms | 10-25ms | Delayed signal activation |
| Dielectric Strength | 500VAC (1min) | 300-1000VAC | Short circuits under load |
For high-demand configurations–such as dual-tone compressors requiring 15A+–upgrade to SPDT (Single Pole Double Throw) relays like the Hella 8RA 009 226-011, which feature dual contacts rated at 70A each. Avoid solid-state alternatives: their lack of mechanical separation risks voltage leakage that can damage sensitive trigger circuits. Always install a 1N4007 flyback diode across the coil terminals to suppress voltage spikes exceeding 100V, preserving both the relay and connected vehicular electronics.
Step-by-Step Electrical Hookup Guide for Audible Alert System with Switching Device
Begin by securing the power source’s positive terminal to the switching device’s 30 input. Use a fuse holder rated for 10-15 amps within 7 inches of the battery to prevent short circuits. Connect the fuse holder’s output directly to the switching device’s input terminal using 12-gauge stranded copper cable. Ensure all crimp connectors are soldered for durability.
Route the ground cable from the alert system’s negative terminal to the vehicle’s chassis using a 14-gauge wire. Choose a clean, unpainted metal surface for the grounding point, avoiding areas prone to corrosion or vibration. Secure the connection with a star washer and tighten to 10-12 Nm torque to ensure minimal resistance.
Switching Device Configuration
Attach the trigger wire (typically a 16-18 gauge) from the switching device’s 85 terminal to the vehicle’s accessory circuit or a dedicated switch. For manual activation, integrate a toggle or push-button switch with a 3-amp fuse inline. Verify the circuit’s functionality with a multimeter before proceeding–look for 12V at the 86 terminal when the switch is engaged.
Connect the switching device’s 87 terminal to the alert system’s positive lead. Use dielectric grease on all terminal connections to prevent moisture ingress. If the setup includes multiple sound emitters, splice the 87 output into parallel circuits, maintaining uniform wire gauge to avoid voltage drop.
- Label every connection with heat-shrink tubing or adhesive tags to simplify future troubleshooting.
- Test all joints under load–activate the system for 3-5 seconds while monitoring for excessive heat or sparking.
- Avoid routing cables near sharp edges, exhaust components, or moving parts to prevent insulation damage.
For automated activation (e.g., door switches or proximity sensors), wire the 85 terminal to the sensor’s output. Most sensors require a pull-up resistor (1k-2.2k ohms) between the 85 terminal and a 12V source to ensure reliable switching. Confirm sensor voltage levels match the switching device’s specifications–some solid-state devices operate at 5V.
Finalize the setup by securing all cables with zip ties or conduit every 12 inches. Use grommets when passing through metal panels to prevent chafing. Perform a final test by activating the system at full load; listen for irregularities like popping sounds or uneven volume, which may indicate loose connections or inadequate grounding.
Determining Suitable Electrical Supply and Protection for Loud Alert Systems
Select a 12V vehicle battery as the primary supply–most automotive applications rely on this voltage level. For motorcycles or compact setups, verify compatibility; some use 6V systems, which require a voltage converter to avoid damaging components. Check the battery’s cold cranking amps (CCA) rating; reserve at least 10-15% of its capacity for accessories to prevent strain during engine starts.
- Passenger cars: 40-60A fuse upstream of the control module.
- Trucks or heavy-duty equipment: 70-100A fuse, depending on current draw.
- Motorcycles: 15-25A fuse for smaller units, 30A for high-output models.
Measure the installed device’s amperage draw under load. Most compact pneumatic warning devices consume 5-12A, while larger dual-trumpet kits reach 20-30A. Add a 20-30% safety margin when selecting fuse ratings to account for inrush current during activation. A 20A device, for example, should use a minimum 25A fuse.
Identify the ideal power tap. The vehicle’s fuse box offers convenient access, but avoid circuits shared with critical systems like fuel pumps, ECUs, or headlights. Locate an unused or accessory slot–consult the owner’s manual for fuse allocation. If no suitable slot exists, splice into a dedicated 10AWG or thicker wire directly from the battery terminal, ensuring proper insulation and vibration resistance.
- Disconnect the negative battery terminal before making connections.
- Use a multimeter to confirm voltage at the chosen tap (12.6V fully charged, 13.8-14.4V during engine operation).
- Strip 6-8mm of wire insulation, crimp with ring or spade terminals, and secure with dielectric grease to prevent corrosion.
- Wrap all splices in adhesive-lined heat shrink tubing or high-quality electrical tape.
- Test activation before finalizing mounting–listen for consistent tone and observe any voltage drop across connections.
For vehicles with start-stop systems (common in modern European brands), connect to a circuit unaffected by engine shutdown. These systems cycle power to conserve energy, which may inadvertently disable accessories. Use a relay-triggered line from the ignition-switched bus bar or a separate deep-cycle auxiliary battery if prolonged use is required.
In marine or off-road environments, account for voltage fluctuations. Saltwater corrosion and vibration accelerate connector degradation. Upgrade to tinned copper wiring, marine-grade connectors, and waterproof fuse holders. For boats, link to the house battery bank with an inline 150A breaker to handle the higher current demands of onboard 12V compressors.
Avoid tapping into circuits governed by body control modules (BCMs). These microprocessors regulate low-current functions like interior lights or seat heaters and may trigger error codes if overloaded. Instead, trace wiring harnesses backward to find a direct, unregulated supply–often available behind the dashboard or near the firewall. Label all connections with heat-shrink markers for future diagnostics.
