Complete 2009 Ford F-150 Wiring Diagram and Electrical Guide

Locate the main power distribution box under the hood–marked as “PDB” on most repair manuals–for immediate access to high-voltage circuits. Remove the protective cover by releasing the three retaining clips. Fuse #42 (30A) controls the fuel pump relay; verify continuity here first if the engine cranks but fails to start. Toyota and GM trucks use a similar layout, but Ford’s PCM connectors (pins T17 and T31) handle idle air control, unlike competitors who bundle this with the throttle body.

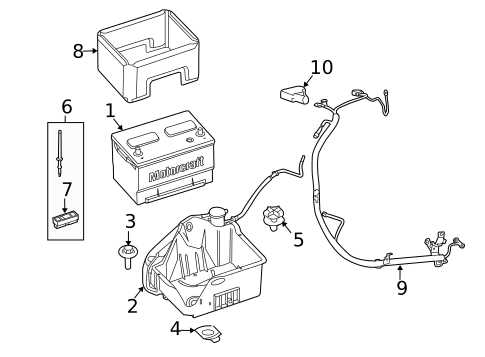

Ground points cluster near the battery tray (G101) and driver-side kick panel (G202). Corrosion at G202 disrupts instrument cluster backlighting; sand the contact surface with 400-grit paper and apply dielectric grease before reassembly. The alternator’s B+ terminal wires (two red 10-gauge cables) tie directly into fuse #4 (175A maxi-fuse)–any voltage drop here exceeds Ford’s 0.3V threshold, triggering the “battery” warning light even when the charging system tests within spec.

For the door ajar circuits, trace the orange/yellow wire from the door module (located behind the inner door panel) to the generic electronic module (GEM). Pin 27 on the GEM (black/light blue) outputs the signal; test with a probe at 12V ground reference. Replace the GEM if readings pulse erratically–common failure after 130k miles, causing dashboard warnings unrelated to latch switches.

Heated seat elements draw 15A per side via the left and right seat relays (fuses #119 and #120). The gray/red wire feeds the passenger-side relay; check for open circuits if only one side heats. Ford’s design splits the ground return (black/white) to a single chassis point at the transmission crossmember–a weak link for high-resistance faults.

Blower motor speeds switch through the high-speed blower relay (R-201). The yellow/pink wire carries the activation signal from the HVAC control module; replace the relay if the blower operates only on “high” speed. Avoid splicing into the brown/red wire (low-speed resistor pack output)–Ford’s 23-step PWM requires exact resistance values to avoid overheating the dash-mounted module.

Ford Truck Electrical Schematics: Hands-On Troubleshooting

Locate the under-hood fuse box first–it houses critical relays for the engine control module and fuel pump. Label each wire with masking tape before disconnecting; use the color codes from the service manual’s legend (e.g., Y/W = yellow with white stripe). Check continuity with a digital multimeter set to ohms; resistance above 5 ohms on a 12-gauge connection signals oxidation.

Trace circuits from the battery back to ground points near the firewall. Corroded terminals often hide under red rubber boots; apply dielectric grease after cleaning with a wire brush. For intermittent issues, wiggle the connector while monitoring voltage–dropouts reveal pin corrosion or broken strands inside the wire’s insulation.

Key connector pinouts for the powertrain module (PCM) include:

• Pin 78: Throttle position sensor return
• Pin 30: Variable valve timing solenoid power
• Pin 10: Crankshaft position sensor signal

Each pin should hold 12V or 0V; fluctuations indicate a failing PCM or short.

Inspect the instrument cluster harness behind the dashboard. Disconnect the battery negative terminal first to prevent airbag deployment. Use a probe light to verify signal voltages–dim lights reveal poor grounding at the G402 location (driver’s kick panel). Replace any heat-damaged wiring near the exhaust manifold with 14-awg silicone-jacketed wire.

Common error codes link to specific circuits:

1. P0300: Random misfire–examine coil packs and spark plug wires for fraying.
2. P0171: Lean bank 1–test the mass airflow sensor’s 5V reference wire.
3. P0443: EVAP purge control–check solenoid resistance (22-30 ohms).

Reset the PCM after repairs by removing the 10-amp “keep alive” fuse for 10 minutes.

For trailer harness repairs, bypass factory modules and wire directly to the taillights. Use a 7-way plug with dedicated circuits for brakes (blue) and reverse lights (green). Test each circuit with a circuit tester before connecting the trailer–backfeed can damage the truck’s body control module.

Document every repair on the schematic with a highlighter. Note modifications like aftermarket stereo wiring (constant 12V vs. switched access). Store the annotated diagram in a zip-lock bag under the driver’s seat for quick reference during roadside diagnostics.

Finding Key Electrical Link Points in the Truck’s Core System

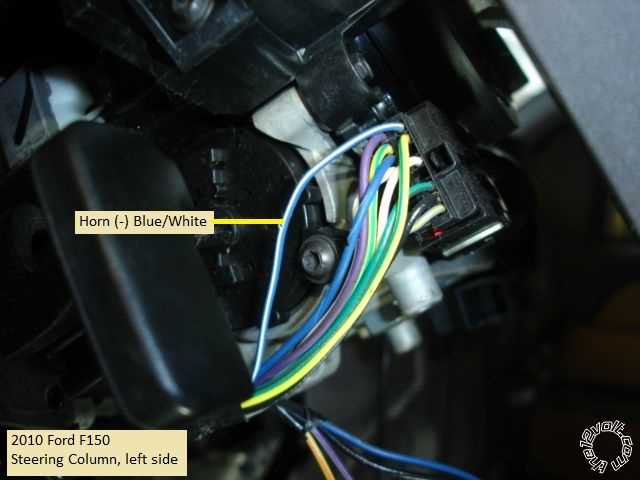

Begin beneath the dashboard on the driver’s side. Remove the lower trim panel by prying the plastic clips along the edges–five clips secure this section. You’ll expose the primary bundle of cables leading to the fuse box and the central junction node. Trace the thickest harness; it splits into three main branches: one to the instrument cluster, another to the steering column controls, and the third extending toward the firewall. Label these branches before disconnecting anything to avoid misrouting during reassembly.

• Locate the firewall grommet: a rubber bushing where cables pass from the cab to the engine bay. This is often hidden behind the brake booster. Push the harness aside to reveal the grommet–inspect it for cracks, as moisture ingress here causes intermittent failures.
• Identify the powertrain control module (PCM) connectors: two large plugs (usually white and gray) near the center of the firewall bundle. They attach to a metal bracket bolted to the firewall. Unclip the retaining tabs and pull straight out–never wiggle side-to-side, as the pins bend easily.
• Check the ground points: three main clusters exist–one near the PCM bracket, one under the battery tray, and one behind the left headlight. Corrosion here mimics sensor failures; clean with a wire brush and apply dielectric grease.

The engine bay harness splits into sub-harnesses for sensors, injectors, and ignition coils. Find the coil pack connectors first: six small plugs on the valve covers (three per bank). Each has a unique shape–match to the cylinder number using the service manual’s pinout. The injector plugs are smaller and grouped near the fuel rail; label them sequentially from front to rear to prevent misfiring codes.

Behind the glove box lies the body control module (BCM). Remove the glove box by squeezing the side tabs inward–no tools needed. The BCM is a rectangular box with two large connectors. The upper connector handles lighting and accessories; the lower one manages door locks and HVAC. Disconnect the battery before unplugging either to prevent voltage spikes damaging the module.

1. Track the rear harness route: it runs along the frame rail, encased in corrugated tubing. Look under the truck–four retaining clips hold it in place. The harness splits at the fuel tank, sending branches to the fuel pump, rear lights, and trailer module.
2. Inspect the trailer connector: water intrusion corrodes these pins frequently. Remove the connector cover; clean terminals with contact cleaner. Swap the relay in the fuse box if trailer lights flicker or fail.

Decoding Electrical Schematics: Engine and Powertrain Wire Colors

Locate the primary harness near the firewall–this cluster uses standardized color markings distinct from body circuits. Engine control circuits, including the PCM outputs, typically employ dark green with a light blue stripe (DG/LB) for transmission solenoid signals, while oxygen sensor heating circuits rely on white with an orange stripe (W/O). For powertrain ground references, follow solid brown (BN) wires, often bundled with black (BK) secondary grounding points. Ignore aftermarket labels; Ford’s factory coding prioritizes clarity with two-color designs, where the base hue identifies the circuit family and the stripe denotes function specificity.

Transmission wiring differentiates further: pressure control solenoids use light green with a red stripe (LG/R) in most configurations, while shift solenoids switch to dark blue with a yellow stripe (DB/Y). The torque converter clutch circuit defaults to brown with a white stripe (BN/W). Verify these against the service manual’s pinout charts for your powertrain variant–early 5.4L engines may substitute a tan stripe (TN) for certain sensor feeds. For harness routing under the intake manifold, trace purple with a green stripe (P/GN) for the fuel rail pressure sensor, as this segment frequently suffers from abrasion and shorts.

Cross-reference suspect circuits with a multimeter before replacement–voltage readings should match the following: 0V at BN/BK ground wires, 5V reference at LG/R or DB/Y during solenoid activation, and 12V ignition-sourced power at W/O during cranking. Isolate harness sections exhibiting intermittent faults by flexing each conduit while monitoring live data; chafed wires often reveal themselves through brief signal drops. Use heat-shrink tubing rated for 125°C on repairs, and avoid electrical tape–factory splices employ ultrasonic welding for corrosion resistance.

Solving Frequent Circuit Problems with Schematic Reference

Locate ground points G101, G102, and G104 near the driver-side firewall–these are frequent culprits for intermittent failures. Use a multimeter set to continuity mode: probe between suspect ground lugs and the battery negative terminal while wiggling connectors. Resistance exceeding 0.2 ohms signals corrosion or loose mounting bolts, which demand immediate cleaning with 120-grit sandpaper followed by dielectric grease application. Pay special attention to G104, as its proximity to the brake booster often traps moisture from condensation, accelerating oxidation.

Trace circuit 36 (ignition-switched power) from the under-dash fuse box through the main harness to the transmission range sensor connector. A voltage drop test here reveals hidden issues: with the key on, probe each splice junction (S103, S112) against chassis ground. Readings below 11 volts indicate corroded splice sleeves or pinched cables–common at the transmission tunnel bulkhead where harness bends exceed 45 degrees. Red terminals in the 5-way connectors (C201) are prone to fretting; verify female contacts’ grip by inserting a male terminal and checking retention force. Replace any connector showing less than 2.5 N pull resistance.
