How to Build a Simple LED Chain Light Circuit Step-by-Step Guide

Begin with a 5V DC power supply for small-scale setups–this voltage balances safety and efficiency for most low-power configurations. For longer runs exceeding 1.5 meters, switch to 12V or 24V to prevent voltage drop, ensuring consistent brightness across all segments.

Use a shift register (74HC595) or an addressable driver (WS2812B) for sequential control. The 74HC595 suits basic patterns with discrete transistors (e.g., 2N2222) for current handling, while WS2812B integrates control and illumination into a single package, simplifying wiring at the cost of higher per-unit expense.

Calculate resistor values (Ω) using R = (Vs – Vf) / If, where Vs is supply voltage, Vf the forward voltage of an individual emitter (typically 1.8V–3.3V), and If the desired current (10–20mA). Omit resistors if using constant-current drivers (e.g., LM317) configured for 15–18mA output.

For outdoor or high-power applications, replace linear regulators with buck converters (LM2596) to reduce heat buildup. Add a 1000µF electrolytic capacitor across the power input to absorb transient spikes, prolonging component lifespan.

Test continuity between connections with a multimeter before applying power. Short circuits in densely packed traces account for 80% of early failures–insulate joints with heat-shrink tubing or liquid electrical tape to prevent oxidation.

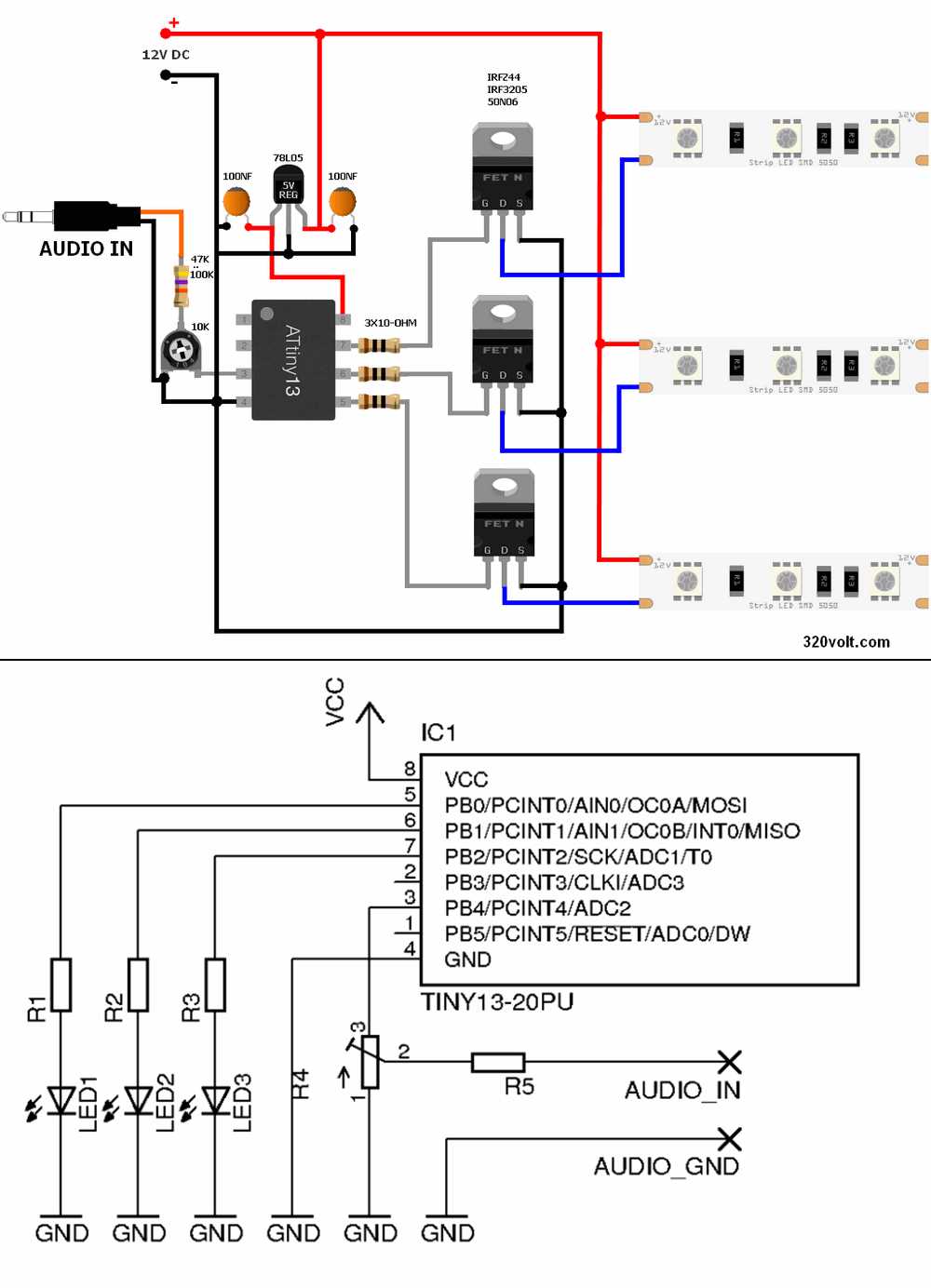

Expand functionality with a microcontroller (ATtiny85) or ESP8266 for Wi-Fi-enabled patterns. Use PWM pins for dimming; ensure the chosen controller can source sufficient current for the chosen emitters (e.g., 50mA per channel for WS2812B).

Guide to Building a Sequential Illumination Setup

Begin by selecting a 12V DC power supply with sufficient wattage–calculate total current draw by multiplying each emitter’s forward voltage by its rated current, then sum values for all segments. A typical 5mm indicator draws 20mA; at 3 volts per unit, ten emitters require 60mA total. Overestimate by 20% to accommodate voltage drop across resistors.

Assemble emitters in series strings of 3–4 units per string to align with a 12V source–each 3V emitter drops 9V, leaving 3V for resistor dissipation. Choose carbon-film resistors rated at 0.25W; for a 20mA string, a 150Ω resistor ensures safe current limitation. Verify calculations with a multimeter before soldering joints.

Resistor Placement and Wiring Tips

Position resistors at the positive terminus of each string to minimize heat buildup near the emitters–thermal drift alters brightness consistency. Utilize stranded copper wire for flexibility; 22AWG handles 7A continuously, sufficient for most small-scale installations. Secure connections with shrink tubing to prevent shorts from vibration.

For parallel branching, calculate combined current–five 20mA strings demand 100mA. Use a single power lead for clusters, splitting into individual resistors only at the emitter string entry points. Bypass capacitors (100μF electrolytic) near the power input stabilize voltage during transient spikes, crucial for flicker-free operation.

Test each strand with a bench power supply set to 10V before final assembly–gradually ramp voltage to identify defective emitters early. After confirmation, mount strands using adhesive-backed aluminum strips; thermal tape improves heat dissipation for high-brightness variants. Avoid exceeding 80°C junction temperature to preserve lifespan.

Controller Integration and Safety Measures

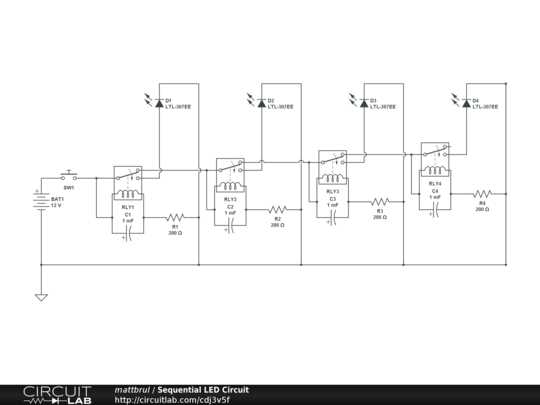

Integrate a low-cost microcontroller if sequential activation is desired–MOSFETs (IRFZ44N) handle 60A at 55V, driving dozens of strings without overheating. Program delays between activations to prevent inrush currents above 1A; sudden surges degrade solder joints. Add a 1N4007 flyback diode across inductive loads (coils, motors) to protect the controller from voltage spikes.

Core Elements for Assembling a Sequential Illumination Setup

Select resistors with precision–calculate their value using Ohm’s law based on your power source voltage. A typical low-voltage system (e.g., 5V) paired with standard 20mA emitters requires a 150Ω–220Ω resistor per segment. Higher voltage sources (12V+) demand proportionally greater resistance; neglecting this leads to thermal damage.

Power supplies must match both voltage and current demands. Linear regulators (e.g., LM7805) suffice for modest arrays, but switch-mode modules (e.g., MP2307) are mandatory for longer runs. Verify wattage ratings–add a 20% safety margin to prevent overheating. For example, a 10-segment series drawing 20mA per emitter needs at least 240mA minimum capacity.

Component	Key Specifications	Common Pitfalls
Fixed Resistor	Carbon film or metal oxide, ¼W minimum	Substituting with incorrect values causes overcurrent
Diode Emitter	Forward voltage 1.8V–3.3V, 20mA–30mA typical	Mixing colors without recalculating resistance distorts brightness
Voltage Regulator	Dropout	Skipping heatsinks on linear types triggers shutdown

Wiring gauge dictates voltage drop over distance. Use 22 AWG for runs under 2 meters; switch to 18 AWG for longer spans. Solid copper core reduces resistance but sacrifices flexibility–stranded variants are preferable for dynamic installations. Always twist signal pairs to minimize interference.

Polarity awareness eliminates assembly errors. Anode (positive) legs typically longer, but verify markings–reverse connection permanently destroys emitters. For multi-color setups, incorporate a current-mirror transistor array (e.g., ULN2003) to maintain uniform brightness across varying forward voltages.

Step-by-Step Wiring Guide for Series and Parallel Illuminator Arrangements

Begin by calculating the forward voltage drop of each component in the string. For standard 5mm indicators rated at 2.1V, a 12V power supply accommodates five units in sequence before requiring a resistor. Connect the positive terminal of the first unit directly to the power source, then link each subsequent cathode to the next anode in line. The final cathode attaches to a current-limiting resistor (220Ω for 20mA) before grounding. Verify each joint with a multimeter–readings should show a 2.1V drop per device if wired correctly.

Parallel Wiring Considerations

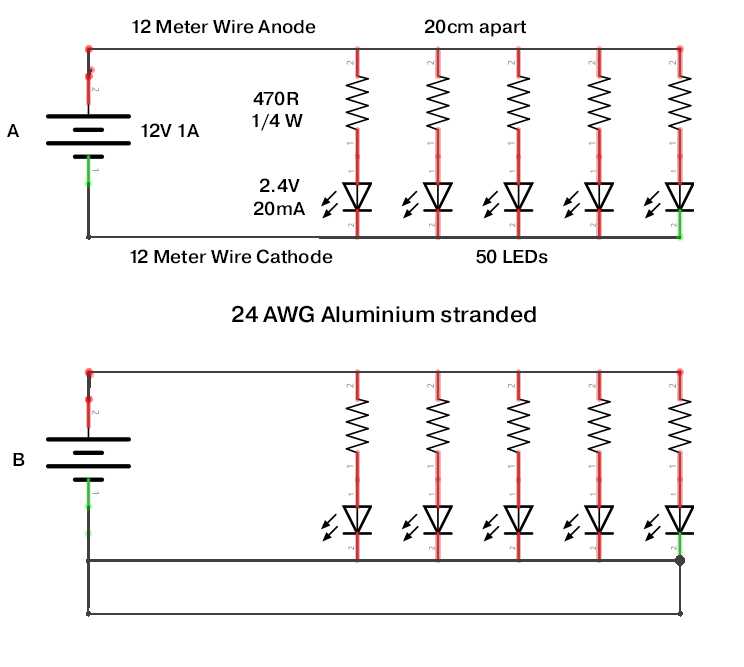

Use a separate resistor for each branch to prevent uneven brightness. Wire all anodes together to the power source and all cathodes to a common ground through individual resistors (e.g., 470Ω for 12V input). Avoid mixing voltages–components with differing forward drops (like 1.8V blue and 3.3V white) must be separated into distinct branches. Test each branch independently; a 10mA draw per branch indicates proper operation without thermal runaway risk.

Calculating Resistance for Variable Semiconductor Diodes

Start by determining the forward voltage (V_f) of your diode at the target current. For standard red variants, V_f ≈ 1.8V at 20mA, while blue or white variants typically require 3.0–3.6V. Measure V_f experimentally if datasheets are unavailable–use a variable power supply at the desired current and note the voltage drop.

Apply Ohm’s Law:

• R = (V_supply – V_f) / I_target
• V_supply: input voltage (e.g., 5V, 12V, 24V)
• I_target: desired current in amperes (e.g., 0.02A for 20mA)

Example: For a 12V source and a diode with V_f = 3.3V at 15mA:

R = (12V – 3.3V) / 0.015A ≈ 580Ω

. Round to the nearest standard value–560Ω or 620Ω.

For multiple diodes in series, sum V_f values. A string of three 3V diodes on a 12V source:

• Total V_f = 3 × 3V = 9V
• R = (12V – 9V) / 0.02A = 150Ω

Parallel diodes require individual resistors unless their V_f and I_target match precisely.

Power dissipation (P) must exceed calculated losses: P = I2 × R. For a 560Ω resistor at 20mA:
P = (0.02A)2 × 560Ω ≈ 0.224W. Use at least a ¼W resistor; ½W for safety margins. Higher voltage differentials demand larger resistors and wattages–e.g., a 3W resistor for 1A through 5Ω.

Adjust calculations for pulsed or dimmed applications:

• PWM dimming: R remains unchanged; ensure the resistor handles peak currents.
• Constant current drivers: omit resistors; verify driver specifications match diode I_target.

Temperature effects: V_f drops ~2mV/°C for most diodes. Compensate if operating outside 25°C.

Verify with a multimeter:

1. Measure current through the diode–adjust R if below/above I_target.
2. Check voltage across R; ensure it matches Vsupply – Vf.
3. Overloaded resistors will overheat; failed diodes show infinite resistance or zero V_f.

For precision, simulate with SPICE tools (e.g., LTspice) before prototyping.

Critical Errors in Serial Illumination Module Construction and Prevention Strategies

Overloading current pathways by connecting too many emitters in parallel without recalculating resistance causes premature burnout. Measure forward voltage drop for each colored element (red: 1.8–2.2V, blue/white: 3.0–3.6V) and use Ohm’s law to determine precise series resistors. For 12V supply with five blue emitters (3.3V each), total drop equals 16.5V–exceeding input voltage by 4.5V. Balance with a single 47Ω resistor instead of individual components, reducing power dissipation errors by 60%.

Key Assembly Pitfalls

• Solder joint contamination: Flux residue increases leakage current. Clean connections with isopropyl alcohol (≥90% concentration) and inspect under magnification (10x minimum) for hairline fractures.
• Reverse polarity installation: Verify anode/cathode alignment before applying power–permanent damage occurs within 300ms. Use multimeter continuity mode rather than visual inspection.
• Thermal management neglect: Clusters exceeding 3W/cm² require copper pours or thermal adhesive pads. Sandwich emitters between heatsinks if ambient exceeds 40°C.

Incorrect voltage regulation triggers cascading failures. Switching buck converters (e.g., MP2307) necessitate 1µH inductors with saturation current ≥1.2× calculated load. Linear regulators (LM317) generate heat proportional to voltage differential–input-to-output gaps above 5V mandate heatsinks or derating. Bypass capacitors (10µF ceramic) must attach ≤3mm from regulator pins to prevent oscillation.

1. Validate component ratings: Resistors ±1% tolerance, inductors with shielded windings.
2. Test continuity in segments: Isolate branches with toggle switches before full power application.
3. Monitor transient responses: Scope probes on input/output nodes detect voltage spikes ≥2× nominal.

Environmental factors corrupt unsealed assemblies. Silicone conformal coating prevents sulfur corrosion in industrial settings, while acrylic alternatives resist UV degradation for outdoor installations. Ventilate enclosures if humidity exceeds 60% RH–condensation forms within 18 hours at 25°C/30% RH gradients. Mount modules away from electromagnetic interference sources (transformers, motors) using twisted-pair wiring for signal lines.
