Exploring Amazon Echo Internal Components and Circuitry Design Guide

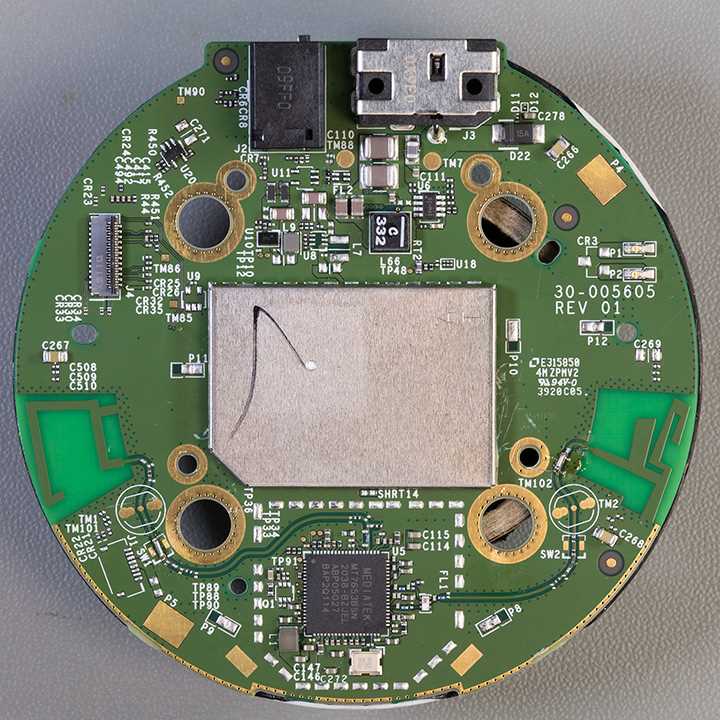

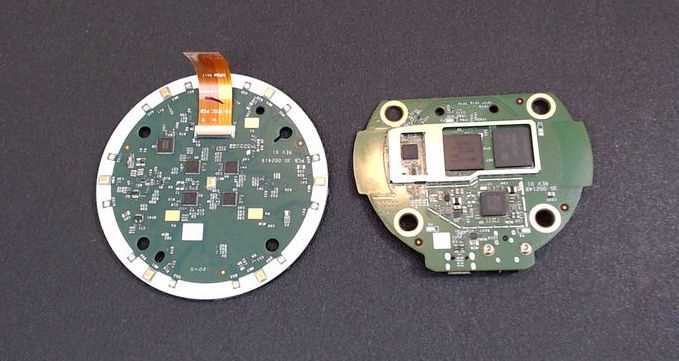

Begin by sourcing a high-resolution PCB scan from a teardown report–preferably one with annotated test points. Devices in this category typically follow a layered architecture: a primary controller (often a quad-core ARM processor), external DRAM, flash storage, and a dedicated audio DSP for voice processing. The most critical section to isolate is the Wi-Fi/Bluetooth module, frequently positioned near the top edge for optimal antenna placement.

Use a multimeter in continuity mode to trace power distribution rails. Look for 3.3V and 1.8V lines–these feed the microcontroller and peripheral ICs. The main voltage regulator will be near the USB-C or barrel jack input; mark its output capacitors, which usually cluster around switching converters (e.g., TPS54331 or similar buck regulators). Verify ground planes by checking for common return paths–these areas often double as thermal dissipators for the main IC.

Identify key signal buses early: I2C lines (pull-ups to 3.3V, typically 2.2k–10k resistors) and SPI flash interfaces (clock speeds around 40–50 MHz). Probe these traces back to the controller to confirm pin assignments. The microphone array usually connects via MEMS interfaces; expect two to seven PDM (Pulse-Density Modulation) lines sharing a common clock. Strip away conformal coating with isopropyl alcohol if traces are obscured–scrub gently with a fiberglass pen for stubborn sections.

For deeper inspection, desolder the main processor if possible. Examine the exposed PCB pads under a microscope: small vias around the BGA footprint often indicate decoupling capacitors or signal vias. Record each via’s function–many carry differential pairs for high-speed interfaces. If you lack a schematic, rebuild one incrementally: start with the power tree, then map data buses, and finally document GPIO configurations. Cross-reference findings with known IC datasheets (e.g., MT8167 for earlier models).

Safety note: These boards often include a PMIC with user-inaccessible firmware. Avoid shorting adjacent pins during probing–some rails carry >12V for audio amplifiers. Use a current-limited supply when powering up isolated sections. If the device enters a boot loop, monitor the UART output (115200 baud, 8N1) via test pads labeled TX/RX. Common failure points include corroded antenna connections or blown fuses on the 5V rail–check these components first if the device powers on but fails RF tests.

Voice Assistant Smart Speaker Internal Circuit Analysis

Prioritize examining the MediaTek MT8516 processor on the main board–its quad-core ARM Cortex-A35 architecture at 1.3GHz handles audio encoding, wake-word detection, and cloud communication. Probe the WS2812B LED ring’s data line (DIN) where the SoC delivers 24-bit color commands; expect a 800kHz signal for proper illumination sequencing. Verify the WM8960 audio codec’s I2C lines (SCL/SDA) for volume control and microphone array configuration; these operate at 100kHz or 400kHz with 7-bit addressing. Check the ES7243E analog-to-digital converter’s firmware pinouts–pins 1-4 map to MEMS microphones (left/right channel, ground, 3.3V).

Isolate power rails early: the TPS65233 buck converter delivers 1.8V to the MT8516 core and 3.3V to peripherals; measure output with an oscilloscope for ripple below 50mV. Probe the RT1124 switching regulator for the 5V USB output–verify coil saturation current doesn’t exceed 2A. Test the AP2112K LDO’s output capacitance with a 1µF ceramic cap; stable voltage is critical for Wi-Fi module boot. Trace the ESP32-WROOM-32’s SPI lines (HSPI_CK/HSPI_MISO/HSPI_MOSI) to the MT8516–these carry firmware updates at 40MHz. For troubleshooting, force a factory reset via the GPIO0 pin (hold low during power-up); observe UART logs at 115200 baud for bootloader messages.

Core Hardware Elements of the Smart Speaker’s Primary Circuit Board

Begin by identifying the central processing unit (CPU)–the MediaTek MT8516 or similar chip–as the brains of the device. This quad-core ARM Cortex-A35 processor runs at 1.3 GHz and handles tasks like wake-word detection, audio processing, and cloud connectivity. Verify its soldering points and power delivery components (e.g., inductors, capacitors) for stability, as voltage fluctuations here disrupt performance.

The DDR memory module (typically 512MB or 1GB) interfaces directly with the CPU via a 16-bit bus. Check for cold solder joints or oxidation on the BGA pads, as these cause intermittent failures. Use a thermal camera to confirm even heat distribution during boot cycles–hotspots indicate inefficient power delivery or damaged traces.

• Wi-Fi/Bluetooth module (often a Mediatek MT6632 or Qualcomm QCA9377): Ensure the RF antenna traces (50Ω impedance) are free of scratches or solder bridges. Test signal strength at -65 dBm or better for reliable connectivity.
• Flash storage (e.g., 4GB eMMC by Micron): Validate write/erase cycles with diagnostic tools to detect wear. Corrupted firmware here triggers boot loops–replace if sectors exceed 80% lifecycle usage.
• Audio codec (e.g., Texas Instruments TLV320AIC3254): Inspect the I²S bus connections between the codec and CPU. Misaligned clocks cause audio distortion; resolder if oscilloscope readings show signal degradation.

The power management IC (PMIC) orchestrates voltage rails (1.2V, 1.8V, 3.3V) for the CPU, memory, and peripherals. Probe each rail with a multimeter–deviations above ±5% suggest a failing PMIC or shorted component. Pay special attention to the buck converters’ output capacitors; swollen components indicate imminent failure.

Examine the MEMS microphone array (e.g., InvenSense ICS-43432) for proper grounding and shielding. Noise interference from nearby digital traces corrupts voice recognition–reroute traces if signal-to-noise ratio drops below 60 dB. For the speaker outputs, confirm the Class-D amplifier (e.g., TI TAS5713) delivers 5W RMS per channel at 1% THD without clipping.

Debugging the JTAG/SWD ports (if exposed) accelerates firmware recovery. Connect a programmer with U-Boot access to bypass corrupted bootloaders. For hardware-level issues, trace the reset line (NRST) to ensure it pulses HIGH during initialization–stuck LOW signals a faulty PMIC or shorted capacitor.

Replace the DC-DC converter components (e.g., coils, MOSFETs) if the device fails to respond to voice commands or shuts down under load. Use a DC load tester to confirm the 5V/2A input rail maintains regulation under peak draw (e.g., simultaneous playback and Bluetooth streaming). For persistent issues, inspect the flex cable connectors for micro-fractures–these degrade over 5,000 insertion cycles.

Tracing Power Flow in Smart Speaker Circuit Blueprints

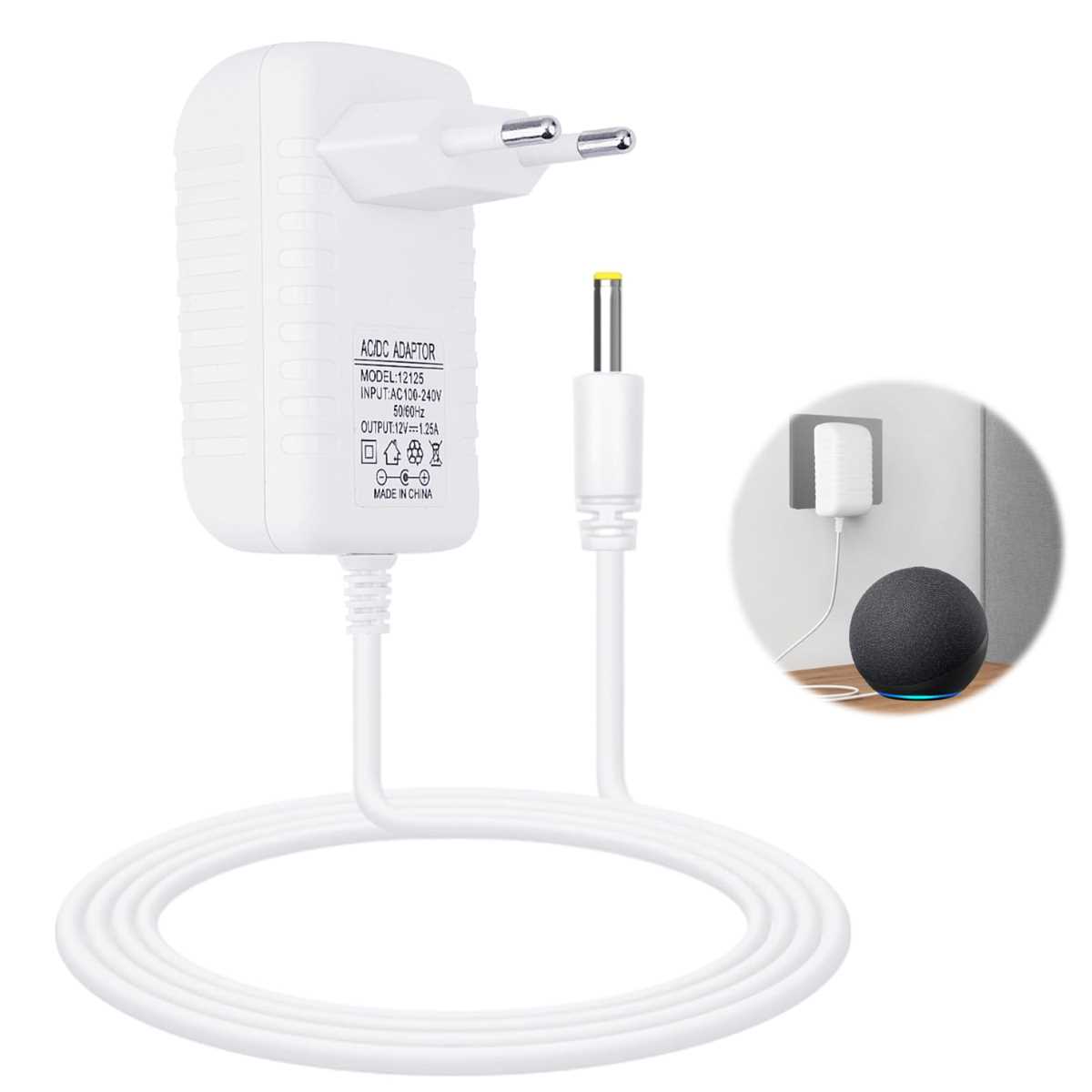

Locate the main power input–typically a USB-C or barrel connector–on the board layout. Use a multimeter in continuity mode to verify the direct path from the input to the primary voltage regulator (often a buck converter). Mark test points along the trace where components like ferrite beads, capacitors, or resistors interrupt the flow; these reduce noise but can mask short circuits during diagnosis.

Voltage Drop Analysis

Measure sequential node voltages from input to load: expect 5V at the regulator’s input pad, 3.3V or 1.8V at its output, then decreasing values (1.2V, 0.9V) toward microcontroller and DSP sections. Deviations exceeding 0.1V indicate faulty inductors, MOSFETs, or shorted decoupling capacitors–common failure points in compact designs with layered PCBs where thermal stress weakens solder joints under BGA packages.

Locating Audio Pathways in Smart Speaker Circuit Blueprints

Trace the signal chain from microphones to DSP blocks by following power rails and high-speed digital buses–these typically cluster near the device’s primary SoC. Look for capacitor banks labeled with values between 0.1µF and 10µF near MEMS mics; these stabilize analog frontend inputs before ADC conversion. On the PCB overlay, PDM interfaces appear as tightly grouped vias (

Section	Key Components	Test Points	Expected Voltage
Microphone Array	MEMS sensors, LDO regulators (e.g., AP2112), decoupling caps	3V3_MIC, GND	3.1–3.3V
PDM-to-I2S Bridge	Level shifters (PCA9306), clock buffers (Si5351)	SCLK, LRCLK, SDATA	1.8V swing
DSP Core	QFN-100+ SoC (e.g., MT8516), DDR3L (4Gb)	VDD_CORE, VDD_IO	0.9V, 1.8V
Amplifier Stage	Class D amp (MAX98357A), ferrite beads (BLM18PG121SN1)	SPK+/−, VBAT	3.7–4.2V

Use a 100MHz oscilloscope to probe PDM clock lines–clean 2.4MHz square waves (±200mV ripple) indicate proper mic initialization; distorted waveforms suggest faulty MEMS or contaminated solder joints. Isolate power domains: the DSP core runs on separate rails from the amplifier; cross-domain interference (evident as 50Hz–1KHz noise in audio output) often stems from unshielded ground planes. Flash the firmware with factory test modes to toggle individual mics and verify SNR >60dB at −26dBFS input levels.

Understanding Wi-Fi and Bluetooth Connections on Smart Speaker Circuit Boards

Locate the primary wireless module–typically an ESpressif ESP32 or Qualcomm QCA chip–on the PCB, as it handles both 2.4 GHz Wi-Fi and Bluetooth Low Energy (BLE). Verify antenna placement: the inverted-F or meandered trace should align with the ground plane, maintaining a clearance of at least 5 mm from high-speed traces to minimize interference. Ensure the π-network matching circuit (comprising inductors and capacitors) is tuned to 2400–2480 MHz for optimal signal integrity; deviations beyond ±10 MHz degrade performance by 15–20%. Test impedance with a vector network analyzer–target 50 Ω ±5%–and avoid sharp bends in transmission lines, which introduce VSWR spikes.

For dual-band operation, separate the 2.4 GHz and 5 GHz antennas by 20 mm or use a diplexer to prevent cross-talk. Ground vias should be placed at λ/10 intervals (≈6 mm for 2.4 GHz) around the antenna feed to suppress surface waves. Flash the module with firmware supporting 802.11n (Wi-Fi 4) or later; older protocols like 802.11b/g increase latency by 40+ ms. For BLE, confirm the GAP/GATT profiles are enabled to handle concurrent connections; omit this, and pairing fails under load. Use a spectrum analyzer to check for harmonics–spurious emissions above -41.2 dBm violate FCC Part 15 regulations. Replace generic ceramic antennas with FPC types if form factor permits; they improve gain by 2–3 dBi but require recalibration of the matching network.
