Visual Guide to Circuit Breaker Pattern Architecture with Flow Diagram
Implement a three-state failure protection mechanism in high-load environments to prevent cascading outages. Define clear thresholds: 5 failed requests within 10 seconds triggers a shift from closed (normal operation) to open (rejection mode). After 30 seconds, transition to a half-open state, allowing a limited number of test requests. If these succeed, revert to normal; if not, restart the cycle.
Integrate latency monitoring alongside error counts. Configure systems to trip when response times exceed 99th percentile values by 3x, preventing slow dependencies from degrading overall performance. Store state in a shared cache (e.g., Redis) with TTL matching timeout periods to ensure consistency across multiple service instances.
Visualize the state machine as a directed graph with nodes for each operational mode and labels indicating triggering conditions. Use color coding: green for normal operation, red for rejection mode, yellow for recovery evaluation. Annotate edges with specific metrics (error rates, latency percentiles) to document exact failure criteria. Maintain audit logs of all transitions with timestamps and triggering data for post-incident analysis.
For microservices architectures, nest multiple failure gates to isolate different dependency types. Apply stricter thresholds (e.g., 2 failures/5 seconds) for critical paths like payment processing, and more lenient rules (e.g., 10 failures/60 seconds) for non-essential features like recommendations. Implement bulkhead patterns alongside failure gates to reserve resources for high-priority requests during outages.
Visualizing Fault Tolerance Mechanisms

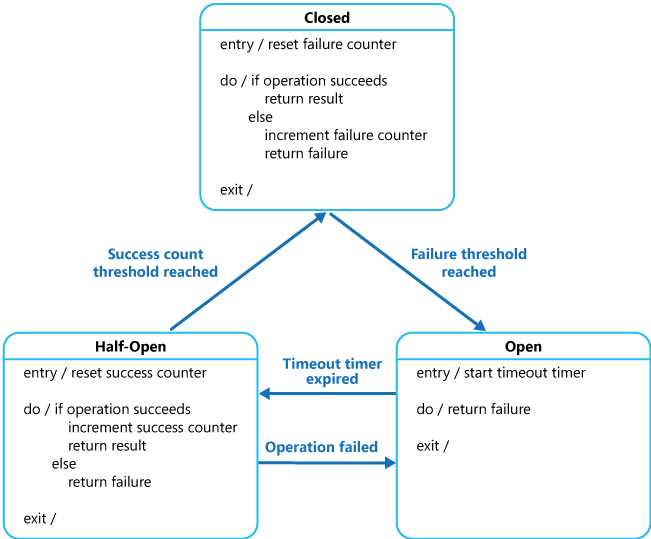

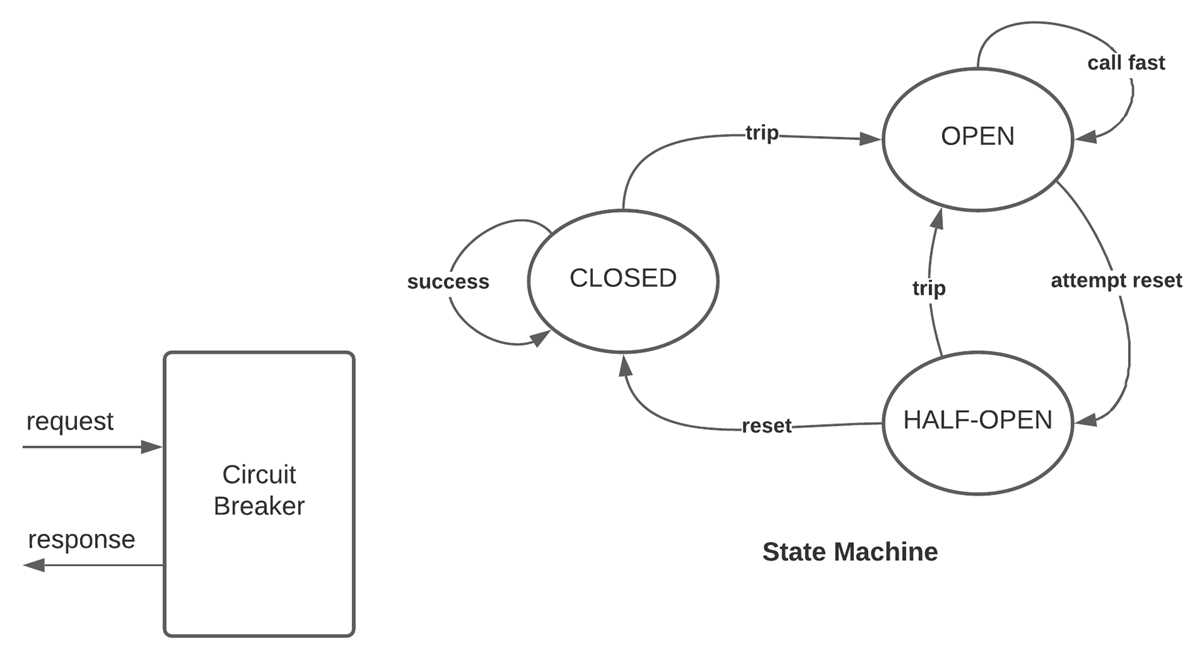

Use a three-state finite automaton to represent the lifecycle stages in resilience schemes. The initial Closed state permits all operations to pass through, logging failures internally until a predefined failure threshold (e.g., 5 consecutive failures in 30 seconds) triggers a transition to the Open state. Here, all operations immediately raise a ServiceUnavailableException for a fixed duration (typically 1-60 seconds). After timeout expiration, the scheme enters the Half-Open state, allowing a limited number of test operations–if all succeed, it reverts to Closed; otherwise, it flips back to Open.
| State | Operation Behavior | Transition Trigger |
|---|---|---|
| Closed | All calls executed; failures internally tracked | Failure counter ≥ threshold |
| Open | All calls rejected instantly | Timeout expiration |
| Half-Open | Limited test calls allowed | Test calls succeed / fail |
Annotate state transition diagrams with exact thresholds, timing intervals, and fallback logic. Color-code execution paths: green for successful operations, orange for fallback invocation, and red for forced rejection. For distributed tracing compatibility, embed correlations IDs at each state change and instrument with OpenTelemetry for latency measurement between state transitions–critical for diagnosing cascading failures in microservice meshes.
Core Elements of a Resilience Mechanism Visualization

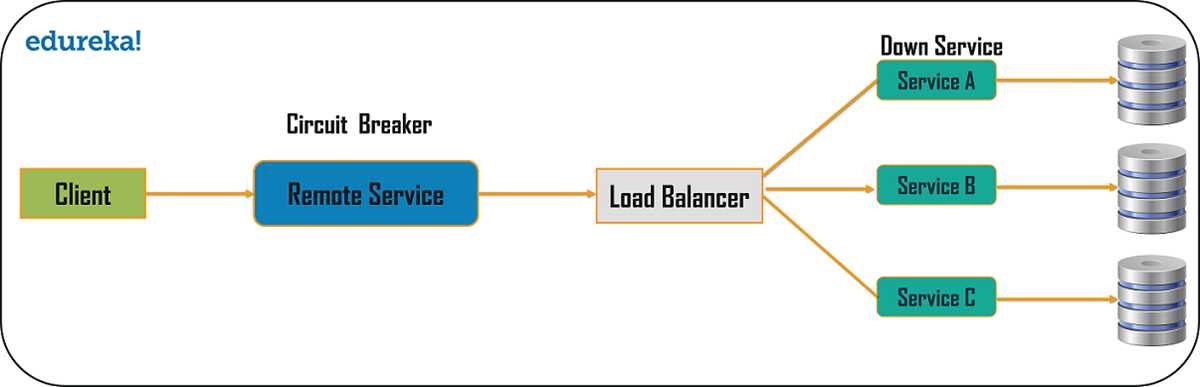

Define the command executor as a distinct block in your schematic. This component initiates requests to external services or systems and must include error-handling logic. Label it clearly–for example, “Service Invoker”–to distinguish it from fallbacks and status trackers. Avoid nesting it within other components, as this obscures its role in failure scenarios.
Separate the failure detector into its own module. This element monitors response metrics–latencies, error rates, or timeout counts–and triggers state transitions. Use thresholds like “5 errors in 10 seconds” or “95th percentile latency > 1s” to make criteria explicit. Place it adjacent to the invoker to emphasize its rapid feedback loop.
Illustrate three operational states as connected nodes: Closed (normal operation), Open (full rejection), and Half-Open (probationary phase). Annotate each with transition rules–e.g., “Open → Half-Open after 30 seconds”–and use directional arrows to show progression. This clarifies the recovery workflow without relying on color alone.

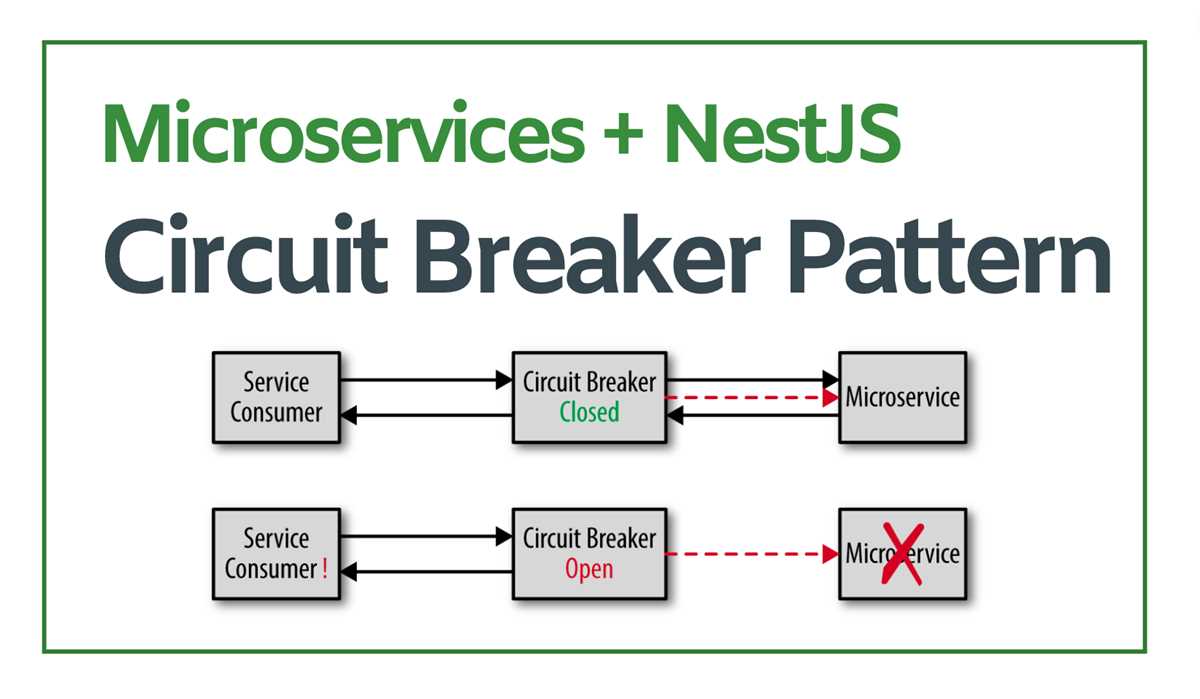

The fallback handler should appear as an alternate path branching from the open state. Specify its behavior: cached responses, default values, or degraded functionality. For example, “if Open, return last cached data or HTTP 202 (Accepted).” Position it below the primary flow to prevent confusion with healthy responses.
Include a state persistence layer if your implementation requires durability. Represent it as a small database or key-value store icon connected to the failure detector. Note storage requirements: “persists state across deployments” or “resets on application restart.” This helps identify potential gaps in ephemeral environments.
Label the concurrency control mechanism for half-open probes. Use a semaphore or rate limiter icon with exact limits: “1 probe every 5 seconds.” Position it between the open and half-open states to highlight its role in preventing thundering herds during recovery.
Add a metrics exporter endpoint to the visualization. Show it as a cloud or API icon linked to the failure detector, exposing counters like “totalRequests,” “failedRequests,” and “stateTransitions.” Specify output formats: Prometheus, OpenTelemetry, or custom JSON. This ensures observability aligns with the design.
How to Represent Failure Thresholds in the Schematic
Use color-coded bands alongside the state transition arrows to denote tolerance levels. Assign a red band (e.g., RGB #FF6B6B) for the critical threshold–typically 5 consecutive failures within a 10-second window–while a yellow band (#FFD93D) marks the warning threshold, such as 3 failures in the same interval. Label each band directly on the schematic with a 10px sans-serif font, positioned perpendicular to the arrows, ensuring clarity without cluttering the core flow lines. Avoid gradients; solid fills with 2px black borders maintain readability at small scales.
Precision in Numeric Annotations
Attach failure counters as numerical badges adjacent to the state nodes, formatted as “X/5 max” where X represents current failures. For dynamic visuals, embed these values inside hexagonal nodes (18px width) with a light gray fill (#F5F5F5) and bold text. If the schematic includes temporal axes, overlay a dashed vertical line at the 10-second mark to contextualize window boundaries. This eliminates ambiguity in interpreting whether failures span multiple sampling periods or cluster within a single interval.
Incorporate a threshold legend in the bottom-right corner, sized to 15% of the schematic’s width. List parameters like “3 fails = Warning,” “5 fails = Trip,” and “Timeout = 30s” using monospace font for alignment. For distributed systems, append environment-specific modifiers (e.g., “AWS Lambda: +2 retries”) in a smaller, 8px font to account for platform variances while preserving the diagram’s universality.

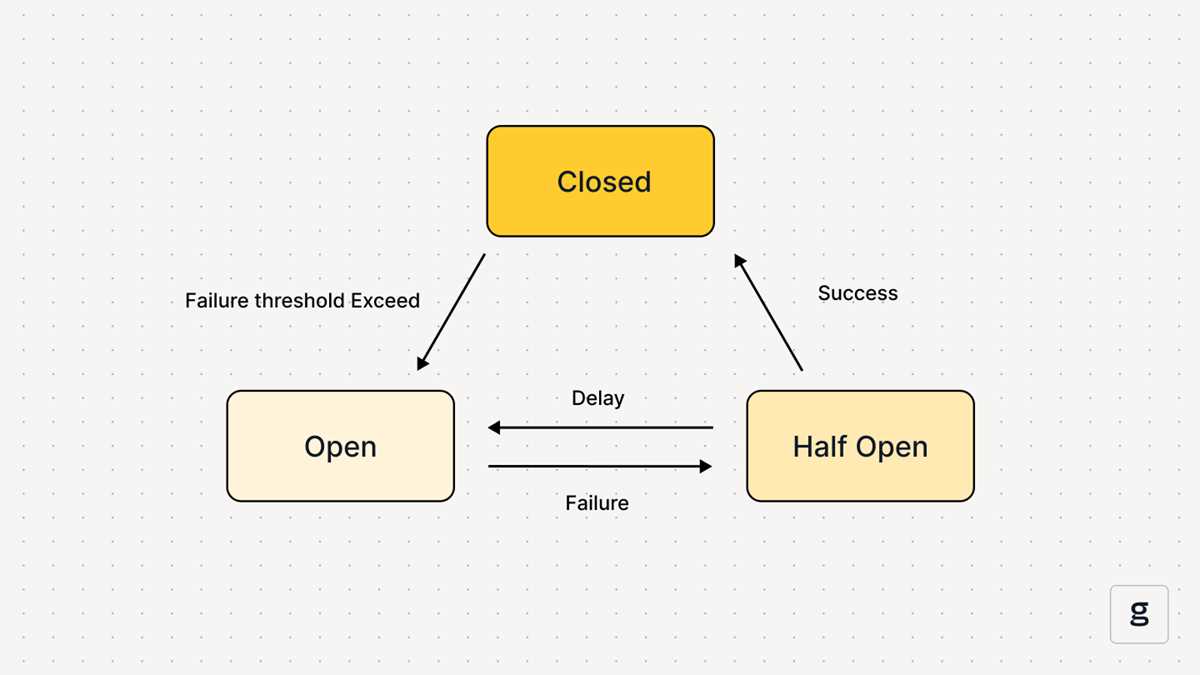

Visualizing State Transitions Between Closed, Open, and Half-Open
Use a directed graph with three primary nodes: Awaiting, Tripped, and Testing. Label transitions with thresholds like failureRate > 20% or timeout > 5s to clarify triggers. Avoid generic labels–specify exact conditions in annotations adjacent to arrows.
Place Awaiting at the top, Tripped at the bottom left, and Testing at the bottom right. Draw a bold arrow from Awaiting to Tripped when consecutive failures exceed a predefined count (e.g., 5). Include a counter reset rule (successful calls = 0) to prevent premature transitions.
- From Awaiting to Tripped: Triggered by failure ratio or latency spikes. Example:
avgLatency > 1sfor 3 consecutive calls. - From Tripped to Testing: Enforced via a timeout (e.g., 30s). Use dashed lines to indicate this delay-based transition.
- From Testing back to Awaiting: A single successful interaction. Highlight this path with a green arrow.
- From Testing to Tripped: Additional failures during sampling. Mark this with a red arrow and annotate with
failure detected.

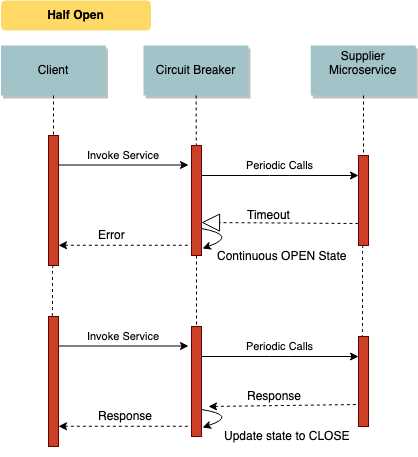

For implementation clarity, overlay numeric thresholds on transitions. Example: threshold: 70% success on the Testing → Awaiting path. Include a small legend in the corner explaining arrow styles (solid, dashed, colored) and their meanings.
Annotate edges with timeouts or retry policies. For instance, add retry after: 10s near the Tripped → Testing transition. Use tooltips or hover text in digital diagrams to hide complexity until needed.
Validate the diagram against real-world logs. Compare Tripped durations with actual failure windows–ensure the timeout period aligns with service recovery times (e.g., don’t set 5s if recovery takes 20s). Adjust thresholds iteratively based on observed failure patterns.
Integrating Delay Limits and Recovery Triggers in Fault Protection Schemes
Define strict upper bounds for service responses–typically between 2-5 seconds–before escalating failures. Embed these thresholds directly into flow visuals using color-coded overlays or annotated markers adjacent to each critical path. Specify exact numeric values in accompanying metadata tables, ensuring teams can cross-reference latency requirements with real-time monitoring dashboards without ambiguity. When rendering system interactions, depict escalation paths with dashed or dotted lines to distinguish them from primary request flows, preventing misinterpretation during incident analysis.
Implement automatic reset logic with tiered backoff intervals: exponential for recurring issues and linear for isolated incidents. Illustrate these recovery sequences as concentric loops or spiral timelines branching off the failure state node, clearly labeling retry counts and cooldown periods (e.g., “3 attempts, 10s + 30s + 60s delays”). Avoid vague descriptions–replace “retry after some time” with precise formulas like T(n) = 10 * 2(n-1) for exponential backoff. Include conditional gates in the diagram to show divergence points where automatic resets either succeed (returning to operational mode) or fail (triggering fallback behaviors).
Annotate each reset mechanism with configuration hooks, exposing parameters like maximum retry windows or jitter factors as editable fields in the visualization. For distributed environments, highlight cross-service synchronization risks–use synchronized clocks or vector timestamps in marginalia to emphasize coordination requirements. Pair these details with trace identifiers linking to observability tools, enabling engineers to correlate diagram states with telemetry during troubleshooting.
