Complete Arduino Uno Circuit Connections and Pinout Guide

Begin by identifying power and ground pins immediately. The ATmega328P-based board provides a regulated 5V output on the designated pin, while ground connections must be consolidated to a single reference point to avoid floating signals. Use a breadboard’s central rail to distribute power efficiently, but avoid daisy-chaining more than five components to prevent voltage drop. If precision is required, add a 0.1µF ceramic capacitor near each IC or sensor power pin to filter high-frequency noise.

Label every wire with masking tape or color-coding. A tangled setup leads to misconnections, especially when prototyping circuits with multiple sensors. For instance, a DS18B20 temperature module requires strict pull-up resistor placement on its data line–typically 4.7kΩ between 5V and the sensor output. Failure to adhere risks erratic readings or stalled communication. Sketch a rough layout on paper before inserting a single jumper wire; this prevents rework.

Signal integrity demands short traces between components. Long wires act as antennas, picking up electromagnetic interference. If extending beyond 10cm, twist signal pairs or employ shielded cables. For analog inputs like potentiometers, limit series resistance to under 10kΩ to maintain a clean ADC reading. Noise-sensitive circuits benefit from a star ground topology–connect all grounds directly to the board’s reference point rather than cascading them through multiple intermediary points.

Voltage regulators and level shifting must match the connected device’s specifications. Feeding 3.3V logic with 5V signals will degrade performance or damage hardware. A bidirectional level shifter, such as the TXB0104, bridges incompatible voltage domains while preserving signal edges. Document each connection in a plain text file or schematic tool–ambiguous setups waste debugging time and often mask legitimate issues beneath misplaced assumptions.

Connecting Your Microcontroller Board: A Visual Guide

Start by securing the development board on a non-conductive surface–this prevents short circuits during prototyping. For power distribution, use the 5V and 3.3V rails sparingly; exceeding 200mA on either risks overheating the onboard regulator. When interfacing sensors, place a 220-ohm resistor in series with any LED-driven pin to avoid burnout, as digital outputs deliver only 40mA per channel. Keep ground connections common across all components to minimize voltage offsets.

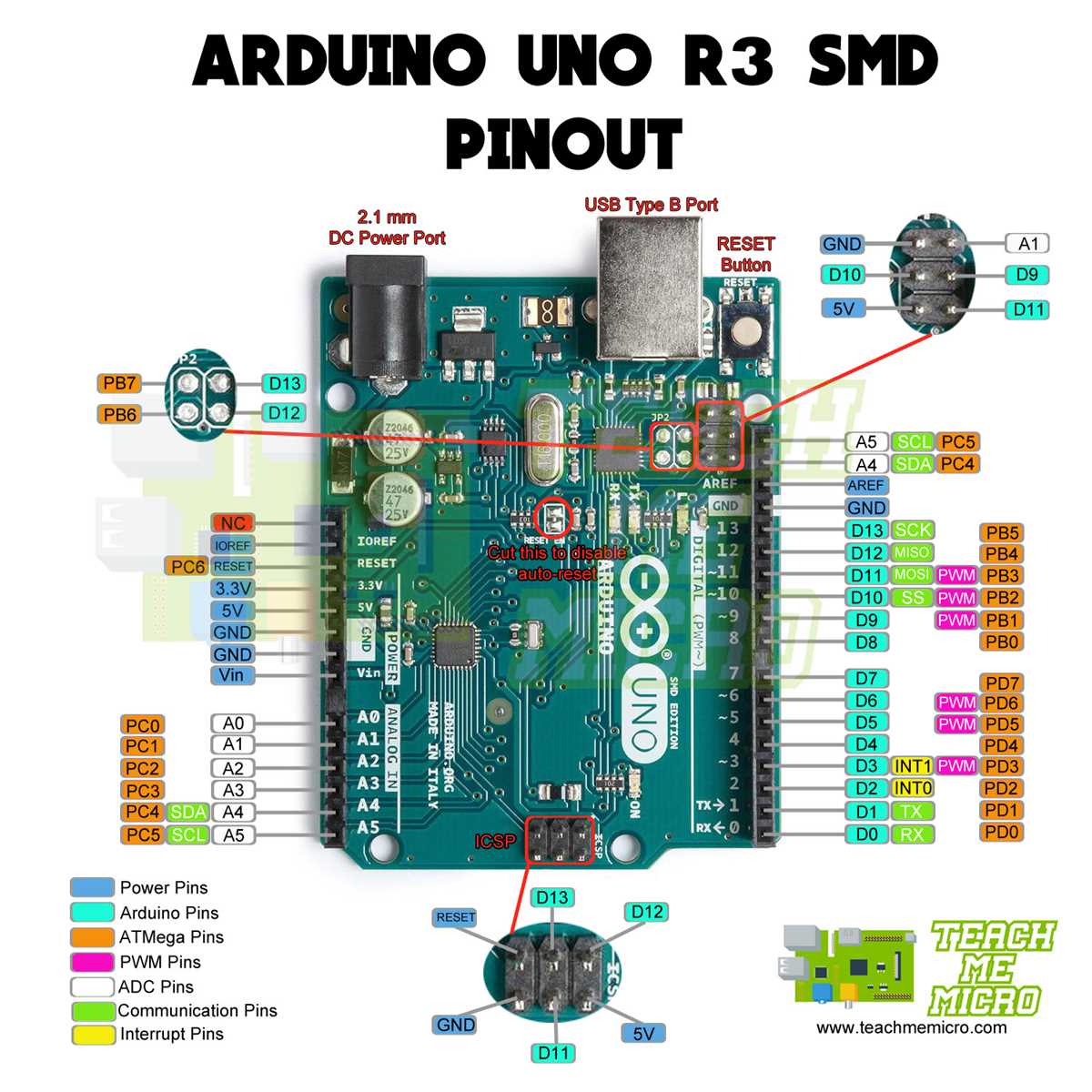

Pin mapping matters. Digital pins 2-13 handle both input and output, while analog inputs A0-A5 read 0-1023 values (0-5V). If multiplexing signals, use a 74HC4051 IC to expand analog channels–it supports eight inputs per pin with negligible signal degradation. For serial communication, TX/RX (pins 0/1) clash with USB; disconnect shields during uploads to avoid firmware corruption. PWM-capable pins (marked ~) simulate analog output but run at 490Hz (pins 5/6) or 980Hz (pins 3/9/10/11)–adjust filter capacitors accordingly.

For motor control, pair an L298N H-bridge with external 12V power; never draw current through the board’s regulator, as it lacks sufficient heatsinking. I2C devices (SCL/SDA, A4/A5) require 4.7k pull-up resistors to VCC–omitting them causes unreliable data transmission. When daisy-chaining SPI peripherals, note that each device needs a unique chip-select line; share SCK/MOSI/MISO but isolate CS with a decoder if connecting more than four modules.

Critical Pitfalls

Bypass capacitors (0.1µF ceramic) belong directly across each IC’s power pins–longer traces weaken noise suppression. Avoid daisy-chaining power; split main rails into star topology to prevent ground loops. Verify logic levels before connecting 3.3V modules to 5V pins–use a bi-directional logic level converter (e.g., TXB0104) for safe interfacing. Store unused boards in ESD-safe bags; static discharge can fry the ATmega328P’s flash memory even when powered off.

How to Connect Power and Ground Pins Correctly

Always verify the voltage rating of peripherals before connecting them to the board’s 5V or 3.3V output. Most sensors and modules tolerate 5V, but some–like certain MEMs microphones or IMUs–require 3.3V and will fail if exposed to higher levels. Use a multimeter to confirm idle and peak current draw; exceeding 200mA on the 3.3V rail may necessitate an external regulator.

Separate digital and analog grounds with a single-point star connection at the main power input. Daisy-chaining ground traces between high-current devices (motors, relays) and low-noise components (ADCs, amplifiers) introduces voltage gradients that degrade signal integrity. If space permits, route a 0.1-inch wide ground pour beneath sensitive traces to lower impedance.

For battery-powered setups, place a 1000µF electrolytic capacitor across the main power rails as close to the board as physically possible. This suppresses inrush currents that can reset microcontrollers during motor activation or RF transmission. Pair it with a 0.1µF ceramic capacitor for high-frequency noise filtering; position both capacitors adjacent to the power pins of the device consuming the most current.

Component Type	Recommended Capacitance	Placement Guideline
Voltage regulator	10µF (input), 22µF (output)	Within 1 cm of regulator pins
Motor driver	100µF (bulk), 0.1µF (bypass)	Directly at motor supply terminals
Sensor (low-power)	0.1µF	Within 5 mm of sensor VCC pin

Never leave unused power pins floating. Tie unused VIN pins to ground through a 10kΩ resistor to prevent accidental shorting during prototype handling. For boards with multiple ground pins, connect all to the same plane; uneven distribution can create ground loops that augment noise in analog circuits.

When powering logic levels above 5V via an external supply, insert a Schottky diode (e.g., 1N5817) in series with the positive rail. This clamps reverse voltage spikes generated by inductive loads, protecting sensitive ICs. Ensure the diode’s reverse breakdown voltage exceeds the maximum supply voltage by at least 20%.

Use thick wires (22 AWG minimum) for ground returns carrying more than 500mA. Stranded copper reduces resistance and skin-effect losses at higher frequencies. For PWM-driven loads, twist power and ground wires together to minimize radiated EMI; maintain a twist pitch of 1 twist per 10 mm.

Test the ground plane continuity with a continuity tester before applying power. A resistance above 0.5Ω between any two ground points indicates suboptimal connections. Redrill vias if necessary or add solder bridges across poorly connected regions.

Step-by-Step Guide to Connecting Digital Pins on Development Boards

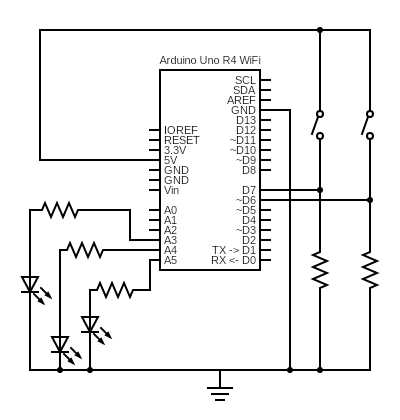

Begin by identifying the microcontroller’s pinout layout. Most boards label digital pins from D0 to D13, with some supporting both input and output modes. Use a 220Ω–1KΩ resistor for LEDs to prevent burnout–connect the anode (long leg) to the pin and the cathode (short leg) to ground. For pushbuttons, wire one terminal to a digital pin and the other to 5V, adding a 10KΩ pulldown resistor to ground to avoid floating states. Verify connections with a multimeter before powering on to detect shorts or misaligned wires.

Configure pins in code using pinMode():

• Set as INPUT for sensors or buttons (e.g., pinMode(2, INPUT)).
• Use INPUT_PULLUP to enable internal resistors, inverted logic (signal reads LOW when pressed).
• For outputs, define as OUTPUT (e.g., pinMode(13, OUTPUT)) to drive LEDs or relays.

Avoid exceeding 40mA per pin or 200mA total–use transistors or MOSFETs for higher loads.

Reading and Writing Digital Signals

For inputs, use digitalRead() to capture button states or sensor triggers. Check for rapid transitions (bouncing) with a 5–50ms delay between reads or implement debounce logic in software. For outputs, toggle devices with digitalWrite()–set HIGH (5V) or LOW (0V) to control attached components. Test interactions with a logic analyzer or serial monitor to debug unexpected behavior.

Optimize circuits for reliability:

1. Separate power rails–use a dedicated 5V supply for noisy components like motors.
2. Add flyback diodes (1N4007) to protect against voltage spikes from inductive loads (e.g., relays).
3. Limit wire length to for high-speed signals to prevent interference.
4. Label connections (e.g., “D3 → LED”) to simplify troubleshooting.

For safety, power off before modifying connections and double-check ground references across all components to prevent ground loops.

Reading Analog Signals: Connecting Variable Resistors and Measurement Devices

Use a 10 kΩ potentiometer as the standard for analog input testing–its linear taper ensures consistent voltage division, and its resistance range matches most microcontroller input specifications. Connect the outer pins to 5V and ground, leaving the center wiper to the analog input pin (A0–A5 on most boards). Avoid exceeding 5V across the component to prevent damage to the analog-to-digital converter (ADC).

For precision applications like temperature or light sensing, pair the potentiometer with an operational amplifier (op-amp) in a non-inverting configuration. This setup buffers the signal, reducing impedance mismatches that distort readings. A TLC272 or similar rail-to-rail op-amp works well with single-supply systems, ensuring the output spans 0V to 5V without clipping.

When interfacing resistive sensors (e.g., thermistors, photoresistors), replace the potentiometer with a voltage divider circuit. Use a fixed resistor (e.g., 10 kΩ) in series with the sensor to limit current and stabilize readings. For thermistors, a 1°C resolution requires a negative temperature coefficient (NTC) part paired with a 10 kΩ resistor at 25°C–calibrate via the Steinhart-Hart equation.

Filtering is critical for noisy environments. Add a 0.1 µF ceramic capacitor between the analog input and ground to smooth rapid fluctuations. For high-frequency interference (e.g., PWM noise), use a low-pass RC filter with a 1 kΩ resistor and 10 µF capacitor, cutting frequencies above 16 Hz while preserving signal integrity.

For high-impedance sensors (e.g., pH probes), add a voltage follower (op-amp in unity gain) immediately after the sensor. This isolates the high-impedance source from the ADC, preventing loading effects that skew measurements. Ensure the op-amp’s input bias current is below 1 nA to avoid offset errors in low-signal applications.

Scale readings to meaningful units using the ADC’s 10-bit resolution (0–1023 for 5V). For example, convert raw counts to voltage:

voltage = (analogRead(pin) * 5.0) / 1023.0;

For 3.3V systems, replace 5.0 with 3.3. Add a software hysteresis of ±2 counts to ignore minor fluctuations near zero or full-scale.

Test analog paths with a multimeter before connecting to the controller. Measure the wiper voltage while adjusting the potentiometer–it should sweep smoothly from 0V to 5V without abrupt jumps. If noise persists, check for loose connections, ground loops, or nearby electromagnetic sources (e.g., motors). Use shielded cables for sensors over 10 cm to minimize interference.

Calibration compensates for sensor non-linearity. For thermistors, log 20–30 data points across the expected range and fit to a polynomial regression. Store coefficients in non-volatile memory (e.g., EEPROM) for runtime corrections. For photoresistors, account for ambient light by subtracting a baseline reading taken at startup.
