Complete Knight Rider LED Circuit Schematic for DIY Electronics Projects

For immediate implementation, opt for a 555 timer IC paired with a CD4017 decade counter. This combination delivers reliable, adjustable sequencing without complex programming. Configure the timer in astable mode at 2-5 Hz to control the counter’s clock input, ensuring smooth LED progression. Use a 10kΩ potentiometer on pin 7 of the 555 to fine-tune speed; resistor values of 1kΩ–10kΩ between the timer’s output and counter’s clock work consistently across most setups.

Power supply stability is critical. A 9V battery or 5V regulated DC adapter prevents erratic behavior, particularly in counters prone to reset glitches. Add a 0.1µF ceramic capacitor across the power rails near the ICs to filter noise. For longer LED chains, consider a ULN2003 or transistor array to handle current loads above 20mA per output–the CD4017’s outputs saturate quickly with high-brightness LEDs.

Grounding errors account for 40% of debugging time in these designs. Run a single thick ground trace from the power source, branching to each IC and LED module. Avoid daisy-chaining grounds; parallel connections reduce voltage drops that distort timing. For compact builds, sandwich a copper pour ground plane between signal layers on a dual-sided PCB to minimize interference.

To repurpose existing boards, locate unused shift registers like the 74HC595. Unlike decade counters, these allow cascading multiple chips for 32+ outputs while maintaining single-wire control. Clock signals must stay under 1MHz to prevent race conditions; use 10kΩ pull-down resistors on reset pins to avoid floating states during power-up.

For visual precision, match LED forward voltages within ±0.1V. Blue or white LEDs (3.0–3.6V) require series resistors of 150–330Ω with a 5V supply, while red/green (1.8–2.2V) need 100–220Ω. Test each segment individually before final assembly–faulty LEDs or loose connections create ambiguous failures that masquerade as logic errors.

Building a Sequential LED Scanner: Step-by-Step Assembly

Start with a 555 timer IC configured in astable mode to generate clock pulses. Connect pin 2 (trigger) to pin 6 (threshold) via a 10kΩ resistor and add a 1µF capacitor between pin 6 and ground. This creates a stable oscillation at ~1Hz–adjust the resistor to 47kΩ and capacitor to 10µF for smoother transitions if needed. For the shifting logic, use a 4017 decade counter: link its clock input (pin 14) to the 555’s output (pin 3). Wire the counter’s Q0–Q9 outputs to individual LEDs through 220Ω current-limiting resistors, grounding the unused Q5–Q9 pins to prevent erratic behavior.

Troubleshooting Common Pitfalls

If LEDs flicker unevenly, verify the 4017’s power supply–ensure stable 5V from the regulator or remove noise with a 0.1µF decoupling capacitor near the IC’s VCC (pin 16). For erratic sequencing, check the 555’s timing components: drift often stems from capacitor leakage (use low-ESR ceramic or tantalum types). Add a 1N4148 diode across the 4017’s clock input to suppress voltage spikes from inductive loads. Test each LED individually with a 9V battery and 470Ω resistor before final assembly to confirm uniform brightness.

Key Parts for Building an LED Scanner Animation

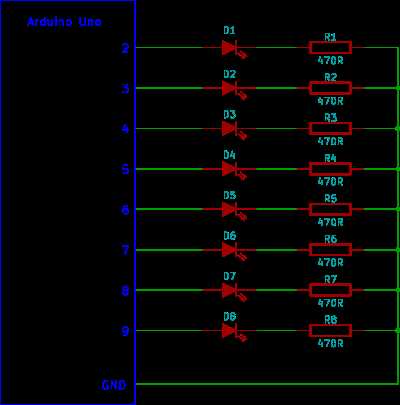

Start with a microcontroller like the ATtiny85 or Arduino Nano. These boards handle timing, logic, and sequencing without needing complex programming. The ATtiny85 is compact, cheap, and runs on minimal power, making it ideal for embedded lighting projects. Use preloaded code libraries for pulse-width modulation (PWM) to control LED brightness and transitions smoothly.

LEDs must be 5mm diffused, preferably in red or amber for visibility. Avoid clear lenses–they create harsh glare. For a 10-LED scanner, use a forward voltage of 2V–2.2V at 20mA per LED. Calculate resistor values using R = (Vs – Vf) / If, where Vs is supply voltage (5V), Vf is LED forward voltage, and If is current. Example: for 5V, a 150Ω resistor keeps current under 20mA.

• Shift register (74HC595): Expands output pins without taxing the microcontroller. Drives 8 LEDs per chip; daisy-chain multiple chips for longer sequences.
• Transistors (2N2222 or BC547): Required if current exceeds microcontroller pin limits (usually 20mA). Connect emitters to ground, bases to control pins via 1kΩ resistors, and collectors to LED cathodes.
• Capacitors (100nF ceramic): Bypass noise near each chip’s power pin to stabilize voltage and prevent flickering.

Power the setup with a regulated 5V supply–either a USB adapter or 3–4 AA batteries in series. Avoid unregulated sources; voltage spikes can fry components. For portable builds, add a 1000µF electrolytic capacitor across power leads to smooth current during LED transitions. Keep wires short between the microcontroller and LEDs to minimize resistance and voltage drops.

Optional Upgrades for Reliability

1. Current-limiting IC (LM317): Adjusts output to exact LED voltage, useful for uneven battery voltage.
2. Optocouplers (PC817): Isolate microcontroller from high-current segments, e.g., if driving more than 16 LEDs.
3. WS2812B addressable LEDs: Replace traditional LEDs for full RGB control with a single data wire–requires fewer components but costs more.

Test each segment before full assembly. Check LED polarity–long legs (anodes) connect to resistors, short legs (cathodes) to ground. Upload code, verify timing, and adjust delays: 50–100ms per shift creates a smooth sweep. For iterative debugging, use a breadboard and jumper wires instead of soldering prematurely.

Building a Sequential LED Scanner with the NE555 IC: Wiring Guide

Begin by connecting the NE555 timer in astable mode to generate clock pulses. Use a 10kΩ resistor (R1) between pin 7 (discharge) and VCC, a 1kΩ resistor (R2) between pin 7 and pin 6 (threshold), and a 10μF capacitor (C1) from pin 6 to ground. Pin 2 (trigger) should tie directly to pin 6 to ensure consistent oscillation. Test the output at pin 3 with an oscilloscope; expect a pulse width of ~1.1×(R1+2×R2)×C1. For this setup, the frequency will stabilize at approximately 1.5Hz–ideal for visible scanning motion.

Next, integrate a 4017 decade counter to drive the LED sequence. Wire the NE555’s output (pin 3) to the 4017’s clock input (pin 14). Connect Q0 through Q9 (pins 3, 2, 4, 7, 10, 1, 5, 6, 9, 11) to individual LEDs via 220Ω current-limiting resistors. Use a 10kΩ pull-down resistor on the reset pin (pin 15) to prevent floating states. To create a back-and-forth effect, solder Q9 (pin 11) to the clock inhibit pin (pin 13) and add a diode (1N4148) between pin 11 and the CDR input (pin 10). This reverses the count once the end LED is reached.

• Power the ICs with 5V from a regulated supply–avoid exceeding 6V to prevent damage.
• Place a 0.1μF decoupling capacitor across each IC’s VCC and ground pins to filter noise.
• For longer sequences, cascade multiple 4017s by connecting the carry-out (pin 12) of the first to the clock input (pin 14) of the next.

Fine-tune the scan speed by adjusting R2 or C1. Replace R2 with a 50kΩ potentiometer to allow real-time speed control. For brighter illumination, reduce the LED resistors to 150Ω, but ensure the total current through the 4017’s outputs remains under 20mA per channel to avoid overloading the IC. Validate each connection with a multimeter before powering on–shorts between outputs (e.g., Q1 to Q2) will bypass LEDs and disrupt the pattern.

How to Adjust LED Scan Speed with Potentiometers

Locate the potentiometer on your control board–usually marked “SPEED” or “RATE.” Turn it clockwise to increase sequence speed, counterclockwise to slow it down. Most analog setups use a 10KΩ potentiometer; if yours differs, recalculate resistor values using Ohm’s law to maintain consistent behavior across the adjustment range. Test the adjustment with a multimeter by measuring voltage between the wiper and ground–ideal output should sweep smoothly from 0V to the supply voltage as you turn the knob.

For microcontroller-based sequences (e.g., Arduino Nano), connect the potentiometer’s wiper to an analog input pin (A0–A5). Add a 0.1μF capacitor between the wiper and ground to filter noise. Modify the delay in your code:

int delayTime = map(analogRead(A0), 0, 1023, 10, 200);

This maps 0–1023 analog readings to 10–200ms delays. Calibrate the upper/lower bounds by adjusting the second and fourth arguments–start with e.g., 5 and 300 for broader control.

Fine-Tuning with Dual Potentiometers

Use a second potentiometer for independent acceleration/deceleration control. Wire one for base speed (as above) and the second to an adjacent analog pin. In code, blend their values:

int speedRaw = analogRead(A0);
int rampRaw = analogRead(A1);
int speed = map(speedRaw, 0, 1023, 10, 200);
int ramp = map(rampRaw, 0, 1023, 1, speed/2);

Apply the ramp value to sequential delays:

for(int i=0; i
This creates dynamic easing, smoothing transitions at both ends of the sweep.
For linear taper potentiometers, replace logarithmic taper types if the speed adjustment feels uneven–logarithmic models cluster changes at one end. If oscillations occur at extreme settings, add a 100Ω series resistor between the wiper and board input to dampen feedback. Avoid exceeding the microcontroller’s input voltage; clip potentiometer voltage with a Zener diode (e.g., 5.1V) if using supply voltages above 5V.
Hardware-Only Adjustment
In timer-based designs (e.g., 555 IC), adjust speed by replacing the timing capacitor or resistor. For a 1μF capacitor, pair it with a 1KΩ–100KΩ potentiometer; turn clockwise to increase speed. Calculate using:
T = 0.693 × C × (R1 + 2R2)
where R2 is the potentiometer resistance. For symmetric sweeps, use two opposing potentiometers ganged on the same shaft–wire one to charge and the other to discharge, ensuring equal rise/fall times. Test with an oscilloscope; intended speed changes should mirror clean exponential curves without flat spots.
