How to Build and Understand a DC Motor Control Circuit Schematic

Start with a double-pole single-throw switch (DPST) for primary isolation–this ensures safe disconnection of both power lines simultaneously when servicing the drive assembly. Use a 10A fuse in series with the main supply feed to prevent overloads; match the fuse rating to the actuator’s stall current plus 20% margin. For fractional horsepower units (under 0.5 HP), a thermal overload relay rated for 1.1× operating current is sufficient–mount it directly on the drive housing or in the starter enclosure.

Wire the start/stop pushbuttons in series with the holding contactor coil to create a latching loop; use normally open (NO) contacts for both buttons. Include a separate emergency stop button with normally closed (NC) contacts wired in series with the control circuit–this ensures the system drops out instantly when pressed, bypassing any latching logic. For reversing configurations, swap the polarity of the armature leads via a double-pole double-throw relay (DPDT); use auxiliary contacts from the forward/reverse relays to interlock the opposing coil to prevent simultaneous operation.

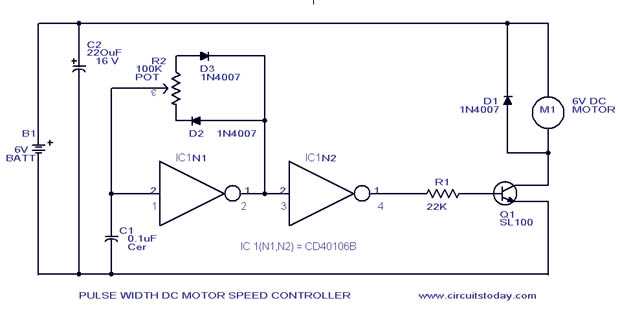

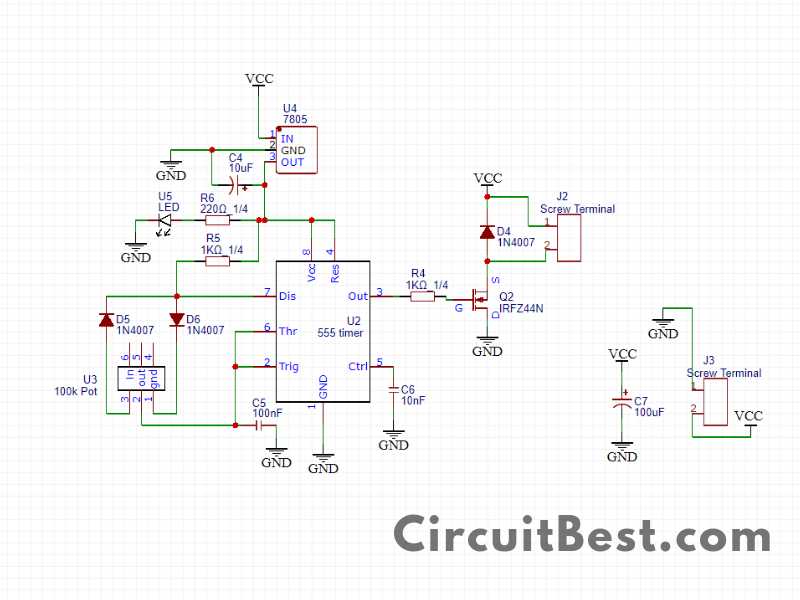

Place a flyback diode (1N4007) across the actuator’s inductor coil to clamp voltage spikes–orient the cathode toward the positive terminal. For variable speed setups, insert a PWM signal generator between the microcontroller output and the drive transistor (e.g., MOSFET IRF540); set the gate resistor to 100Ω to balance switching speed and ringing. Ground the system star-point at the power source rather than the actuator to minimize noise coupling into the control lines.

Label every conductor with its function and voltage potential–use heat-shrink tubing printed with text for permanence. Route high-current paths (thicker than 16 AWG) separately from signal lines, maintaining at least 25mm separation to avoid inductive interference. Test continuity with a low-ohm meter (under 1Ω resolution) before applying power, focusing on crimp connections and terminal blocks–oxidation at these points causes intermittent operation.

Designing a Reliable Starter Schematic for Rotary Equipment

Begin by integrating a double-pole switch rated for 125% of the device’s operating current–typically 15A for 1HP AC induction configurations–to prevent arcing during engagement. Place a thermal overload relay with a trip class of 10 or 20 directly in series with the winding path; fine-tune its dial to 110% of the nameplate amperage to avoid nuisance tripping while ensuring swift response to sustained overcurrent. For DC setups, use a solid-state relay with zero-crossing detection to minimize commutator wear when switching inductive loads.

Connect a snubber network (0.1µF capacitor in series with a 100Ω resistor) across the actuator terminals to suppress transient voltages during start-stop cycles–this extends contactor lifespan by 30-40%. For reversible configurations, incorporate mechanical interlocking contactors to prevent simultaneous energization of forward and reverse coils, which would otherwise short the supply. Ground the metal frame via a 4 AWG copper wire bonded to the chassis at two points to meet NEC Article 250 compliance.

Critical Elements in Driving Mechanism Schematics

Choose a contactor with a current rating exceeding the load’s full-load amperage by at least 20%. Undersized units overheat, causing premature failure–AC-3 duty contactors handle frequent starts better than AC-1.

• A-frame contactors suit 1–5 HP drives; sizes 1–3 handle up to 25 HP.
• DC contactors require arc suppression–opt for magnetic blasts or suppression diodes.
• Check coil voltage: 120VAC coils burn out if fed 240V.

Mount overload relays near the actuator but outside enclosures if ambient exceeds 40°C. Thermal units trip at 115–125% of FLA; electronic relays allow adjustable trip curves.

Select fuses using the following trip classes:

1. Class CC: 300% of FLA for motors with low inertia.
2. Class RK5: 150–175% for general-purpose protection.
3. Class T: 100% for precise coordination with upstream breakers.

Never substitute fuse classes without recalculating wire gauge.

Use inverse-time breakers sized at 125% of continuous current. Instantaneous trip settings must exceed locked-rotor amperage by 2x–standard NEMA frames list LRA tables.

Wire gauge follows NEC Table 310.16: #12 AWG copper handles 20A at 60°C; upsize to #10 if terminations exceed 75°C. Aluminum requires one size larger for equivalent current.

• VFD output cables need symmetrical shielding–braided shields reduce EMI better than foil.
• Separate power and signal cables by minimum 30 cm–cross capacitive coupling degrades encoder feedback.
• Use stranded wire for movable sections; solid wire fatigues under vibration.

Install pushbuttons rated for 10A resistive, 6A inductive loads. Illuminated buttons draw extra current–calculate total coil VA before adding indicator lamps. Emergency stop devices must meet ISO 13850 Category 0: direct mechanical disconnection.

Step-by-Step Wiring Guide for a Direct Current Drive Regulator

Select a 12V DC drive rated for at least 150% of the load’s peak current. For a 5A continuous load, use a 7.5A or higher regulator with a built-in thermal shutdown and transient voltage suppression. Verify the datasheet for input/output voltage tolerances–some models tolerate ±10%, while others require strict ±5%.

Mount the regulator on a heatsink if the datasheet specifies a junction-to-case thermal resistance above 5°C/W. Use thermal paste (e.g., Arctic MX-6) and secure with M3 screws torqued to 0.5 Nm. Without this, the regulator may enter thermal shutdown under sustained loads, causing intermittent operation.

Connect the power source first–red wire (+) to the regulator’s input terminal, black wire (-) to the common ground. Use 16 AWG or thicker wire for currents above 5A to prevent voltage drop. For battery-powered systems, add a 10A fuse between the power source and regulator to protect against short circuits.

Component Wiring Sequence

Component	Connection Point	Wire Gauge (AWG)	Notes
Power Supply (+)	Regulator IN+	16	Add a 10A fuse inline
Power Supply (-)	Common GND	16	Star ground at regulator pin
PWM Signal	Regulator EN pin	22	Pull-up to 5V if active-low
Drive Output (+)	Load terminal	14	Twisted pair for noise reduction
Drive Output (-)	Common GND	14	Separate from signal ground

Attach the speed adjustment mechanism next. For potentiometer-based setups, wire the outer pins to the regulator’s +5V reference and ground, and the wiper to the feedback (FB) pin. Use a 10kΩ linear potentiometer for fine tuning. For microcontroller-based systems, connect a 1kHz–20kHz PWM signal to the enable (EN) pin, ensuring the duty cycle matches the desired output (e.g., 50% duty = 6V for a 12V regulator).

Add snubber capacitors near the load terminals: 0.1µF ceramic across the drive output (+/-) to absorb voltage spikes, and a 100µF electrolytic in parallel to smooth current fluctuations. For brush-type drives, place a flyback diode (e.g., 1N4007) reverse-biased across the load terminals to clamp inductive kickback–failure to include this risks damaging the regulator.

Final Checks Before Power-On

Measure continuity between the power source ground and the regulator’s GND pin–resistance should read

Choosing the Optimal Switches and Relays for Drive Systems

Match the actuator type to the load’s current draw–mechanical toggle switches handle 10–15 A for fractional horsepower units, while snap-action microswitches with gold-plated contacts reliably interrupt ≤ 5 A at 250 VAC for precision servos.

• Verify coil voltage ratings: 12 VDC relays suit automotive applications, 24 VDC works for industrial panels, and 120/240 VAC coils align with mains-powered setups.
• Prioritize contact material: silver-nickel withstands 10⁶ cycles under 10 A resistive; silver-tin oxide extends life to 2·10⁶ cycles for inductive loads.
• Calculate inrush current: startup surges can reach 6–8× FLA–select relays with at least 120 % FLA margin (e.g., a 2 HP drive pulling 9 A needs ≥ 18 A contacts).
• Thermal tolerance matters: silicate-filled relays operate up to 85 °C ambient; bypass with solid-state types if heat exceeds 60 °C.
• Use sealed enclosures (IP67) for wash-down areas; NEMA 4X encloses prevent corrosive ingress in outdoor installations.

For high-cycle duty (≥ 30 starts/min), solid-state relays eliminate arcing but require heatsinks–0.5 °C/W per 10 A–and snubber circuits (0.1 µF + 100 Ω) to suppress turn-off spikes.

Critical Safety Protocols for Drive Systems

Install overload relays sized at 115–125% of the rated current to prevent thermal damage. Select relays with Class 10 or 20 trip curves for general use, ensuring faster response (Class 10) for sensitive equipment like conveyor belts, where delays risk mechanical jams. For high-inertia loads, opt for Class 30 relays to allow momentary surges without nuisance tripping. Always verify relay calibration against manufacturer specifications, as even a 5% deviation can reduce protection efficacy by 20–30%.

Emergency Stop Mechanisms

Wire emergency stop (E-stop) buttons in series with the main contactor coil, ensuring direct disconnection from the power source. Use dual-channel safety relays (e.g., PILZ PNOZ or Siemens Sirius) to monitor redundant contacts and prevent single-point failures. Test E-stop functionality monthly by measuring contact resistance–values above 0.5 ohms indicate worn contacts requiring replacement. For robotic systems, integrate Category 3 or 4 safety circuits per ISO 13849-1, combining mechanical interlocks with dynamic braking to halt motion within 100ms of activation.

Ground metallic enclosures using copper conductors sized for fault currents–minimum 10 AWG for 240V systems, 8 AWG for 480V. Bond all conductive surfaces within 2 meters of the equipment, including conduit, panels, and motor housings, to a single grounding electrode. Verify ground resistance annually using a 3-point fall-of-potential test; readings above 5 ohms necessitate additional electrodes. For variable frequency drives, install EMI filters and line reactors to suppress high-frequency noise that degrades insulation and corrodes terminations over time.

Barrier guards for rotating shafts must meet ISO 14120 standards, with openings limited to 6mm for access gaps and 25mm for fixed guards. Use polycarbonate shields for corrosive environments, ensuring UV-stabilized material to prevent brittleness. For high-speed spindles (>3,000 RPM), incorporate interlocking guards with magnetic sensors (e.g., Balluff BNS) that cut power before guard removal. Label guards with ANSI Z535.4 warnings in 12-point bold font, specifying hazards like entanglement, pinch points, or projectile ejection.
