Understanding MOSFET Schematic Diagrams Key Components and Circuit Design

Start by positioning the gate resistor as close as physically possible to the control terminal–ideally within 5 mm–to minimize parasitic inductance. A typical value of 22 Ω to 100 Ω works for most 10–30 V applications, with lower resistance (10 Ω) reserved for high-speed switching (sub-50 ns rise times). Exceeding 200 Ω risks sluggish response and incomplete channel activation.

Ground the source terminal directly to the PCB’s power plane via a minimum 12 AWG trace or multiple vias to prevent voltage drops during transient currents. Add a 10 µF ceramic capacitor between the drain and source, less than 2 cm from the chip package, to suppress ringing. Failure to do so can trigger false turn-on or avalanche breakdown under dynamic loads.

For high-side switching, use a dedicated gate driver with UVLO (Undervoltage Lockout) protection–typical thresholds: 8 V (on), 7 V (off)–to prevent partial conduction. Isolate the control signal with an optocoupler (CTR 50–200%) or digital isolator (propagation delay ) when input voltages exceed 12 V or noise levels surpass 100 mV.

Route the load path and return path parallel and adjacent, maintaining consistent width to reduce loop area. A 4-layer board with internal ground and power planes cuts impedance by ~60% compared to 2-layer designs. Avoid slotting planes beneath the package–it increases inductance and thermal resistance.

For devices rated above 20 A, implement split gate resistors (one for turn-on, one for turn-off) sized according to the driver’s sink/source capability. Example: 15 Ω (turn-on), 10 Ω (turn-off) for a 4 A driver. Verify timing with an oscilloscope–V_gs rise/fall times should stay under 10% of the switching period to prevent shoot-through.

Key Considerations for Solid-State Switch Circuit Visualization

Ensure source-to-drain current paths are clearly marked with polarized symbols in your transistor layout–use an arrow on the source terminal to indicate conventional flow direction. For enhancement-mode devices, depict the substrate (body) connection directly tied to the source with a unified ground reference; omit this for discrete packages where the body diode’s intrinsic behavior must still be accounted for in reverse-conduction scenarios. Label gate drive voltages explicitly: typical thresholds for 30V logic-level parts hover around 1–2V, while 600V+ high-voltage variants demand 4–10V for full channel activation. Add a 10–100nF bypass capacitor across power rails within 5mm of the package footprint to mitigate transient gate voltage spikes.

Error-Prone Pitfalls in Device Interconnect Representation

Avoid ambiguous thermal relief patterns on high-current traces–calculate trace width at 1oz copper thickness using 0.025Ω/mm² resistivity to prevent fusing under sustained drain currents exceeding 10A; for transient pulses, derate by 30%. Gate resistors (10–100Ω) must sit directly adjacent to the drive pin to suppress parasitic inductance-induced ringing; omit these only if using integrated drivers with sub-10ns rise times. Isolated gate drivers need an optically coupled or transformer-based barrier with reinforced insulation rated for 5kV RMS if galvanic separation exceeds 250VAC. Indicate bulk capacitance ESR values (target

Core Elements of a Fundamental Transistor Switching Layout

Begin by placing the semiconductor switch at the center of the electrical blueprint, ensuring the gate terminal connects to a precise voltage source–typically between 5V and 15V for logic-level types–to guarantee saturation. Attach a flyback diode antiparallel to the load to suppress voltage spikes exceeding 50V, common in inductive components like relays or motors. For high-frequency switching, pair the controller with a dedicated gate driver; opt for isolated variants when noise exceeds 10mV pk-pk or ground loops risk signal corruption.

Regulate drain-source current with a current-limiting resistor in series–calculate using R = Vsupply / Imax, where Imax should not exceed 80% of the device’s pulsed rating. Ground the source terminal directly to the power rail to prevent parasitic oscillation, especially above 100kHz. Below is a reference for component selection based on load characteristics:

Load Type	Gate Voltage (V)	Diode Rating (V)	Gate Resistor (Ω)
Resistive (	5–10	50	10–100
Inductive (	10–15	100	22–47
High-Side (>10A)	12–20	200	4.7–22

Decouple the power supply with a ceramic capacitor–0.1µF for low-noise circuits, 10µF for bulk stabilization–positioned no farther than 2cm from the device’s drain. Avoid trace loops in high-current paths; use a pour for the ground plane to minimize impedance. For thermal management, ensure the junction-to-ambient thermal resistance (θJA) stays below 50°C/W–supplement with a heatsink if steady-state power exceeds 1W.

How to Read Transistor Symbols and Pin Layouts

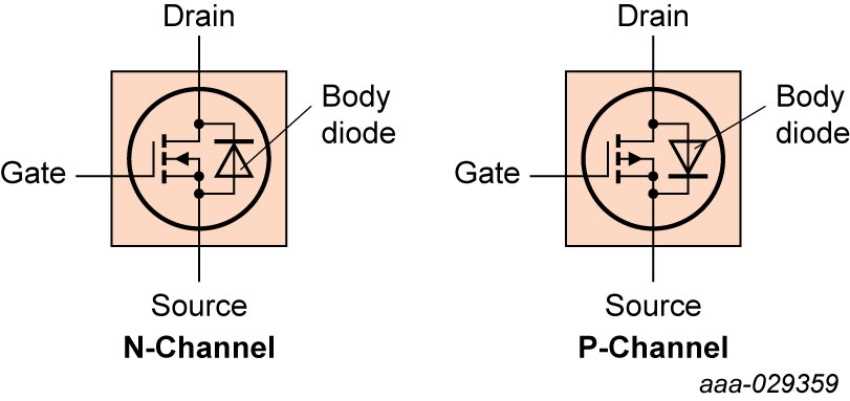

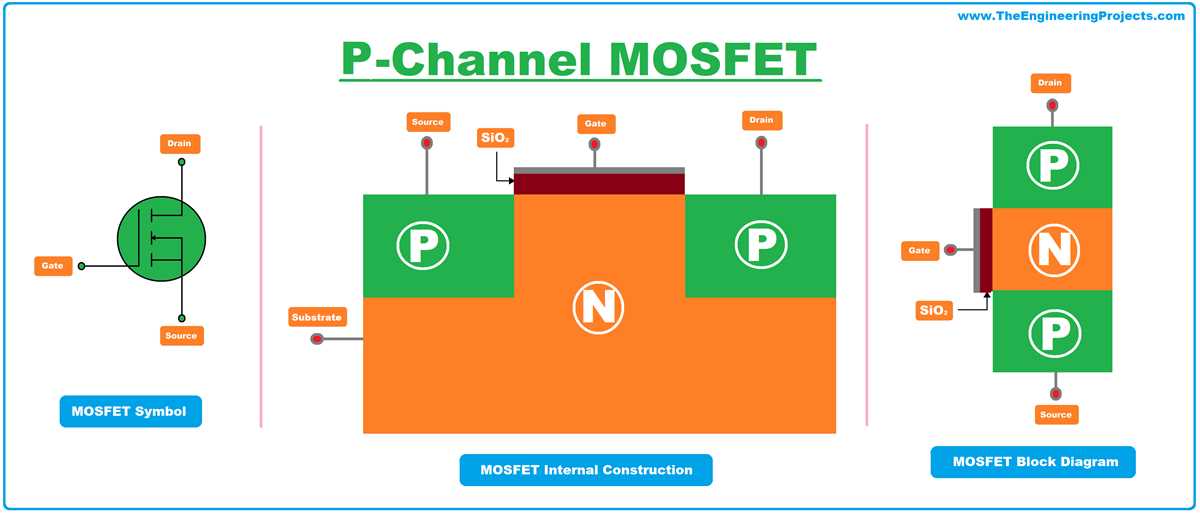

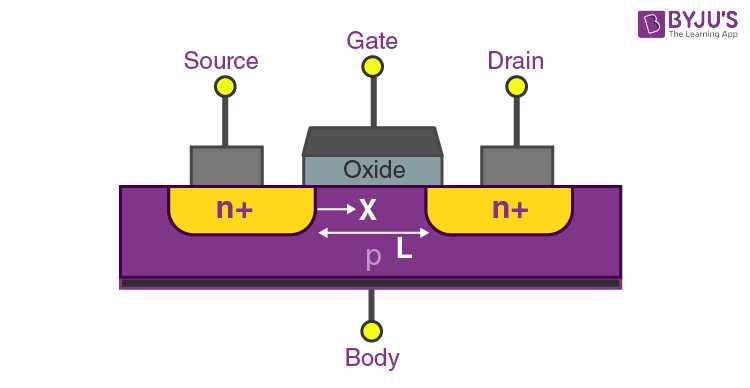

Identify the gate terminal first–it’s always represented by a perpendicular line touching the channel, often with an arrow indicating the substrate connection (body diode). In N-channel devices, the arrow points inward; for P-channel, it faces outward. This arrow is critical: it reveals the direction of current flow when the device operates in reverse conduction mode, a detail frequently overlooked in compact circuit drawings.

Locate the drain and source terminals by their positions relative to the gate. In vertical VCPs, the drain is typically connected to a heat-dissipating pad, marked as the wider or topmost lead in the footprint. The source is usually the remaining terminal, often connected to ground or a shared node in switching applications. Some packages split the source into multiple pins for better thermal and electrical distribution–examine the pin numbering in the datasheet to avoid incorrect wiring. Dual-gate variants (rare but present) show two gate lines, both requiring independent control signals.

Interpreting Package-Specific Variations

TO-220, SOT-23, and DFN symbols may omit the body diode or substrate connection for simplicity. Always cross-check the component’s package drawing: what appears as a single gate lead in the symbol might be internally bonded to two pads in a QFN package. Discrete component markings use a dot or notch to denote pin 1–align this with the source in most N-channel parts, but verify against manufacturer documentation, as some suppliers invert this convention for legacy compatibility.

Thermal tabs or exposed pads in power packages serve as drains in 90% of N-channel parts. Never assume electrical isolation–many SMD footprints tie this tab to the main drain terminal, necessitating a direct connection to the load path or heatsink. In complementary pairs (e.g., H-bridge drivers), ensure the gate-source threshold voltages align with the control logic levels; a mismatch as small as 0.3V can cause asymmetric switching or shoot-through failures.

Reverse the pin assignments mentally when viewing mirrored or flipped component outlines. A common error is treating a bottom-side view as a top-side one, leading to swapped drain and source connections. Use the silkscreen’s orientation markers (e.g., chamfered corners) as reference; if absent, rely on the pin 1 indication from the schematic’s reference designator. For multi-die packages (e.g., half-bridge modules), each symbol’s internal connections must match the physical bond wires–consult X-ray images or assembly notes if available.

Step-by-Step Guide to Drawing a Transistor Switching Layout

Select a logic-level N-channel device with a gate threshold under 2V (e.g., IRLZ44N) to ensure compatibility with 3.3V microcontroller outputs. Position the component vertically, drain at the top connected to the high-side load (resistor, LED, or motor), and source at the bottom tied to ground. Keep the trace from the drain to the load short–under 2 cm–if switching currents exceed 2A to minimize inductance.

Connect the gate node to the control pin via a 100–220 Ω series resistor to prevent ringing. Place a 10 kΩ pulldown resistor directly between gate and source terminals to hold the device off when the input is floating. If the load draws more than 5A, add a fast recovery diode (e.g., UF4007) across the load, cathode to the supply rail, to clamp back EMF.

Optimizing Power Traces

Route the power input trace at least 2 mm wide per ampere of expected current; for 10A, allocate 20 mm of copper. Use polygon pours on both outer layers for the ground return path, stitching them with vias spaced every 5 mm. Avoid sharp 90-degree corners–use 45-degree chamfers or smooth arcs to reduce current crowding at high frequencies.

Thermal and Layout Checks

Allocate a 2 cm² copper pad on the top layer, directly under the device’s thermal tab, stitched to the bottom layer with at least 6 thermal vias (0.5 mm diameter). If ambient temperatures exceed 50 °C, add a small heatsink or specify a thicker 2 oz copper board. Verify clearance: maintain 0.5 mm gap between the gate trace and any adjacent high-voltage node (>24V) to prevent arcing.

Common Mistakes When Designing Transistor-Based Power Circuits

Failing to account for reverse recovery time in body diodes leads to excessive switching losses. High-current applications often ignore this parameter, assuming fast recovery diodes are sufficient. Instead, select components with trr values under 50ns for 100V+ designs. Test prototypes with an oscilloscope to confirm recovery behavior matches datasheet claims.

Inadequate Gate Drive Strength

Weak gate drivers cause slow switching transitions, increasing power dissipation during turn-on and turn-off. A common error is using logic-level drivers for standard-threshold devices. Ensure the driver’s peak current exceeds 2A for devices above 60V or 5A for sub-30V designs. Check rise/fall times with a 10Ω gate resistor–target less than 20ns per volt of gate-source swing.

• Symptoms: Excessive heat at low switching frequencies, unexplained thermal shutdowns.
• Solution: Use dedicated gate driver ICs (e.g., UCC27524) rather than microcontroller GPIOs.
• Verification: Measure V_GS waveforms with a high-bandwidth probe–look for clean transitions without ringing.

Neglecting parasitic inductance in power loops creates voltage spikes that exceed maximum ratings. A mere 10nH stray inductance at 10A/μs generates 100V spikes. Use wide, short traces or busbars for high-current paths. For SMD layouts, prioritize Kelvin connections for gate and source pads to minimize common-source inductance.

1. Place decoupling capacitors within 2mm of power pins, using 0.1μF X7R ceramic for local HV transients.
2. Avoid vias in critical current paths–stitching vias increase inductance by ~1nH/mm.
3. Simulate loop inductance in PCB tools (e.g., Ansys Q3D) if switching frequencies exceed 100kHz.

Overestimating the device’s thermal handling capability leads to premature failures. Many designers assume R_{θJA values from datasheets apply to all layouts. In reality, thermal resistance doubles with poor PCB copper area. For TO-220 packages, use a minimum of 2 square inches of 2oz copper per device. Attach thermal vias under the tab, drilled at 0.3mm pitch with 0.25mm diameter.}

Ignoring Avalanche Energy Limits

Unclamped inductive loads generate avalanche conditions that destroy the component if not properly managed. Always include a freewheeling diode or snubber circuit for inductive loads. Verify the device’s single-pulse avalanche energy (E_AS) exceeds worst-case scenarios. For example, a 1mH coil switched at 1A requires at least 500μJ of E_AS–check datasheets for derating factors at elevated temperatures.

Underestimating EMI from fast switching edges forces costly redesigns. Rise/fall times under 10ns emit significant RF noise in the 10–100MHz range. Apply these mitigations:

• Insert a 1–10Ω gate resistor to slow transitions, trading off efficiency for EMI reduction.
• Use ferrite beads (e.g., 60Ω at 100MHz) on gate and power lines.
• Add 1nF–10nF Y-capacitors from power nodes to ground near the component.
• Layout critical traces on internal PCB layers sandwiched between ground planes.
