Build a Custom BLDC Motor Speed Controller Step-by-Step Schematic Guide

For a 24V system with a torque demand under 1.5Nm, a half-bridge topology using N-channel MOSFETs (e.g., IRFZ44N) paired with a PWM frequency of 20-25kHz minimizes switching losses while maintaining responsiveness. Use three Hall-effect sensors (A3144) positioned at 120° intervals for commutation timing–ensure mounting precision within ±2° to avoid phase misalignment. A gate driver like the DRV8301 or IRS2330 simplifies isolation and dead-time control, critical for preventing shoot-through in high-side/low-side pairs.

Power regulation requires a 600V/4A Schottky diode (e.g., STTH4R06) on the input to suppress reverse voltage spikes from inductive load decay. For current sensing, a shunt resistor (0.01Ω, 5W) in series with the low-side MOSFETs provides accurate feedback–amplify the signal with an instrumentation amplifier (INA146) configured for a gain of 20V/V. Overcurrent protection should trip at 1.8× the rated load (adjust via hysteresis comparator LM311) to prevent thermal runaway.

For closed-loop operation, implement a PI compensator in firmware (e.g., STM32F103) with proportional gain K_p=0.5 and integral gain K_i=0.02–these values balance overshoot and settling time for inertial loads under 0.1kg·m². Decoupling capacitors (100nF X7R) should be placed within 2mm of the MCU’s VDD pins to filter high-frequency noise. If regenerative braking is needed, add a bidirectional TVS diode (P6KE200A) across the DC bus to clamp voltage surges.

Thermal management dictates PCB layout: pour 2oz copper polygons under MOSFET pads, keep high-current traces ≥3mm wide, and use vias (0.3mm diameter) to distribute heat to an internal ground plane. For EMI compliance, route PWM lines orthogonal to sensitive analog traces, and shield Hall sensors with a grounded copper pour. A snubber circuit (22Ω + 1nF) across each MOSFET drain-source pair reduces ringing at switch-off edges.

Designing a Precise Electronic Commutation Driver Schema

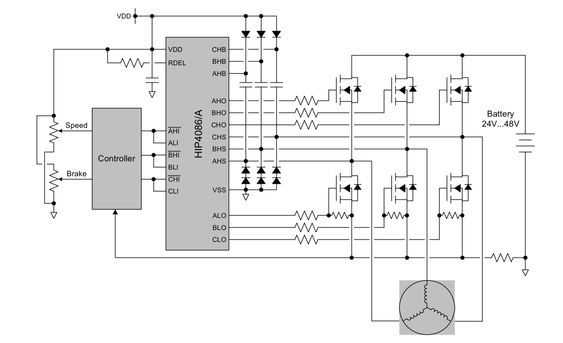

Begin with a three-phase inverter bridge using N-channel MOSFETs (e.g., IRF540N) or IGBTs for higher voltages. Arrange six transistors in an H-bridge configuration–two per winding–to ensure efficient switching. Include antiparallel diodes across each MOSFET to handle back-EMF, critical during deceleration phases. For robustness, select components with a current rating 30% above expected peak loads (e.g., 10A diodes for a 7A system).

Implement a dedicated MCU–STM32F103C8T6 or ATmega328–to manage commutation timing. Use Hall-effect sensors (e.g., A1101) spaced at 120° intervals to detect rotor position. Wire sensors directly to MCU input pins with pull-up resistors (10kΩ) to stabilize signals. For sensorless designs, replace Hall sensors with phase voltage comparators (e.g., LM393) to infer rotor position from back-EMF zero-crossing events, though this requires precise tuning.

Gate drivers (e.g., IR2104) isolate the MCU from high-side MOSFETs and provide necessary gate voltages (10–20V). Include bootstrap capacitors (0.1µF) and diodes (1N4148) to maintain high-side driver charge during operation. Failure to properly size these components leads to shoot-through currents, destroying the bridge. For safety, add overcurrent protection via a shunt resistor (0.01Ω) and a comparator (LM358) to disable drivers when current exceeds 80% of MOSFET limits.

PWM modulation is essential for velocity regulation. Use the MCU’s timer modules (e.g., Timer2 in STM32) to generate complementary PWM signals with dead-time (1–5µs) to prevent cross-conduction. A frequency of 20kHz balances efficiency and audible noise; adjust based on power stage thermal constraints. For closed-loop control, integrate a PID algorithm (sampled at 1kHz) using encoder feedback or Hall sensor transitions as velocity references.

Power stability demands careful filtering. Place a low-ESR capacitor (100µF) across the DC bus to suppress voltage spikes. Solder directly to MOSFET tabs to minimize trace inductance. Add a snubber circuit (0.1µF capacitor + 10Ω resistor in series) across each winding to dampen parasitic oscillations. For EMI reduction, twist motor leads and shield the entire assembly with a grounded braided cable.

Calibration determines performance. Start by verifying Hall sensor alignment–misalignment causes torque ripple. For sensorless designs, measure back-EMF at 50% nominal RPM and adjust comparator thresholds until clean zero-crossings occur. Test under load: log current draw and temperature rise over 30 minutes. MOSFETs exceeding 70°C require heatsinks; above 100°C, derate power or improve cooling.

Fine-tuning involves software adjustments. Adjust PID gains through trial and error–start with P=1.0, I=0.1, D=0.01 and test step responses. For dynamic loads, implement feedforward compensation using a lookup table of voltage-to-RPM curves. Final optimization includes low-pass filtering Hall sensor signals (cutoff at 1kHz) to reject noise from brushless commutation arcs. Debugging tools: an oscilloscope (2+ channels) to monitor PWM, back-EMF, and current waveforms simultaneously.

Critical Elements for a Brushless Drive Regulator Blueprint

Select a microcontroller with dedicated PWM outputs and sufficient clock speed to handle commutation at the target RPM. STM32F303 or ATmega328 variants work for most applications; verify they offer a minimum of 6 independent PWM channels if running trapezoidal control, or 3 high-resolution channels for sinusoidal modulation. Avoid units with shared timer resources unless the firmware compensates for timing jitter.

• Ensure the MCU’s ADC resolution meets damping requirements: 10-bit for basic torque ripple suppression, 12-bit if Hall sensors are absent and back-EMF Zero-Crossing detection is used.
• Flash memory should exceed anticipated code size by 30 % to accommodate future field-oriented control routines.

MOSFETs must match the DC link voltage with a 3× safety margin; IRF540N handles 100 VDC but demands active cooling above 5 A. For higher currents, opt for low R_DS(on) trench FETs rated at 150 °C junction temperature. Pair each high-side transistor with a dedicated bootstrap capacitor, typically 100 nF ceramic, refreshed via a Schottky diode.

Gate drivers require galvanic isolation when bus voltage exceeds 48 V; ISO5500 series isolates up to 5 kV with 4 A peak drive current. Dead-time between phases must be programmable between 50 ns and 500 ns to prevent shoot-through, often overlooked in hobbyist layouts but critical under transient loads.

1. Position current-sense resistors on the low-side return path to avoid ground-loop errors; Kelvin connections reduce voltage offset to under 50 mV at 20 A.
2. For regenerative braking, integrate a brake chopper circuit with a 470 Ω dynamic load resistor; omit if the supply can absorb reverse energy.

Hall sensors, if present, must interface via Schmitt-trigger buffers to suppress noise spikes. Align them within ±10° of the rotor’s magnetic neutral axis; misalignment causes phase lag visible as increased winding temperature at high RPM. If sensors are absent, back-EMF detection circuitry requires bandpass filters centered on the switching frequency, typically 20 kHz, to prevent false zero-crossing triggers.

Power supply bypassing is non-negotiable: place 10 µF tantalum capacitors at the point-of-load, with 100 nF ceramic capacitors directly across each FET’s drain-source. Route traces for current paths wider than 2.5 mm/A to prevent copper etching and voltage sag under surge conditions.

Firmware must implement watchdog resets every 10 ms to guard against commutation stall; lost Hall transitions can lock the rotor, causing irreversible demagnetization if sustained. Include overcurrent latch logic tied to the ADC’s fast interrupt vector, clearing only after an explicit reset command rather than auto-recovery.

Step-by-Step PCB Layout for a Three-Phase Drive Board

Start by partitioning the schematic into functional zones: gate drive, power stage, MCU control, and feedback sensing. Group components by current paths–high-current sections (switching transistors, capacitors) must stay separate from low-level analog signals (current sensors, regulators) to minimize interference. Use a ground plane for the power stage, but split it into analog and digital grounds connected at a single star point near the main decoupling capacitor.

Route gate drive traces first. Keep them as short as possible–ideally under 20 mm–to reduce inductance and ringing. Use 1 oz copper weight for these paths, widening to 2 mm for higher current handling. Place gate resistors (10–22 Ω) and diodes (BAV99) directly at the transistor pads to quench voltage spikes. For high-side drivers, ensure the bootstrap capacitor sits within 5 mm of the driver IC to maintain charge.

Position the switching transistors (e.g., N-channel MOSFETs or IGBTs) on the PCB edge to improve thermal dissipation. Align them in a straight line with minimal trace bends–90° angles introduce parasitic inductance. If using a heatsink, apply a 2.5 mm thermal via grid under each device pad, filled with solder for better heat transfer. Space transistors at least 10 mm apart to prevent thermal coupling.

Decouple power rails aggressively. Place bulk capacitors (47–100 µF electrolytic or polymer) near the DC input, with ceramic bypass caps (0.1–1 µF) at each transistor’s power pin. For 3.3V or 5V logic rails, use a dedicated linear regulator (e.g., LM1117) with its own decoupling right at the MCU pin. Avoid running high-current traces over or near MCU crystal oscillator–keep a 5 mm clearance.

Design feedback loops with precision. Current shunt resistors (0.005–0.01 Ω) should sit directly in the phase return path, with Kelvin connections to the amplifier. Route sense lines as differential pairs, shielded if possible, and keep them away from switching nodes. For hall-effect sensors, position them as close to the rotor as mechanically feasible (within 5 mm), and route signals with a ground plane beneath to reject noise.

Test points are non-negotiable. Add 0.8 mm vias at switching nodes, gate drives, VCC rails, and feedback paths for oscilloscope probing. Include series resistors (1 kΩ) on debug lines to prevent accidental shorts. For boards above 50V, add 1 mm clearance between high-voltage traces and low-voltage sections, and use conformal coating if operating in humid or dusty environments.

Finalize the layout by verifying thermal relief: thermal vias under hot components must connect to a dedicated plane, not just the ground pour. Generate Gerbers and run a Design Rule Check (DRC) with these tolerances: 0.2 mm trace width, 0.3 mm spacing for signal lines; 1 mm spacing for high-voltage areas. Export a 3D model to check mechanical fit–ensure no components interfere with the rotor or housing.
