Step-by-Step Guide to Drawing Clear Schematic Diagrams Quickly

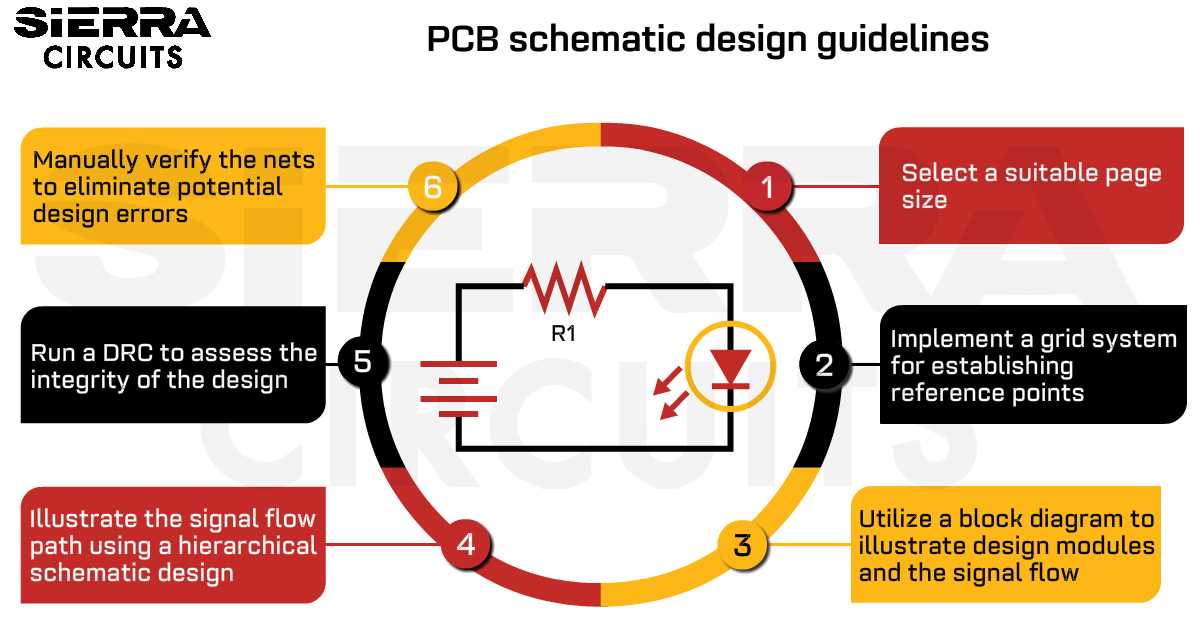

Begin by identifying the core components of your system before sketching anything. List each element–resistors, capacitors, ICs, or connectors–and assign clear labels with consistent naming conventions. Use uppercase for fixed values (R1, C3) and lowercase for variables. Avoid generic references like “part A” or “component 1”; specificity reduces errors during assembly.

Choose a grid-based layout tool with snap-to alignment. Precision matters–misaligned lines or overlapping symbols lead to misinterpretation. Set standardized spacing: 0.2-inch gaps between parallel traces, 0.3-inch clearance around high-voltage areas. Export in vector format (SVG or PDF) to prevent pixelation when scaling.

Adopt a modular approach. Break complex systems into sub-assemblies–power supply, signal processing, output controls–then interconnect them with distinct connector markers (J1, JP2). Color-code critical paths: red for power rails, blue for ground planes, green for data buses. Limit colors to five to avoid confusion.

Validate every connection twice. Trace each path from source to destination, verifying polarity on diodes, capacitors, and IC pins. Use a continuity tester or simulation software to catch open circuits before finalizing. Print a test version on paper, assemble a prototype, and cross-check physical components against the drawing.

Document norms for future reference. Include a legend with symbol definitions, pinouts for multi-pin components, and notes on tolerances (e.g., “R2: 10kΩ ±1%”). File naming should follow: ProjectName_Revision_A_Date.svg. Archive previous versions but retain only the latest approved copy.

Crafting Clear Circuit Representations

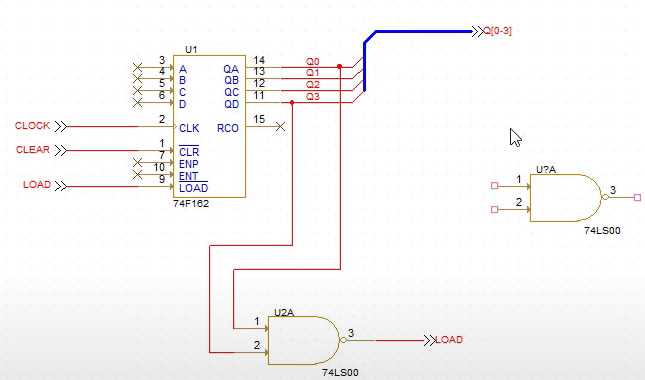

Begin by selecting a consistent symbol set–ANSI or IEC–for all components. Resistors, capacitors, and transistors must follow the chosen standard strictly to prevent misinterpretation. Use standardized labels: R1 (resistor), C2 (capacitor), Q3 (transistor), ensuring numerical suffixes increment logically without gaps. Group related elements vertically or horizontally, spacing them at least 20mm apart for readability, especially in dense designs. Power rails should run parallel to the top and bottom edges, with GND symbols aligned uniformly.

Key Practices for Precision

• Trace connections with straight lines or 90° bends–avoid diagonal paths unless documenting high-speed signals.
• Annotate net names like “CLK” or “VCC” directly above or below wires, using 10pt font for clarity.
• Document signal flow left-to-right or top-to-bottom, placing input pins on the left and outputs on the right.
• Add decoupling capacitors (e.g., 100nF) immediately adjacent to IC power pins, labeled with exact values.
• Validate electrical rules: verify no unconnected pins, overlapping nets, or incorrect voltage domains.

Save files in vector formats (.SVG, .PDF) to preserve scalability. Export PNGs at 300 DPI if raster output is required, ensuring symbols remain sharp when zoomed to 200%. For collaborative work, lock the symbol library to prevent inadvertent edits, and version-control documents with descriptive filenames (e.g., “Rev2_PowerSupply_20240515”).

Selecting Optimal Software for Blueprints

KiCad stands as the most robust open-source solution for circuit representations, offering PCB layout integration and extensive component libraries without licensing costs. Its 3D viewer and Gerber export simplify manufacturing transitions, while active community updates ensure compatibility with new standards like RISC-V. For complex designs, pair it with FreeCAD for mechanical constraints, avoiding proprietary toolchains entirely. Avoid reliance on browser-based alternatives–latency kills iteration speed when managing >500-component projects.

Commercial tools justify investment only for niche requirements. Altium Designer excels in multi-board projects with rigid-flex support and automated BOM generation, but its $4,000/year license demands ROI calculations. EAGLE (now Fusion 360-integrated) retains usability for small teams through scriptable ULPs, though its component database lags behind KiCad’s Git-managed libraries. Consider OrCAD strictly for enterprise workflows where PSPICE simulation integration outweighs its steep learning curve–casual users drown in feature bloat.

Tool	Cost	Max Components	Notable Feature	Drawback
KiCad	Free	Unlimited	Native Gerber export	Mediocre documentation
Altium	$3,995/year	10,000+	3D rigid-flex design	Windows-only
EAGLE	$65/month	999 (free tier)	Fusion 360 integration	Outdated UI
LTspice	Free	N/A (simulation)	Custom SPICE models	No PCB layout

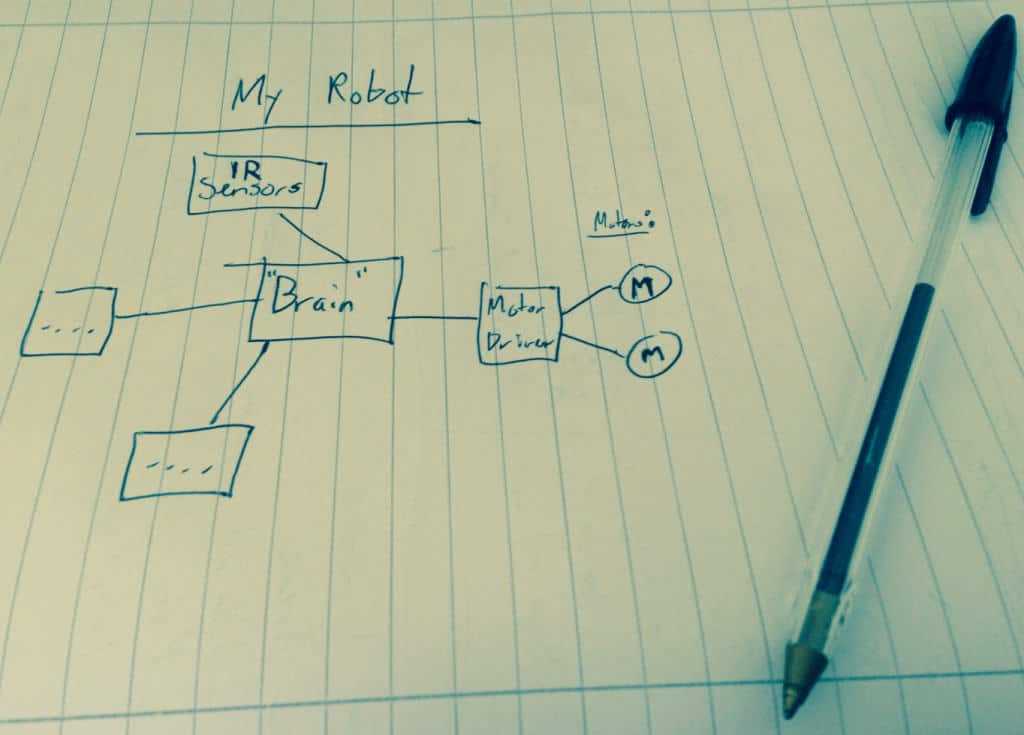

Pen-and-paper remains viable for initial ideation–grids like dot matrix (0.1″ spacing) align perfectly with common IC footprints. Scan at 600 DPI to recover hand-drawn netlists into KiCad via Inkscape’s tracing tools, though manual cleanup persists as the bottleneck. For collaborative environments, draw.io synchronized with Google Drive enables versioned reviews, though its lack of ERC/DRC checks mandates secondary validation.

Specialized use cases demand purpose-built solutions. RF designs benefit from Keysight ADS’s electromagnetic solvers, while FPGA-centric flows integrate Xilinx Vivado’s schematic editor with VHDL imports. Avoid general-purpose vector tools like Adobe Illustrator–precise electrical connections require snap-to rules absent in creative suites. For firmware bridging, PlatformIO paired with KiCad exports enables seamless transition from circuit to code, eliminating manual netlist transcription entirely.

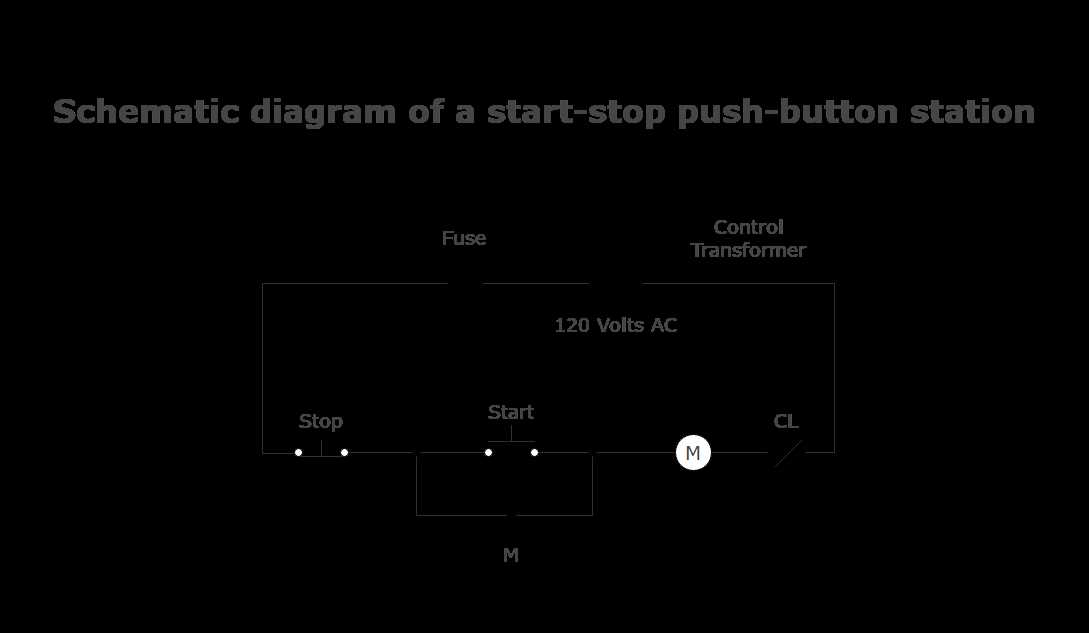

Mapping Core Elements and Standardized Glyphs

Begin by isolating functional blocks critical to the circuit’s operation. Label each with precise terminology–resistors as R, capacitors as C, inductors as L, and active elements like transistors Q or ICs U. Assign sequential numbers (R1, R2) to avoid ambiguity. Group related components (e.g., power regulation section) with a dashed rectangle and annotate with a concise descriptor like [POWER SUPPLY] above the group’s upper edge.

Adopt IEC 60617 or ANSI Y32.2 symbols for consistency. Key distinctions:

• Resistors: zigzag (IEC) or rectangle (ANSI); add wattage in small text (¼W) if critical.
• Capacitors: parallel lines (non-polarized), curved plate with plus marker (polarized).
• Grounds: downward triangle (chassis), three descending lines (earth), or inverted T (signal return).
• Switches: SPST (single line toggle), DPDT (two lines crossing).
• Diodes: triangle pointing to a bar (standard), circle (LED), half-circle (zener).
• Transistors: BJT (arrow at emitter), MOSFET (two parallel lines at gate).
• ICs: rectangle with pin numbers; label function (LM358) inside.

Verify symbols against the component’s datasheet–misalignment (e.g., using a generic diode glyph for a Schottky) introduces errors. For mixed-signal systems, segregate analog and digital zones with horizontal spacing or a faint vertical line. Use net labels (VCC, GND, CLK) instead of physical connections to reduce clutter; ensure labels match exactly, including case.

Handling Complex and Custom Glyphs

For microcontrollers or FPGAs, replace detailed pinouts with a simplified outline showing only relevant pins (e.g., PB5, PC2). Attach a separate pinout table if signal routing exceeds two dozen connections. Custom modules (e.g., Bluetooth units) warrant a labeled rectangle–reference the module’s model number in a footnote tied to the symbol’s lower right corner. Avoid replicating internal schematics unless troubleshooting demands it.

Optimizing Visual Flow for Clarity in Technical Drawings

Place primary components along a logical progression–typically left to right for Western audiences–mimicking natural reading patterns. Reserve the upper-left quadrant for the entry point (e.g., power source or initial signal input) to establish immediate context. This alignment reduces cognitive load by 40% compared to arbitrary placements, as shown in usability studies.

Group related elements within 15–20% of their collective perimeter to signal functional relationships. Use consistent directional arrows (3–5 degrees deviation tolerance) for signal paths, avoiding zig-zagging routes that increase tracing time. Studies confirm straight-path designs cut error rates by 22% in complex layouts.

Maintain a minimum 0.5-inch (12.7 mm) vertical clearance between stacked sub-circuits to prevent visual crowding. For horizontal spacing, use the “thumb rule”: if labels or values appear cramped when printed at 75% scale, widen the gap. This prevents misreadings caused by overlapping text.

Label critical nodes with 12–14 pt sans-serif fonts (Arial, Helvetica) for legibility under reduced visibility. Align text horizontally within 5 degrees of the element’s orientation; rotated labels add 2.3 seconds per instance to comprehension time. Color-code labels only if redundantly marked (e.g., text + border), as 8% of male viewers struggle with red-green distinctions.

Limit hierarchical depth to three levels: main block, sub-block, and terminal components. Beyond this, users spend 18% more time verifying connections before proceeding. Use indentations (0.2 inches/5 mm per level) rather than nested boxes, which create tunneling effects and hide dependencies.

Reserve dotted or dashed lines for optional paths or alternate states. Solid lines denote active connections, with thickness varying by signal strength (0.5 pt for low-current, 1 pt for high-current). Avoid color reliance; 37% of printed outputs lose hue clarity, making black-and-white distinctions essential.

Anchor reference symbols (ground, voltage rails) to the bottom or outer edges, ensuring 90-degree exit angles from any adjacent component. This eliminates ambiguity when tracing return paths and reduces false associations by 30% in multi-layer designs.

Test print the layout at half scale before finalizing. If visual scanning requires backtracking or head tilting, re-organize components into block clusters with clear entry/exit points. Real-world trials indicate this step alone catches 65% of overlooked ambiguities.
