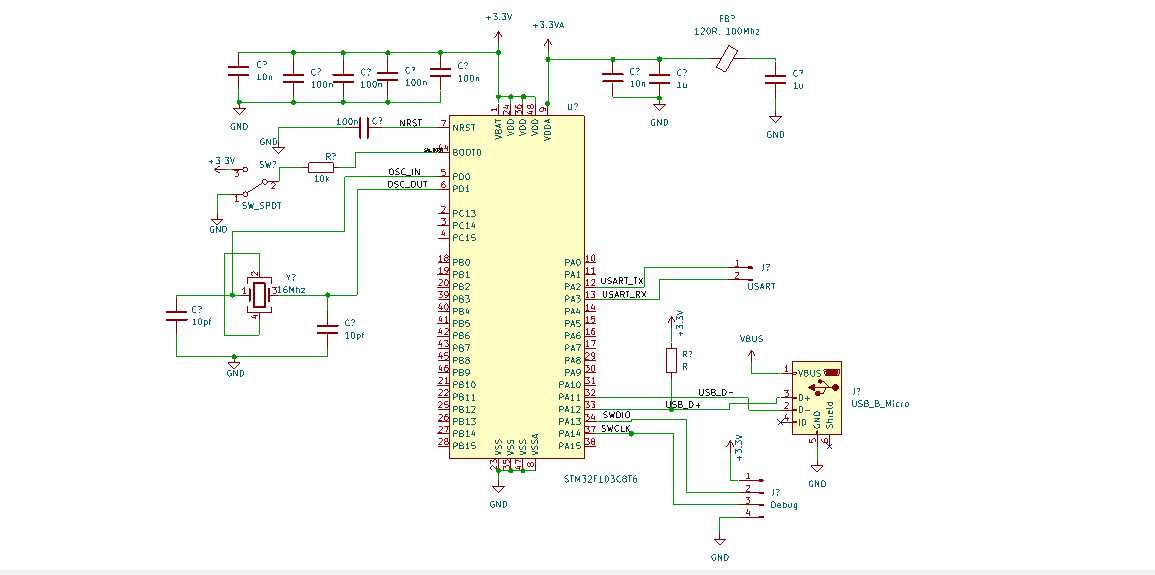

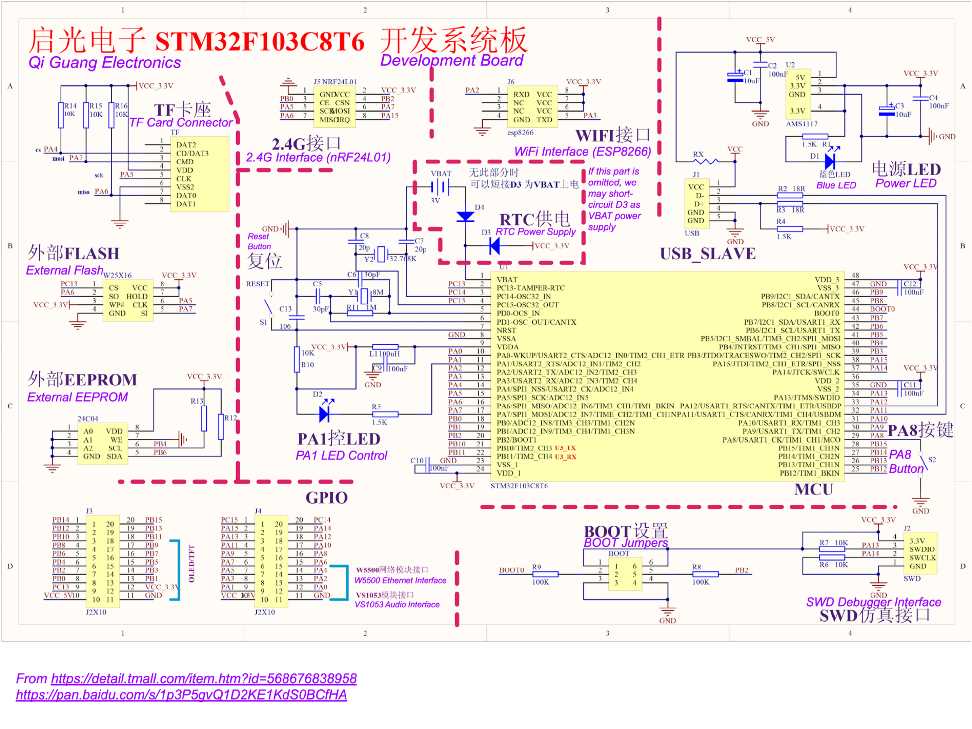

STM32 Bluepill Board Schematic Breakdown and Circuit Analysis
Start with the power input section: a 5V USB or 3.3V external supply must feed into a low-dropout regulator like the AP2112K-3.3. Ensure a 10µF tantalum capacitor on the input and a 4.7µF ceramic capacitor on the output to stabilize voltage and prevent oscillations. Bypass the regulator with a 0.1µF capacitor placed no further than 5mm from its terminals. Connect a Schottky diode (1N5817) between USB 5V and the regulator input to prevent back-powering via the micro-USB port.
The microcontroller’s VCAP pin requires a 2.2µF capacitor to ground for internal voltage regulation. Place a 32.768kHz crystal with two 22pF load capacitors on OSC32_IN/OSC32_OUT for the RTC clock. For the main HSE, use an 8MHz crystal paired with 20pF capacitors on OSC_IN/OSC_OUT. Keep trace lengths under 10mm to minimize parasitic capacitance and ensure stable oscillation.
Route USB_DM/USB_DP through a 27Ω series resistor each, with a 1.5kΩ pull-up resistor on USB_DP tied to 3.3V. Add ESD protection diodes (PESD5V0S1BA) on both lines to clamp transients below ±8kV. The NRST pin must have a 10kΩ pull-up resistor and a 0.1µF decoupling capacitor to ground within 2mm of the pin. Omit the capacitor if using an external reset circuit.
For programming interfaces, expose SWCLK, SWDIO, GND, and VCC on 2.54mm headers. Add a 100nF capacitor on VCC near the header to filter noise during debug sessions. Tie unused GPIO pins to ground via 10kΩ resistors to prevent floating inputs, or leave them unconnected if configured as outputs in firmware. For analog signals, route VREF+ to a clean 3.3V source with a 0.1µF capacitor at the pin and avoid crossing digital traces.
If including a user LED, connect it to a GPIO (e.g., PC13) through a 470Ω resistor; drive the pin low to illuminate. For a BOOT0 header, use a jumper shunt or a 2-pin header with a 1kΩ pull-down resistor to ensure reliable boot mode selection. Decouple the MCU’s power pins (VDD) with 0.1µF capacitors–one per pair–placed no more than 5mm from the pins, and a single 10µF capacitor for the entire bank.
STM32-Based Development Board Circuit: Practical Breakdown
Start prototyping by connecting the MCU’s VDD pins (10, 32, 48, 64) directly to a 3.3V regulated supply–no series resistors or ferrite beads. Bypass capacitors (±0.1 µF X7R) must sit within 1 mm of each power pin to prevent brownouts during flash writes; bulk capacitance (4.7 µF) near the power inlet handles transient loads.
USB data lines (PA11, PA12) require 22 Ω series resistors to dampen reflections. Connect VBUS to a 5 V rail with a 10 kΩ pull-down if hot-plug events cause boot-loop issues–this ensures clean enumeration. Debug header (SWDIO, SWCLK) traces should be kept under 3 cm; avoid routing parallel to oscillator tracks to reduce crosstalk.
| Pin | Recommended Decoupling | Notes |
|---|---|---|
| VDD_A (10) | 0.1 µF + 4.7 µF | Place near analog regulator output |
| VDD (32) | 0.1 µF | Keep via count minimal |
| BOOT0 | 10 kΩ pull-down | Prevents accidental DFU mode |
| NRST | 0.1 µF + 10 kΩ pull-up | Resistor delays internal reset |
Oscillator circuit (8 MHz crystal) demands a load capacitance of 18-22 pF per pin; PCB parasitic capacitance typically adds 2-4 pF. Use a 0 Ω resistor on the feedback path to disable the oscillator during impedance measurements–this isolates the crystal for accurate evaluation.
GPIO current sourcing is capped at 20 mA per pin; exceeding this risks thermal throttling. For LEDs, use 470 Ω series resistors even if running at 3.3 V–this extends lifespan and reduces flicker. High-drive pins (PA8, PA9) can sink 40 mA but require derating if multiple are active simultaneously.
ADC channels benefit from a separate analog ground plane; stitch via to digital ground near the MCU but avoid noisy traces beneath the IC. Reference voltage (VREF+) should connect to VDDA with a 1 µF tantalum capacitor; bypass with 0.1 µF ceramics if measuring small signals.
I2C pull-ups should be 2.2 kΩ for 400 kHz operation–lower values risk false start conditions. SPI traces must match impedance (50 Ω single-ended); mismatched lengths induce clock skew. For prolonged communication, enable CRC to detect bit errors.
Hardware watchdog timer (IWDG) requires periodic refresh within 32.768 kHz LSI cycles; configure prescaler to balance safety margin and responsiveness. If using low-power modes, ensure wake-up sources (external interrupts, RTC alarms) are debounced–false triggers waste energy.
Key Components and Pinout Mapping in the STM32F103C8T6 Core Board Layout
Start by identifying the STM32F103C8T6 microcontroller at the center. Pin PA9 (USART1_TX) and PA10 (USART1_RX) handle serial communication–route these to a 3.3V-compatible USB-to-serial adapter for firmware uploads. Avoid 5V logic on these pins to prevent damage. Label all traces clearly before soldering.
Power delivery requires strict attention. The 3.3V regulator (AMS1117) output powers the MCU and peripherals; connect VIN to a stable 5V source via USB or external supply. Bypass capacitors (10µF + 0.1µF) must sit adjacent to the regulator’s input/output pins to filter noise. The VDD pins on the MCU need decoupling capacitors (0.1µF) per datasheet–place them no farther than 2mm from each pin.
Clock signals demand precision. The 8MHz crystal connects to OSC_IN (PA1) and OSC_OUT (PA2) with 18pF load capacitors. For higher accuracy or USB operations, solder a 32.768kHz crystal to PC14 (OSC32_IN) and PC15 (OSC32_OUT) with matching caps. Verify oscillations with an oscilloscope–absence indicates faulty crystal or incorrect capacitance.
Memory interfaces split into SPI and I²C buses. For SPI flash, use PA5 (SCK), PA6 (MISO), and PA7 (MOSI); add a 10kΩ pull-up on PA4 (NSS) to prevent floating. I²C sensors connect via PB6 (SCL) and PB7 (SDA) with 4.7kΩ pull-ups to 3.3V. Trace lengths for these buses should stay under 10cm to minimize interference.
GPIO mapping varies by function. PC13 drives an onboard LED–active-low means writing 0 turns it on. PA0-PA3 suit analog inputs (ADC); ensure signals stay within 0-3.3V to avoid clipping. Use PB10 (USART3_TX) and PB11 (USART3_RX) for secondary serial if primary pins are occupied.
Boot configuration relies on BOOT0 and BOOT1. Pull BOOT0 high (via a button) to enter flash mode; keep it low for normal operation. BOOT1 (PC2) should remain grounded. Add a 100nF cap between NRST and ground to debounce the reset button.
Debug pins require minimal soldering. Connect SWDIO (PA13) and SWCLK (PA14) to an ST-Link adapter, avoiding long wires. A 1kΩ series resistor on each line prevents reflections. Leave VREF+ unconnected unless using an external reference voltage for ADC measurements.
Final checks include verifying all signal traces against continuity tests. Probe each GPIO with a multimeter in diode mode; expected readings hover around 0.5-0.7V. Confirm power rails (3.3V/5V) remain stable under load. Reflow suspicious joints–cold solder often causes intermittent failures.
Step-by-Step Power Supply Circuit Design for Stable 3.3V and 5V Output
Select a low-dropout (LDO) regulator with a dropout voltage under 0.3V at full load for 3.3V output. The MCP1703 series handles 250mA with 25µVrms noise–ideal for precision applications. Ensure input voltage exceeds output by at least 0.5V to maintain regulation under varying load conditions.
For 5V output, opt for a switching regulator at higher efficiency. The LM2596-5.0, rated for 3A, achieves 80% efficiency at 12V input. Add a 47µH inductor with saturation current exceeding 3A and a 100µF output capacitor to minimize ripple below 50mVpp. Place a Schottky diode (1N5822) on the switching node to reduce reverse recovery losses.
Ground plane isolation between analog and digital sections prevents noise coupling. Route LDO ground paths directly to the star ground point, avoiding shared traces with switching components. Use 0.1µF ceramic capacitors close to regulator input and output pins, with additional 10µF tantalum capacitors for transient response improvement.
Thermal management dictates component placement. Mount the LM2596 on a heatsink if PCB copper area is under 1,000mm² or ambient temperature exceeds 50°C. For LDOs, ensure junction temperature stays below 125°C; calculate using θJA (thermal resistance) from the datasheet. Example: MCP1703 θJA = 220°C/W with 2oz copper–yields 11°C rise per watt dissipated.
Input filtering requires a pi-network: 220µF electrolytic capacitor followed by a 10µF ceramic, with a 1µH ferrite bead to suppress high-frequency noise. For USB-powered designs, include a polyfuse rated for 1.1A to protect against overcurrent. Verify stability by injecting a 1mA load step while monitoring output sag (target
PCB layout prioritizes short, wide traces for high-current paths. Keep switching loops under 50mm² to reduce EMI. Route feedback traces away from inductors and diodes, shielding them with ground pours. Test for cross-regulation by varying 3.3V load from 10mA to 200mA while checking 5V stability (max ±1%).
Final validation involves thermal imaging and oscilloscope measurements. Confirm LDO headroom under worst-case input (e.g., 3.8V for 3.3V output) and switching regulator efficiency at half load. Use a 6½-digit multimeter to verify DC accuracy (target ±0.5% tolerance). Log measurements over 24 hours to detect long-term drift or thermal effects.
Oscillator and Clock Configuration: Selecting and Connecting External Crystals
For 32-bit microcontrollers operating at frequencies above 16 MHz, use a parallel-resonant AT-cut crystal with a load capacitance of 8–20 pF. Typical choices include 8 MHz or 12 MHz crystals–avoid exceeding 25 MHz without active compensation circuits. Place the crystal within 5 mm of the MCU’s oscillator pins to minimize parasitic inductance. Lead lengths longer than 10 mm introduce noise and may disrupt startup reliability.
Calculate required load capacitors using Cload = [(C1 × C2) / (C1 + C2)] + Cstray, where Cstray approximates 1–2 pF. For a 16 pF crystal, pair it with two 20–30 pF capacitors. Values below 15 pF risk unstable oscillation; above 40 pF may prevent startup. Verify with an oscilloscope–ensure a clean sine wave, free of harmonic distortion or slew-rate violations.
Startup and Stability Considerations
Enable the MCU’s embedded load capacitance trimming if available–consult reference manuals for registers like RCC_CR (STM32) or OSCCTRL (SAMD). Disable this feature when using external capacitors. For crystals below 4 MHz, add a 1 MΩ feedback resistor across the oscillator pins to guarantee rapid startup. Absence of the resistor may cause intermittent failures, especially at cold temperatures.
Test startup behavior across voltage ranges: some MCUs require full VDD for reliable crystal activation. If brownout conditions occur, implement a power-on delay using the MCU’s reset circuitry or an external supervisor IC. Avoid ceramic resonators–they lack frequency stability (±0.5% tolerance) and temperature compensation (±30 ppm/°C), unsuitable for precision timing applications.
Layout and Noise Mitigation
Route the oscillator traces on an unbroken ground plane, keeping them away from switching regulators, inductors, or high-speed digital signals. Maintain a minimum spacing of 3 mm from noisy components. Use a dedicated guard ring around the crystal, connected to analog ground via a single point. Split power planes–digital and analog grounds should merge at the MCU’s star ground.
For high-frequency crystals (24+ MHz), consider adding a 10–100 Ω series resistor to dampen overshoot. Verify the oscillator’s amplitude: peak-to-peak voltage should reach 0.7–1.2 × VDD. If it saturates or clips, reduce load capacitance or add a damping resistor. Document all values and layout decisions–debugging crystal failures post-assembly is time-intensive.
