Complete Deh S31bt Car Stereo Wiring Color Codes and Connection Guide

Begin by identifying the power input pins–typically labeled B+ (constant 12V), ACC (accessory), and GND (ground). Incorrect connections here will prevent the device from powering on or cause intermittent failures. Use a multimeter to verify voltage stability before proceeding; fluctuations above 14V or below 11V indicate poor grounding or faulty wiring.

For the speaker outputs, match the left and right channel wires to the corresponding terminals on your amplifier or passive speakers. Swapping polarity (positive/negative) will result in phase cancellation, reducing audio clarity. If bridging an amplifier, ensure the head unit’s output impedance aligns with the amp’s input specifications–typically 4-8 ohms for standard setups. Check the unit’s manual for exact values.

Auxiliary inputs and outputs, including RCA jacks, require shielded cables to prevent signal interference. Ground the shielding to the same point as the unit’s chassis or a shared grounding block. Keep high-voltage wires (e.g., power cables) separate from signal wires to avoid alternator whine. If noise persists, add an inline noise filter (10A minimum) near the power source.

The illumination wire (often orange) must connect to the vehicle’s dimmer circuit. Without this link, the display will not adjust brightness automatically, risking glare at night. Some models integrate a reverse signal wire (purple) for rear camera activation–test this function using a 12V trigger source before finalizing the harness.

For steering wheel controls, use an adapter compatible with your vehicle’s protocol (CAN bus, resistance-based, etc.). Incorrect adapter selection–common on aftermarket kits–will render buttons non-functional. Verify compatibility by checking the adapter’s documentation against your car’s wiring standard.

Always secure connections with solder and heat-shrink tubing or crimp connectors paired with dielectric grease. Avoid twisting wires, as this introduces resistance and potential short circuits over time. If the unit includes Bluetooth or USB, route data cables away from the battery and alternator to prevent data corruption.

Pioneer Audio System Electrical Connections Explained

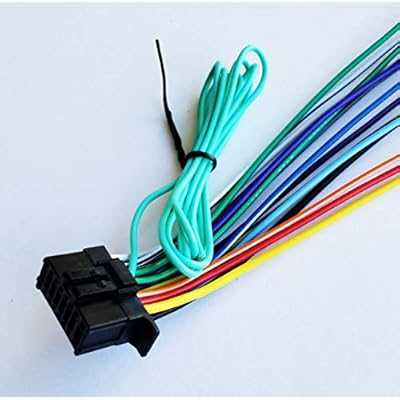

Locate the ISO harness behind your vehicle’s stereo unit–this universal connector simplifies integration with factory systems. Match the colored cables precisely: yellow (constant 12V) to battery, red (switched 12V) to ignition, and black to ground. Avoid twisting wires; use solder or crimp connectors rated for 20-gauge automotive applications to prevent corrosion or signal loss.

Antenna control requires separate attention–blue/white striped wire activates power antennas or amplifier triggers when connecting aftermarket speakers. Route this lead directly to the amplifier’s remote input if using external audio processing, ensuring minimal interference near fuel lines or ignition coils.

Speaker wires follow a strict polarity: white (+) and white/black (-) for front left, gray (+) and gray/black (-) for front right. Repeat for rear channels with green and purple pairs. Verify resistance (4-8 ohms) before final connections to prevent overheating or distortion in demanding audio environments.

Steering wheel controls demand a dedicated adapter–consult your vehicle’s service manual for resistive values between control buttons and the ISO connector. Common configurations include 220-4.7k ohm ranges for volume/track adjustments; resistor packs may be required for aftermarket compatibility.

USB charging (if present) connects via the accessory harness–red (+5V) and black (ground) wires must handle 2A minimum for stable device charging. Route cables away from moving parts and secure with zip ties at 10cm intervals to prevent wear over time.

Final inspection: use a multimeter to confirm no voltage differential exceeds 0.1V between ground and chassis. Test audio functionality with engine running at idle and 2500 RPM to identify alternator noise–add a ground loop isolator if interference persists in mid/high frequencies.

Locating Power Inputs on Your Pioneer Audio System

Start by tracing the constant 12V feed, typically a yellow cable marked “BATT” or “Memory”. This line connects directly to the vehicle’s battery via a dedicated fuse–never splice it into accessory circuits. Use a multimeter to verify at least 12V is present even when the ignition is off. Without this, presets and clock settings reset after engine shutdown.

Identify the accessory power lead, usually red and labeled “ACC” or “Ignition”. This wire should only receive voltage when the key is in the “ACC” or “ON” position. Connect it to a switched source–common splice points include the radio harness or fuse box taps. Avoid steering column wires; voltage drops here cause sporadic shutdowns.

Grounding and Illumination Wires

The black ground cable must terminate to a bare metal chassis point within 18 inches of the unit’s rear panel. Scrape paint and corrosion from the contact surface and secure it with a star washer–poor grounding introduces whine and signal interference. Illumination control (orange or orange/white) connects to the vehicle’s dimmer circuit; verify polarity if dash lights invert unexpectedly.

• Constant power (yellow): Battery +12V, fused at 10A.
• Accessory (red): Switched +12V, key-dependent.
• Ground (black): Chassis bolt, star washer essential.
• Dimmer (orange): Connects to rheostat output.

Amplifier remote turn-on (blue/white stripe) delivers a low-current trigger to external amps. Connect this only after confirming the head unit’s power integrity–miswiring here can overload the internal regulator. Use a relay if multiple amps draw over 200mA; direct tapping risks voltage sag during power-on thump.

1. Disconnect battery negative terminal before handling any power leads.
2. Test continuity between ground and suspected 12V lines–no reading indicates an open circuit.
3. Probe the orange wire with ignition on; no voltage suggests a blown dash light fuse (typically 5A).
4. Check for 5V reference on blue/white if amps fail to turn on; absence signals a faulty mainboard trace.

Color codes vary by vehicle brand–always cross-reference the harness connector pinout with the OEM manual. Toyota/Lexus models often repurpose the orange wire for speed signal input, while GM vehicles may use it for class 2 data. Use heat-shrink tubing on all splices; electrical tape degrades under hood temperatures and invites shorts.

Step-by-Step Speaker Cable Color Codes and Connection Points

Begin by identifying the positive and negative leads on your audio system’s output terminals–most car stereos and home receivers mark them with “+” and “-” symbols. The standard color convention for aftermarket speaker cables pairs red with the positive terminal and black (or white) with the negative. Verify this by checking the manual or printed labels near the connectors; some manufacturers use alternative colors like blue, green, or gray for rear channels.

Strip 6–8 mm of insulation from each end of the cable using wire strippers, exposing the copper strands without fraying them. Twist the strands lightly to prevent loose threads from causing short circuits. If the cable has a clear or translucent jacket, locate the ridge or colored stripe running along one side–this typically indicates the positive lead.

For bare wire connections, insert the exposed copper into the spring-loaded or screw-down terminals on the amplifier or speaker. Push spring terminals until they click, ensuring the wire sits fully inside the clamp. For screw terminals, wrap the wire clockwise around the post before tightening to prevent loosening over time. Avoid overtightening, which can strip the threads.

OEM head units and factory speaker harnesses often use non-standard color schemes. Purple may denote front-right positive, while gray could indicate rear-left negative. Refer to the pinout guide for your specific model, as mismatched connections will reverse polarity, resulting in weak, phase-cancelled sound. Test polarity with a 9V battery–briefly touch the wires to the terminals; the speaker cone should move outward; if it retracts, swap the leads.

Banana plugs or spade connectors simplify repeat installations. Crimp or solder them to the cable ends, ensuring the connection is secure and heat-shrink tubing covers exposed metal. Match the plug’s color to the terminal marking: gold for positive, silver for negative. Some high-end systems use bi-wiring, splitting the signal into separate high- and low-frequency paths–mark these cables clearly to avoid crossover distortion.

Twisted-pair cables minimize interference in long runs. For home theater setups, keep speaker cables away from power cords and HDMI lines, maintaining at least 30 cm of separation to reduce electromagnetic interference. If running cables through walls, use CL2- or CL3-rated wiring to comply with fire safety codes. Label both ends of each cable with masking tape or color-coded flags to streamline future troubleshooting.

Check resistance with a multimeter before finalizing connections. Ideal speaker cable resistance should be below 0.1 ohms per meter; anything higher increases signal loss. For 4-ohm speakers, use at least 16-gauge wire; for 8-ohm speakers, 18-gauge is sufficient. Thicker cables (12–14 gauge) are necessary for subwoofers or long runs exceeding 10 meters.

After connecting, power on the system and play a test tone through each channel. Listen for balanced output–imbalanced volume or distorted bass indicates reversed polarity or a loose connection. Adjust EQ settings afterward, as correct wiring ensures accurate frequency response and prevents damage to tweeters from reversed DC offset.
