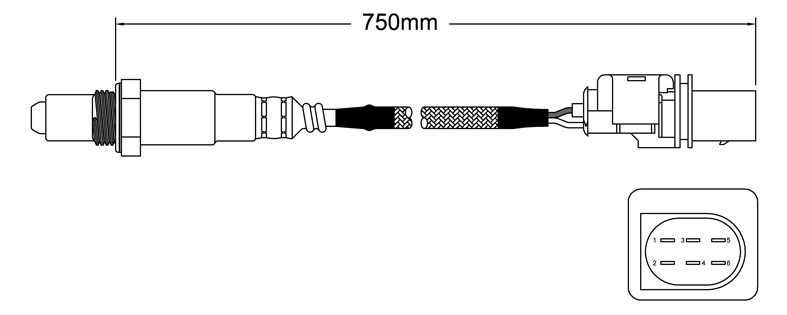

LSU 4.9 lambda probes feature six pins, each serving a distinct function in the signal chain. Pins 1 and 2 (heater circuit) demand 12V power via a relay with matched ground–resistance should stabilize between 2-10 ohms after warm-up. Use a 10A fuse for protection; exceeding current risks ceramic fracture. Pins 3 and 4 (IP and UN) output a 0.45V reference at stoichiometry. Verify voltage swings between 0.1V (lean) and 0.9V (rich) during closed-loop operation. Abnormal readings often trace back to corroded terminals or degraded ECU grounding.

Pins 5 and 6 (IA and VM) carry a pumping current proportional to oxygen concentration. Measure with a milliohm meter: 50-200µA pumping current indicates proper operation, while no current suggests air leaks or severed sensor element. For aftermarket ECUs, ensure compatibility–some piggyback devices require additional pull-up resistors (470Ω–1kΩ) to prevent signal drift. Thoroughly clean connectors with contact cleaner; even 50mΩ resistance can introduce errors at high exhaust flow rates.

Shielded wiring prevents EMI from ignition systems. Route cables at least 50mm from spark plug wires and use ferrite beads if signal noise persists. Test continuity with the engine off–open circuits point to internal failures, while intermittents often stem from vibration-fatigued solder joints. For forced-induction applications, calibrate the sensor’s response curve; excessive boost pressures can skew readings toward false-lean conditions.

Understanding Lambda Probe Circuit Layouts

Match the heater element terminals (usually two white or black wires) to the ECU’s designated pins–most European models route 12V ignition-switched power to one pin while the other grounds through the control module. Swap polarity only after verifying resistance between heater pins: 2–15 Ω at room temperature confirms functional integrity. If outside spec, isolate the probe; prolonged operation risks damaging the catalyst.

Signal Wire Decoding

• Grey or black wire carries 0.1–0.9V DC, calibrated for stoichiometric air-fuel mix–verify voltage on a scan tool or oscilloscope before tapping.
• White shielded pair (if present) grounds through the chassis; ensure continuity without shorting to heater circuits.
• Subaru EJ25 engines use a reverse-polarity signal (0.9–0.1V), requiring adapter harnesses for generic tools.
• Aftermarket wideband units replace the grey wire with a 0–5V output; recalibrate ECU maps accordingly.

Always disconnect the battery before probing; residual capacitance can spike controller memory. Label each wire before splicing–mistakes void emissions compliance.

How to Identify Lambda Probe Connector Pin Configuration by Plug Type

Locate the heating element terminals first–these are typically the two thicker, closely spaced wires (often white or gray) in 4-wire configurations. For 3-wire plugs, the heater circuit shares one ground with the signal wire, identifiable by its single white or red wire paired with a ground trace. Verify polarity by checking resistance: heater pins measure 2–15 ohms, while signal wires show infinite resistance to ground.

Common Connector Pinouts by Plug Shape

Plug Type	Pin 1	Pin 2	Pin 3	Pin 4
Round (3-pin)	Heater (+)	Ground (combined)	Signal	–
Oval (4-pin)	Heater (+)	Heater (–)	Signal	Ground (isolated)
Flat (5-wire, wideband)	Pump (+)	Pump (–)	Nernst cell	Reference air (–)

For wideband units, the flat 5-pin connector follows a distinct pattern: the outer two pins power the pump cell (low current, high impedance), while the center pin carries the Nernst voltage (0–1V). The remaining two wires (often blue/black) form the reference circuit–never reverse these, as improper polarity damages the cell.

Trace wires from the probe to the ECU harness to confirm assignments. The signal wire (black or purple insulation) connects to the ECU’s designated input pin, usually labeled “O2S” or “LSU.” Heater wires (white or red) route to a relay or fused ignition-switched source, often 12V. Color coding varies by manufacturer–never rely solely on wire hue without verifying continuity.

Use a multimeter to test live voltages: heater pins should read battery voltage when the engine runs, while the signal wire outputs 0.1–0.9V in narrowband mode or 0–5V in wideband configurations. If readings deviate (e.g., constant 0.45V), suspect incorrect pin mapping or a faulty device.

Consult the vehicle’s service manual for exact pin numbering–aftermarket connectors often omit labels, but OE plugs include molded numbers or embossed indicators near each terminal. If documentation isn’t available, cross-reference the probe part number with a pinout database, ensuring the plug matches the application (e.g., pre- vs. post-cat placement).

Step-by-Step Connection Color Standards for Upstream and Downstream Exhaust Monitors

Begin by locating the upstream exhaust probe–typically positioned before the catalytic converter–on the vehicle’s harness. The primary signal lead is universally marked with a black (BK) wire, delivering raw voltage readings to the ECU. Connect this directly to the engine control module’s designated input, ensuring no intermediate splices disrupt the 0–1V signal range.

Ground reference for both pre-cat and post-cat units follows a grey (GR) wire in most configurations. Verify continuity between this lead and the vehicle’s chassis or engine block; resistance above 0.5 ohms indicates corrosion or loose terminals requiring immediate repair to prevent signal drift.

The heater circuit for the upstream device uses two wires: a white (WH) for the positive heater feed (often 12V switched) and a brown (BR) for ground. This pairing demands a fuse (typically 10–15A) in-line with the WH lead to protect against short circuits causing overheating.

Downstream probes–mounted after the catalytic converter–adhere to a nearly identical scheme but require attention to subtle variations. The signal lead remains black (BK), though some manufacturers substitute purple (PL) or dark blue (DK BLU) for post-cat applications. Cross-reference with the vehicle’s service manual to avoid misrouting, as mismatches here result in erroneous catalyst efficiency readings.

Heater Circuit Nuances for Downstream Units

Post-cat heater elements frequently utilize white (WH) and tan (TN) wires, diverging from the upstream’s brown ground. Confirm via multimeter that the WH wire receives battery voltage at ignition-on, while the TN lead maintains a solid chassis ground. Failure in this circuit triggers heater malfunctions, logging OBD-II code P0141 (heater performance).

For dual-bank engines (V6/V8), bank-specific probes introduce an additional layer of complexity. Bank 1 (cylinder 1 side) and Bank 2 (opposite) sensors often share wire colors but split at the harness connector. Identify bank-specific leads using the vehicle’s factory pinout: discrepancies here can falsely indicate cylinder-specific misfires or fuel trim errors.

Aftermarket harnesses or modified exhaust systems may deviate from OEM standards. In such cases, trace each wire from the probe connector to its termination point at the ECU or harness junction. Document each wire’s path–especially if splicing is necessary–to prevent signal interference from adjacent circuits (e.g., fuel injector or ignition wires).

Final verification demands an oscilloscope or scan tool monitoring voltage response during engine warm-up. Upstream devices should oscillate between 0.1V and 0.9V at 2500 RPM, while downstream units hover near 0.5V, reflecting exhaust oxygen levels post-converter. Deviations outside these ranges necessitate revisiting connections for shorts, opens, or incorrect polarity.

Common Electrical Connection Problems and Their Effects on Device Accuracy

Check the heater circuit resistance immediately–values outside 2-100 ohms typically indicate a broken internal filament or corroded connectors. Use a multimeter set to ohms mode, probing the H+ and H- terminals while the harness remains disconnected from the ECU. If resistance reads OL (open loop), inspect for frayed cables or melted insulation near exhaust manifolds where heat exposure exceeds 350°C, degrading PVC jackets.

Verify signal voltage consistency–fluctuations below 0.1V or above 0.9V at idle usually suggest reference voltage dropout. Probe the VS (signal) pin at the control module while the engine runs; a stable 0.45V reading confirms proper stoichiometric feedback. Erratic swings often trace back to:

• Intermittent ground loops–measure between chassis ground and the module’s ground terminal, ensuring less than 50mV difference
• Voltage leaks–inspect loom splices for partial shorts where bare copper contacts adjacent shields
• ECU pin oxidation–clean terminals with 1200-grit sandpaper, then apply dielectric grease

Examine the pigtail connector for moisture ingress–even 0.5% humidity accelerates terminal corrosion, increasing contact resistance by 150% over six months. Disassemble the connector housing, dry with compressed air at 90 psi, and coat with nickel-based anti-seize compound rated for -40°C to +260°C. Replace any seals showing cracks deeper than 0.3mm or hardness exceeding 80 Shore A durometer.

Correlate upstream and downstream readings–discrepancies exceeding 0.3V between adjacent probes indicate singular failure points, not global fuel trim issues. Log data via OBD-II using a PID scanner sampling at 10Hz; sudden voltage drops coinciding with ECT sensors reaching 90°C often reveal cracked ceramic substrates rather than wiring faults.

Inspect harness routing–avoid routing near high-current alternator cables where magnetic interference induces 100mV ripple. Maintain minimum 25mm separation per SAE J1128 standards, securing looms every 150mm with heat-resistant nylon ties rated for 125°C. Replace any ties showing UV discoloration or embrittlement under 1kg tensile force.

Test the heater relay under load–apply 12V across coil terminals while monitoring current draw; deviations exceeding ±10% of the nominal 3.5A suggest relay contact pitting or coil degradation. If draw drops below 2.8A, replace the relay to prevent incomplete catalytic conversion during cold starts, where CO emissions spike by 40% before reaching light-off temperature.
