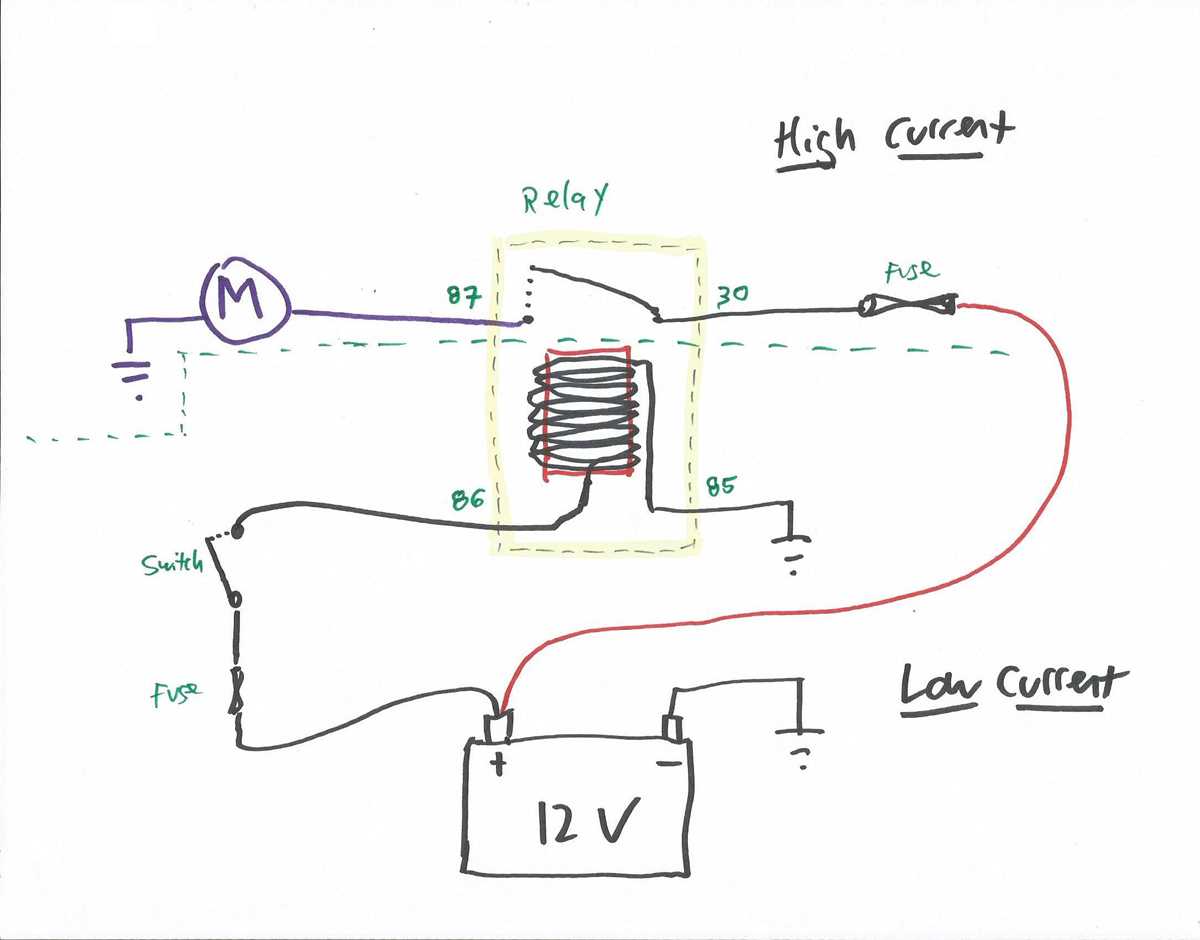

How to Wire a 4 Pin 12 Volt Relay Step-by-Step Guide with Diagram
Connect the control circuit to terminals 85 and 86–these manage the coil activation. Use terminal 85 for ground or a switched negative source and 86 for the 12-volt positive signal. Ensure the power feed is fused within 7–10 inches of the battery to prevent short-circuit damage. A 10–15 amp fuse is standard for most automotive applications.
Attach the load output (terminal 30) to the accessory or device requiring power, such as a cooling fan, headlights, or fuel pump. Terminal 87 serves as the switched output–link it directly to the load. For high-current devices exceeding 30 amps, upgrade to a heavy-duty switch with a rating matching the load’s peak draw. Always route wires away from sharp edges and heat sources to avoid insulation failure.
Test the circuit before finalizing connections. Apply 12 volts to the coil terminals–an audible click confirms proper operation. Use a multimeter to verify voltage at terminal 87; it should match the input voltage when activated. If the switch fails to engage, check for loose connections, corroded terminals, or a blown fuse. For delayed-on or timed circuits, add a resistor or diode across the coil to protect sensitive electronics from voltage spikes.
For installations with multiple switches, label each wire with heat-shrink tubing or tags. Use 18–14 AWG wire for the control side and 12–10 AWG for the load side, depending on current draw. Avoid soldering near plastic housings–heat damage can compromise the switch’s sealing. If modifying an existing harness, trace the original wiring first to prevent unintended shorts.
Understanding 12V Switching Component Connection Schematics
Always start by matching the numbered terminals on the control module to the correct circuit elements. Terminals 85 and 86 handle the activation coil, with 85 typically grounded and 86 linked to the triggering source–such as a switch or sensor. Verify the triggering voltage threshold: most 12V solenoids require at least 8V to engage reliably, though 9-10V ensures consistent operation under load.
Connect the load terminals–30 (common) and 87 (normally open)–to the power source and device respectively. Use 18 AWG wire for currents under 10A and 16 AWG for up to 15A; exceed these limits only with soldered joints or crimped terminals rated for the expected amperage. For inductive loads like motors or solenoids, insert a flyback diode (1N4007) across 85 and 86 to suppress voltage spikes that can damage sensitive components.
Test the circuit with a multimeter before full activation. Measure continuity between 30 and 87 when the coil is energized; absence of continuity indicates a faulty unit or incorrect terminal pairing. For pulsed applications, confirm the duty cycle–most mechanical switching assemblies degrade prematurely if cycled faster than 5 Hz. Replace any component showing visible corrosion or heat discoloration immediately.
The table below outlines common failure modes and their diagnostic checks:
| Symptom | Diagnosis | Solution |
|---|---|---|
| Coil not engaging | Voltage at 86 | Check trigger source or ground |
| Burning smell | Current > rated load | Upgrade wire gauge or component |
| Erratic switching | Oxidized contact points | Clean terminals or replace unit |
| No continuity at 87 | Internal open circuit | Verify with known-good unit |
For high-current applications (above 20A), use a dual-coil configuration with two identical switching assemblies in parallel to distribute the load evenly. Ensure both coils are triggered simultaneously; a 100ms delay between activations can cause arcing and premature wear. When using microcontrollers as triggers, optocouplers (e.g., PC817) isolate low-voltage logic from the 12V system, preventing ground loops.
Avoid mounting the component near heat sources or vibrating machinery; thermal expansion and mechanical stress reduce lifespan. If sealing is required, use silicone grease on the contact points–avoid petroleum-based lubricants, which attract dust and cause resistive buildup. For automotive applications, route wires away from sharp edges and secure with zip ties every 150mm to prevent chafing.
When troubleshooting silent failures, measure the coil resistance: typical values range from 50Ω to 120Ω. A reading outside this range indicates a shorted or open winding. For units submerged in fluids, ensure watertight sealing or replace with a hermetically sealed model–corrosion begins within 72 hours of moisture exposure, even in treated circuits.
How to Determine the Terminals on a 4-Contact 12V Switching Module
Examine the module’s housing for engraved symbols–these markings typically follow an industry-standard pattern. The coil inputs are usually labeled 85 and 86, often positioned diagonally from each other. The load terminals carry 30 (common) and 87 (normally open), with 30 always connected to the power source when activated.
Use a multimeter set to continuity mode to verify: connect probes to 85 and 86; a resistance reading between 50 and 120 ohms confirms the coil. Switch probes to 30 and 87 in rest state–the meter should show no continuity unless the coil is energized, indicating the normally open state. Swapping probes between 30 and 87a (if present) should show continuity without activation, revealing the normally closed terminal.
Common Missteps in Terminal Identification
Never assume terminal positions based solely on physical layout–manufacturers occasionally deviate from standard placements. Some compact modules swap 87 and 87a locations, while others omit 87a entirely. Relying on visual alignment alone risks incorrect connections, potentially damaging sensitive equipment or creating unintended circuits.
Check for additional markings like “+” or “COM”–these often correspond to 30 (positive/common), while “NO” (normally open) aligns with 87. Modules designed for automotive applications sometimes include diode suppression, requiring correct polarity for 85 (negative) and 86 (positive trigger). Reversing these can lead to coil burnout or erratic switching behavior.
For unmarked modules, trace internal copper traces under bright light–coil contacts typically feature thinner traces connecting to two isolated points, whereas load contacts use thicker traces leading to larger solder pads. If available, consult the manufacturer’s datasheet; even partial model numbers can unlock precise terminal layouts.
When testing, always power the module with a current-limited source–applying full voltage without load can fuse contacts or destroy micro-switching components. A 12V bench supply with adjustable current (set to 100mA max) prevents accidental shorts while verifying correct terminal functions through observed mechanical clicking.
Step-by-Step Connection Guide for a Basic Four-Terminal Switching Device
Begin by identifying the control coil terminals–these will be the thinner, low-current inputs marked 85 and 86 on most units. Connect terminal 85 directly to the triggering source, such as a switch or sensor output, ensuring the voltage matches the coil’s rating (typically 12V DC). Terminal 86 should link to the negative side of the power supply or ground. Verify the coil resistance with a multimeter; values between 50-120Ω indicate proper operation.
Integrating Power and Load Paths
Locate the high-current contacts–usually designated 30 (common) and 87 (normally open). Wire terminal 30 to the positive supply line feeding the load, ensuring the fuse rating matches the circuit’s current draw (e.g., 10A for standard automotive applications). Attach terminal 87 to the device being controlled, such as a fan, light, or pump. For inductive loads, add a flyback diode across the coil to suppress voltage spikes–anode to 86, cathode to 85.
Test the setup in stages: first, confirm the coil energizes with an audible click when the trigger is activated. Measure voltage across 30 and 87–it should match the supply voltage when engaged. If no power is detected, check for continuity between 30 and 87 with the coil energized, and inspect all joints for loose connections or oxidation. For extended durability, use crimped terminals and heat-shrink tubing on exposed wires to prevent short circuits.
Integrating a 4-Contact Electromagnetic Switch to a Direct-Current Supply and Control Device
Attach the high-current output terminal of the coil driver to the designated contact point marked for load connections–typically the larger spade connector–ensuring secure attachment with a crimping tool or solder joint to prevent voltage drop. The input side of this terminal must link directly to the device requiring activation, such as a cooling fan, auxiliary lighting, or motor, while its return path routes through the opposing output connector back to the negative terminal of the power supply. Verify polarity with a multimeter before finalizing connections; reversed polarity can damage sensitive components or render the circuit inoperative.
For the control circuit, wire the activation coil’s smaller connectors to a manual toggle, push-button, or sensor output, observing correct orientation–failure to do so risks backfeeding voltage into the switch mechanism. Use 18-gauge wire or thicker for this segment to handle startup surges common in inductive loads; thinner wires may overheat under sustained draw. If interfacing with microcontrollers or solid-state outputs, add a flyback diode across the coil terminals to absorb transient spikes, protecting upstream electronics from erratic behavior or failure.
Ground the common return path of the entire setup to a chassis point or dedicated negative bus bar, avoiding shared paths with high-noise sources like ignition systems or alternators, which introduce interference. For relocatable setups, employ a fused link rated at 125% of the maximum expected load amperage between the power source and the electromagnetic switch’s main feed, positioned as close to the battery as feasible–this minimizes fire risk in short-circuit scenarios.
Test operation under load by engaging the trigger mechanism; listen for a distinct click confirming proper actuation and check for overheating at contact points within the first 30 seconds. Should arcing or burning odors occur, immediately disconnect power and inspect for inadequate gauge conductors, loose joints, or misaligned contacts, rectifying before re-energizing.
