Step-by-Step PLC Wiring Diagram Guide for Industrial Automation Systems
Begin by isolating critical signal pathways–separate low-voltage control circuits (24V DC) from high-power feeds (230V AC or 400V AC) using dedicated terminal blocks for each voltage class. Label every conductor at both ends with unique, machine-readable identifiers (e.g., CTRL_MOTOR_1_A for control wire A of motor 1) and match labels to the terminal assignment table in the documentation. Reserve at least 20% spare terminals on every rail for future expansions or diagnostic overrides.
Adopt a modular rail arrangement: split the panel into functional zones (power input, controllers, actuators, sensors) with 30 mm vertical busbars spaced ≥50 mm apart to prevent inductive coupling. Ground each zone’s busbar independently, bonding all grounds at a single star point located within 50 cm of the primary controller’s 0V reference plane. Avoid daisy-chaining grounds–use copper straps (minimum 6 mm² cross-section) for every connection.
Integrate safety interlocks directly into the schematic: use normally-open relay contacts in series with emergency stop circuits and assign each relay coil a separate 2 mm² fused feed derived from an upstream circuit breaker. Test every interlock path with a 10 kΩ resistor across contacts to verify continuity before applying power. Color-code cables according to IEC 60445: red for 230V AC live, blue for neutral, yellow-green striped for protective earth, and black or white for 24V DC.
Document loop resistances: measure and record the resistance of every actuator circuit under both cold (20 °C) and operational (50 °C) conditions. Limit voltage drop to ≤0.5 V per 100 m for 24V DC circuits by sizing conductors with at least 1 mm² cross-section for runs ≤30 m and 1.5 mm² for longer distances. Include these metrics in an appendix table next to the schematic.
Embed termination diagrams alongside the primary drawing: show exact pin assignments for multi-pin connectors (e.g., M12, D-sub, terminal blocks) using exploded views with annotated connector housing markings. Specify torque values for screw terminals (typically 0.5 Nm) and crimp tools used (identifier and ratchet setting). Keep all schematics, termination notes, and torque logs in a version-controlled digital repository synchronized with the physical build.
Connecting Industrial Controllers: A Field-Tested Approach
Start by splitting power and signal lines into separate ducts. Industrial automation systems fail far less often when 24V control circuits run in metal conduits at least 30 cm from AC mains. Use stranded copper conductors sized 0.75 mm² for signals and 1.5 mm² for actuators–this balances flexibility with current capacity.
Label every conductor at both ends with heat-shrink tubing and a printed tag before crimping. A 3-letter prefix plus sequential number system prevents mix-ups: SEN-001 for sensors, ACT-001 for actuators. Terminal blocks marked with the same identifiers should match schematics precisely; a single misplaced wire can cascade into hours of troubleshooting.
Ground the controller chassis and all shields at one single point near the main power entry. Daisy-chaining shields creates ground loops that induce 50/60 Hz hum. For shielded twisted pairs, terminate only the shield at the cabinet panel–leaving it uncut at the sensor end prevents noise coupling into signal cores.
Install fuses rated 125 % of the maximum device current directly on every branch circuit. A 400 mA fuse protects a 320 mA solenoid coil; anything larger risks coil burnout during inrush. Position fuse holders vertically on DIN rail for easy inspection and replacement.
Test each circuit with a multimeter set to continuity mode before applying power. Probe resistor dividers, relay coils, and inductive loads individually; 1–2 Ω indicates a healthy solenoid, while open-circuit readings reveal broken conductors or cold solder joints. Record values in a spreadsheet alongside wire IDs for baseline reference.
Connect redundant power supplies in hot-standby configuration. Tie both units to a common busbar, then route output through a diode module rated 2× the total load. During switchover, voltage dips less than 5 ms–well below the 20 ms dropout threshold of most memory modules.
Finalize documentation with clear, vector-based drawings scaled to A3 size. Include exact terminal numbers, color codes (blue for common, brown for +24V), and exact cable lengths. Staple a printed copy to the inside of every cabinet door–field engineers find this faster than scrolling through PDFs on a tablet.
Step-by-Step Control Unit Power Supply Connection Schematics
Ensure the system’s main switch is rated for 24VDC at minimum 2A to handle transient loads from inductive components like relays or motor starters. Connect the positive terminal of the power source directly to the designated input on the controller’s terminal block, typically labeled L+ or V+, using 1.5mm² stranded copper cable with a ferrule crimped at the end. Ground the negative return (M or V-) to the chassis via a dedicated star point–avoid daisy-chaining grounds to prevent voltage drops under load. For redundancy, install a 250mA slow-blow fuse within 10cm of the L+ connection to protect against short circuits in downstream circuits.
Critical Wiring Sequence
- Verify the power supply’s output voltage with a multimeter before energizing the system–target 24.0VDC (±0.5V).
- Label all conductors at both ends to match the terminal strip (e.g.,
PSU_L+ → TB1-1). - Route cables away from high-frequency interference sources like variable-frequency drives by maintaining a 20cm separation.
- Secure all connections with a torque screwdriver set to 0.5Nm to prevent loosening over time.
- Apply dielectric grease to screw terminals if operating in humid or corrosive environments.
For dual-voltage setups (e.g., 120VAC primary with 24VDC secondary), isolate the primary and secondary windings of the transformer using a 1mm-thick insulating sheet. Add a varistor (MOV) rated for 150VAC across the primary coil to clamp voltage spikes from grid disturbances. Test continuity between the secondary ground and chassis ground with a megohmmeter–readings below 1MΩ indicate compromised isolation and necessitate component replacement.
Connecting Digital Input Modules to Industrial Sensors and Control Devices
Begin by verifying the module’s voltage compatibility with the sensor. Most industrial automation controllers accept 24VDC discrete signals, but some legacy systems rely on 12VDC or even 48VDC. Check the manufacturer’s specifications–mismatched voltage leads to signal failure or hardware damage. Always use a multimeter to confirm live voltage before making connections.
Strip the cable ends to expose 8–10 mm of bare conductor, ensuring no stray strands remain. Twist the strands firmly to prevent short circuits when tightened under terminal screws. For stranded wire, use ferrule crimps–these prevent wire fray and improve conductivity. Solid core wire requires no ferrules but demands exact stripping length to avoid loose connections.
Ground shields at one end only–typically at the programmable logic side. Grounding both ends creates ground loops, introducing noise that corrupts signal integrity. For long runs exceeding 50 meters, employ twisted-pair shielded cables rated for 150 Ω impedance. Avoid routing sensor lines parallel to high-current AC lines; maintain a 30 cm minimum separation or use steel conduit.
Below are common sensor types with their typical wiring configurations:
| Sensor Type | Module Terminal | Sensor Wire | Polarity/Note |
|---|---|---|---|
| Two-wire induct. proximity | Input +, 0V | Brown, Blue | Brown = +, Blue = –, disconnect loop at 0V |
| Three-wire NPN | Input +, 24V+, 0V | Brown, Black, Blue | Brown = 24V, Black = signal, Blue = 0V |
| Mechanical switch | Input +, 0V | Any two colors | No polarity, use pull-up resistor if needed |
| PNP output | Input +, 24V+, 0V | Brown, Black, Blue | Brown = 24V, Blue = signal, Black = 0V |

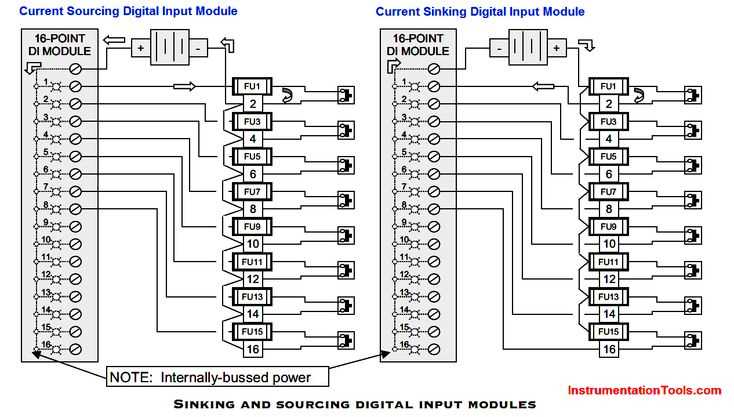

For sinking inputs (NPN devices), connect the sensor’s signal wire directly to the module’s input terminal; the module’s internal pull-up resistor maintains logic high when the sensor is inactive. For sourcing inputs (PNP devices), the sensor itself supplies current–connect the module’s input to the sensor’s 0V terminal. Mixing these types without proper configuration will yield false triggers or dead inputs.
Test each input after wiring using a known-good actuator–a hand tool, pneumatic cylinder, or simple pushbutton. Activate the sensor while observing the automation controller’s LED indicators; steady illumination confirms proper signal flow. If the LED flickers or remains off, recheck polarity, voltage level, and shield grounding. For high-speed pulse counting, ensure the module’s filter delay (typically 0.2–10 ms) does not attenuate valid signals.
Secure all connections with terminal blocks rated for 1.5x the expected current draw–most discrete modules sink no more than 8 mA per channel. Over-tightening screws can strip threads; torque to 0.5 Nm using a calibrated screwdriver. Label every wire termination immediately to prevent misconfiguration during future maintenance.
Configuring Analog Input Connections for 4-20mA and 0-10V Signals
Use shielded twisted pair cables for all analog connections to minimize noise interference–ground the shield at one end only, preferably at the controller side. For 4-20mA loops, ensure the transmitter’s compliance with the control system’s input impedance; most accept ≤250Ω, but verify against manufacturer specs. Series resistors must match the maximum allowable burden (e.g., 250Ω × 20mA = 5V drop) to prevent signal distortion. Maintain a dedicated power supply for each loop if isolating sensors; avoid daisy-chaining transmitters to prevent ground loops.
For 0-10V inputs, connect the positive signal lead directly to the analog input terminal and the negative lead to the system’s common reference–ensure this reference is not shared with digital grounds or inductive loads, as voltage spikes ≥12V can damage inputs. Calibration demands a precision voltage source: verify linearity at 0V, 5V, and 10V, adjusting gain and offset via configuration software. If signals exceed 10V (e.g., ±10V bipolar), use resistor dividers to scale voltages safely–calculate values using Vout = Vin × (R2 / (R1 + R2)), selecting resistors with ≥1% tolerance to avoid drift.
Troubleshooting Common Issues
If 4-20mA signals read erratically, measure loop current with a multimeter at the sensor and input terminals; discrepancies >0.1mA indicate faulty transmitters, broken leads, or incorrect termination. For 0-10V instability, confirm the absence of AC ripple (>50mV peak-to-peak invalidates readings) using an oscilloscope–add a 10μF decoupling capacitor across input terminals if ripple exceeds specs. Always log wiring revisions: note cable lengths, terminal labels, and jumper settings (e.g., sink/source mode) to reproduce configurations reliably after maintenance.
