Complete Guide to Wiring Your Camper Trailer Step by Step
Begin with a 12V deep-cycle battery rated for at least 100Ah–this ensures power longevity during extended trips without shore hookups. Secure the battery in a vented, corrosion-resistant box mounted low and centered on the chassis to prevent acid leaks and maintain stability.
Choose tinned copper wire (minimum 8AWG) for all primary circuits–standard copper corrodes within months in humid or salty environments. Run separate circuits for lighting, charging, and appliances, each fused within 7 inches of the battery terminal. A 30A main breaker protects the entire system.
Critical connections: Use heat-shrink butt connectors crimped with a ratcheting tool, then sealed with adhesive-lined rings. Exposed splicing or twisting leads to voltage drops and fire risks under vibration. Route wires through grommet-lined chassis holes to prevent chafing.

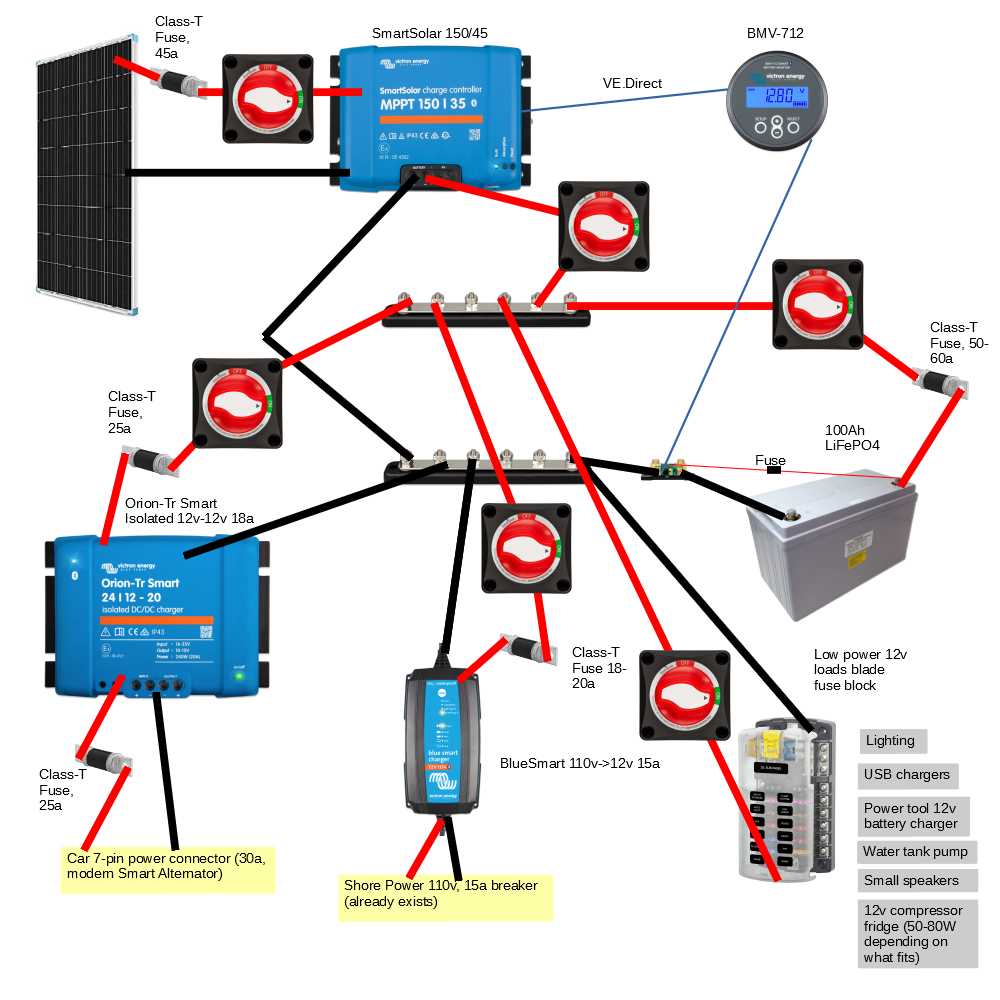

Install a dual-input smart charger with solar and alternator priorities–this prevents battery drain during towing while keeping panels optimized for low-light conditions. Add a 15A resettable circuit breaker between solar regulator and battery as a failsafe.
A 4-way fuse block simplifies troubleshooting. Dedicate one slot for LED interior lights (
Test all connections with a multimeter before sealing–voltage should match the battery at every endpoint (0.5V drop acceptable over 20 feet of 8AWG wire). Secure loose runs with nylon clamps every 12 inches to prevent sagging under road vibrations.
Electrical Blueprint for Recreational Haulers

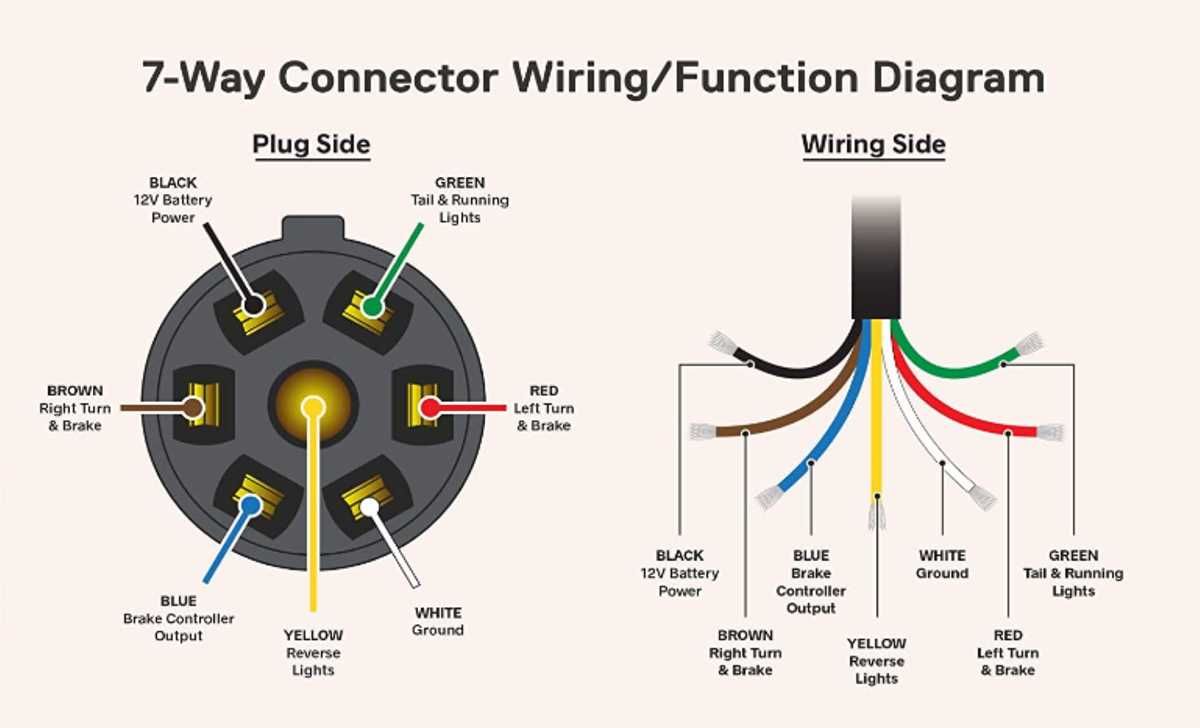

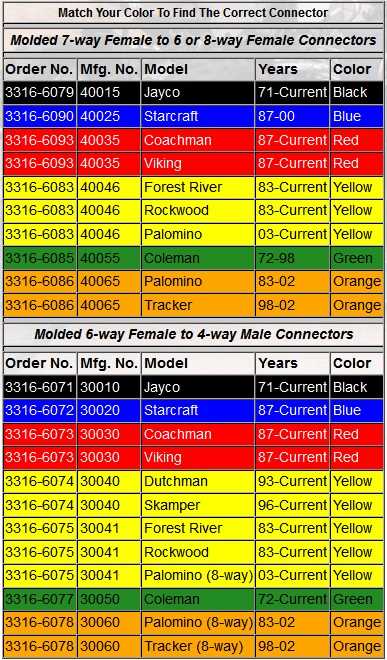

Begin by mapping a 7-way RV blade connector to your vehicle’s tow package: pin 1 (brown) for tail/running lights, pin 2 (yellow) for left turn/brake, pin 3 (green) for right turn/brake, pin 4 (white) as ground, pin 5 (blue) for brake controller output, pin 6 (red) for aux power (12V), and pin 7 (black) for reverse lights. Use 12-gauge stranded copper wire for all circuits except ground, where 10-gauge minimizes voltage drop over 15-foot runs. Install a 30-amp marine-grade circuit breaker within 7 inches of the battery to prevent overcurrent; fuse the brake controller at 25 amps. For lithium batteries, integrate a battery management system (BMS) with 100A continuous discharge capability, pairing it with a 50A Anderson SB connector for solar input.
Secondary Circuit Protection
Isolate fridge, LED interior strips, and 12V sockets with individual 15-amp ATO fuses mounted on a compact fuse block near the battery. Route separate 14-gauge wires from each device to the fuse block, then consolidate into a single 12-gauge feed back to the battery’s positive terminal. Use heat-shrink butt connectors crimped with a ratcheting tool for splice points; seal connections with adhesive-lined heat-shrink tubing. Test voltage drop at the furthest outlet with a multimeter under full load (≤0.5V loss indicates proper sizing). For dual batteries, configure a manual transfer switch rated for 600W continuous power to toggle between house and starter systems without crossover.
Key Elements of an Overlanding Vehicle Electrical Setup
Start by selecting a deep-cycle battery rated for 100Ah or higher to handle sustained power demands without voltage drops. AGM types offer resilience to vibration and lower maintenance, while lithium options provide lighter weight and faster charging–ideal for off-grid use. Ensure the battery’s CCA (Cold Cranking Amps) aligns with the vehicle’s starter motor requirements, typically 600–800 CCA for most 4x4s. Pair it with a 100A or 150A alternator if auxiliary systems exceed the factory output, prioritizing models with dual-output capabilities to isolate critical circuits.
Install a fused distribution block with 4–6 circuits to segregate lighting, refrigeration, and auxiliary outlets. Use 10-gauge wire for 12V lights and 6-gauge for high-draw components like inverters or winches, with crimp connectors and heat shrink tubing to prevent corrosion. Add a 30A or 50A circuit breaker near the battery for overcurrent protection, sized 125% of the expected load. For split-charge systems, integrate a voltage-sensitive relay (VSR) or DC-DC charger to manage dual-battery setups without manual switching, ensuring charging thresholds are set to 13.8V–14.4V to avoid sulfation.
Ground all components directly to the chassis using 4-gauge or thicker wire, avoiding bolt-on connections to painted or anodized surfaces. Route cables away from heat sources and sharp edges, securing them with nylon clamps every 12–18 inches. For solar integration, match panel wattage (minimum 200W) to the charge controller’s capacity–MPPT for efficiency gains up to 30% over PWM in low-light conditions. Test completed connections with a multimeter, verifying
Creating Your Off-Road Vehicle Electrical Schematic from Scratch
Begin by listing all components requiring power: brakes, taillights, marker lamps, battery, charging system, and auxiliary circuits. Group them by function–safety-critical (e.g., brake controllers), lighting (e.g., clearance lights), and convenience (e.g., USB ports). Use this breakdown to dictate the flow of your layout. Allocate a separate circuit for each group, ensuring no single failure disrupts multiple systems. Label every circuit with its amperage rating (e.g., 10A for LED strips, 20A for a refrigerator) to prevent overloads.
Component Layout and Wire Selection
| Component | Wire Gauge (AWG) | Color Code | Fuse Rating |
|---|---|---|---|
| 7-way connector (ground) | 10 | White | N/A |
| Reverse lights | 16 | Purple | 10A |
| Electric brakes | 12 | Blue | 30A |
| Battery charging line | 6 | Red | 50A |
Route wires along existing chassis rails or frame members, securing them every 18 inches with nylon clamps. Avoid sharp edges or moving parts; use conduit for sections passing through metal openings. Select wire colors matching the table above to simplify troubleshooting. For 12V circuits, stick to red (positive) and black (negative); for auxiliary circuits, use blue or green to differentiate.
Test each circuit with a multimeter before finalizing connections. Verify voltage at the farthest point of each run–expect no more than a 0.5V drop across 16-gauge wire under load. Crimp all terminals with a hydraulic crimper for corrosion resistance, then apply dielectric grease to connectors exposed to the elements. Document every splice, junction, and fuse location on your schematic for future reference.
Common Electrical Errors in Mobile Living Units and Prevention Techniques
Skipping voltage drop calculations leads to dim lights and weak appliances on long cable runs. Use the formula: *Vdrop = (2 × L × I × R) / 1000*, where *L* is length in meters, *I* is current in amps, and *R* is conductor resistance (0.0172 Ω/m for copper). For a 30-meter 12V circuit pulling 10A, voltage drop exceeds 1V, reducing efficiency by 8%. Install thicker cables–minimum 6 AWG for runs over 5 meters–or add a secondary power source near endpoints.
Ignoring fuse placement near batteries creates fire hazards. A 100A fuse 30cm from the battery protects against short circuits, but placing it 3 meters away leaves the cable exposed. Use ANL fuses with proper ratings (fuse size = 125% of continuous current) and mount them in weatherproof holders within 7 inches of the battery terminal. Test resistance with a multimeter before finalizing connections to ensure
Mixing gauge sizes in a single circuit causes overheating at transition points. A 10 AWG wire feeding a 14 AWG extension under sustained load will degrade the thinner wire within hours. Maintain consistent gauge throughout or use crimp connectors rated for the thicker wire, then step down gradually with heat-shrink butt splices. Verify temperatures with an infrared thermometer during load testing; >75°C indicates a critical error.
Connector Failures and Environmental Hazards
Using automotive-grade connectors in exposed outdoor setups invites corrosion. Rings terminals under bolt-on power posts corrode within months if not sealed with dielectric grease. Replace with tin-plated marine terminals or soldered joints covered in adhesive-lined heat shrink. For trailer-side connections, use IP67-rated plugs (e.g., Anderson SB50) and apply contact cleaner every 6 months to maintain
Overlooking polarity protection destroys electronics. A single reversed connection to a 12V compressor fridge can burn the control board ($150+ replacement). Install a 150A battery isolator or polarity-sensitive relay near the main entry point. For DIY builds, add a 1N4007 diode in series with each positive line–cheap insurance against human error. Label all connections with colored shrink tube: red for hot, blue for ground, yellow for switched circuits.
Underestimating parasitic draws drains batteries overnight. A forgotten LED indicator or USB charger left on pulls 0.2A, depleting a 100Ah battery in 21 days. Map every circuit with a clamp meter; anything >50mA should have a manual disconnect. Use latching relays for high-draw accessories like water pumps (typically 5-10A) to prevent accidental activation. Add a kill switch that cuts all non-critical circuits when the primary ignition is off.
Neglecting strain relief on flexible cables causes wire fatigue at connection points. A 6 AWG cable swinging loose in a junction box will fracture within 100 miles of vibration. Secure all cables with P-clamps every 30cm and add spiral wrap for additional support. For moving components (e.g., slide-outs), use coiled service loops with a minimum bend radius of 8× the cable diameter. Inspect all connections annually with a torque screwdriver–loose terminals generate heat and resistance, increasing failure risk by 300%.
